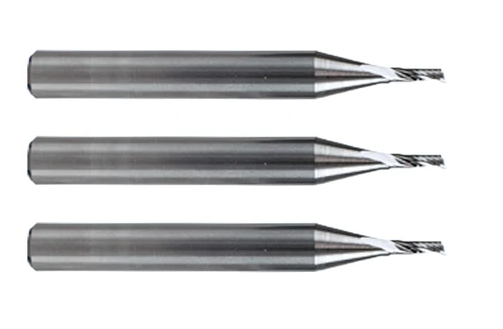

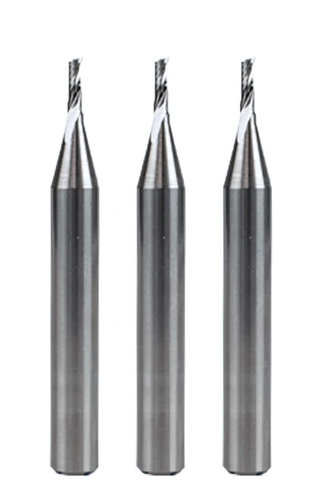

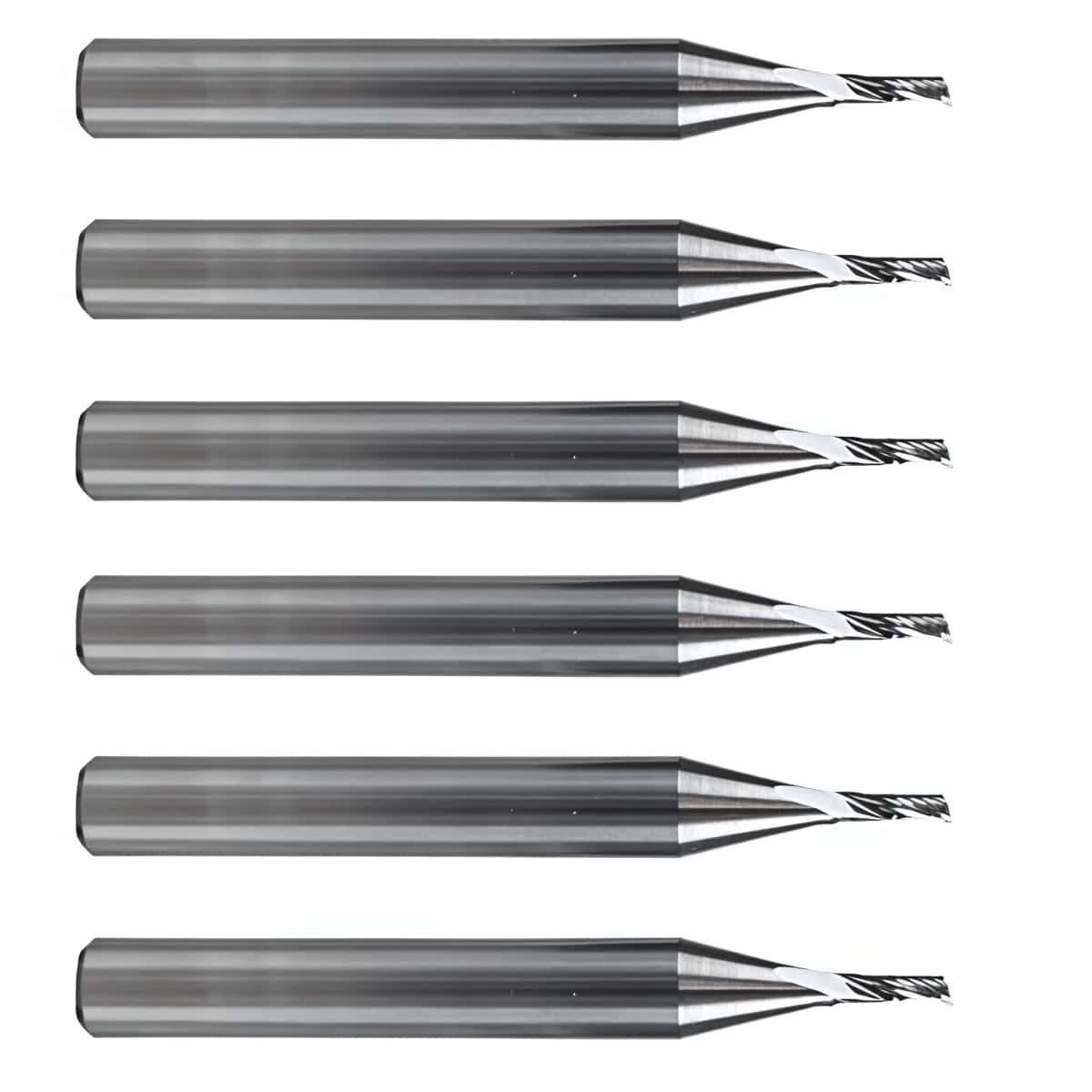

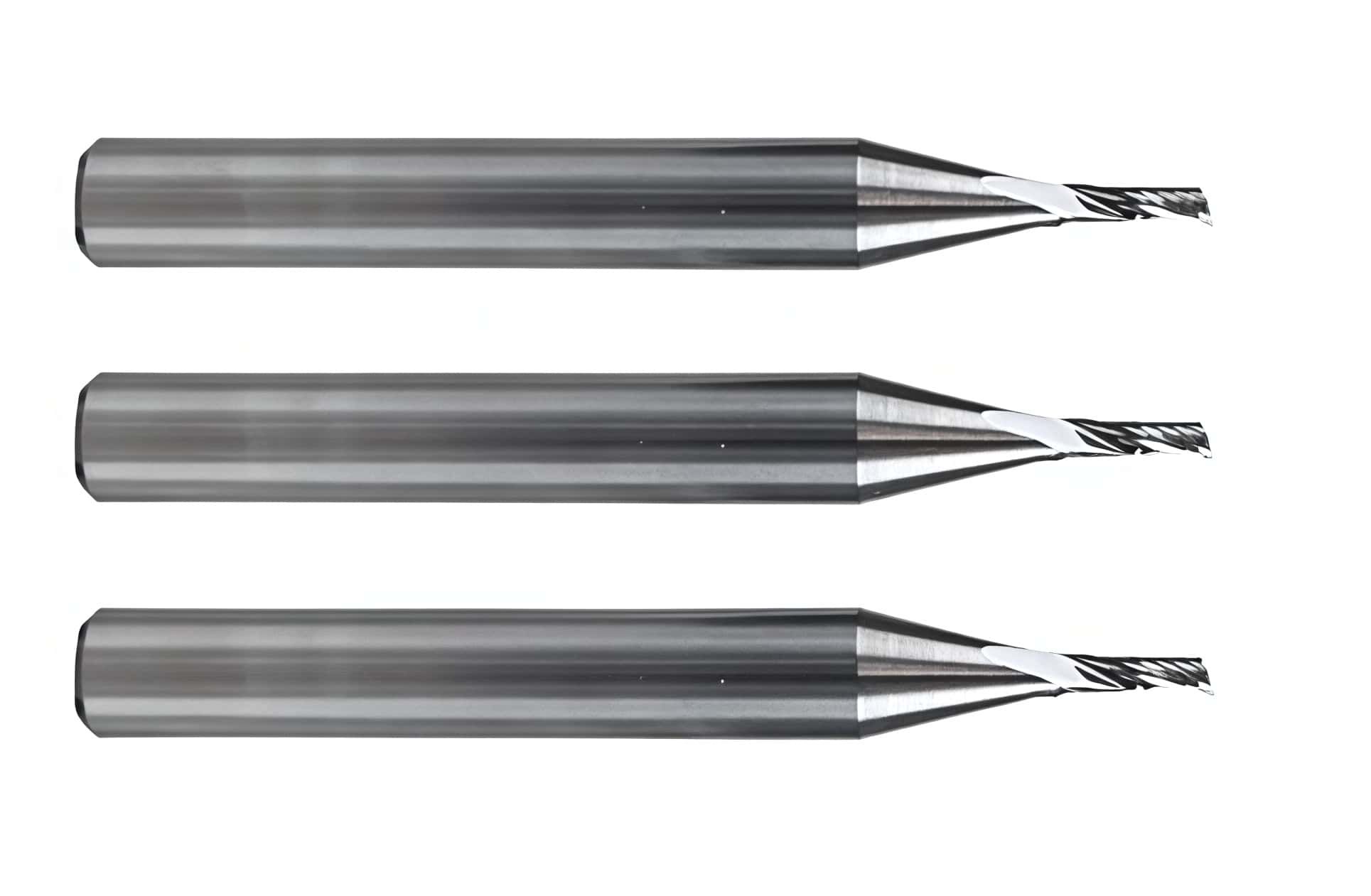

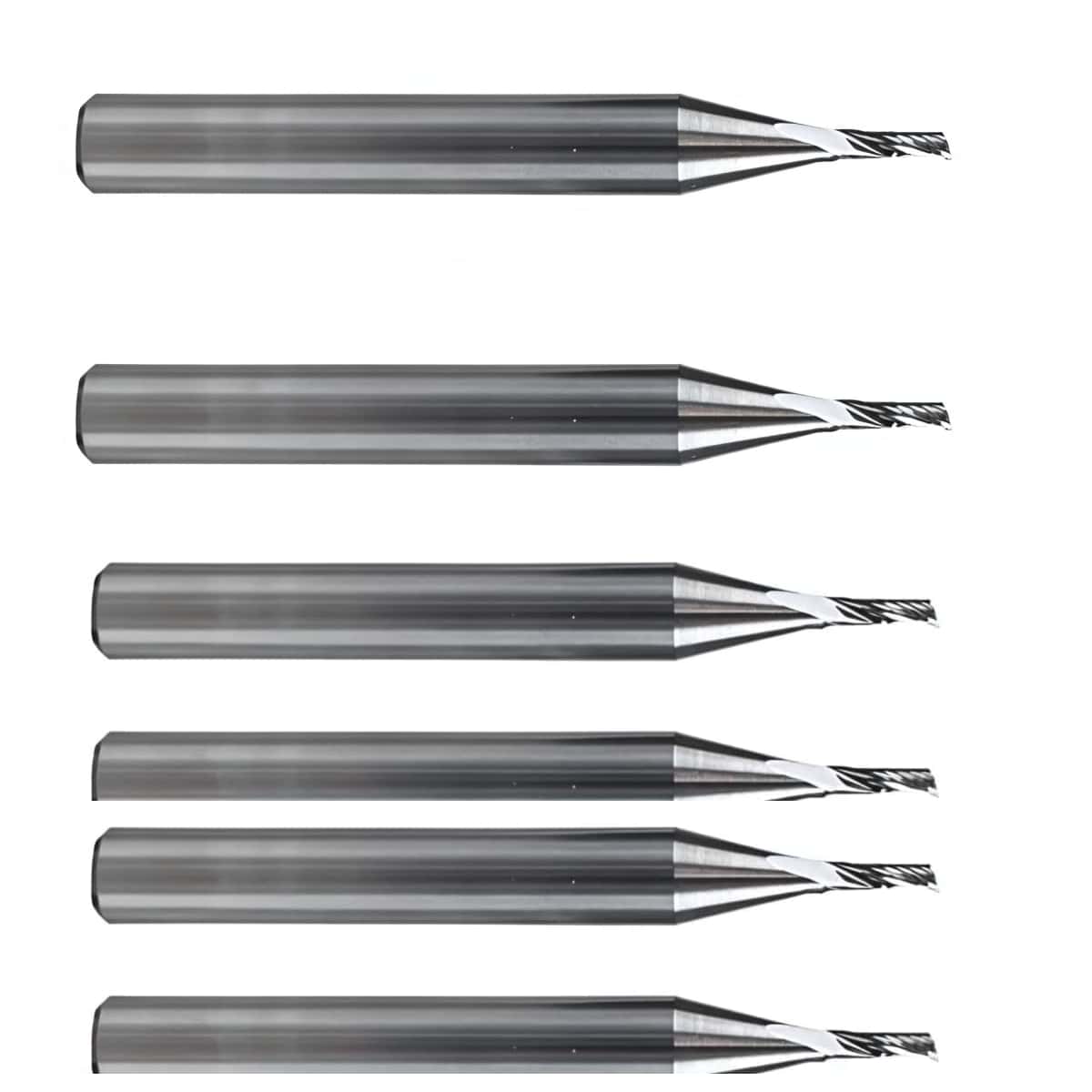

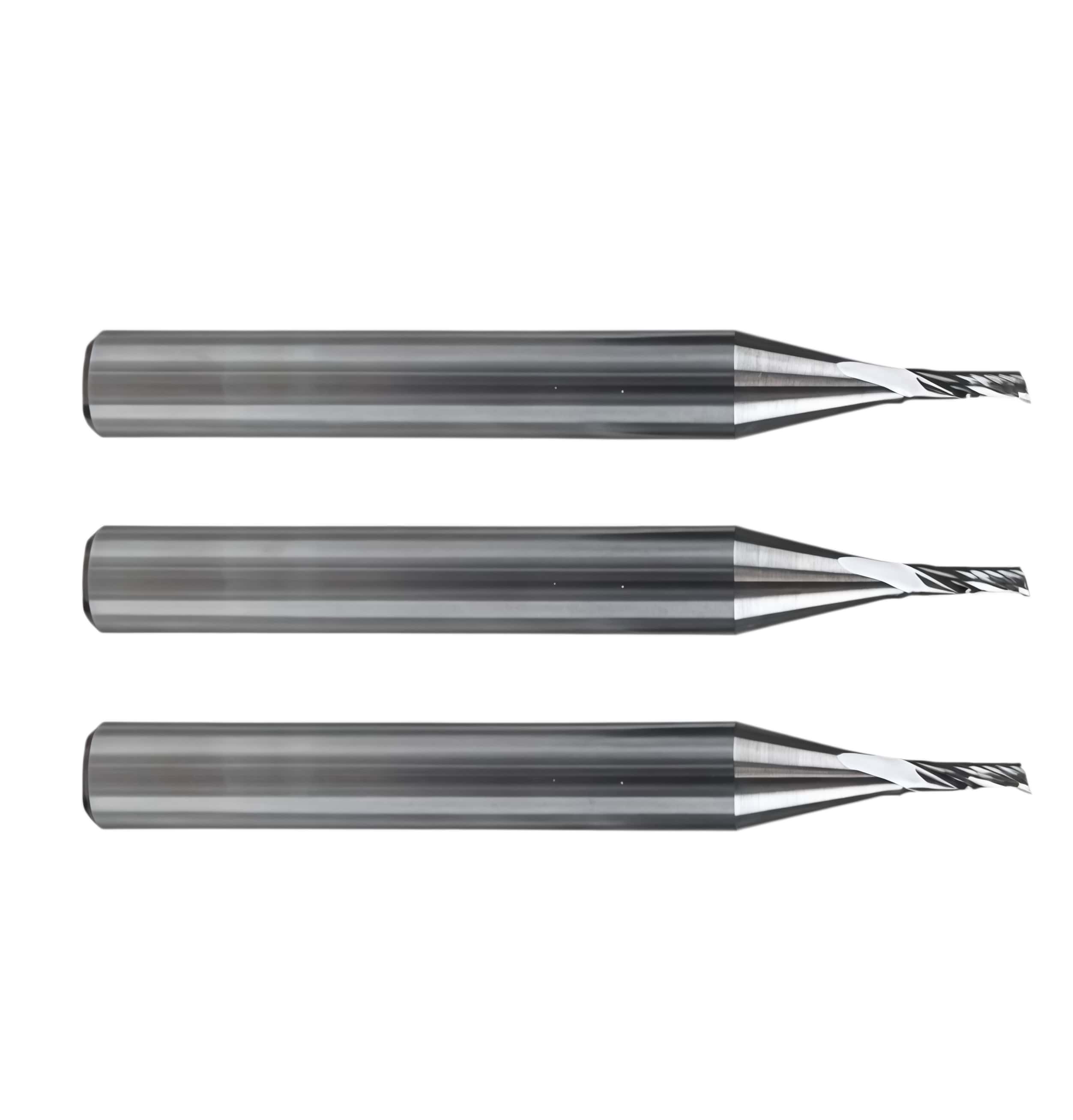

Summa 500-9875 Multipurpose Router Bit D6/2 L50/6 1FL UC MP For Summa Flatbed Vinyl Cutters Shop

Summa 500-9875 Multipurpose Router Bit is a high-performance OEM accessory made for Summa F Series Flatbed Cutters. Compatible with both the Standard and High-Frequency Routing Systems, it ensures precise milling on various rigid and semi-rigid materials. Enquire now

Description

Summa Multipurpose Router Bit D6/2 L50/6 1FL UC MP,500-9875

Technical Specifications

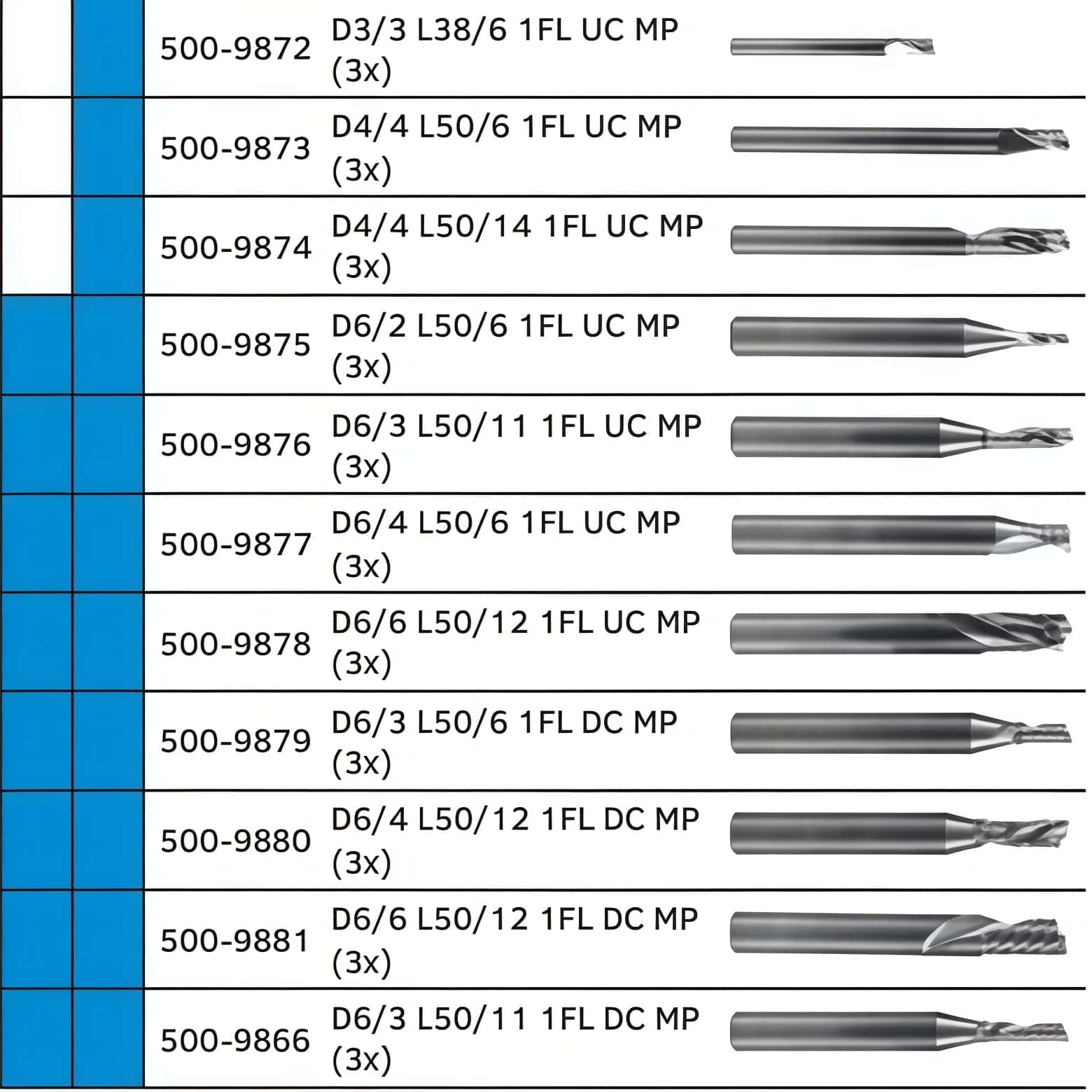

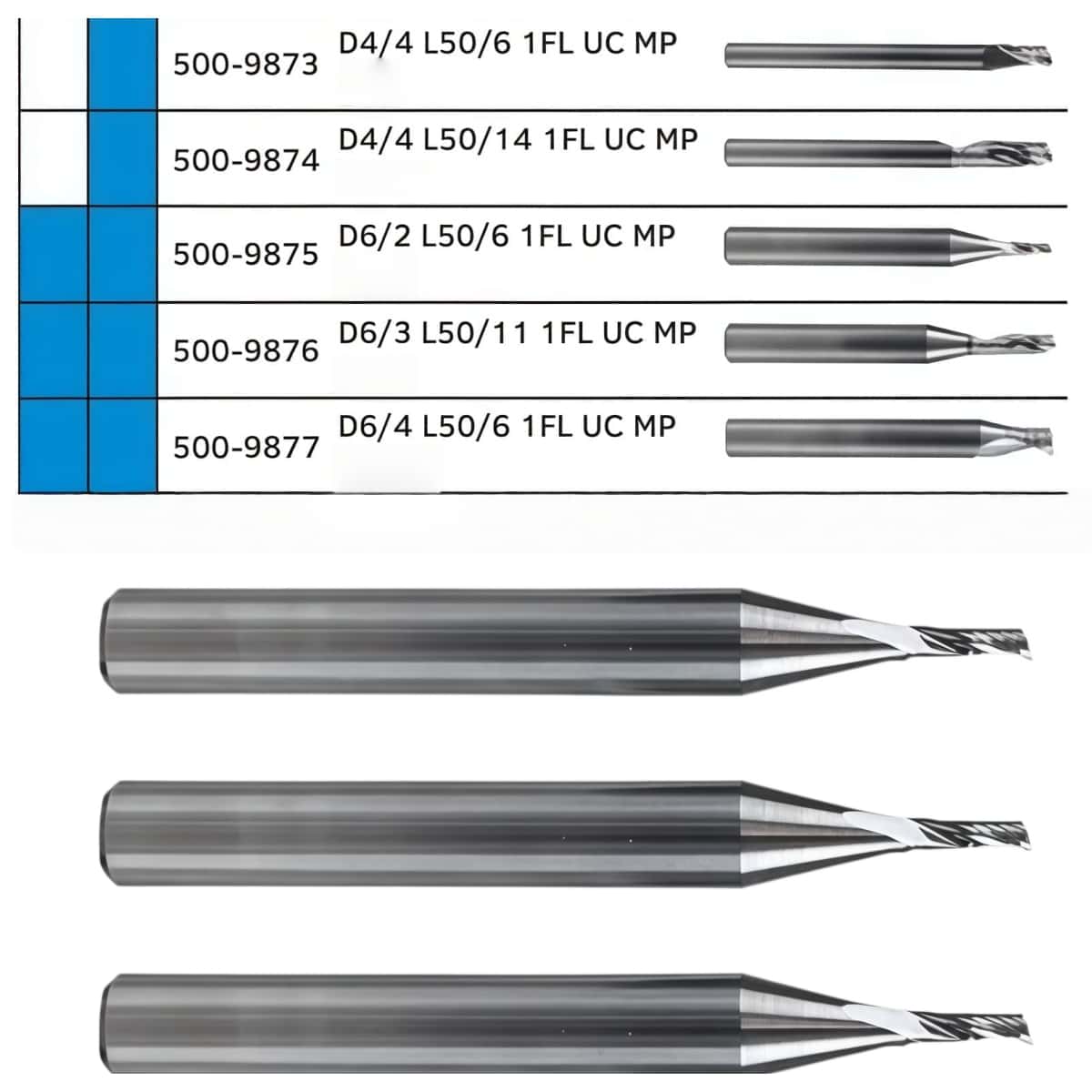

The part number configuration D6/2 L50/6 1FL UC MP breaks down into the following specifications:

Shank Diameter (D): 6 mm
Routing Diameter: 2 mm
Total Tool Length (L): 50 mm
Maximum Routing Depth: 6 mm
Flutes (1FL): 1 single-flute configuration optimized for swift chip clearance
Geometry (UC): Up Cut spiral, meaning material debris is pulled upward away from the bed during rotation
Application Class (MP): Multi-Purpose tooling

Material Compatibility

This router bit is optimized for machining general sign-making and fabrication materials, including:

Aluminum and Aluminum Composites (ACM)
Wood products and laminates
Rigid PVC
Plastics and composites

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
