Summa 500-9881 Multipurpose F Series Router Bit,D6/6 L50/12 1fl Dc Mp Price

Summa 500-9881 is a heavy-duty, large-diameter down-cut multipurpose router bit designed specifically for Summa F Series Flatbed Cutters Enquire now

Description

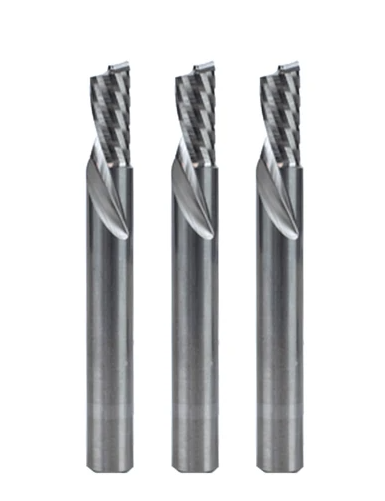

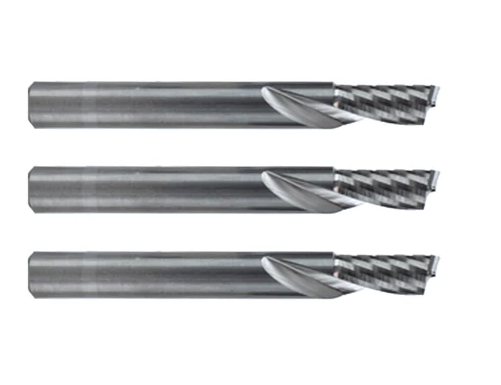

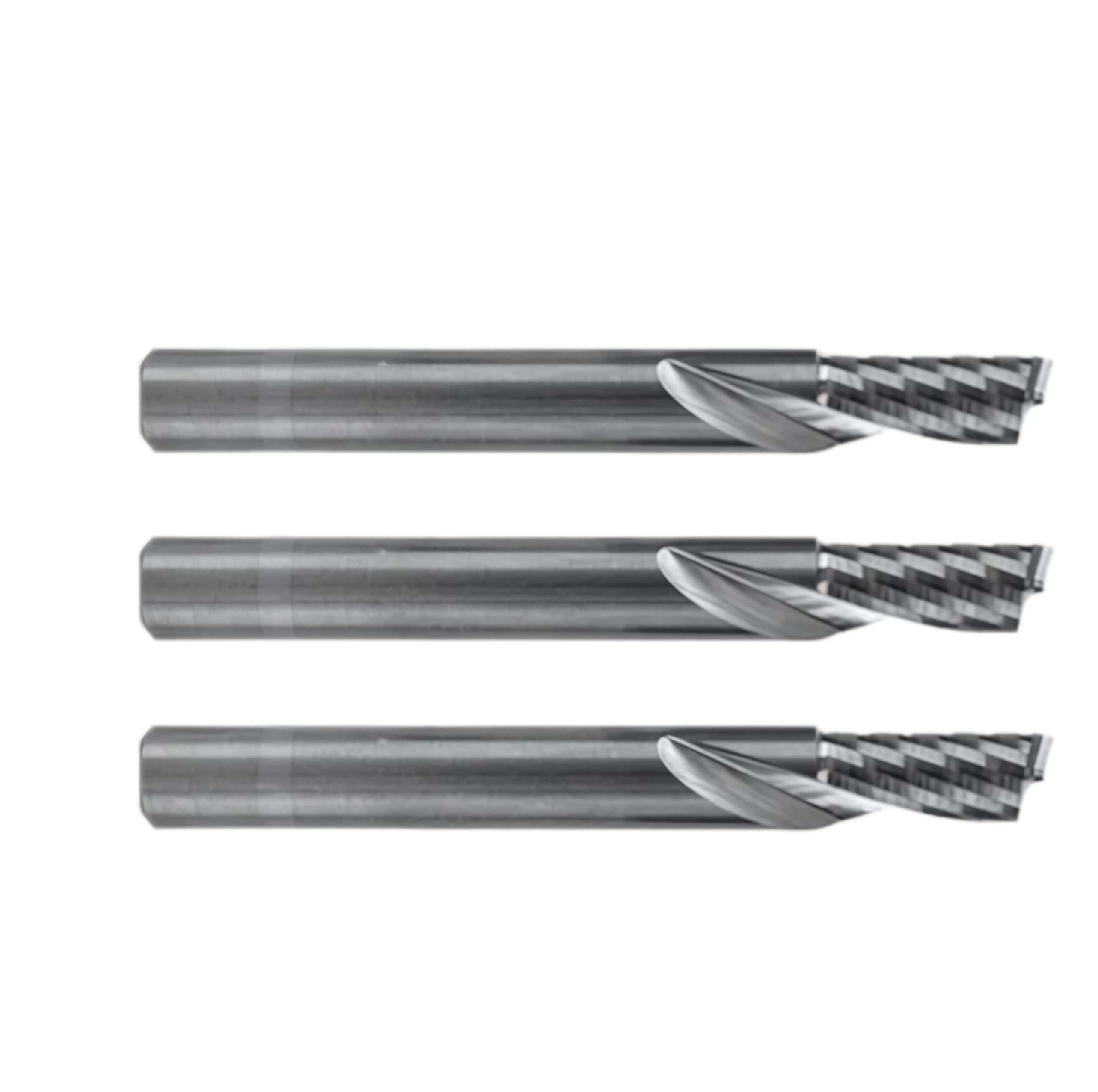

Summa Multipurpose Router Bit,D6/6 L50/12 1FL DC MP,500-9881

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 6 mm
Tool Length 50 mm
Max. Routing Depth 12 mm
Flutes 1
Down Cut Debris moves down with the blade rotation

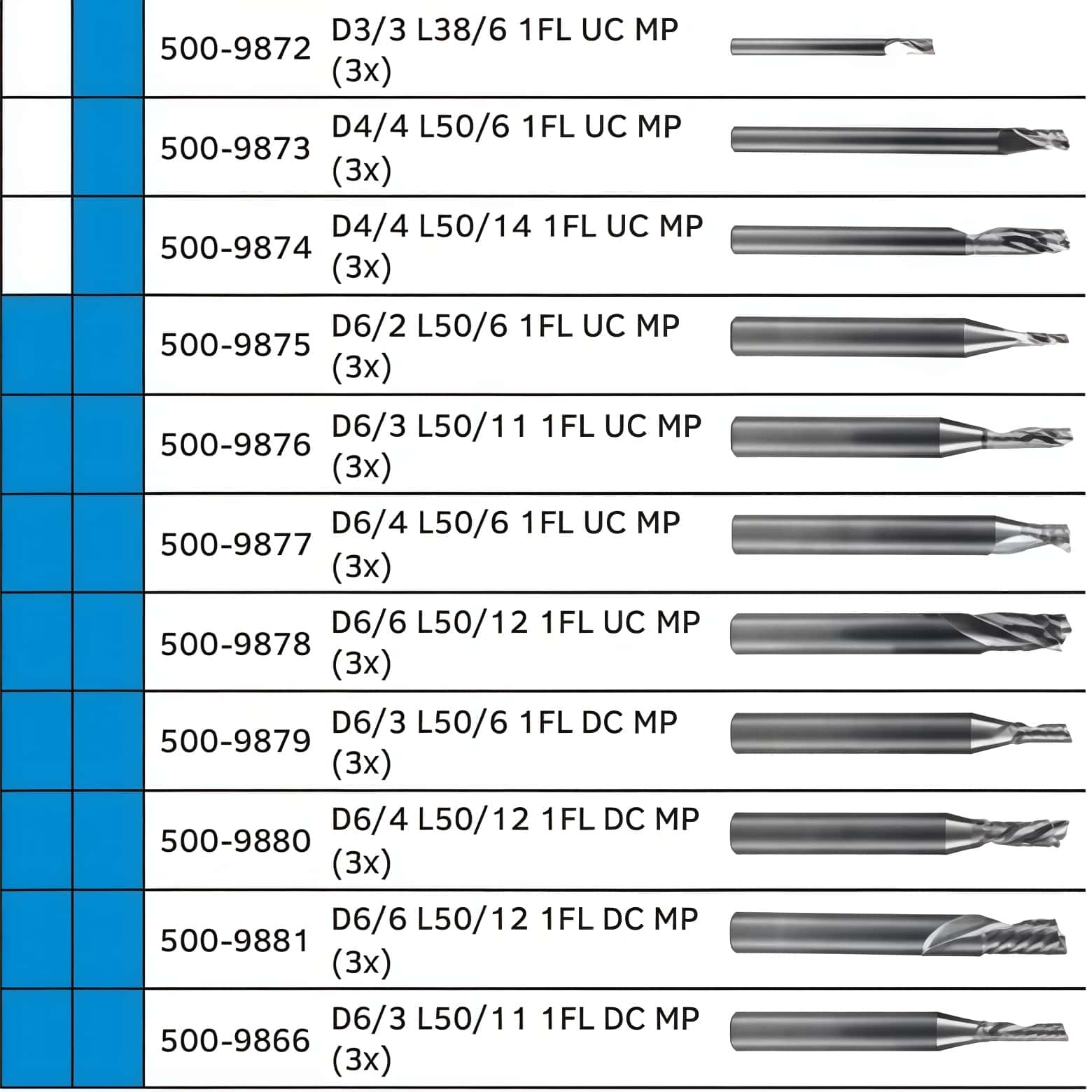

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Summa Router Bit, D6/6 L50/12 1FL DC MP
Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System

The core purpose and application of the 500-9881 large chip removal cutting tool

In Summa's actual production workshop, compared to traditional top-discharge chip removal tools,500-9881 is mainly used to solve the following technological difficulties in large-scale material cutting:

High-speed, burr-free edge cutting of laminated and coated materials :
- Working principle : When the upper chip removal cutter is cutting, it will lift the upper surface of the workpiece, which can easily cause the coating or material to fray or crack.500-9881Thanks to its downward-pressing cutting edge design, it can still ensure that the surface of the material is extremely clean, smooth, and free of chipping even at high-speed cutting with a cutting diameter of up to 6mm .
- Typical materials : double-sided painted aluminum sheet, veneered/laminated MDF, two-color board, laminated plastic composite board.
Processing lightweight, soft, or small-area materials that are easily displaced or poorly adhered :
- Working principle : When cutting thin or lightweight flexible PVC or foamed PVC sheets, the material is easily attracted and lifted by the centrifugal force of the high-speed rotation of the spindle.500-9881The downward cutting force can physically assist the vacuum adsorption bed in firmly pressing the board onto the felt worktable , completely eliminating dimensional deviations caused by board displacement.
Large-area, high-depth cutting for rapid material cutting :
- Compared to a 3mm diameter bottom chip cutter, it allows for faster lateral feed speeds. It enables efficient physical cut-through when cutting the outer contours of advertising lettering or large background panels.

On-site processing parameters and process tips

Feed rate and anti-breakage : Because it is a 6mm diameter rigid straight shank cutter, its inherent anti-breakage capability is very strong. If machining regular 10mm soft PVC, you can try cutting through it with almost the full depth of cut.
Cleaning procedure : Since the bottom chip removal design will press most of the dust into the already cut grooves, it is recommended to turn on the built-in powerful vacuum cleaner in the Summa GoProduce software and clear the path with an air gun before the workpiece is completely removed.
For aluminum alloy machining : Although it is a multi-purpose (MP) tool that can cut aluminum, it is recommended to use a micro-volume spray cooling (MQL) tool when machining industrial pure aluminum plates with high hardness to prevent heat buildup in the lower chip chute.
