Summa 500-9804 F-Series Double Edge CutOut Knife Blades For Summa F Series Flatbed Cutter

Summa 500-9804 Double Edge Cutout Knife 50° Burr-FreeThis is a high-precision consumable specifically designed for Summa F-series flatbed cutting machines (such as F1612, F1432, F1832, etc.) Enquire now

Description

Summa 500-9804 F-Series Double Edge CutOut Knife Blade 50deg Burr-Free For Summa F Series Flatbed Cutter

Summa 500-9804,Summa Blade 500-9804,Summa Blade,Summa F-Series Blade,SUMMA blades,Blades For Summa F Series,Blades For Summa Cutter

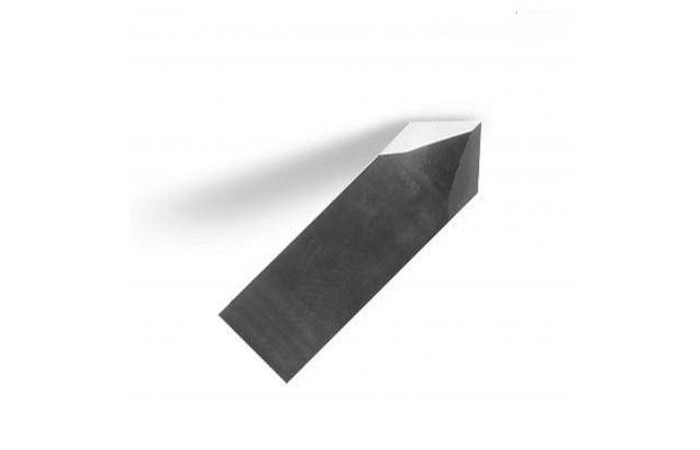

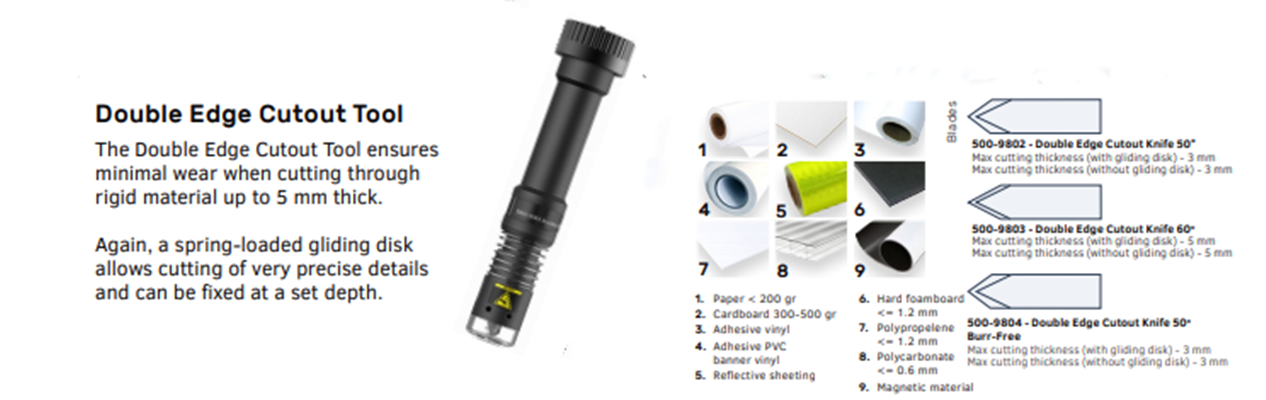

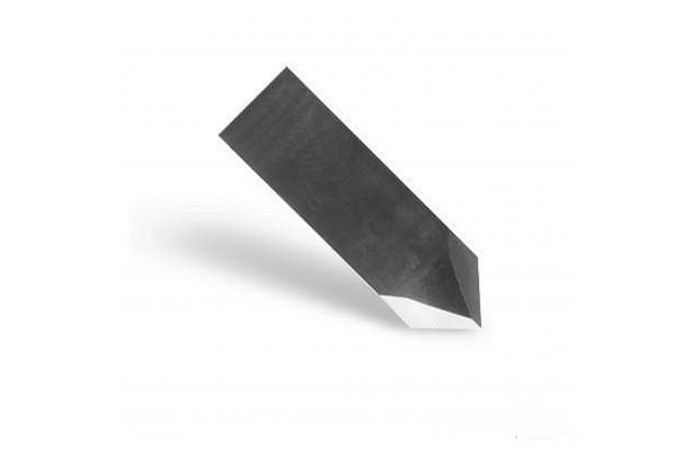

Summa 500-9804 is a 50° double-edge cutout knife specifically designed for Summa F series flatbed cutters . It is designed to be mounted on the Tangential Module 500-9310 and the Double Edge Cutout Tool 500-9313 , enabling high-precision, high-speed bidirectional cutting.

Core parameters and specifications

Maximum cutting thickness : 3 mm (if a guide plate is used, the depth can be precisely controlled within 3 mm).
Cutting angle : 50° , double-edged design.
Burr-free design : It effectively eliminates burrs on the cut edges during the cutting process, making the finished product edges extremely smooth, which is especially suitable for materials with strict appearance requirements.
Material : Hard alloy/Solid Tungsten Carbide , with excellent wear resistance and bending strength.
Size and specifications : 1.5 mm thick , more stable than ordinary drag blades, and not easy to break under high load.

Applicable processing materials

The 500-9804 blade is specifically optimized for vertical motion cutting of medium-thickness rigid and flexible materials.

Various types of paper and card stock : paper weighing less than 200g, thick card stock weighing 300-500g, and folding card stock.
Advertising adhesives and films : vehicle wraps, self-adhesive PVC, reflective film, and magnetic sticker materials.
Thin plastic sheets : polypropylene (PP) sheets with a thickness of less than 1.2 mm and polycarbonate (PC) sheets with a thickness of less than 0.6 mm.
Composite materials : Prefilled/foamed PVC boards (Chefu board) with a thickness of less than 2 mm, and foam boards with cardboard side
