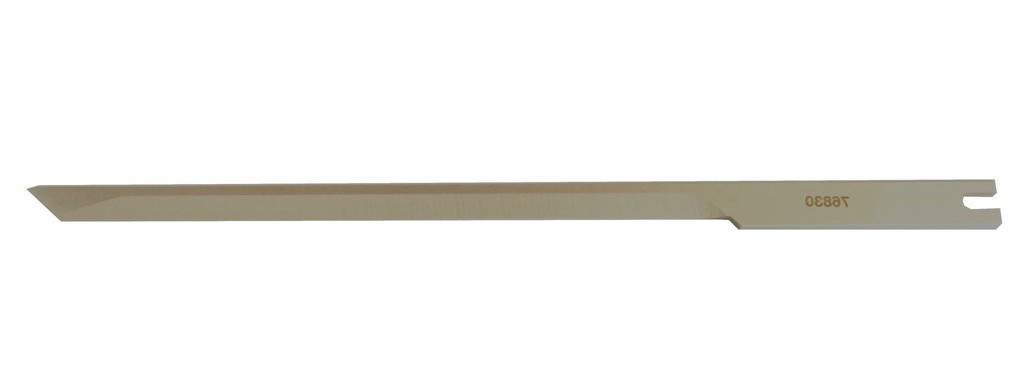

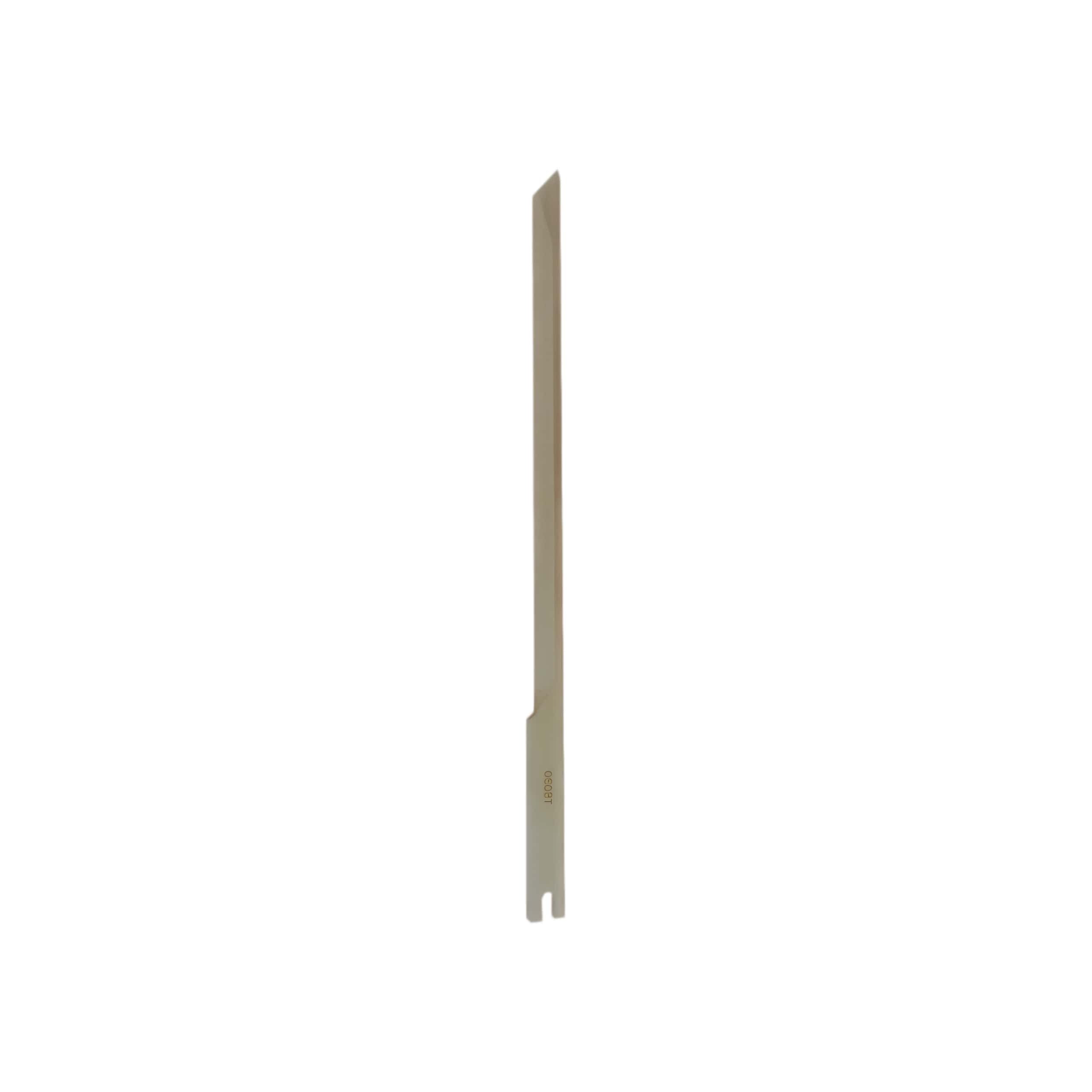

Kuris 76830 is a highly specialized, heavy-duty industrial oscillating cutter blade designed exclusively for high-ply, automated fabric cutting. It serves as a core tool component within the Kuris TexCut 3070 HD (Heavy Duty) multi-layer CNC cutting system.

Blade Specifications & Technical Dimensions

· Part Reference: Kuris 76830 (also categorized as product code 61-76830).

· Physical Dimensions: 214 mm (Length) × 10.5 mm (Width) × 2.5 mm (Thickness).

· Material Grade: Premium High-Speed Steel (HSS), engineered to manage excessive thermal friction and maintain razor-sharp edge retention during rapid vertical vibrations.Blade Edge Geometry: Flat, smooth cutting edge profile optimized for a clean slicing movement through tightly compressed fibers without causing snagging or thread pulling.

Operational Mechanics in Kuris Systems

The blade locks into the heavy-duty oscillating tool head of the Kuris TexCut system. It is driven by high-torque servo motors executing two simultaneous movements:

1. High-Frequency Vertical Oscillation: Slices upward and downward continuously at high speeds, acting like a micro-saw to eliminate material drag.

2. Dynamic Tangential Rotation: Motorized rotation adjusts the precise face of the blade dynamically along complex geometry lines, arcs, and tight pattern corners.

Targeted Industrial Material Stacks

Because this blade features a rigid 2.5 mm thickness, it resists micro-bending and structural deflection. This makes it the standard choice for automated high-ply cutting across various sectors:

· Automotive Interiors: Multi-ply woven fabrics, heavy synthetic leathers, trunk liners, and sound-insulation foam layers.

· Apparel & Textiles: Deep compressed plies of denim, canvas, nylon webbing, and heavy industrial workwear fabrics.

· Technical Composites: Glass fibers, carbon fiber prepregs, aramid grids, and specialized non-woven geotextiles
