JWei RuiZhou AOKE Knife Blades holder

Jwei, Ruizhou, and Aoke knife holders are core precision components commonly used in industrial-grade digital die-cutting machines and intelligent cutting machines (CAD/CAM inkjet flatbed proofing machines). These brands (including IECHO and AOL ) typically offer high cross-compatibility in the specifications of their cutting tools and knife holders.

Core Tool Holder Types and Selection Guide

Based on different processing materials and cutting processes, the main types of tool holders are as follows:

1. Oscillating/Vibrating Knife Holder

Applications : Primarily used for cutting medium to high thickness or flexible materials, such as honeycomb cardboard, corrugated paper, leather, sponge, car floor mats, composite materials, etc.
Common chuck specifications : Thicknesses are mainly 0.63mm, 1.0mm, and 1.5mm . A dedicated chuck adapter (Adaptor Slip/Chuck Collet) is required when purchasing.

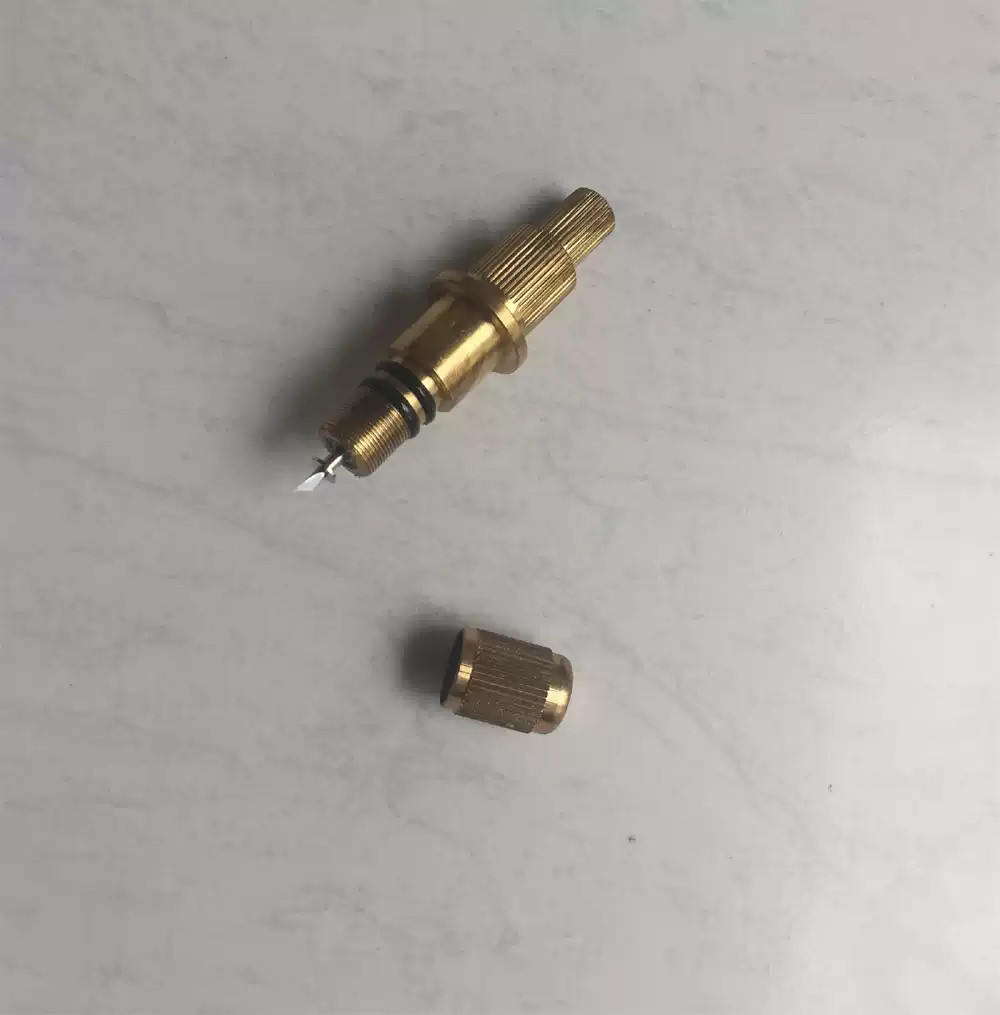

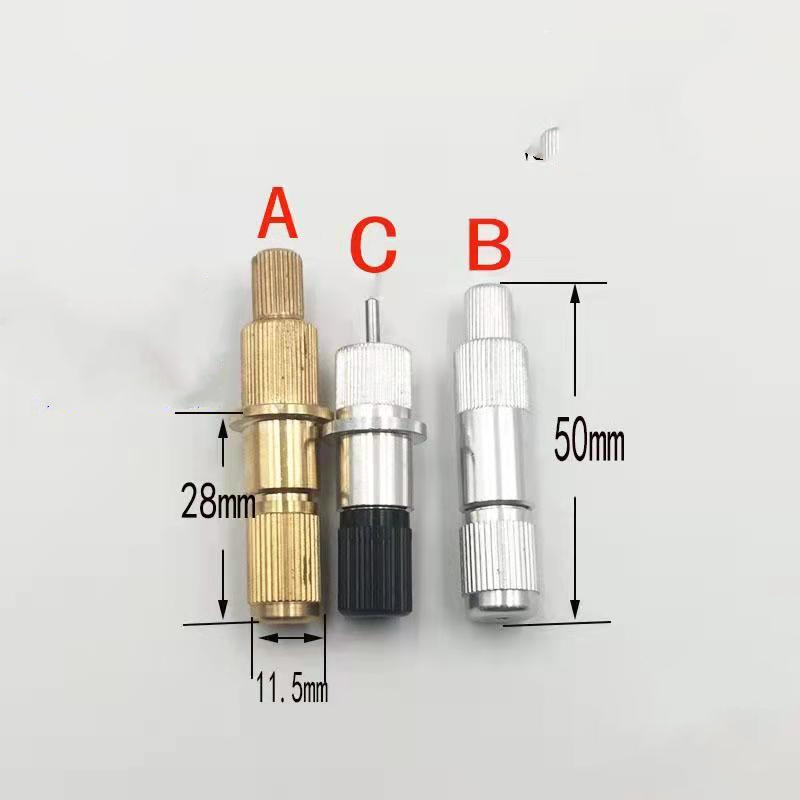

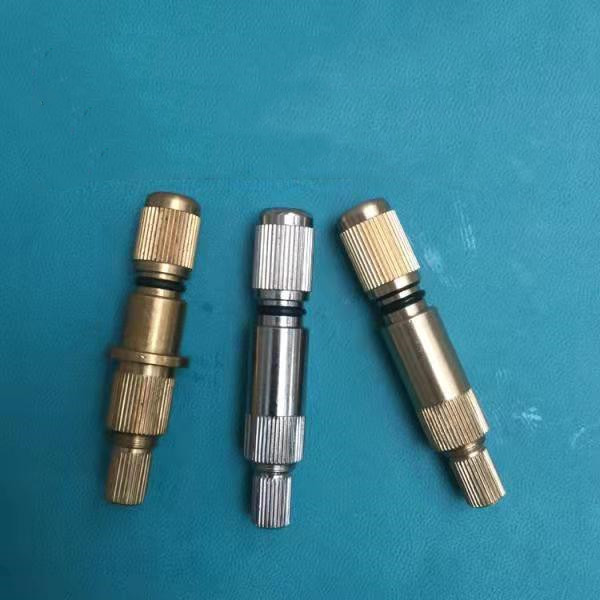

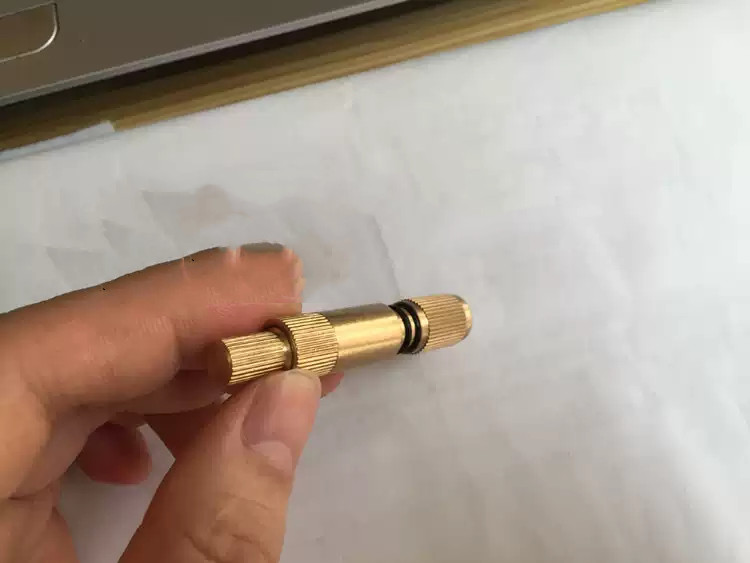

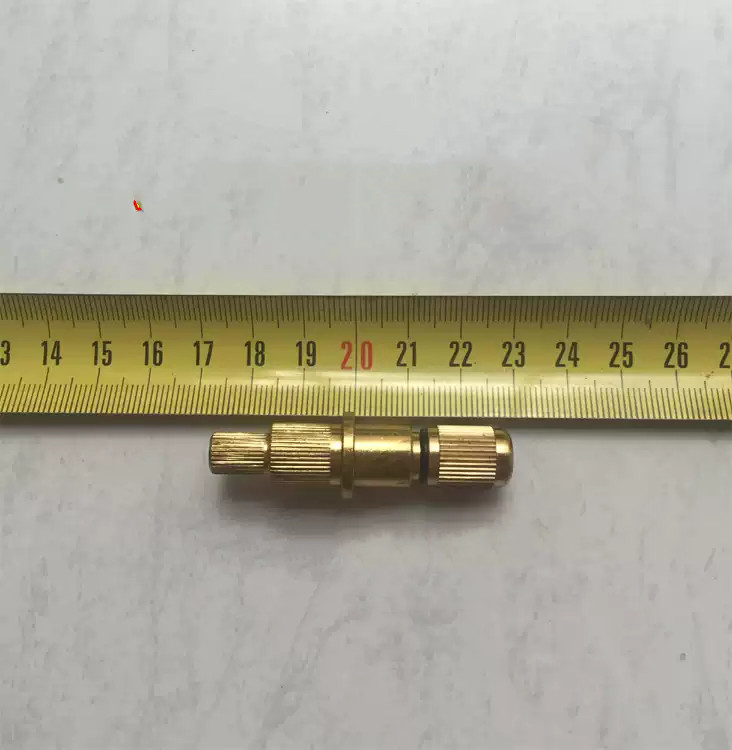

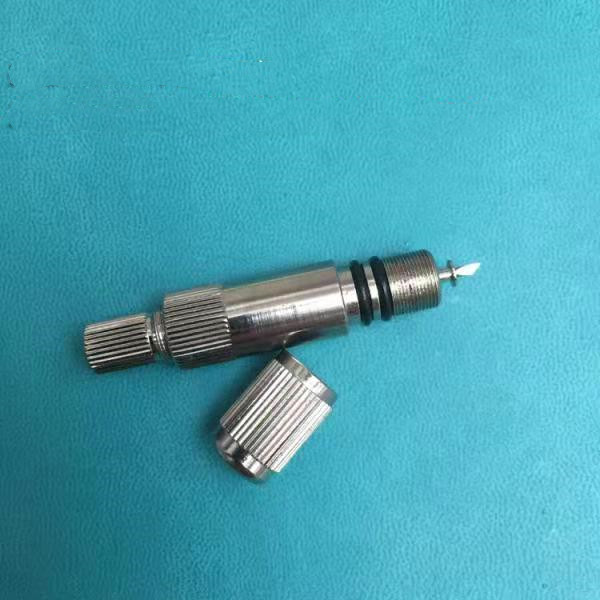

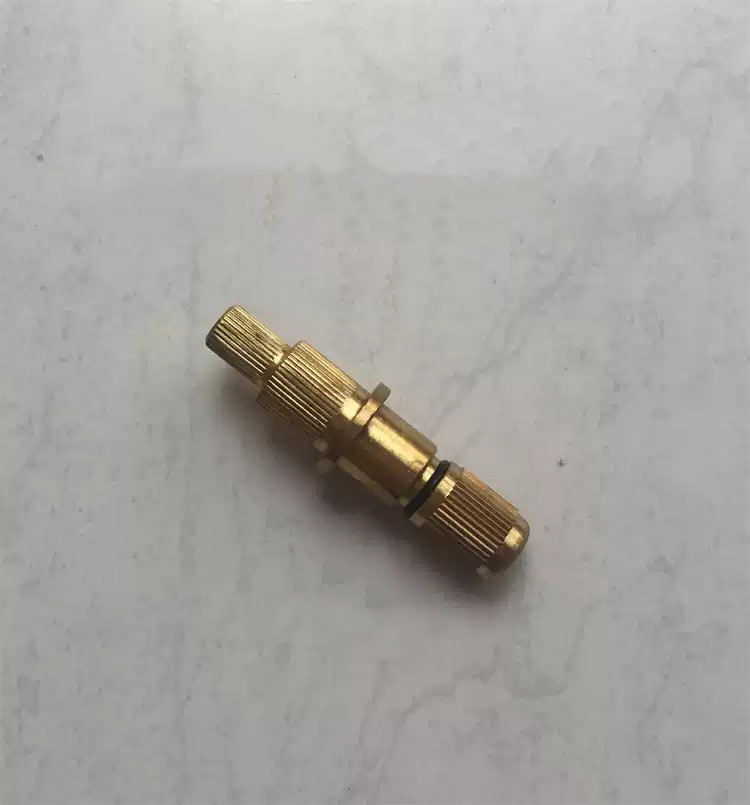

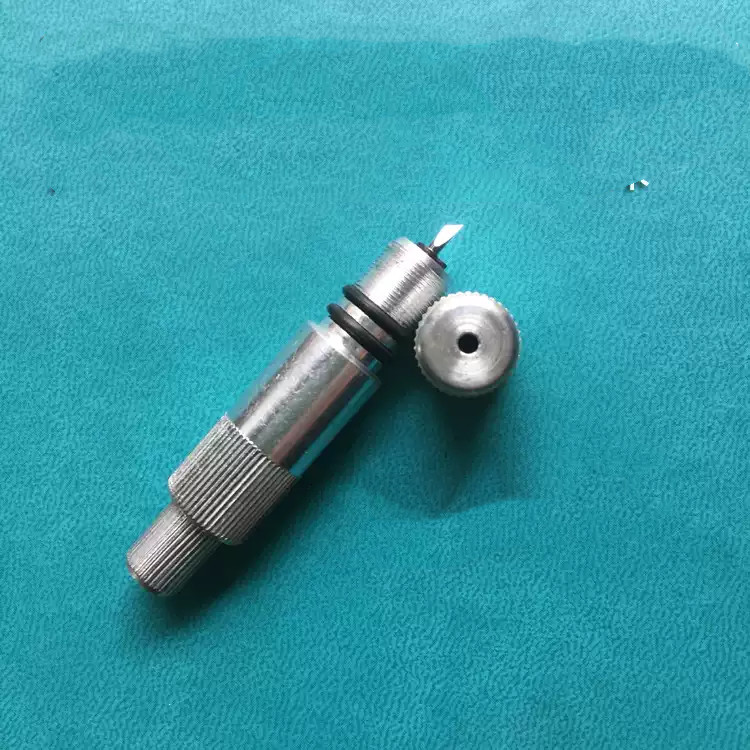

2. Drag Knife / Plotter Blade Holder

Applications : Used for rapid and precise cutting of thin materials such as self-adhesive labels, PVC, cardboard, and garment pattern cardboard.
Common models :

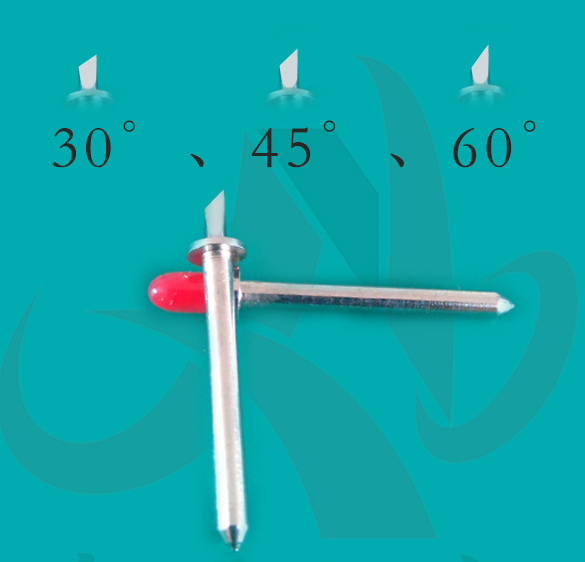

- CB09 / CB09U : Suitable for fine small characters or thin material cutting (with 0.9mm diameter cutting needle).
- CB15 / CB15U : Suitable for slightly thicker cardstock, reflective film, etc. (with 1.5mm diameter cutting needle).
Technical features : It typically integrates high-performance precision bearings and springs to ensure that the needle can remain perfectly vertical and rotate freely and smoothly during its movement (rotation bias).

3. Snap Ring Big Head Plotter Holder

Application : Customized for specific long blades (e.g., high-precision circlip cutters with a total length of 24.5mm).
Precautions : This type of tool holder has a special structure. If this type of blade is forcibly installed on a regular tool holder, the blade will not rotate properly. It must be used with a special large-head tool holder when purchasing.

4. Pen Holder/Marking Holder

Application : Specifically designed for use with cutting lines, markings, and CAD drawing markings on cutting machines of these brands (such as Jingwei LST0640) before cutting.

Procurement and Parts Confirmation List

If you are preparing to replace or add a tool holder, please be sure to check the following parameters:

Machine model compatibility : Confirm whether your machine model is a standard 40mm module or a specific quick chuck (such as the J201-J208 series tool holders corresponding to the Jingwei LST0604).
Material : Genuine and high-quality third-party tool holders are mainly made of tungsten steel (hard alloy) or aerospace aluminum through precision milling, which has extremely high wear resistance and alignment consistency.
Blade Matching : When purchasing a tool holder, pay attention to whether it comes with blades. For most standard products, the tool holder and blades are sold separately (or as a set) for flexibility.
