Hanbond (also known as Han-Bond) specializes in industrial multi-layer cutting systems like the iCut-2520, which utilizes a variety of specialized knife blades and high-precision blade holders to process materials up to 80mm thick.

Hanbond Blade Holders (Knife Blocks)

Hanbond systems use modular tool heads designed for different cutting technologies. These holders ensure the blade remains stable and correctly aligned during high-speed operations:

· Oscillating Knife Holders (EOT/POT): These are the most common for Hanbond multi-layer machines. They hold flat-stock blades and are categorized by the blade thickness they accommodate:

o 0.63mm Holder: For standard thin oscillating blades.

o 1.0mm - 1.5mm Holders: For heavy-duty blades used in thicker material stacks.

· U-Shaped Adapter Clips: Versatile clamps that allow the same oscillating tool head to hold various blade sizes from 0.63mm to 2.0mm.

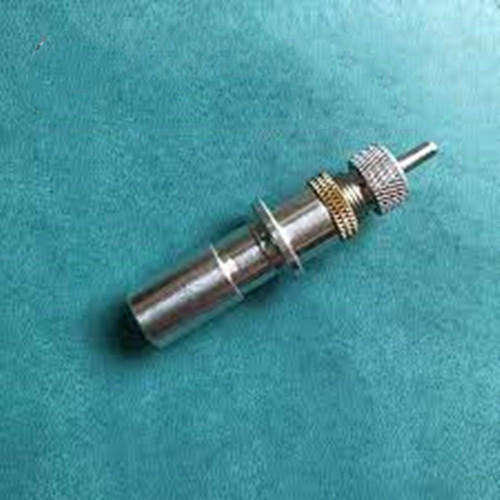

· Drag Knife Holders: Used for thinner, non-oscillating applications where high directional accuracy is required.

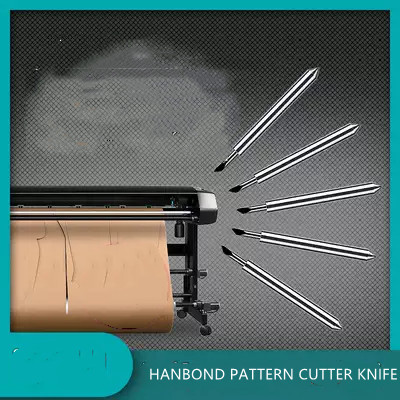

Compatible Knife Blades

Hanbond machines typically use high-grade cemented tungsten carbide blades to maintain edge sharpness through dense fabric and synthetic piles.

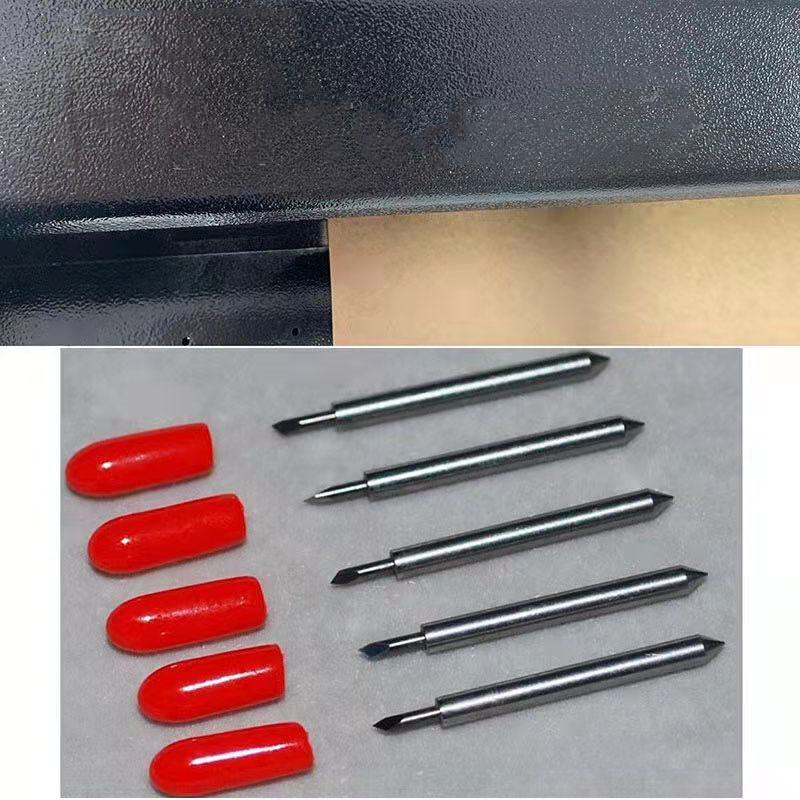

· Standard Oscillating Blades: Available in double-edged or single-edged pointed geometries to handle high-ply textiles and technical materials.

· Hanboost Replacement Series: For specific ultrasonic or high-speed Hanbond units, Hanboost offers replacement blade sets in 30° (standard), 60° (FinePoint), and Narrow Chisel profiles.

· Multi-Ply Blades: Specialized long blades designed for the Han-Bond iCut-2520 to reach the full 80mm cutting height while maintaining vertical accuracy
