Zund Z201 Z202 Z203 Oscillating Knife blades For Zund Flatbed Digital Cutting Tables & Plotters

Z201, Z202, and Z203 are tungsten-carbide oscillating knife blades for Zünd flatbed digital cutting tables, optimized for high‑speed cutting of light, paper‑based sandwich boards and honeycomb materials Enquire now

Description

Zund Oscillating Knife blades Z201 Z202 Z203 For Zund Flatbed Digital Cutting Tables & Plotters

Zund Z201,Zund Z202,Zund Z203,Zund Z201 Knife,Zund Z202 Knife,Zund Z203 Knife,Zund Z201 blade,Zund Z202 blade,Zund Z203 blade

IN STOCK
US $0.00
(Negotiable)

Suitable for: Sandwich board
Dimensions:
30mm long
1.5mm thick
Application: Applied in Zund Electric Oscillating Tool 250 (EOT-250)

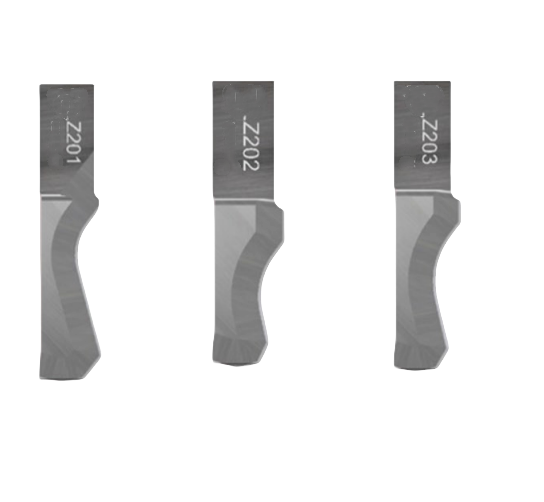

Blade specifications and differences

Blade	Part number	Total length	Max cutting depth	Thickness	Edge type / notes	Typical use
Z201	5209201	30 mm	17.4 mm	1.5 mm	Oscillating blade, two active cutting edges (Sarc)	Light/paper sandwich boards up to ~16–17 mm, high speed
Z202	5209985	26 mm	14.5 mm	1.5 mm	Multifaceted bidirectional cutting edge	Light/paper sandwich boards, often recommended around 10 mm but rated to ~14.5 mm
Z203	5210145	28.5 mm	17 mm	1.5 mm	Multifaceted bidirectional cutting edge	Light/paper sandwich boards ~12.7 mm, high speed

All three are HM (hard metal) / tungsten carbide blades designed for Zund electric oscillating tools (e.g., EOT250) on G3 class flatbed cutters.

Compatibility notes for Zund tables

These blades are standard consumables for Zund flatbed digital cutting tables and plotters that use oscillating knife modules (EOT series).

They are commonly listed together (Z201/Z202/Z203) as a family for sandwich board / honeycomb applications, with selection driven by required cutting depth and material
