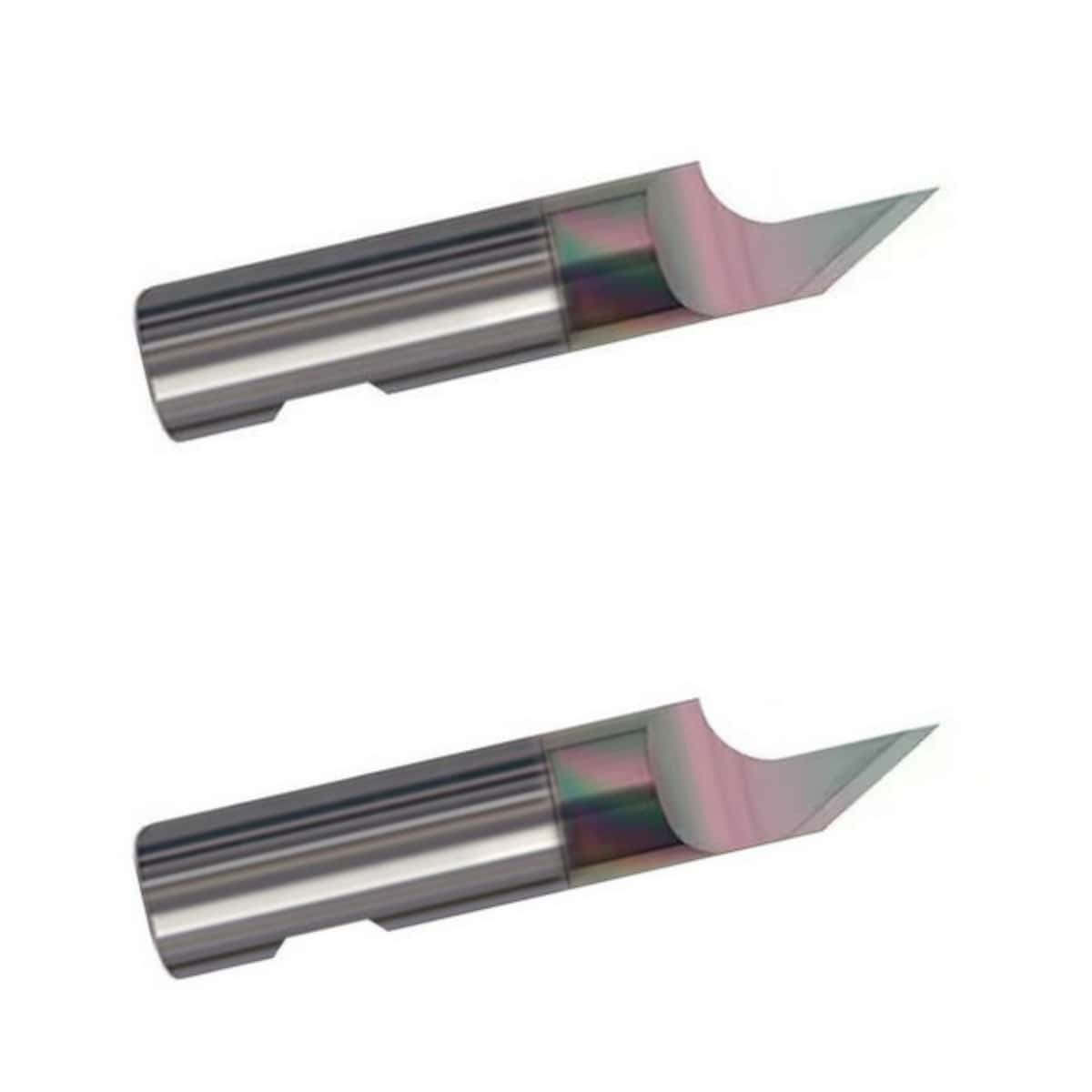

Esko Kongsberg Bld-Sr8170 C2 Die-Cutting Machines Coating Cylindrical Shaft Blades

Esko Kongsberg BLD-SR8170 C2 insert .As a high-specification cyclolindrical shaft drag blade, it is designed specifically for high-load processing in industrial-grade digital prototyping and die-cutting machines. Enquire now

Description

Esko Kongsberg Bld-Sr8170 C2 Die-Cutting Machines Coating Cylindrical Shaft Blades –Produced Manufactured In China G42475814

Esko BLD-SR8170 C2,Kongsberg BLD-SR8170 C2,Esko BLD-SR8170,Kongsberg BLD-SR8170,Esko Blade,Kongsberg Knife,Esko Knife,Kongsberg Blade,Esko Blades,Kongsberg Blades

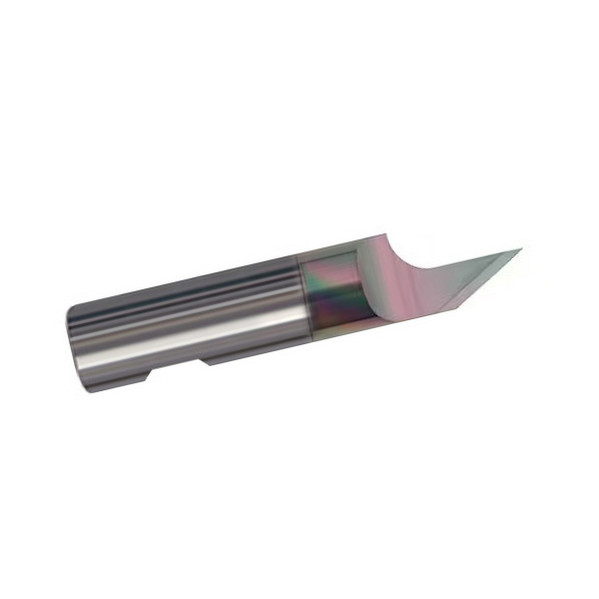

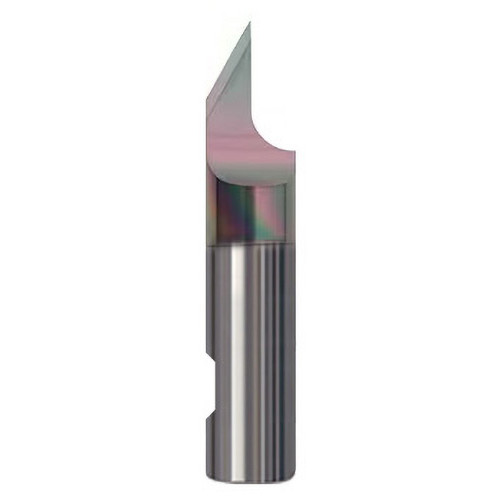

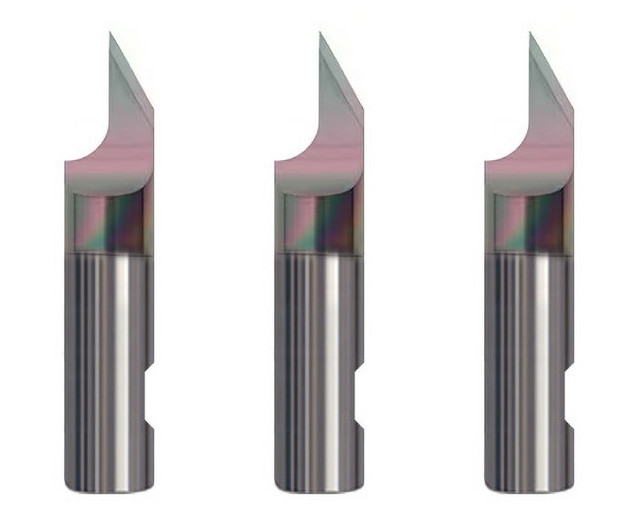

Esko Kongsberg BLD-SR8170 C2 (part number: 42443036 or G42443036 ) is industrial-grade high-end round shank drag blade designed specifically for high-volume digital post-processing..

D Shank diameter 8mm
C Maximum cutting thickness 6,5mm - 1/4"
Height (cm) 0.8
Width (cm) 0.8
Length (cm) 4
Net weight (kg) 0.02

Material	Sub Category	Thickness	Method
Adhesive (decal) vinyl	Adhesive (decal) vinyl	Standard thickness	Static fine detail
Adhesive (decal) vinyl	Adhesive (decal) vinyl	Standard thickness	Through
Corrugated plastic	Corrugated plastic	< 5mm	Static
Flexible plastic sheet	Flexible plastic sheet	< 2mm	Static
Foamed PVC / PS	Foamed PVC / PS (Forex, Sintra)	< 5mm	Static
Folding carton	Folding carton	Folding carton	Static fine detail
Folding carton	Folding carton	Folding carton	Static

Key Features & Benefits

C2 (DLC) Coating Advantage: The physical vapor deposition (PVD) C2 coating provides an extremely low coefficient of friction and diamond-level surface hardness. This prevents heat buildup, eliminates material drag/snagging, and provides up to 3× to 5× longer service life compared to standard uncoated tungsten carbide blades.
Cylindrical Shaft Stability: The precision-ground 8 mm round shaft fits directly into Kongsberg drag tool insert holders, ensuring zero play and minimal deflection under high
