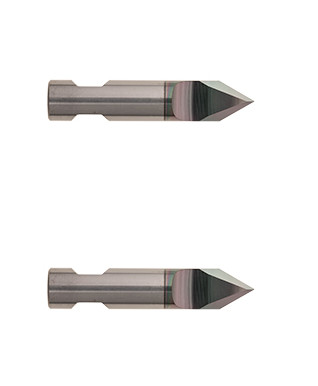

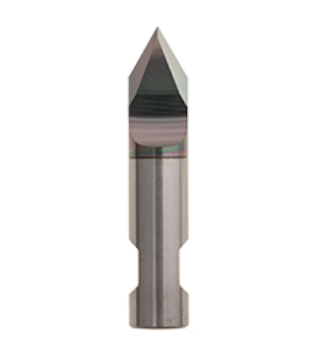

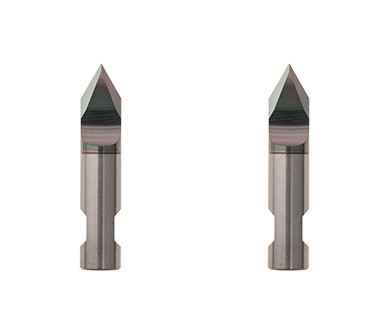

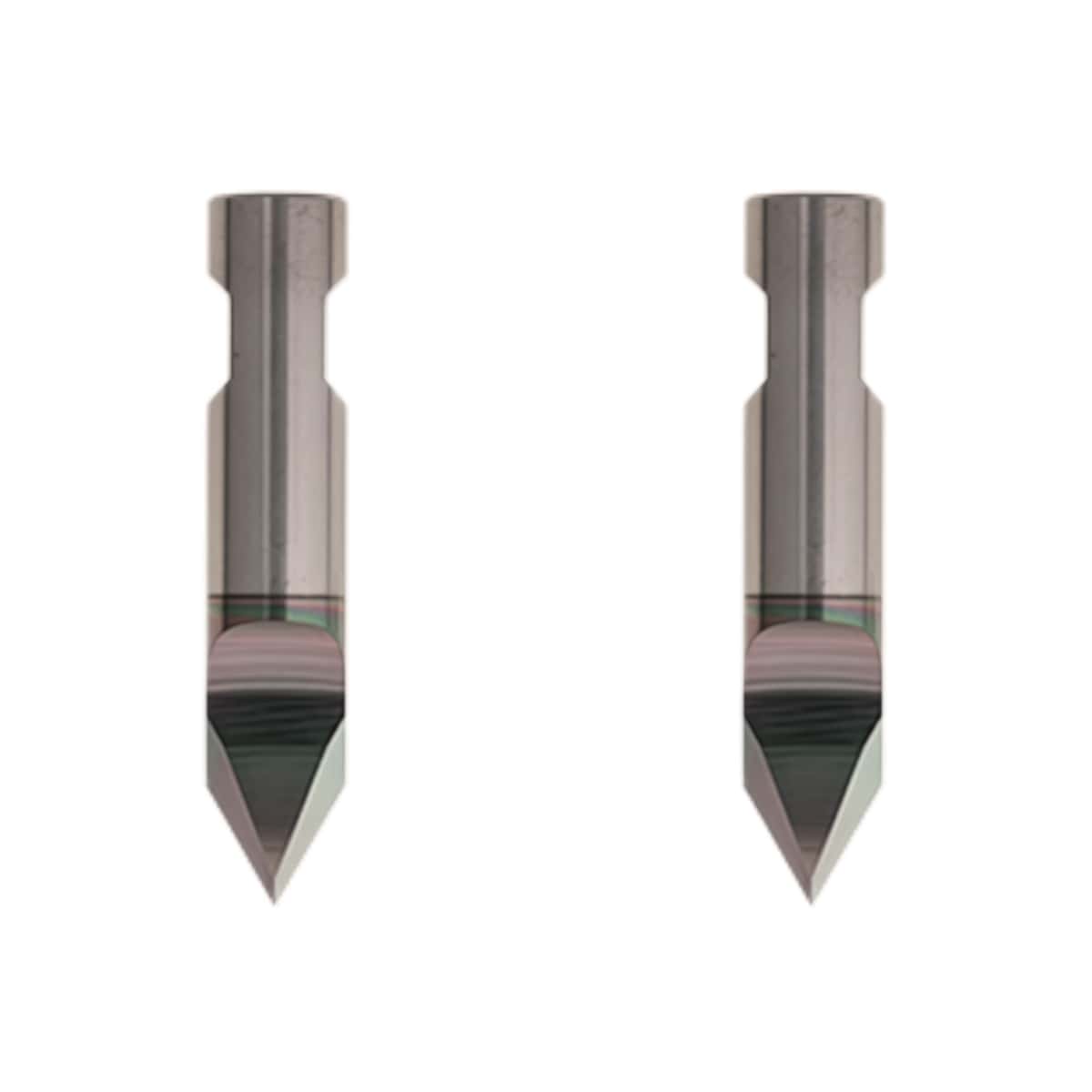

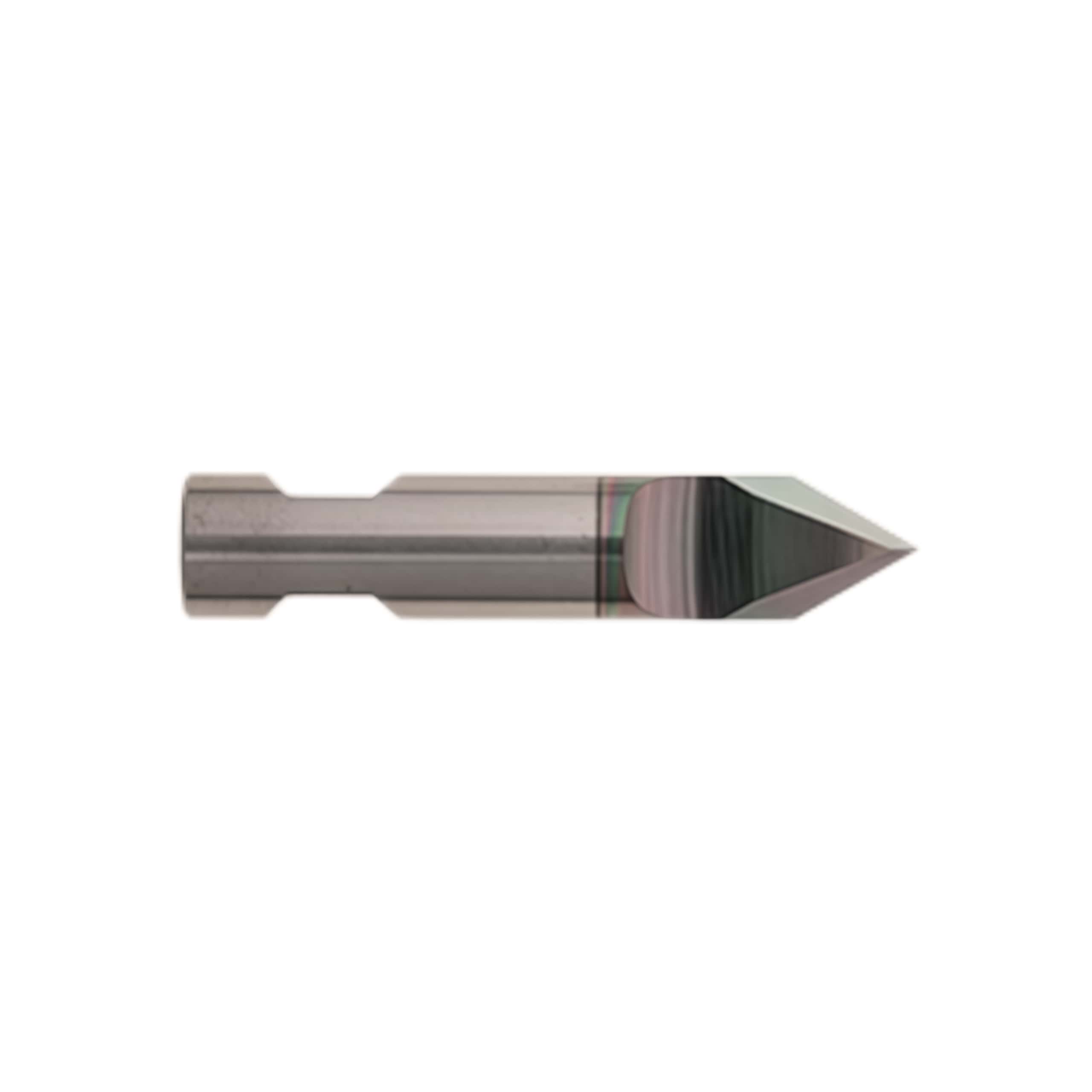

Esko Kongsberg Bld-Dr8160 C2 Anti-Friction Coating Tungsten Carbide Digital Cutting Blades G42475806

Esko Kongsberg BLD-DR8160 C2 is a premium, long-life tungsten carbide digital cutting blade featuring a cylindrical 8mm round shaft and Kongsberg's advanced C2 anti-friction coating Enquire now

Description

Esko Kongsberg Bld-Dr8160 C2 Anti-Friction Coating Tungsten Carbide Digital Cutting Blades–Produced Manufactured G42475806

Esko Kongsberg BLD-DR8160 C2 (also tracked under part number G42475806) is a high-performance, double-edged tungsten carbide digital cutting blade featuring an 8mm cylindrical round shaft and a specialized C2 anti-friction coating.

D Shank diameter 8mm
C Maximum cutting thickness 6 mm - 1/4"

Height (cm)0.8
Width (cm)0.8
Length (cm)4
Net weight (kg)0.02

Material	Sub Category	Thickness	Method
Adhesive (decal) vinyl	Adhesive (decal) vinyl	Standard thickness	Through
Corrugated plastic	Corrugated plastic	< 5mm	Static
Flexible plastic sheet	Flexible plastic sheet	< 2mm	Static
Flexo clicheés	processed, for labels	Processed, for lables	Static
Flexo clicheés	unprocessed	Unprocessed	Static
Foamed PVC / PS	Foamed PVC / PS (Forex, Sintra)	< 5mm	Static
Folding carton	Folding carton	Folding carton	Static
Lenticular display panels	Lenticular display panels	< 5mm	Static
Magnetic foil	Magnetic foil	Magnetic foil	Static

Key Advantages of the C2 Coating

6× Tool Life: The proprietary C2 wear-resistant coating extends usable blade life up to 6 times longer than standard uncoated carbide blades when processing abrasive substrates.
60% Reduced Friction: Significantly lowers friction between the blade flank and high-density materials, resulting in less drag force, reduced thermal stress, and cleaner edge finishes without heat-fusing plastic edges.

Tooling Compatibility

RM Knife Tool (Rigid Material Knife): Direct fit without adapters.
CorruSpeed Tool: Directly compatible for high-speed, crease-free cut lines on heavy boards.
HD / Dual HD / PowerHead Tool Units: Supported via Kongsberg adapter block 34118489.
