Esko Kongsberg Bld-Sr8172 C2 Tungsten Carbide Cylindrical (Round) Shank Coating Drag Blades G4247582

Esko Kongsberg BLD-SR8172 C2 is a high-performance, solid tungsten carbide drag blade featuring an 8 mm cylindrical (round) shank and Kongsberg’s advanced C2 anti-friction surface treatment. Enquire now

Description

Esko Kongsberg Bld-Sr8172 C2 Tungsten Carbide Cylindrical (Round) Shank Coating Drag Blades–G42475822

Esko BLD-SR8172 C2,Kongsberg BLD-SR8172 C2,Esko BLD-SR8172,Kongsberg BLD-SR8172,Esko Blade,Kongsberg Knife,Esko Knife,Kongsberg Blade,Esko Blades,Kongsberg Blades

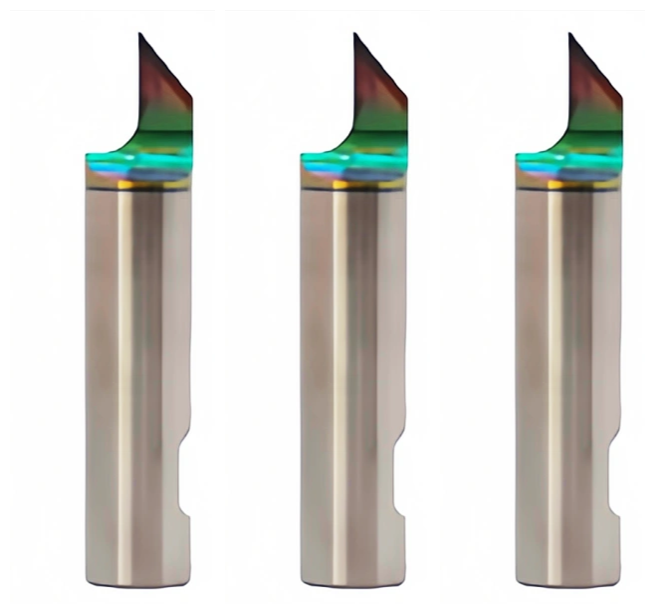

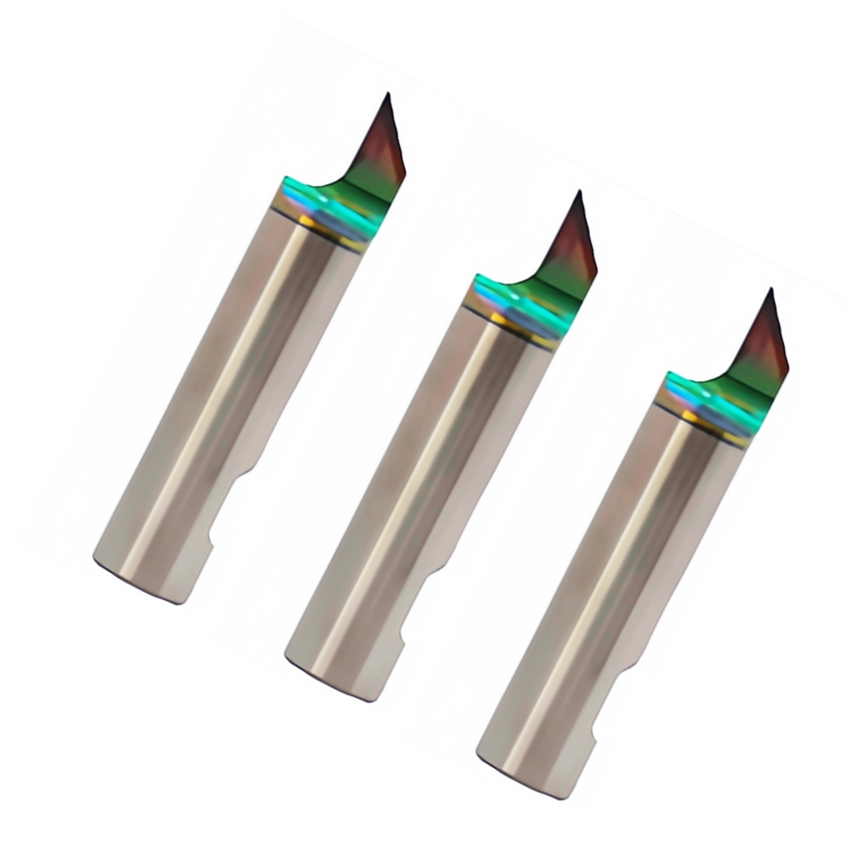

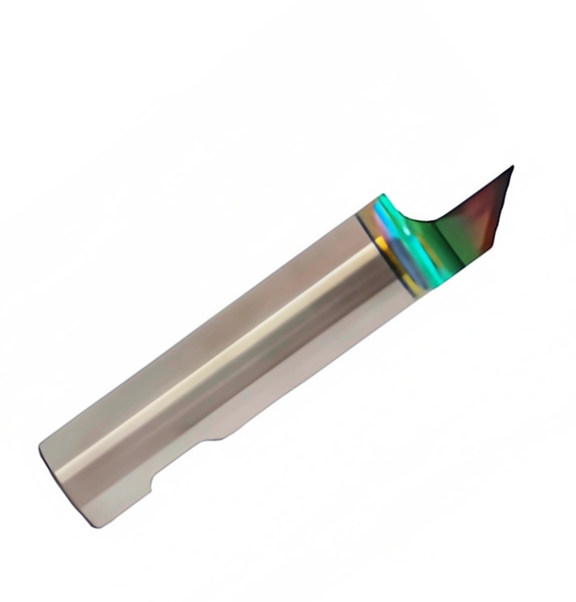

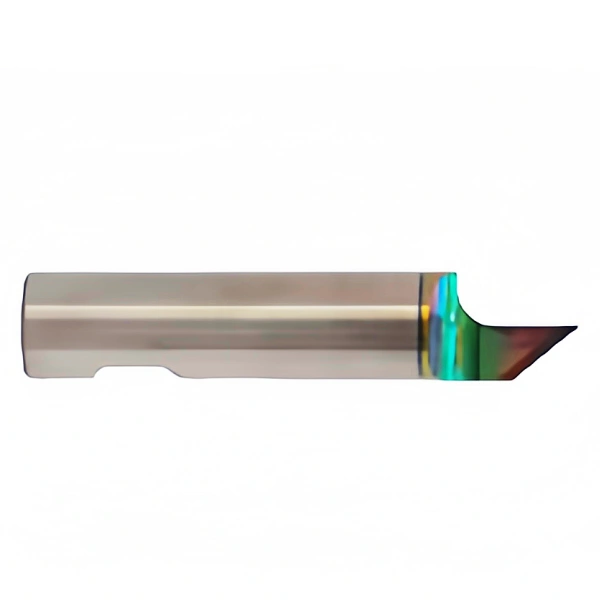

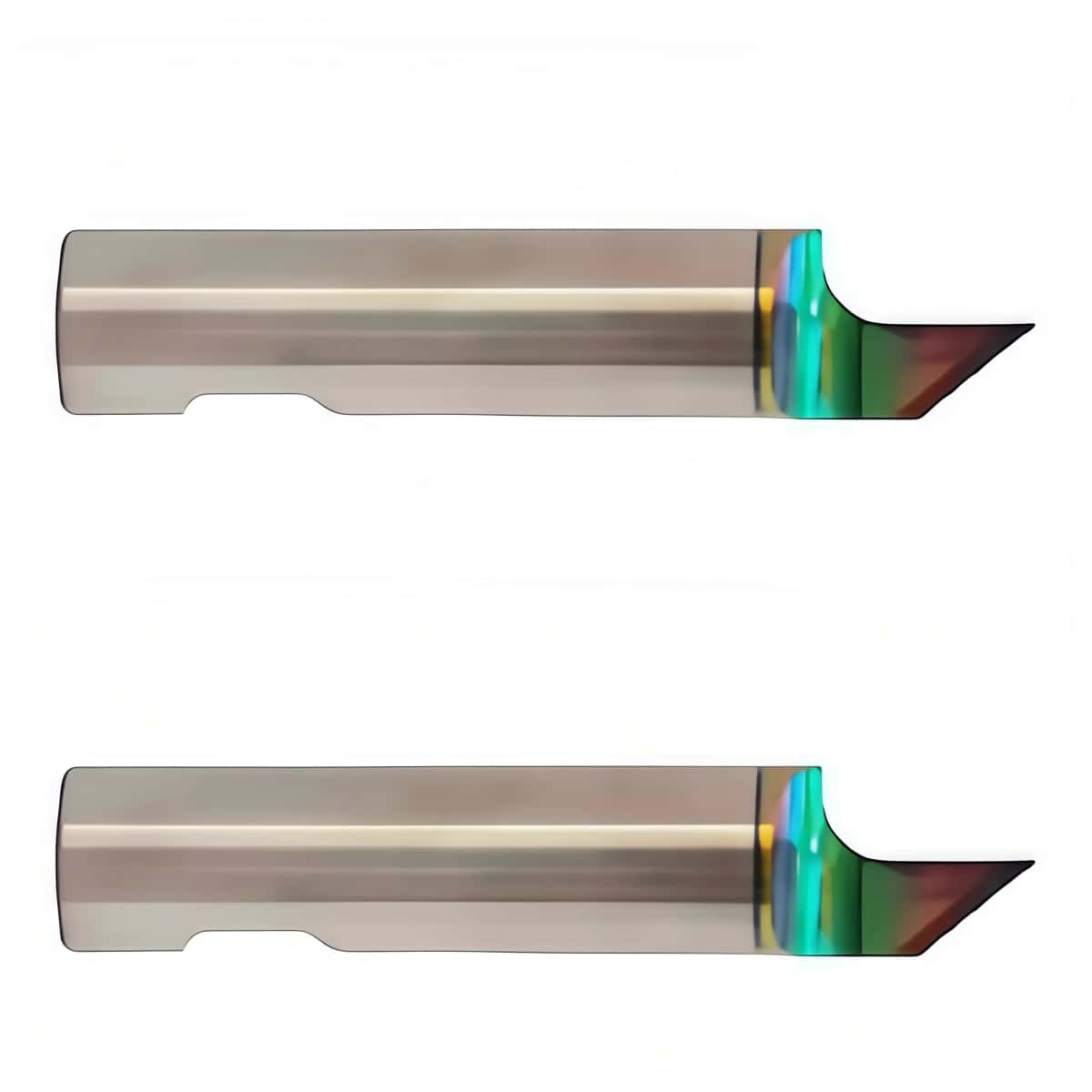

Esko Kongsberg BLD-SR8172 C2 (part number G42475822) is a premium solid tungsten carbide drag knife blade featuring a cylindrical 8mm round shaft and an advanced C2 anti-friction coating. Unlike the heavy-duty double-edged DR8160, the SR8172 is a single-edge (SR) blade optimized for high-speed, detailed static cutting of thinner or more flexible media.

D Shank diameter 8mm
C Maximum cutting thickness 4.5 mm - 3/16"
Height (cm) 0.8
Width (cm) 0.8
Length (cm) 4
Net weight (kg) 0.02

Target Applications & Materials

The BLD-SR8172 C2 is highly efficient for high-speed static cutting on fine-detail jobs and thin substrates:

Adhesive decal vinyls and heavy-duty sign graphics
Folding carton board and display board (up to 3mm)
Microflute and single-wall corrugated board (1–3mm)
Flexible plastics, polycarbonate films, and lenticular sheets (< 2mm to 5mm)
Magnetic foils and paper

Tool & Platform Compatibility

The blade mounts natively in the RigidMaterial (RM) Knife tool and the high-speed CorruSpeed tool across the following Kongsberg Cutting Systems toolheads:

Kongsberg C / XP Platforms: Fits the HD/Dual HD Unit (Requires Adapter 34118489), RM Knife, or CorruSpeed tool.
Kongsberg XL / XN / X / V Platforms: Fits the PowerHead (Requires Adapter 34118489), RM Knife, or CorruSpeed tool.
Kongsberg XE Platforms: Fits the CorruSpeed tool natively.
