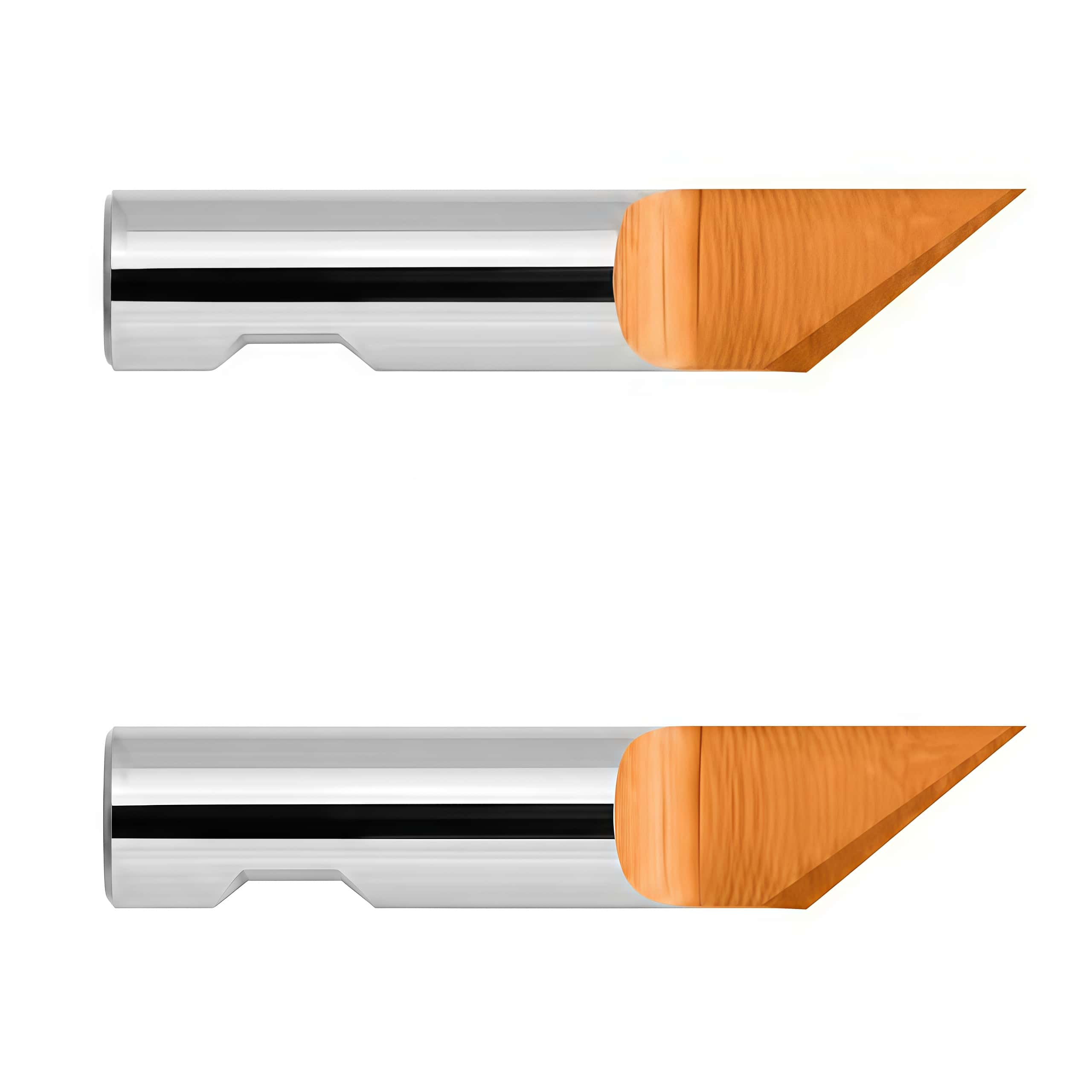

Esko Kongsberg Bld-Sr8180 C2 Coating Tungsten Carbide Drag Cutting Knife Blades G34118331

Esko Kongsberg BLD-SR8180 C2 (manufacturer part number G34118331) is a heavy-duty, solid tungsten carbide drag knife blade featuring an 8mm cylindrical round shaft and Kongsberg's advanced C2 anti-friction coating. Enquire now

Description

Esko Kongsberg Bld-Sr8180 C2 Coating Tungsten Carbide Drag Cutting Knife Blades G34118331

Esko BLD-SR8180 C2,Kongsberg BLD-SR8180 C2,Esko BLD-SR8180,Kongsberg BLD-SR8180,Esko Blades,Kongsberg Knife,Esko Knife,Kongsberg Blades

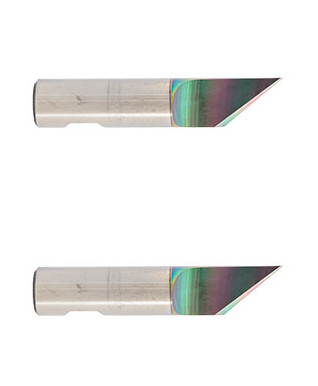

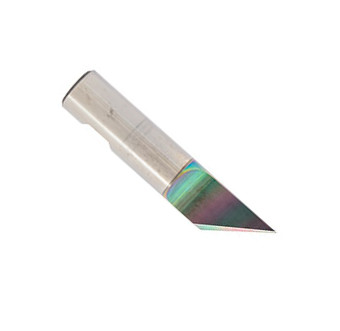

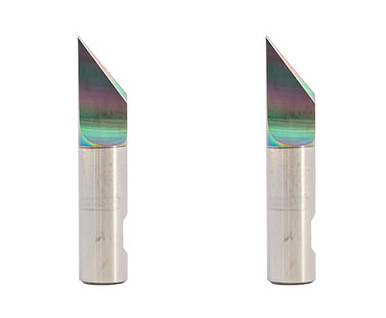

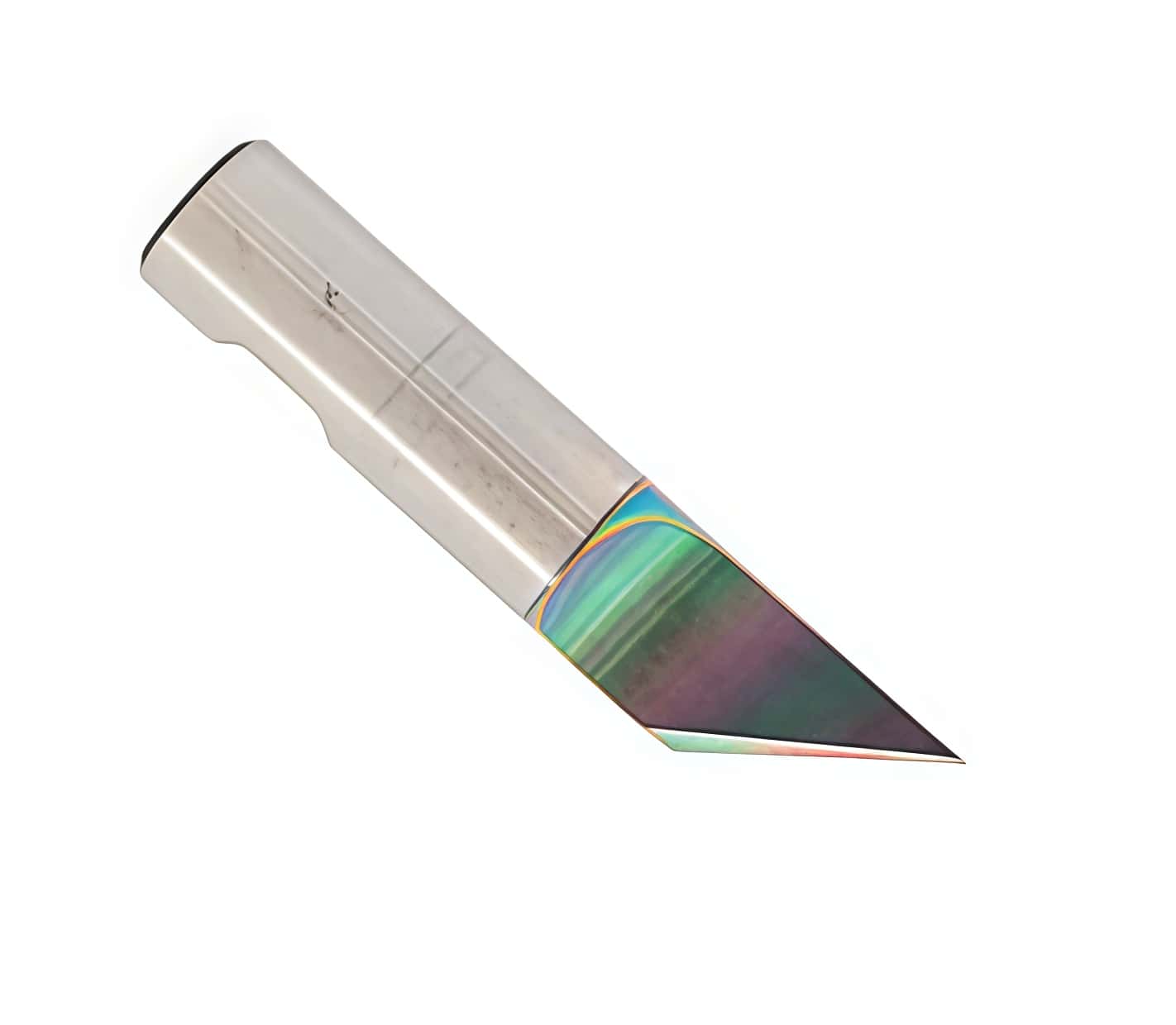

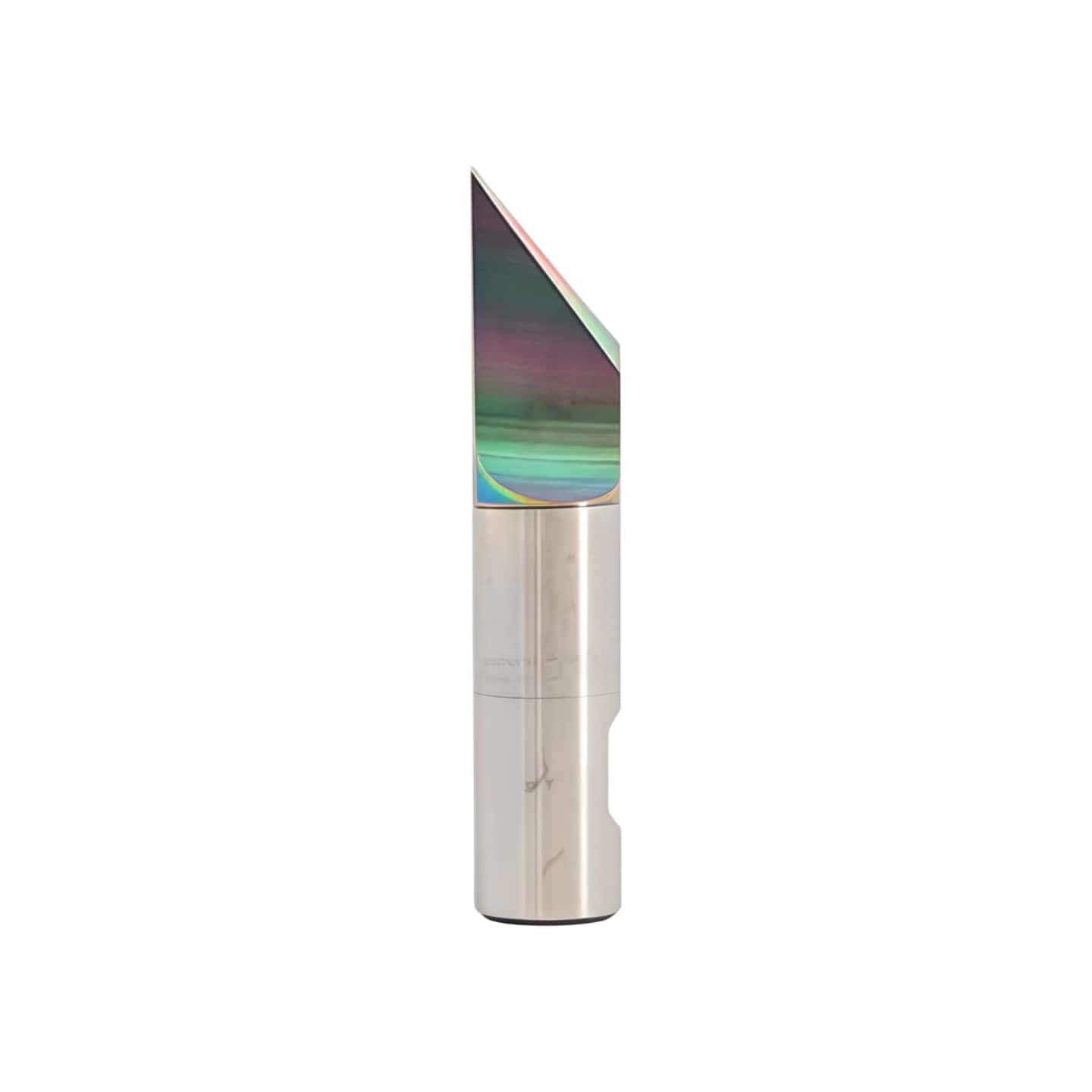

Esko Kongsberg BLD-SR8180 C2 (part number G34118331) is a high-grade solid tungsten carbide drag knife blade featuring an 8mm cylindrical round shaft and Kongsberg's specialized C2 anti-friction coating.

Unlike the sharper 30° geometries found on the SR8172, the SR8180 features a much blunter 40° cutting edge. This design is engineered specifically to prevent the blade tip from chipping or breaking when cutting tough, highly dense, or abrasive substrates

D Shank diameter 8mm
C Maximum cutting thickness 8 mm - 5/16"

Height (cm) 0.8
Width (cm) 0.8
Length (cm) 4
Net weight (kg) 0.02

Material	Sub Category	Thickness	Method
Corrugated	Double wall	EB,BC...(5-7mm) virgin	Static
Corrugated	Microflute	Microflute	Static
Corrugated	Single Wall	F,E..(1-3mm) virgin	Static
Corrugated plastic	Corrugated plastic	< 5mm	Static
Foam board soft (PUR)	Foam board soft (PUR)	< 5mm	Static
Foamed PVC / PS	Foamed PVC / PS (Forex, Sintra)	< 5mm	Static
Lenticular display panels	Lenticular display panels	< 5mm	Static
Magnetic foil	Magnetic foil	Magnetic foil	Static
Solid board	Display board	3mm	Static
