Summa 500-9860C 500-9861C 500-9862C Coated Titanium Decagonal (10-sided) Cutter Knife Blades
Summa 500-9860C, 500-9861C, and 500-9862C series are premium, titanium-coated decagonal (10-sided) rotary circular knife blades designed for the Electronic Rotary Module (RM) and High Torque Rotary Module (HT RM) on Summa F Series flatbed cutters. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

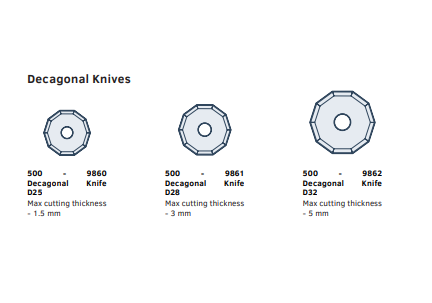

Summa Coated Titanium Decagonal (10-sided) Knife Blades 500-9860C 500-9861C 500-9862C
These specific Summa Decagonal (10-sided) Knife Blades are designed for use with the High Torque Rotary Module on Summa F-Series flatbed cutters. The "C" designation indicates they are TiN (Titanium Nitride) coated, which significantly extends the life of the blade's edge compared to standard uncoated tungsten carbide.

Summa 500-9860C TiN coating 10-sided rotary blade
25,00 mm
THICKNESS
0,60 mm
ANGLE
36°
MAX. CUTTING DEPTH
5,00 mm
KNIFE TYPE
Rotary blade
hole Ø 8 mm


Summa 500-9861C Coated TiN Rotation Knife Blade
KNIFE HEIGHT
28,00 mm
THICKNESS
0,60 mm
ANGLE
36°
MAX. CUTTING DEPTH
5,00 mm


Summa 500-9862C TiN  coating 10-sided rotary Knife blade
KNIFE HEIGHT
32,00 mm
THICKNESS
0,60 mm
ANGLE
36°
MAX. CUTTING DEPTH
7,00 mm
KNIFE/BLADE MOUNTING
hole Ø 8 mm
Key Features
Rotary Action: Unlike standard dragging or oscillating blades, these rotate to handle intricate designs in flexible materials like fabrics and textiles without snagging or bunching.
Decagonal Design: The 10-sided geometry provides multiple cutting edges that ensure a sharp, precise finish.

TiN Coating: The Titanium Nitride coating (gold in color) reduces heat buildup and friction, allowing for cleaner cuts on heat-sensitive materials.

Mounting: These blades typically feature an 8mm center hole for secure mounting within the Rotary Module.

Suitable for machine manufacturer:Blackman & White Coated Titanium Decagonal (10-sided) Knife Blade BW52B BW51B BW50B,Zund Coated Titanium Decagonal (10-sided) Knife Blade Z50C Z51C Z52C
OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
