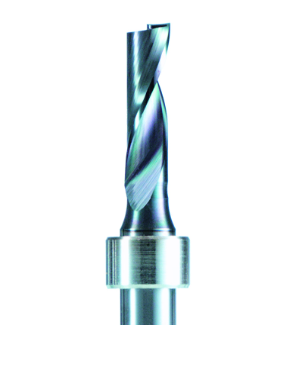

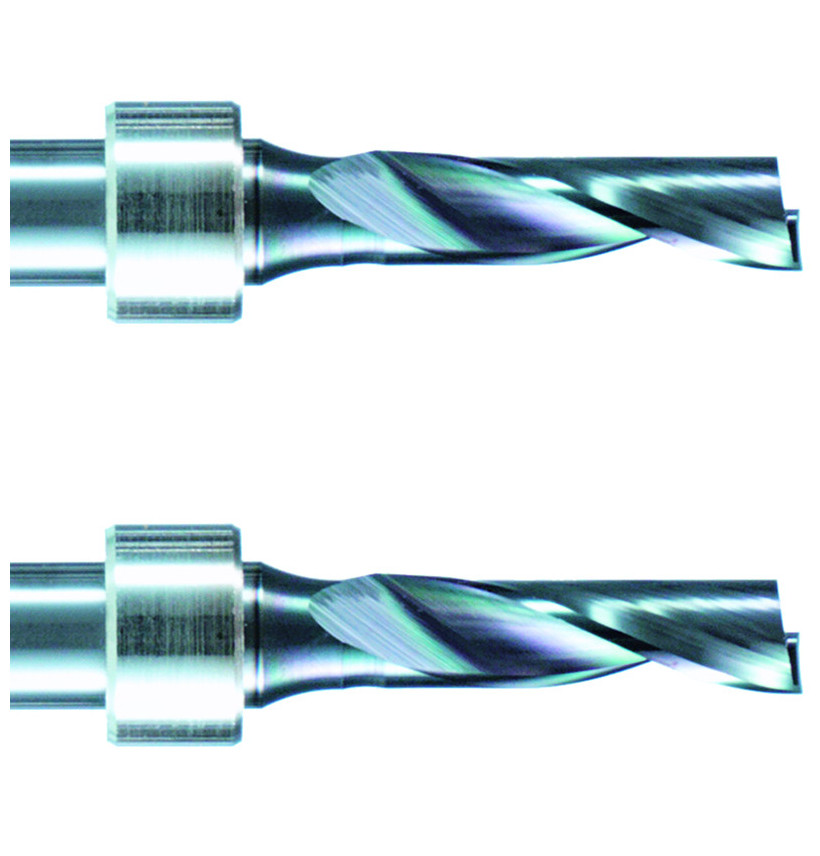

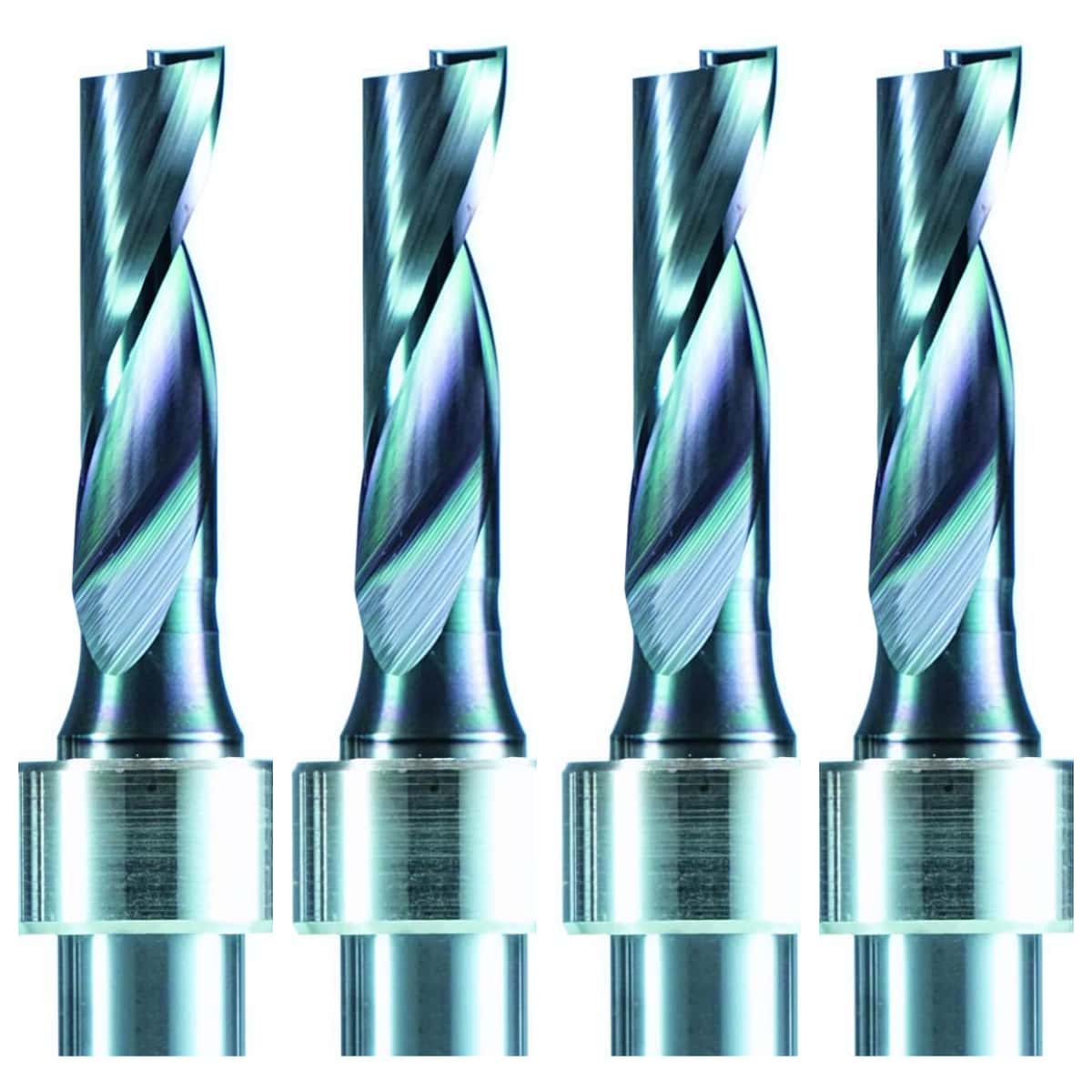

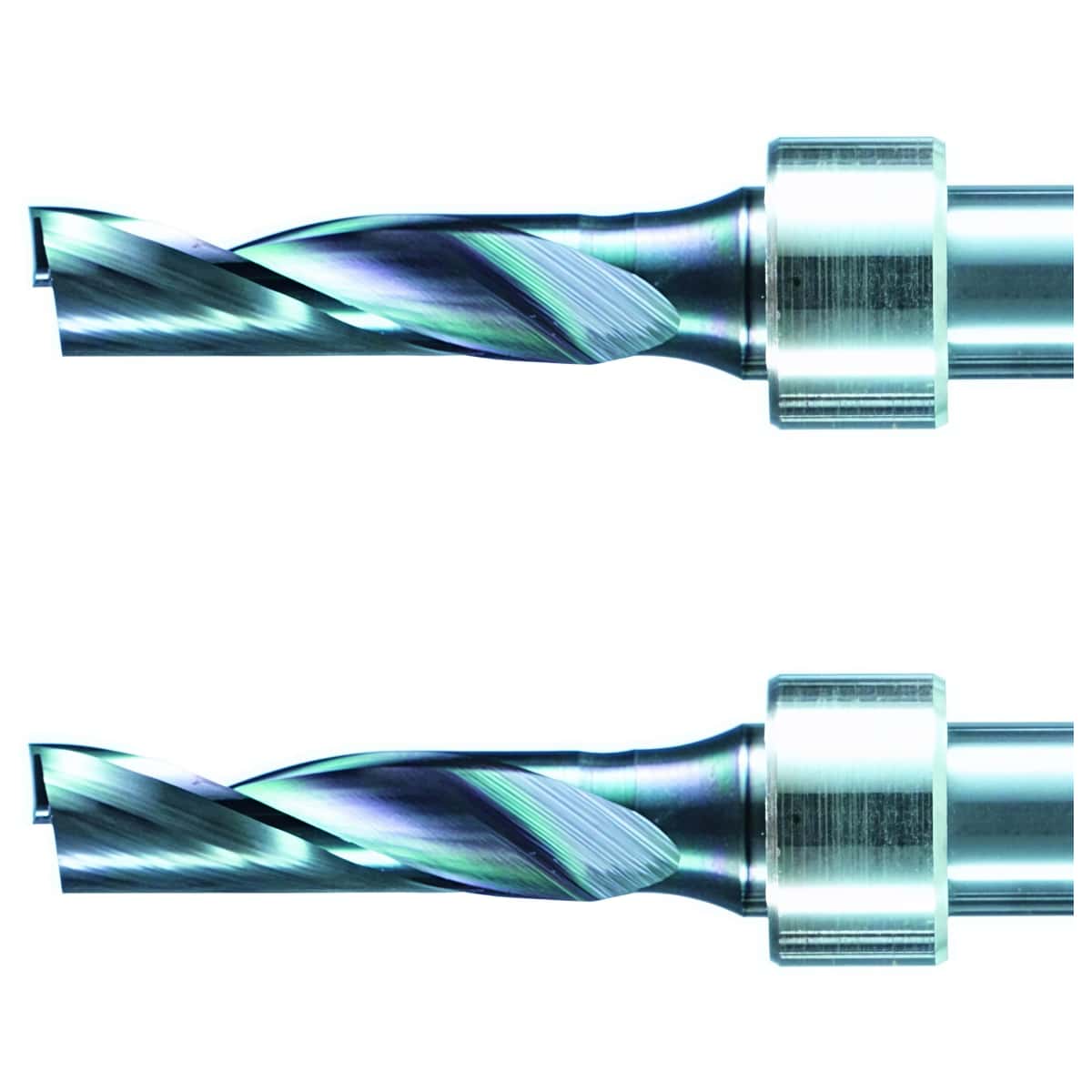

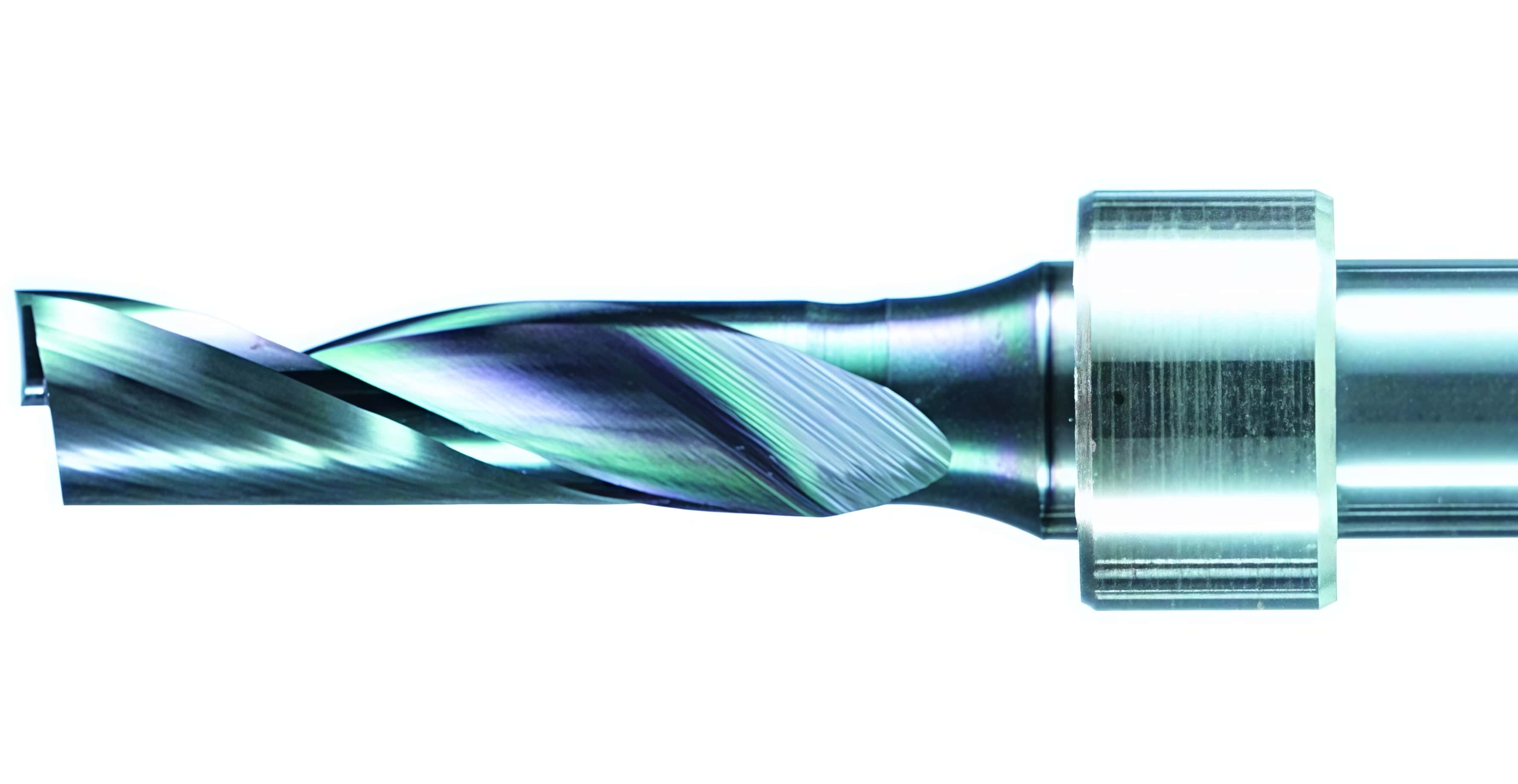

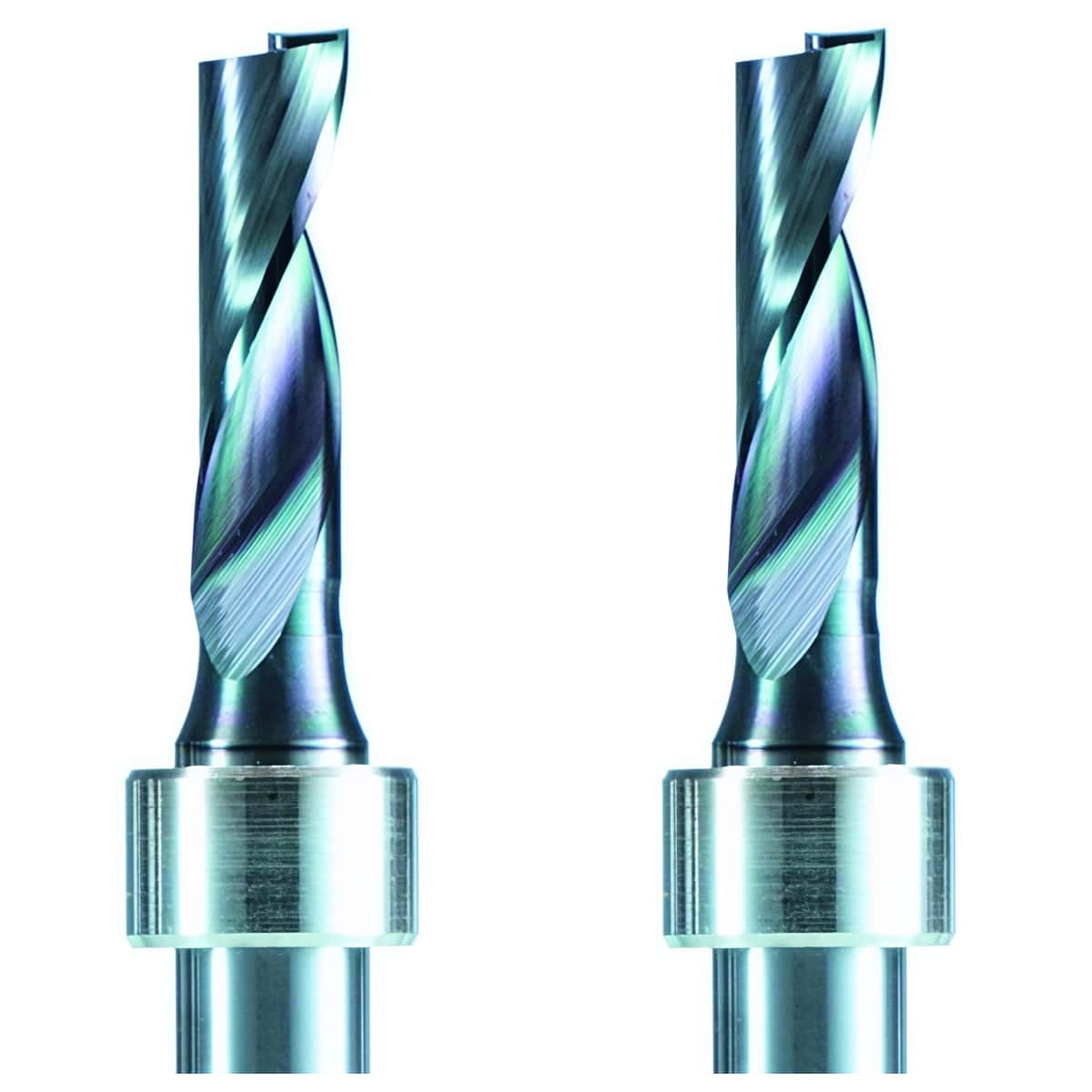

Zund R505-A Stop Loop/Distance Ring Coated Solid Tungsten Carbide Router Bit 5218140

Zund R505-A (Part No. 5218140) is a premium, single-flute solid tungsten carbide router bit equipped with a high-performance protective coating (such as DLC - Diamond-Like Carbon) and a factory-fitted Stop Ring / Distance Ring Enquire now

Description

Zund R505-A Stop Loop/Distance Ring Coated Solid Tungsten Carbide Router Bit 5218140

Zund R505-A (Part Number 5218140) is a high-performance, single-flute, right-hand spiral (up-cut) solid tungsten carbide router bit. It is specifically engineered with an integrated stop ring (distance ring) for seamless integration with Zund’s Automated Router Changer (ARC) system.

Item no.
5218140

Properties
Coated, with stop ring (for use with ARC)

Recommended Materials
Acrylic, Aluminium, Aluminium composite, Corrugated plastic, Pertinax, Polycarbonate, Wood

Routing Diameter
5
Diameter of Shank
6 mm
Routing Depth mm.
16
Cutting Edges
1
Max Rotation Speed
50000

The Zund R505-A color-coated milling and router bits, equipped with a built-in stop ring model 5218140, represent a high-precision tool designed for efficient and versatile use in various manufacturing and production applications. These tools are crafted with meticulous attention to detail, ensuring compatibility and high performance across multiple systems. Shenzhen Oyea Machinery Co., Ltd specializes in producing these quality tools, making them available through wholesale supply channels for businesses seeking reliable equipment for their machining needs.
