Milling Collects


IECHO digital cutting systems (such as the BK, BK3, BK4, PK, and TK4S series) utilize specialized tooling, milling accessories, and consumables designed for high-precision cutting, routing, and creasing.IECHO digital cutting systems (BK, BK3, BK4, PK, TK4S series) offer high-precision cutting, routing, and creasing with specialized tooling, milling accessories, and consumables.
Key IECHO Milling Components:
1. Milling Blades & Router Bits (ER Series)
- IECHO router bits made of solid tungsten carbide are ideal for non-metallic substrates like acrylic, PVC foam board, ACM/Dibond, MDF, and wood-plastic composites.
350W Milling System Bits:
- IECHO ER1: 3.175mm bit for light routing and engraving.
- IECHO ER2: 4.0mm bit for medium-density plastics and signboards.
High-Speed Spindle Bits (1KW / 1.8KW / 3.6KW):
- ER61/ER62: For standard acrylic and plastic panel cutting.
- ER63: For ACM/Dibond grooving.
- ER64: For thick acrylic, wood, aluminum.
- ER65 & ER66: For slotting and multi-flute material removal.

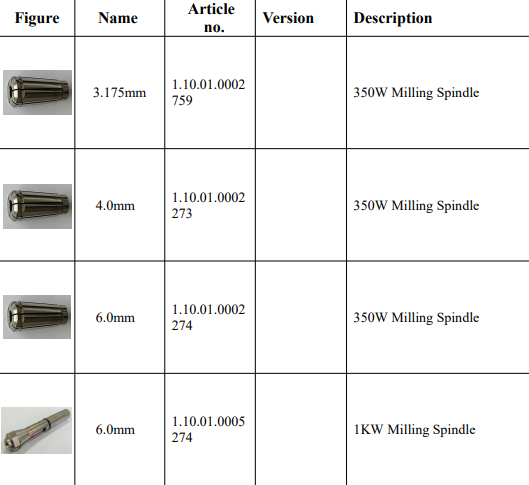

2. Milling Collets
- Precision collets secure router bits in the spindle for accuracy.
Collet Sizes:
- 3.175mm: For ER1 bits.
- 4.0mm: For ER2 bits.
- 6.0mm: For high-power spindle bits (ER6 series).
Collet Nuts & Clamping Rings: For retaining nuts on various spindles.
3. Router Spindles & Cooling Accessories
Spindle Units:
- 350W Air-Cooled: For light tasks.
- 1.0KW / 1.8KW Water/Air-Cooled: For industrial work.
- 3.6KW Heavy-Duty: For thick materials.
Milling Accessories:
- Dust Extraction Hoods & Brushes: Capture debris.
- Cooling Mist/Lubrication Kits: Ensure clean cuts.
4. Supporting Parts & Consumables

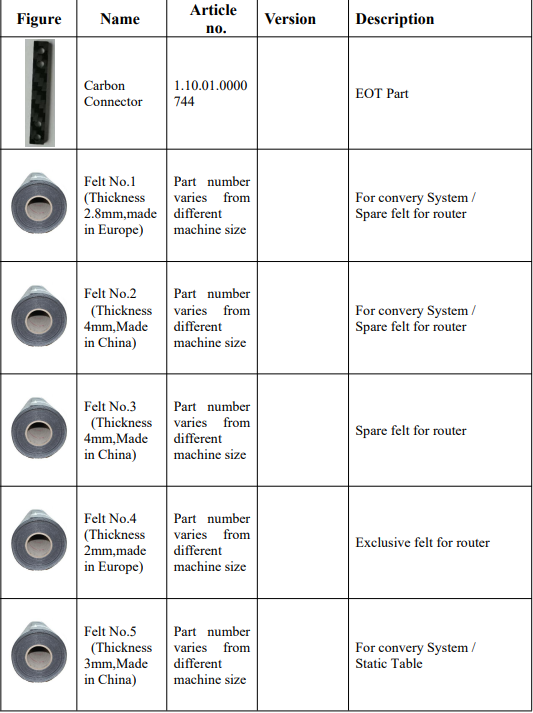

- Felt & Underlay Mats: Protect tables and enhance vacuum hold-down.
- Depth Calibration Plates/Sensors: Ensure precise depth control.
