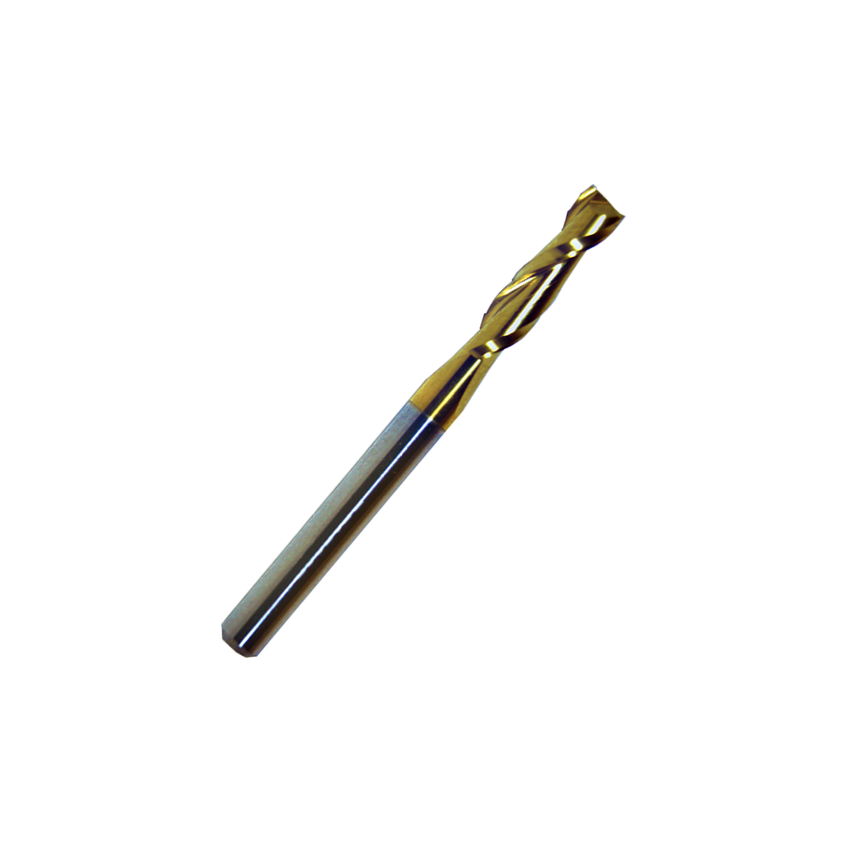

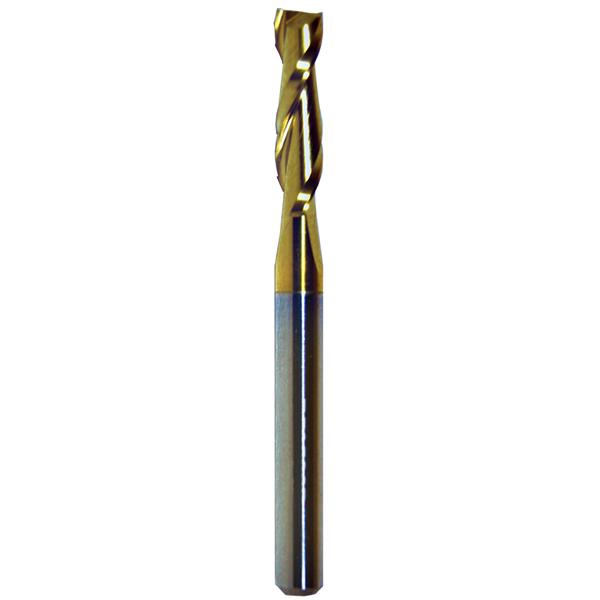

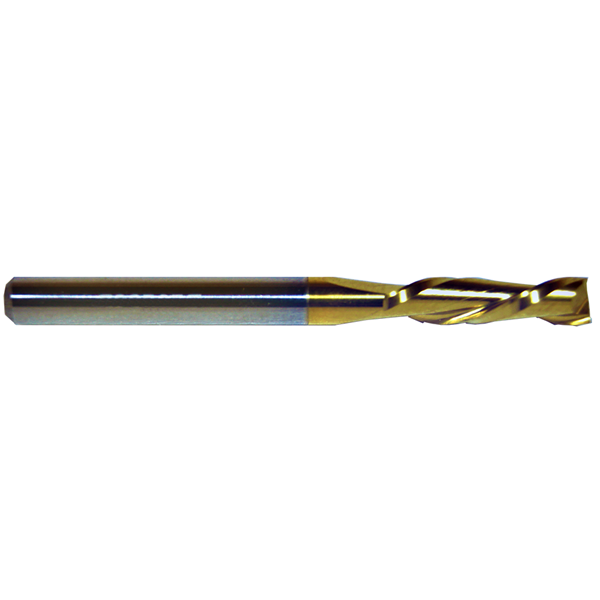

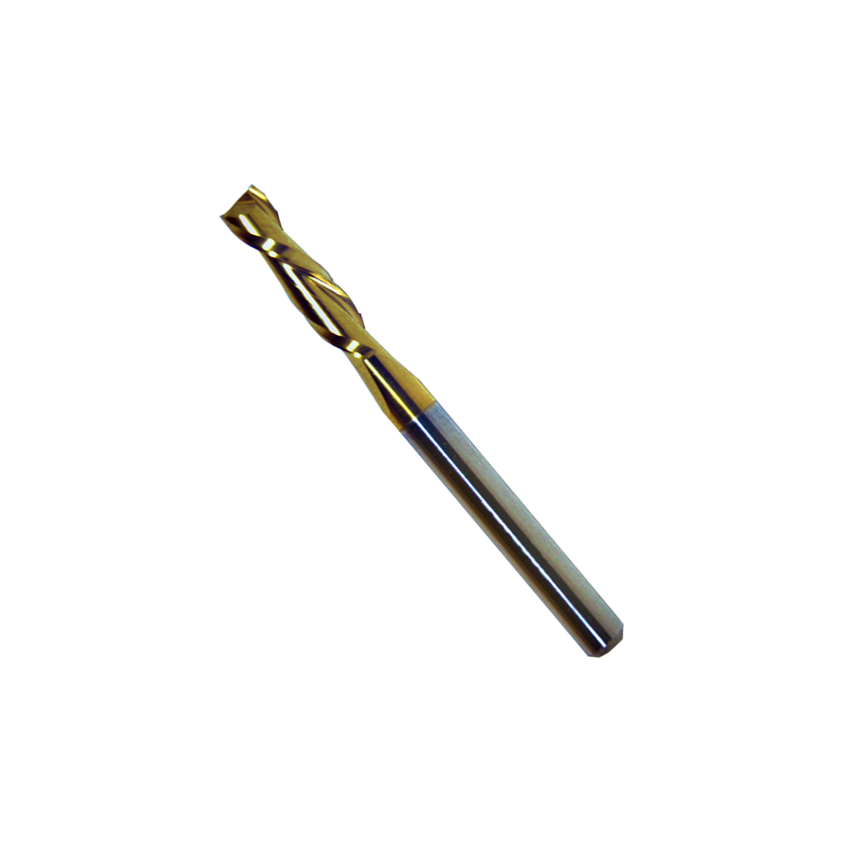

Gerber Gold 2 Flute Spiral Upcut Router Bit P50529B

Gerber Gold P50529B is a 2-flute spiral upcut router bit with a 1/4 inch shank, 1/4 inch cutting edge, 1-1/2 inch cutting length, and 3 inch overall length. Enquire now

Description

Gerber Gold 2 Flute Spiral Upcut Router Bit P50529B

Gerber Gold P50529B is aprofessional-grade, high-performance 2-flute solid carbide spiral upcut router bit coated with titanium nitride (TiN)

Application
General Routing of metals, PVC, acrylics, wood, soft plastics, foam boards
Brand
Gerber
CED (Cutting Edge Diameter)
1/4in
CEL (Cutting Edge Length)
1-1/2in
OAL (Overall Length)
3in
Series
Gold 2
Shank Diameter
1/4in

Material Compatibility

deal for multi-purpose sign-making and fabrication tasks:

Metals: Non-ferrous plates like aluminum, brass, bronze, and copper.
Plastics & Sign Substrates: Acrylics, PVC boards (Sintra, Komatex), solid surfaces, and soft plastics.
Wood & Composites: Hardwoods, plywood, particleboard, and MDF.
Lightweight Media: Dense foam boards and thick insulation panels.

Core Design Features

Titanium Nitride Coating: Gives the bit its signature "Gold" appearance while drastically reducing friction, expanding tool life, and providing high thermal resistance.
Upward Spiral Action: Forces chips up and out of the cutting track to prevent melting or re-cutting. This results in a cleaner bottom edge finish, though workpieces must be secured well to the vacuum bed to counter the upward pulling force.
Premium Micrograin Carbide: Provides high edge-retention stability under continuous industrial loads.
