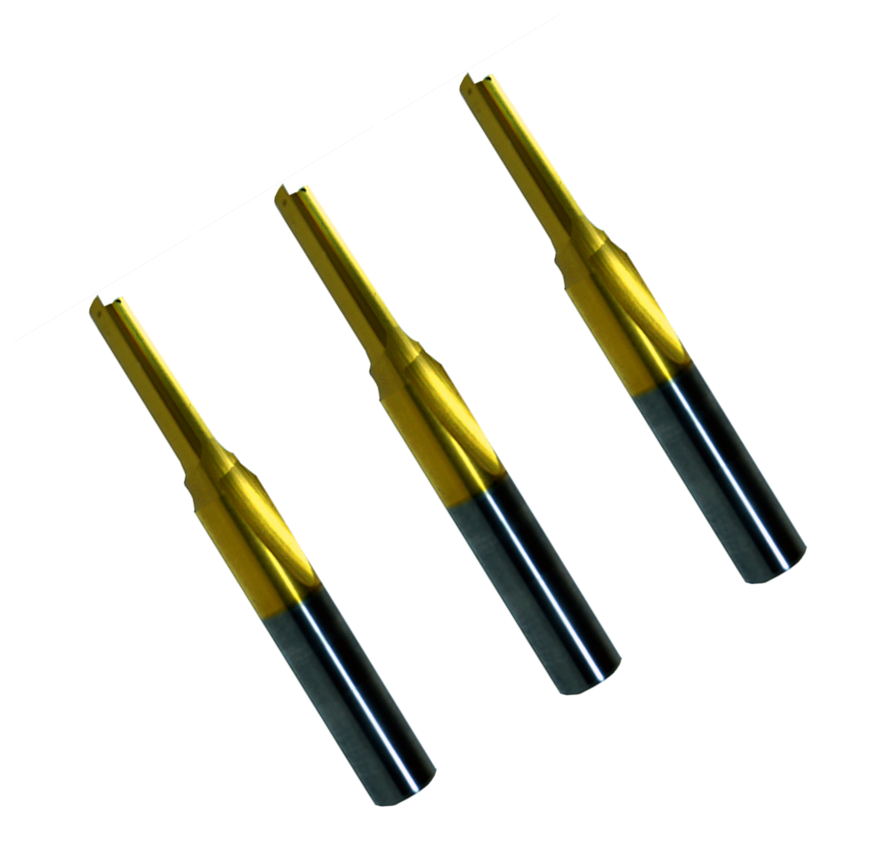

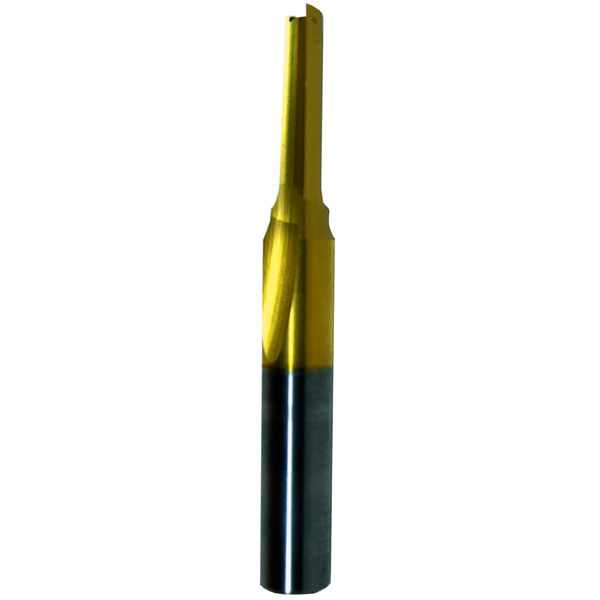

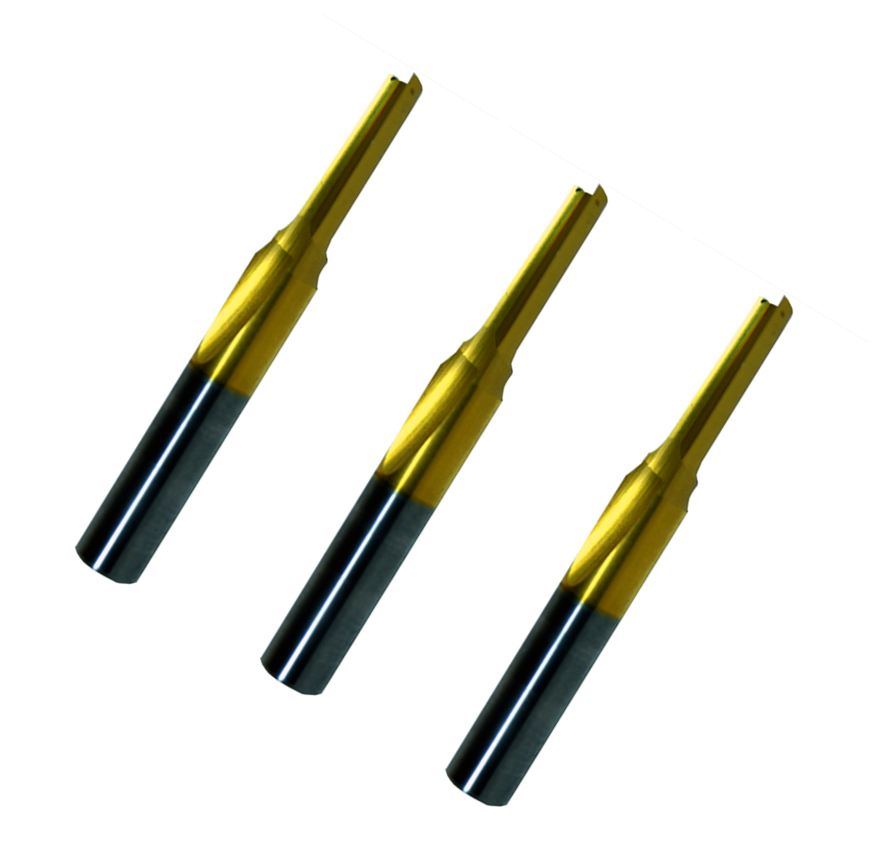

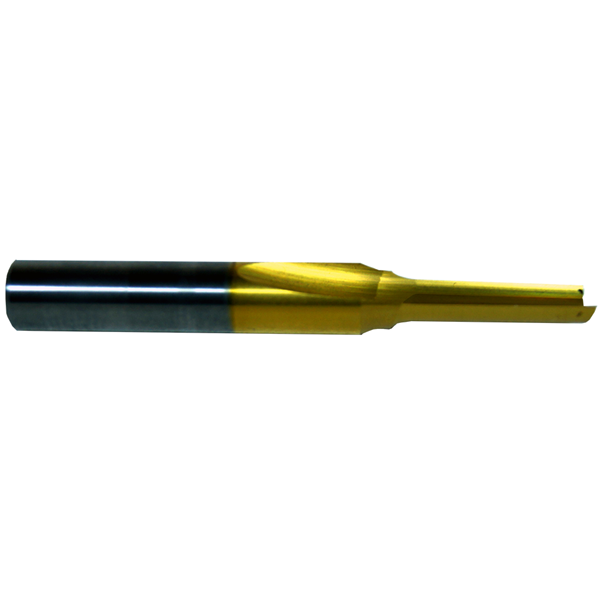

Gerber P50533B Gold Single Flute Radial (Straight Edge) Router Bits
Gerber P50533B Gold Single Flute Radial Router Bit is a high-performance, specialized milling tool designed for clean, burr-free cuts on automated and manual routers. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Gerber P50533B Gold Single Flute Radial (Straight Edge) Router Bits
Gerber P50533B Gold Single Flute Radial (Straight Edge) Router Bits
Gerber Gold P50533B is a high-performance, single-flute radial straight-edge router bit designed specifically for automated Gerber routers and engraving systems, as well as compatible manual or third-party CNC tables

Technical Specifications
  • Part Number: P50533B
  • Shank Diameter: 1/4"
  • Cutting Diameter (CED): 3/16"
  • Cutting Edge Length (CEL): 5/8"
  • Overall Length (OAL): 2"
Material Composition & Coating
  • Micrograin Carbide Base: Fabricated to highly rigorous industry tolerances to ensure reliable structural stability under rapid spindle speeds.
  • Titanium Nitride (TiN) "Gold" Coating: Gives the bit its signature gold appearance. This physical vapor deposition (PVD) coating shields the carbide base against localized thermal stress, significantly extending the tool's cutting lifespan and lowering overall operational costs.
Functional Mechanics & Material Focus
Unlike spiral bits that pull or push chips vertically, a radial straight-edge bit cuts strictly along a horizontal plane.
  • Zero-Lift "Shear" Action: The single straight edge shears material cleanly right at the top surface boundary. This stops thin sheets from lifting, warping, or fluttering on the vacuum bed.
  • Burr-Free Edges: Minimizing vertical movement allows it to trim sheet edges perfectly clean without forming annoying exit burrs.
  • Ideal Material Applications: Highly optimized for slicing thin non-ferrous sheet metal like sheet aluminum and brass with a thickness of .060” (1.5mm) or less. It is also regularly used for machining softwoods and soft alloy aluminums

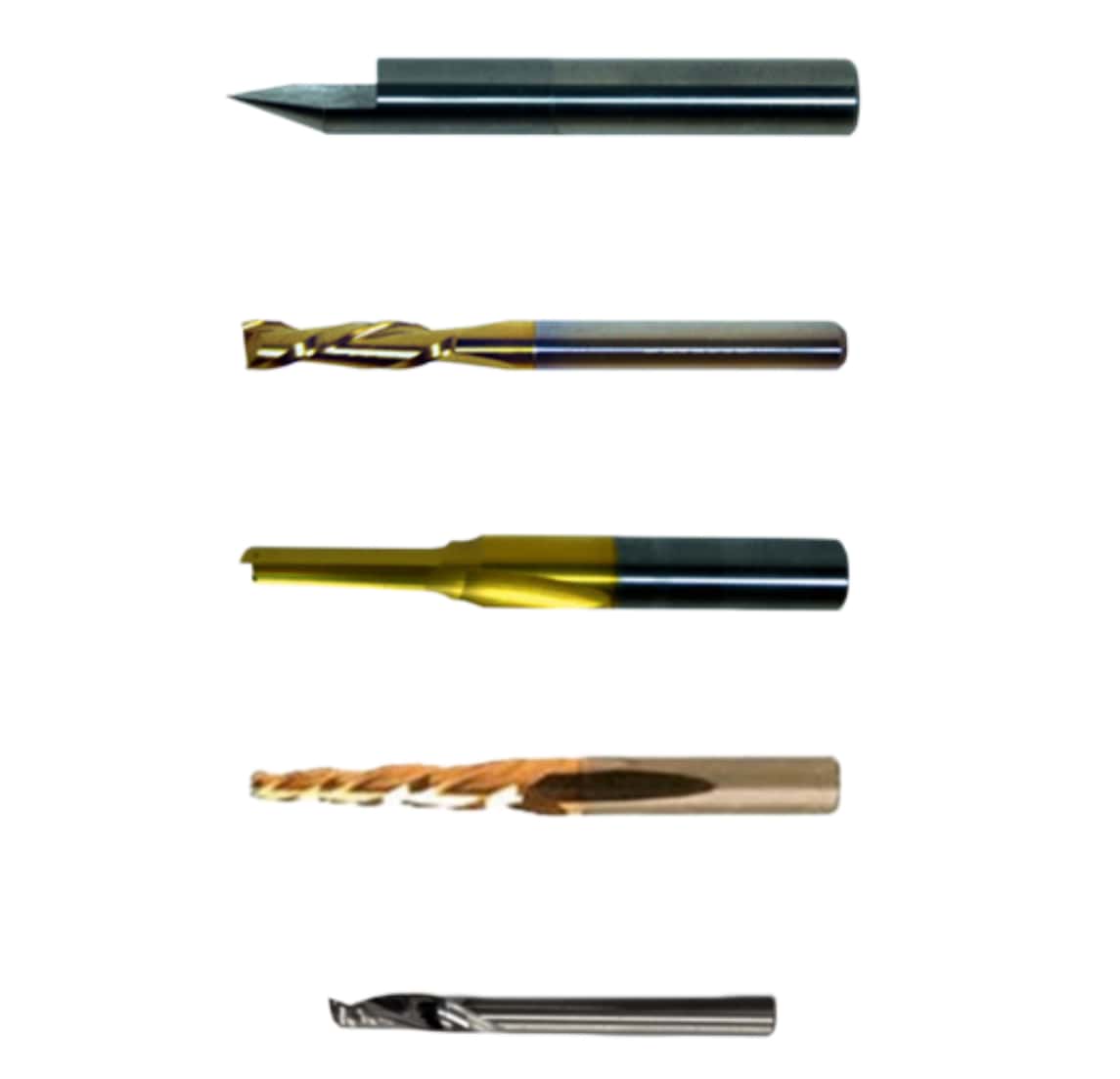

Gerber P50533B Gold Single Flute Radial (Straight Edge) Router Bits
