Gerber Gold 2 Flute Spiral Upcut Router Bit P50525B
Gerber Gold 2 Flute Spiral Upcut Router Bit (P50525B) is a versatile, titanium-nitride-coated micrograin carbide bit. Designed for excellent chip removal, it pulls chips upward out of the cut. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Gerber Gold 2 Flute Spiral Upcut Router Bit P50525B

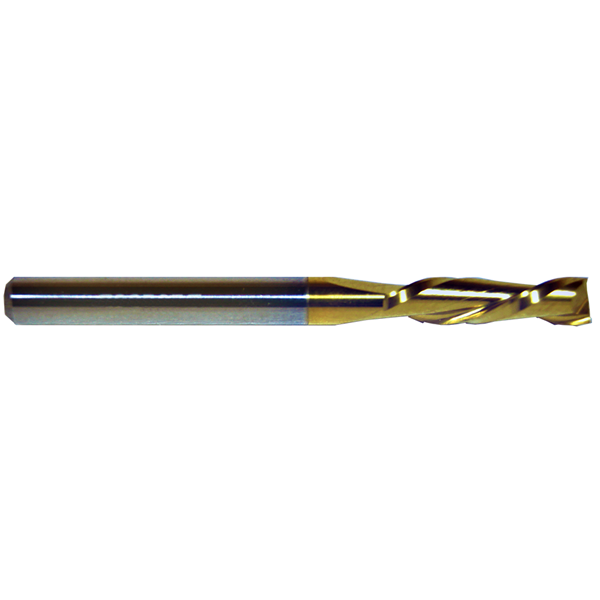

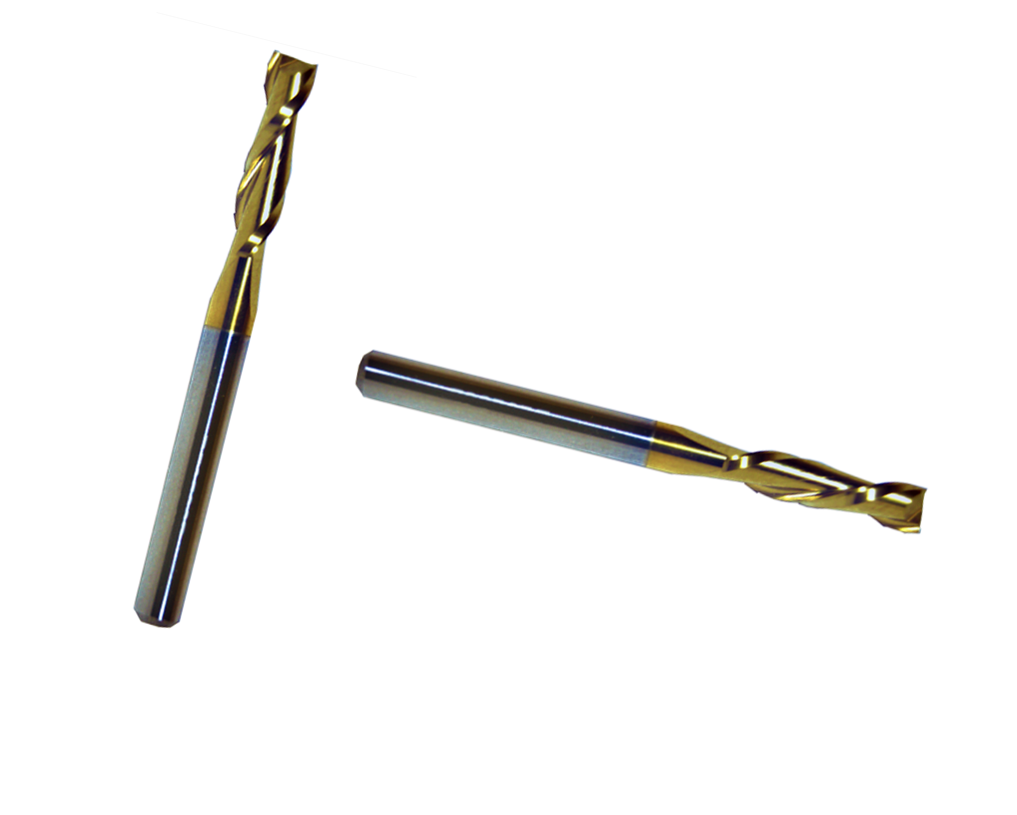

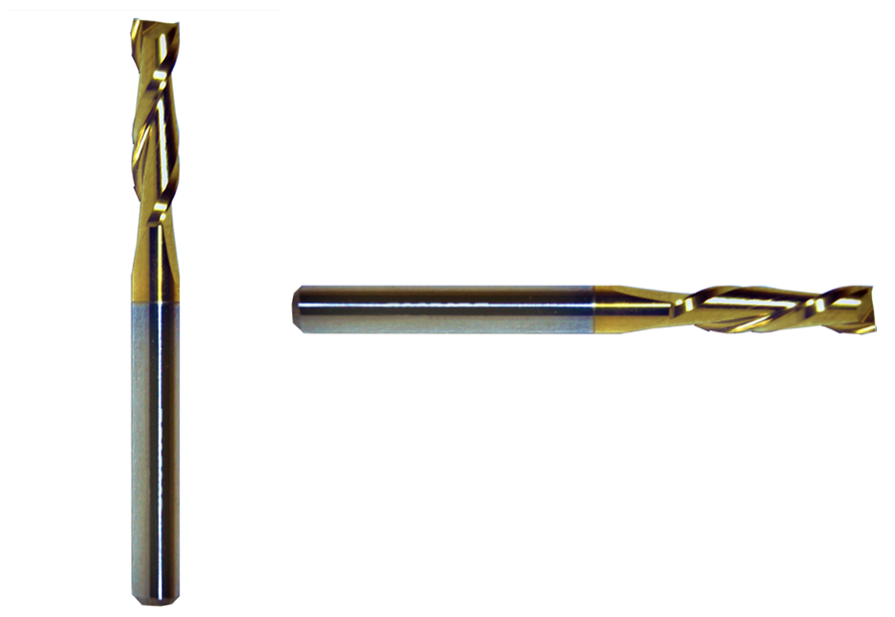

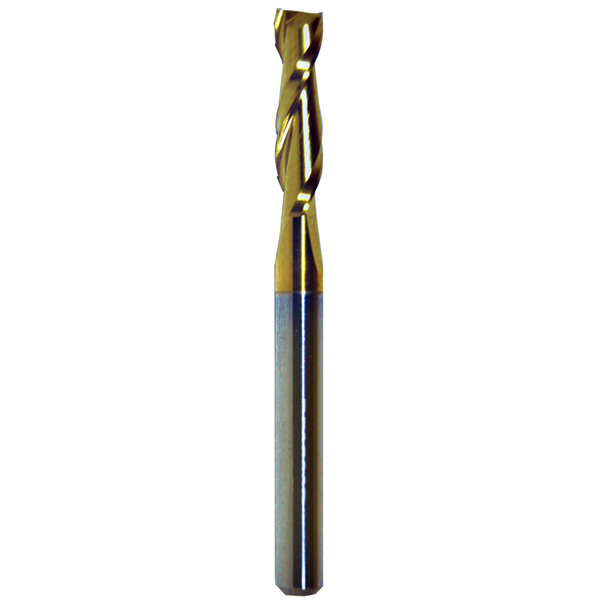

Gerber Gold 2 Flute Spiral Upcut Router Bit (Part Number: P50525B) is a premium solid carbide cutting tool specifically engineered for high-performance CNC routing, pocketing, and engraving. Part of the Gerber Technology lineup, it features a Titanium Nitride (TiN) "Gold" coating that reduces friction, prevents heat buildup, and significantly extends tool life compared to uncoated bits.
Key Specifications
  • Shank Diameter: 1/8 inch
  • Cutting Diameter: 1/8 inch
  • Cutting Edge Length (CEL): 1/4 inch
  • Overall Length (OAL): 1-1/2 inches
Structural & Performance Benefits
  • Upcut Spiral Geometry: Standard upward-flute design clears material chips rapidly by pulling them up and out of the cut. This minimizes clogging, which is essential for deep slotting or plunges.
  • Two-Flute Design: Delivers an optimal compromise between high chip-load capacity and a smooth, burr-free edge finish on diverse materials.
  • Machine Compatibility: Originally tailored for Gerber Sabre CNC routers, its universal dimensions make it compatible with any CNC or manual router operating with a 1/8-inch collet.
Material Compatibility
This general-purpose tool is highly rated across both hard and soft signage substrates:
  • Metals: Plate aluminum, brass, bronze, and copper.
  • Plastics & Synthetics: Cast/extruded acrylics, engraving stock, and solid surface materials.
  • Foams & PVC: Foam boards, Sintra, Komatex, and soft plastics.
  • Woods: Hardwoods, plywood, MDF, and particleboard.
