Gerber P80340a P80341a P80342a P80343a P80344a P80345a P80346a P80347a Platinum Hpf Router Bits

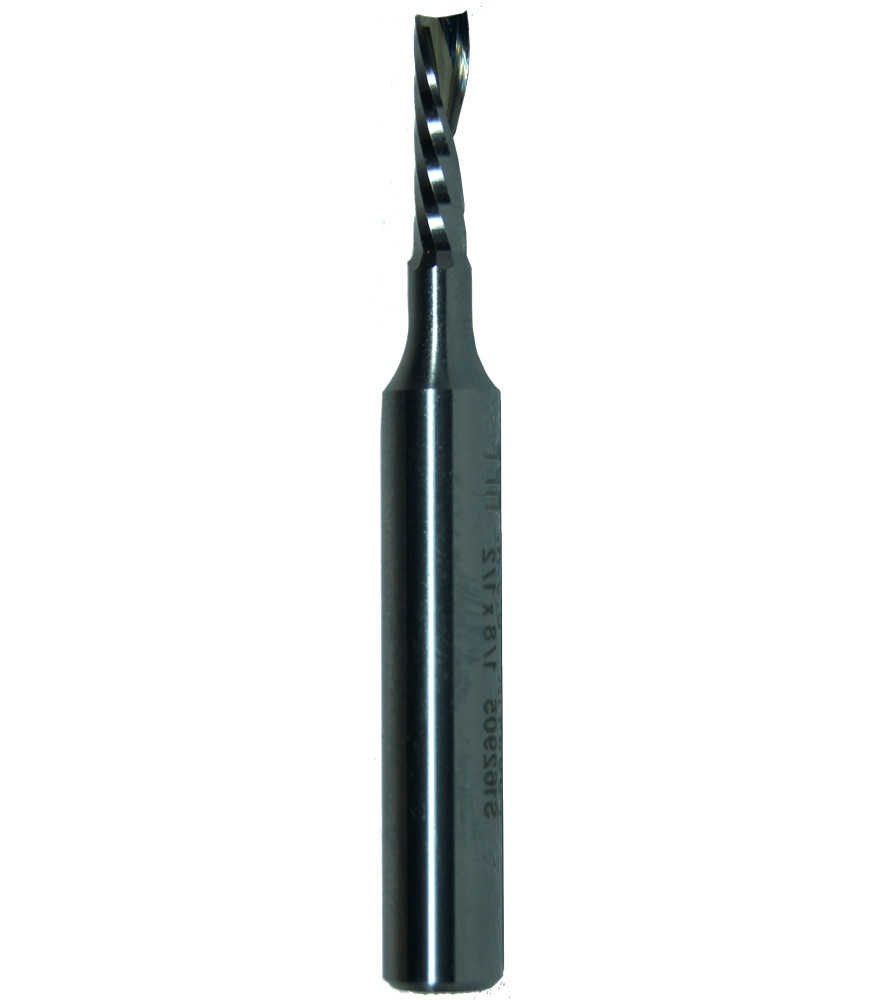

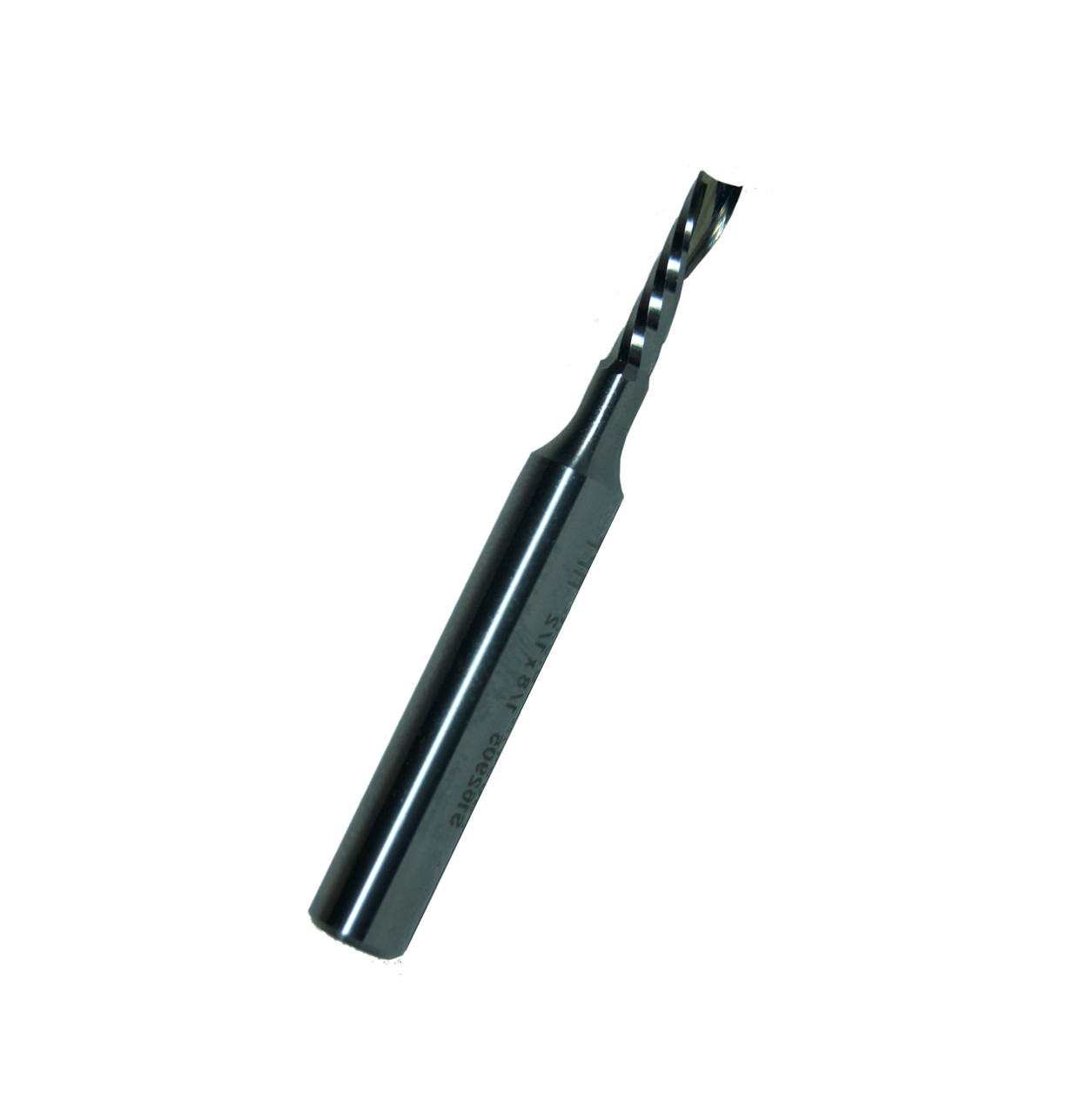

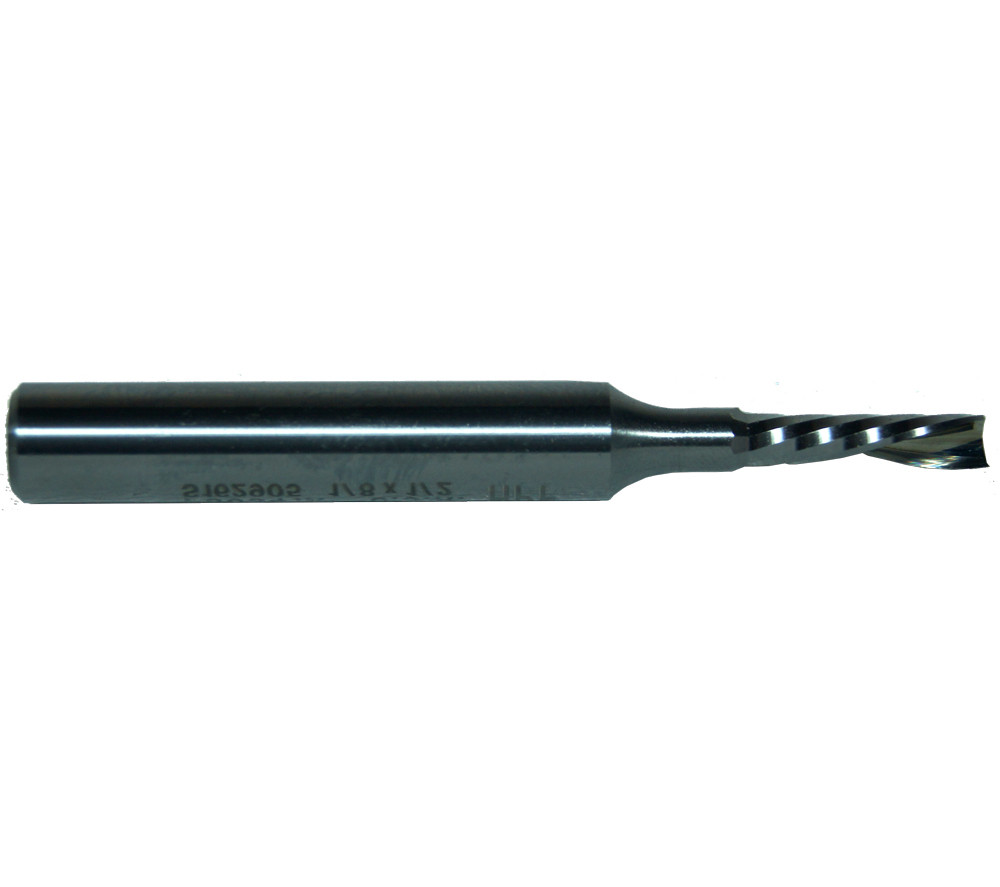

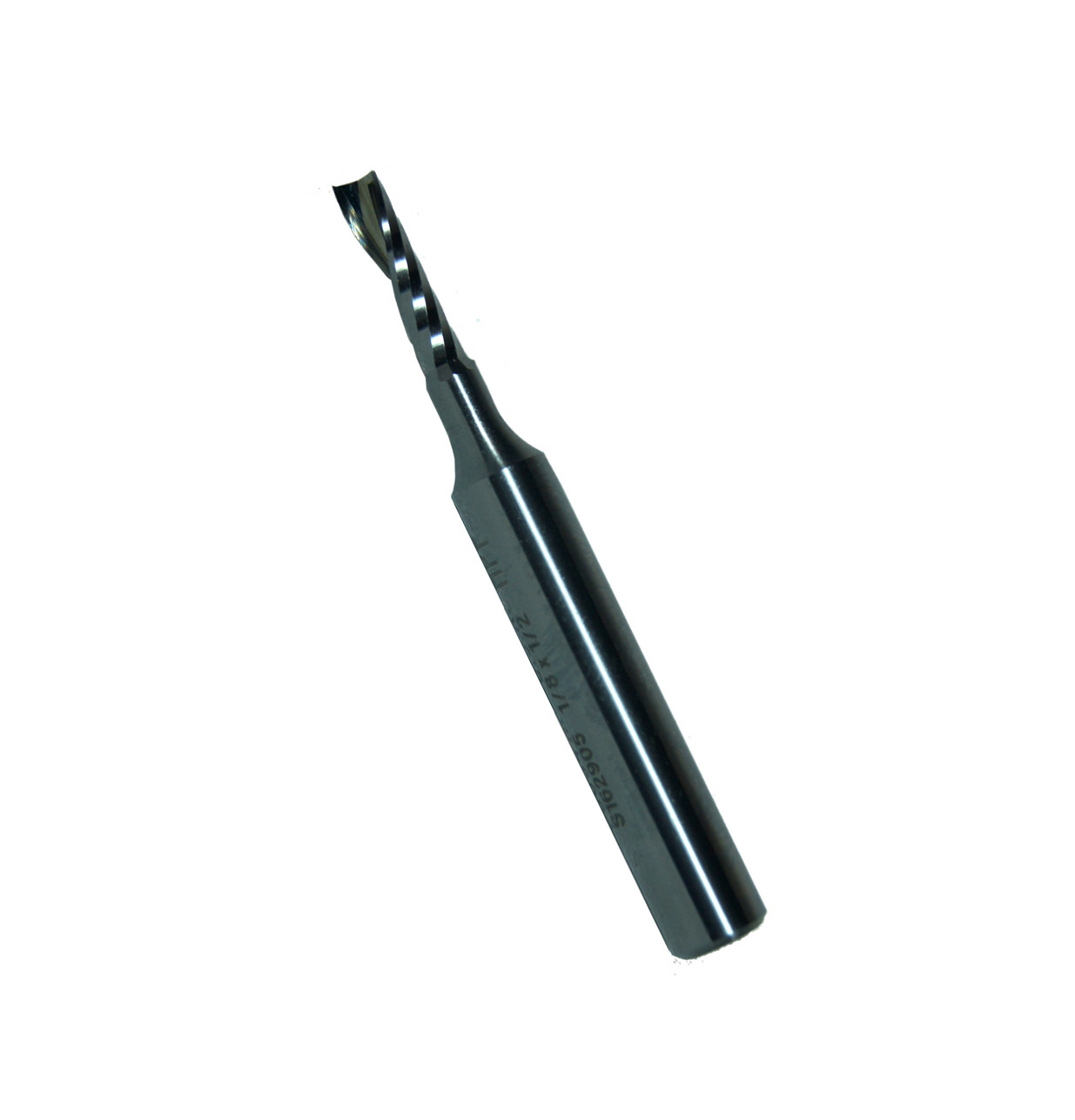

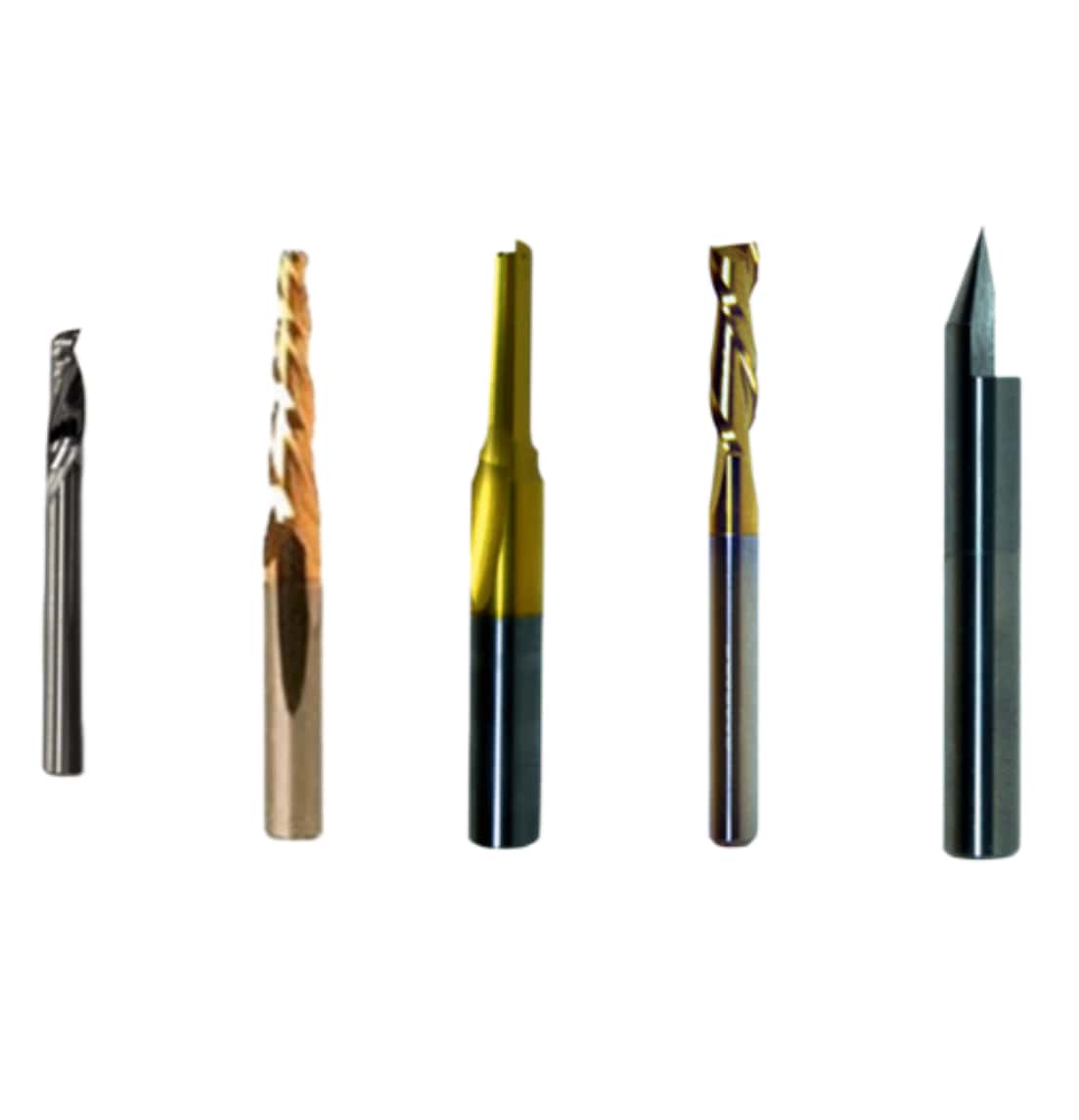

GERBER Platinum HPF (Hard Plastic & Foam) series consists of solid carbide, 1-flute upcut O-flute router bits engineered specifically for machining dense materials like solid surfaces (Corian, Avonite) and cast acrylic Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Gerber P80340a P80341a P80342a P80343a P80344a P80345a P80346a P80347a P80348a P80370a Platinum Hpf Router Bit

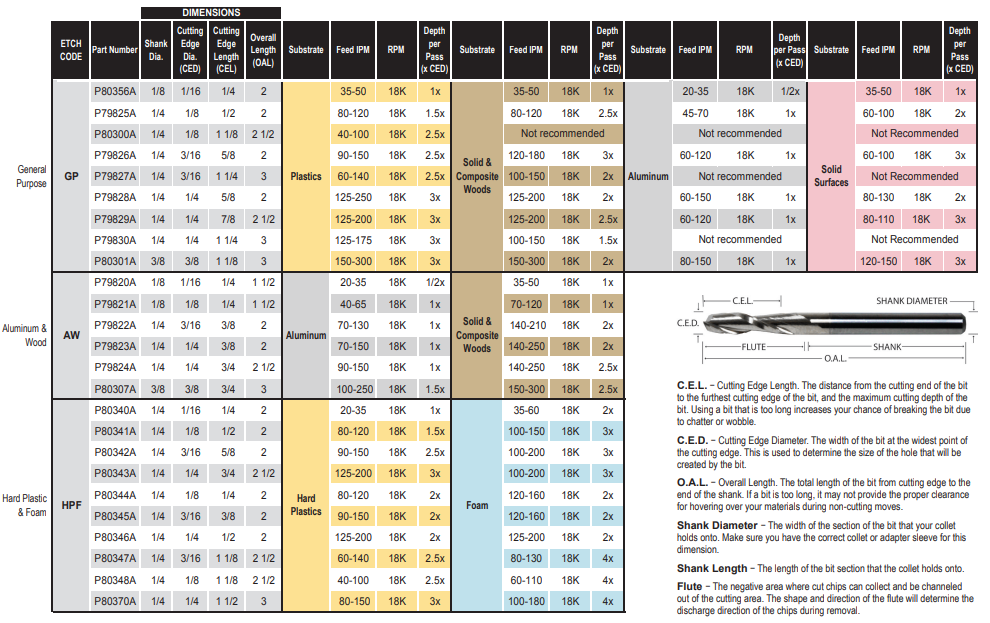

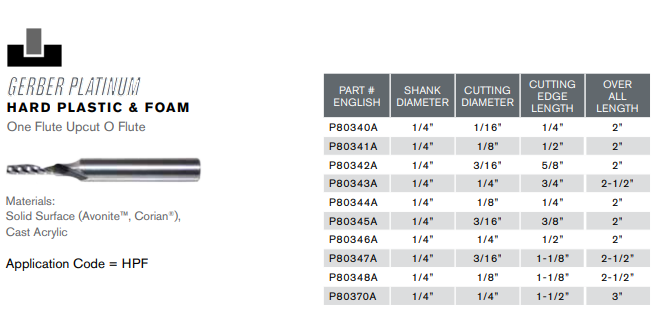

Dimensional Specifications Breakdown

Every part number in this listing features a standard 1/4" Shank Diameter but scales across specialized Cutting Edge Diameters (CED), Cutting Edge Lengths (CEL), and Overall Lengths (OAL) to handle different material thicknesses:

Part Number

Shank Diameter

Cutting Diameter (CED)

Cutting Edge Length (CEL)

Overall Length (OAL)

P80340A

1/4"

1/16"

1/4"

2"

P80341A

1/4"

1/8"

1/2"

2"

P80342A

1/4"

3/16"

5/8"

2"

P80343A

1/4"

1/4"

3/4"

2-1/2"

P80344A

1/4"

1/8"

1/4"

2"

P80345A

1/4"

3/16"

3/8"

2"

P80346A

1/4"

1/4"

1/2"

2"

P80347A

1/4"

3/16"

1-1/8"

2-1/2"

P80348A

1/4"

1/4"

1-1/8"

3"

P80370A

1/4"

1/4"

1-1/2"

3"


Key Features & Specifications

  • Material & Construction: Manufactured from sub-micrograin carbide for extended edge life and high-speed rotary performance.

  • Application Code (HPF): Etched directly onto the shank alongside the part number for easy identification when removed from packaging.

  • Flute Geometry: Upcut spiral single-flute design ensures efficient chip evacuation, preventing heat buildup and edge melting on rigid plastics.

  • Compatibility: Designed for Gerber CNC systems, engravers, and general
