Gerber P80349A P80350A P80351A P80160B Platinum F Router Bits
Gerber Platinum F router bits P80349A, P80350A, P80351A, and P80160B are a matched family of carbide straight bits optimized for thick foams, soft plastics, HDU sign boards, and related materials on Gerber routers and engravers. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Gerber Platinum F Router Bit P80349A P80350A P80351A P80160B

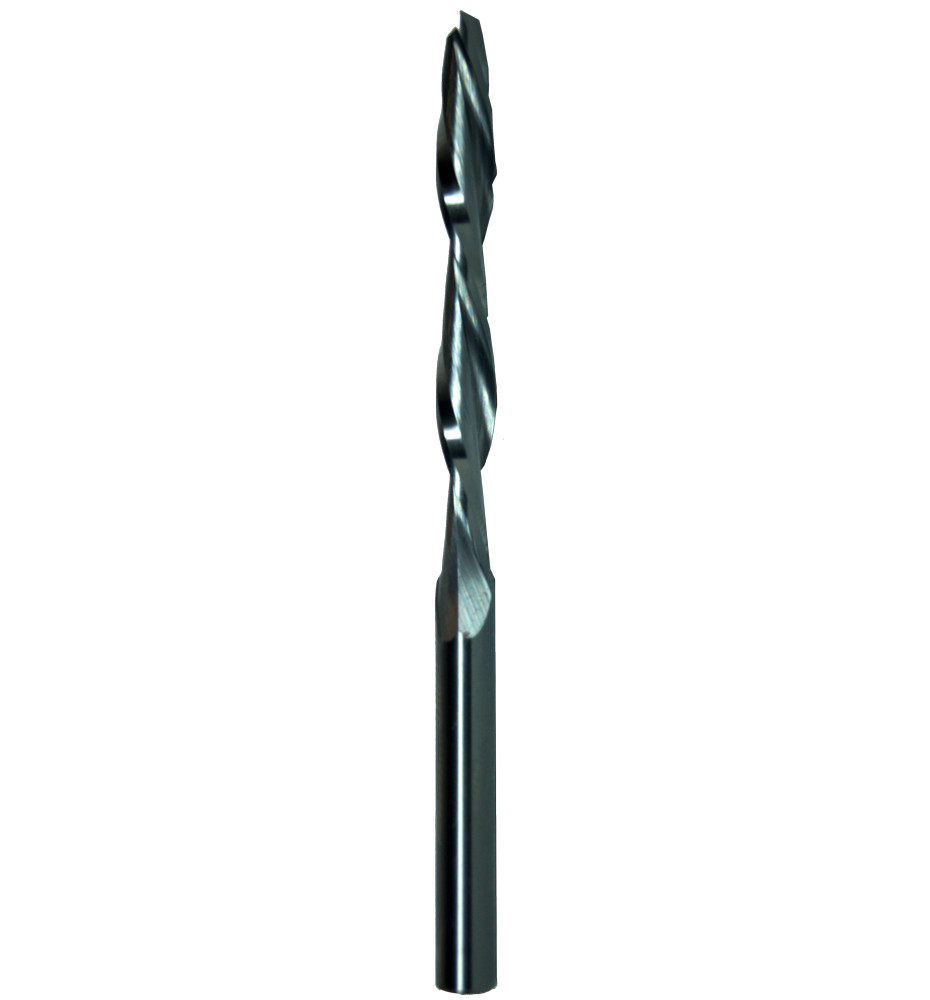

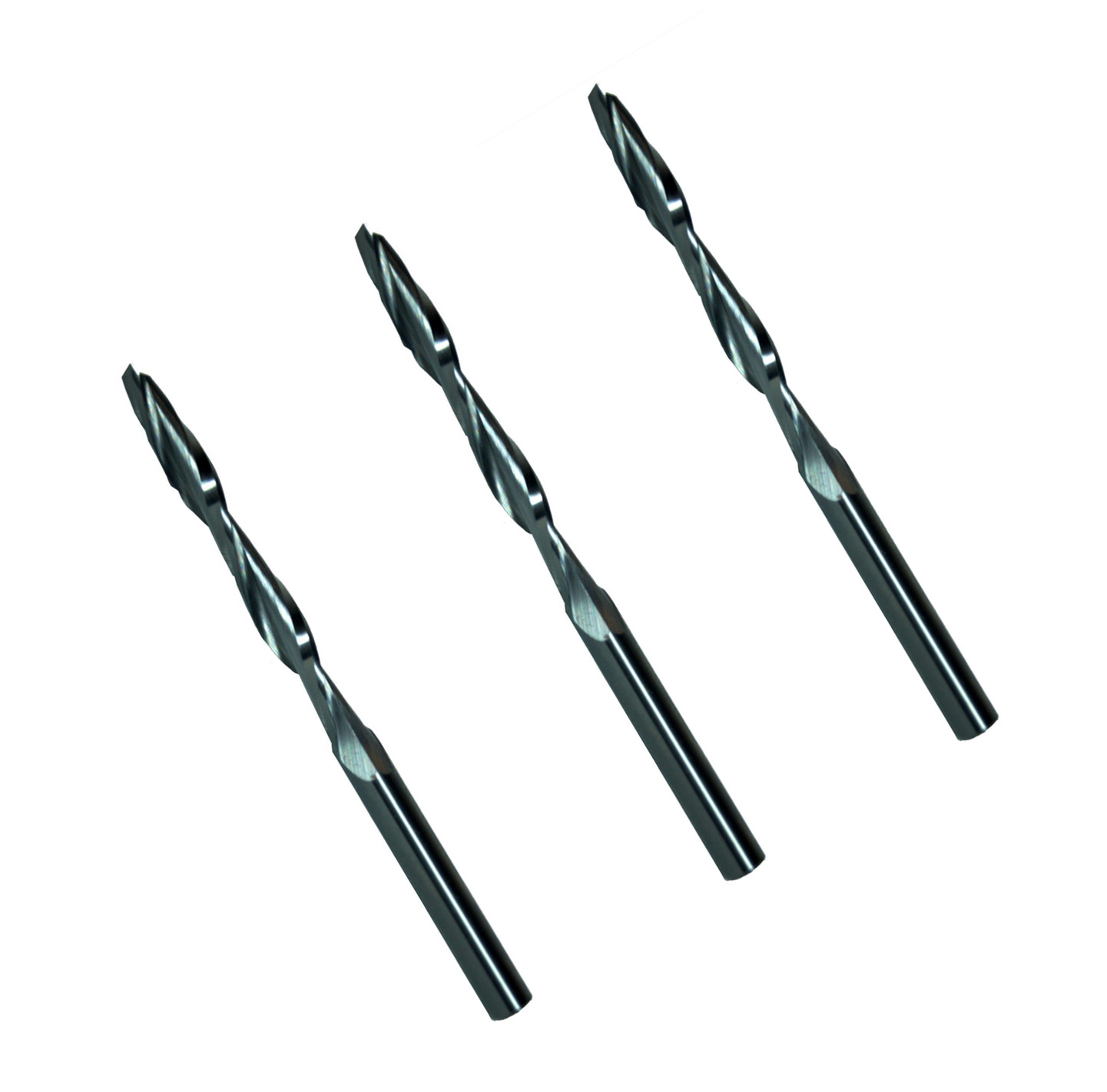

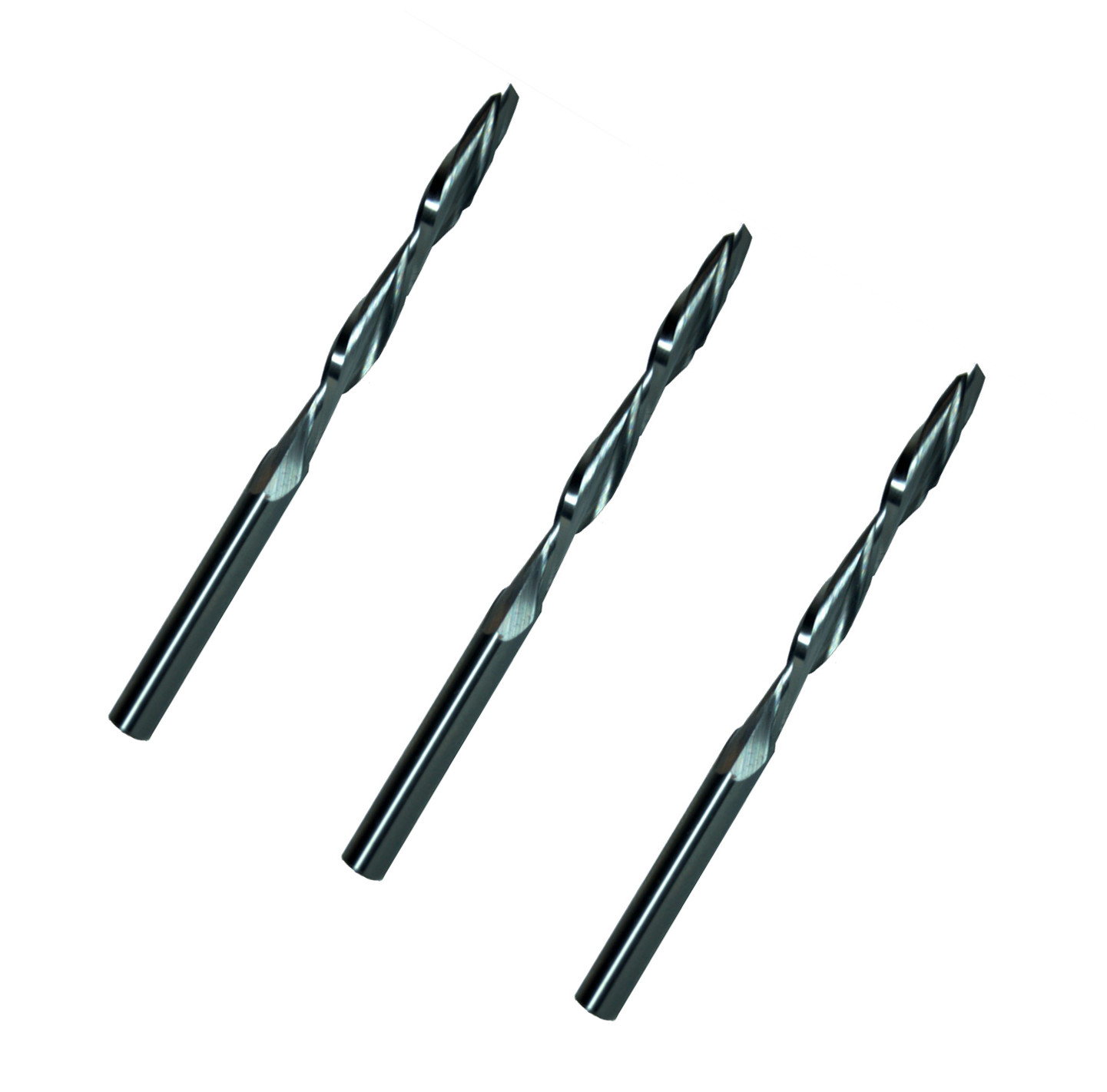

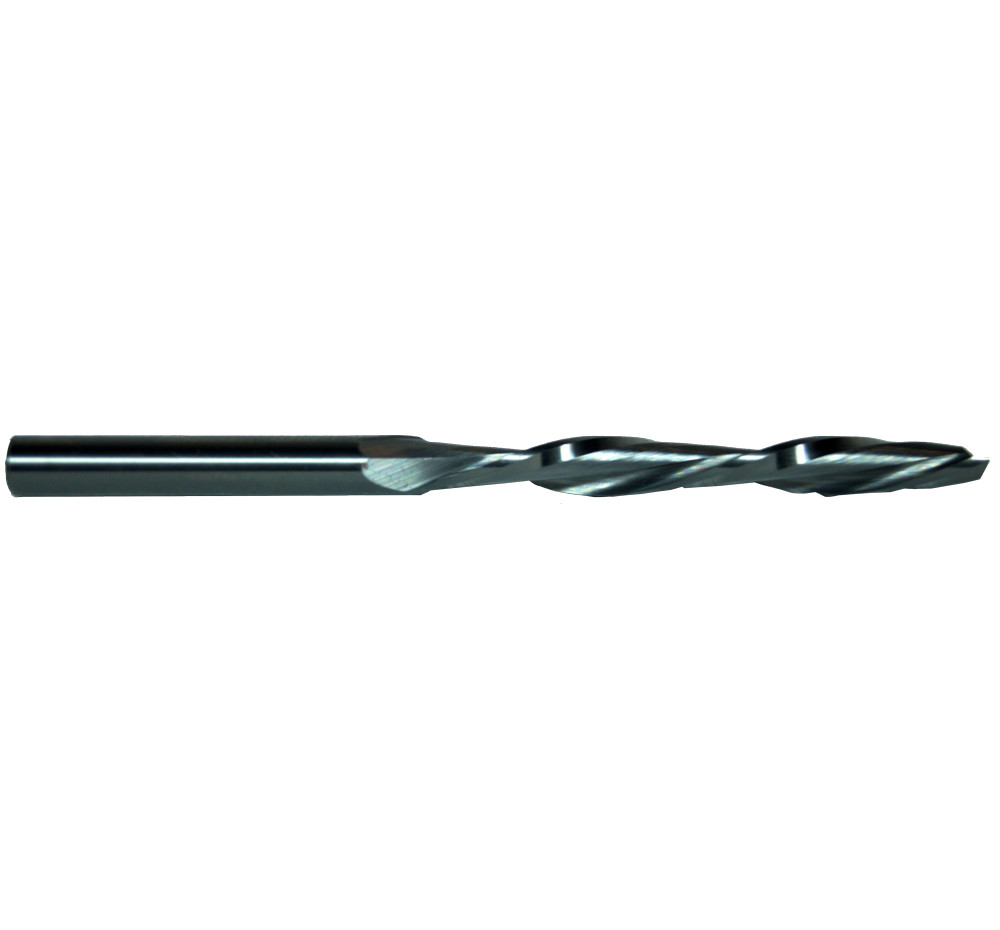

Gerber Platinum "F" Series consists of extended-length solid carbide router bits specifically engineered for machining thick rigid foams, high-density urethane (HDU), and soft plastics ranging from 1-1/4" to 2-1/4" thick.

The Application Code "F" (Foams / Special Long) is laser-etched directly onto the bit shank alongside the part number for identification.

Part Number Specifications

Part number Shank diameter Cutting diameter Cutting edge length (CEL) Overall length (OAL) Typical role
P80349A 1/4″ 1/4″ 1‑1/4″ 3″ Standard 1‑flute upcut for foams/soft plastics; general routing up to ~1‑1/4″ thick
P80350A 1/4″ 1/4″ 2‑1/4″ 4″ Longer 2‑flute upcut for deeper foam/plastic cuts (up to ~2‑1/4″) with 1/4″ kerf
P80351A 3/8″ 3/8″ 1‑1/2″ 4″ Larger‑diameter 1‑flute upcut for heavier foam/HDU work; stiffer, wider kerf
P80160B 1/4″ 1/4″ 2‑1/4″ 3‑1/2″ 2‑flute upcut “all‑purpose clean‑out / bottom surfacing”; designed to leave a very clean bottom with ≈0.002″ inside corner radius, ideal for sign carving and 3D lettering

Notes from the documentation:
P80349A, P80350A, and P80351A are categorized under "Platinum Foams (code F)" and are optimized for thick foams and soft plastics ranging from 1¼ to 2¼ inches. They are also suitable for use with HDU sign foams like Precision Board and Signfoam, ensuring clean top and bottom edges on both single and multi-pass cuts.
P80160B is described as a versatile bit for clean-out and bottom surfacing applications within the same family. It's particularly recommended for scenarios where the finish of the routed area is crucial, such as carved letters, 3D signs, and detailed foam work.


Application guidance:
- Use P80349A for general foam routing up to approximately 1¼ inches thick, including sign foam, EVA, polyethylene foams, and similar materials where a ¼ inch kerf is suitable.
- Choose P80350A for deeper cuts up to around 2¼ inches in foam or soft plastic, maintaining the same ¼ inch diameter. Ideal when more cutting length is needed without altering the bit diameter.
- Opt for P80351A for heavier, more robust cuts in foam or HDU where a ⅜ inch kerf is acceptable or preferred. It provides faster material removal and enhanced rigidity on thicker boards.
- P80160B is best for clean-out and bottom surfacing in sign carving, 3D letter production, and detailed foam work. Ideal for achieving a smooth, flat bottom with minimal corner radius.
