Gerber 3D Carving Bit P56371A P56372A P56373A P56374A P56375A P56376A P56377A

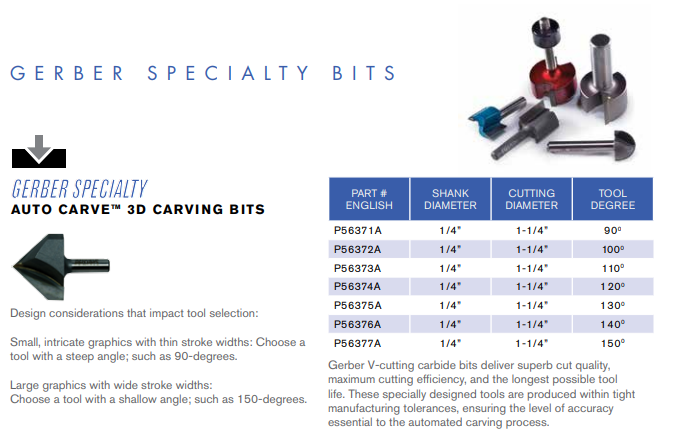

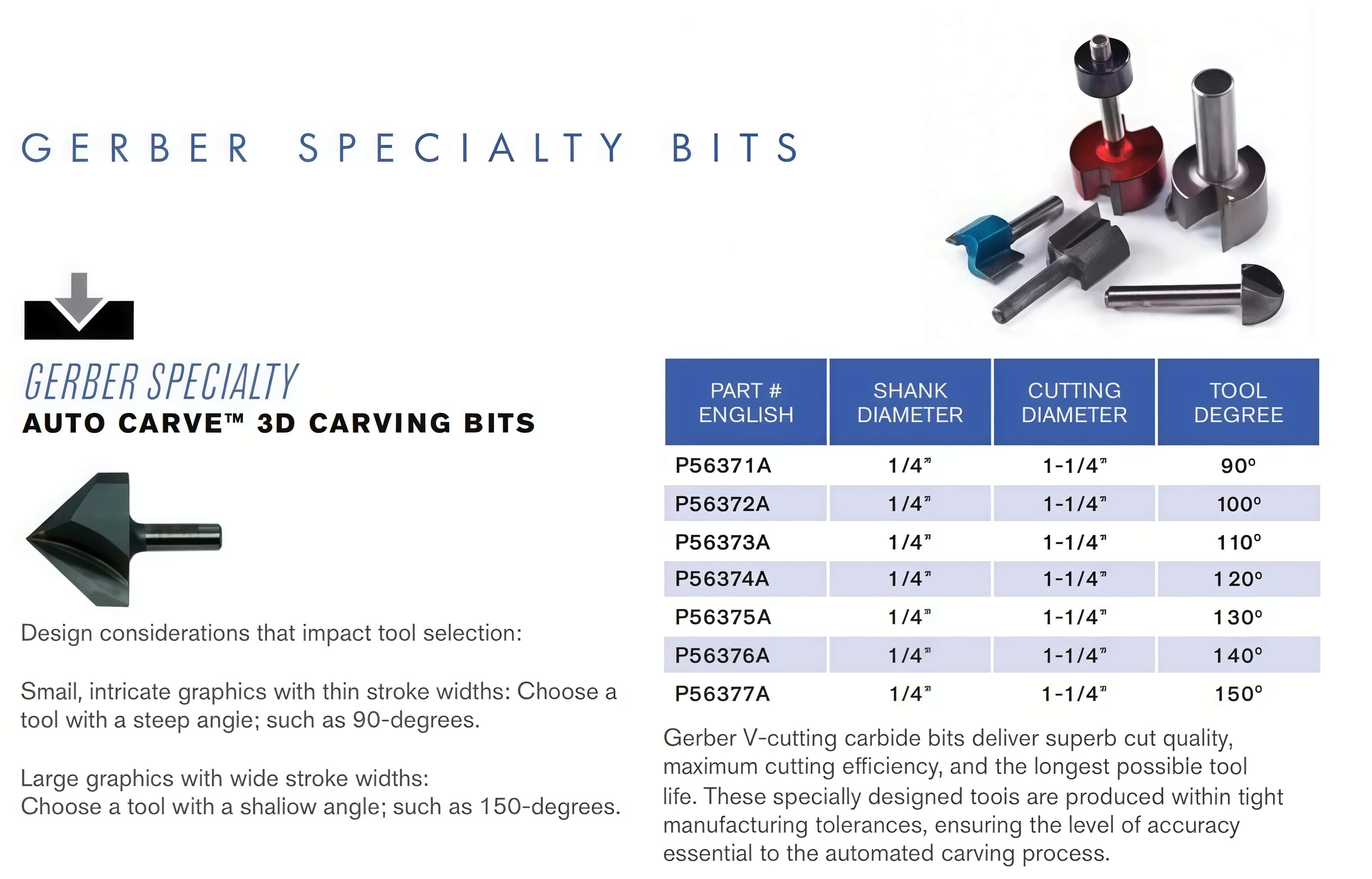

AUTO CARVE™ 3D CARVING BITS
Design considerations that impact tool selection:
Small, intricate graphics with thin stroke widths: Choose a
tool with a steep angle; such as 90-degrees.
Large graphics with wide stroke widths:
Choose a tool with a shallow angle; such as 150-degrees Enquire now

Description

Gerber 3D Carving Bit P56371A P56372A P56373A P56374A P56375A P56376A P56377A

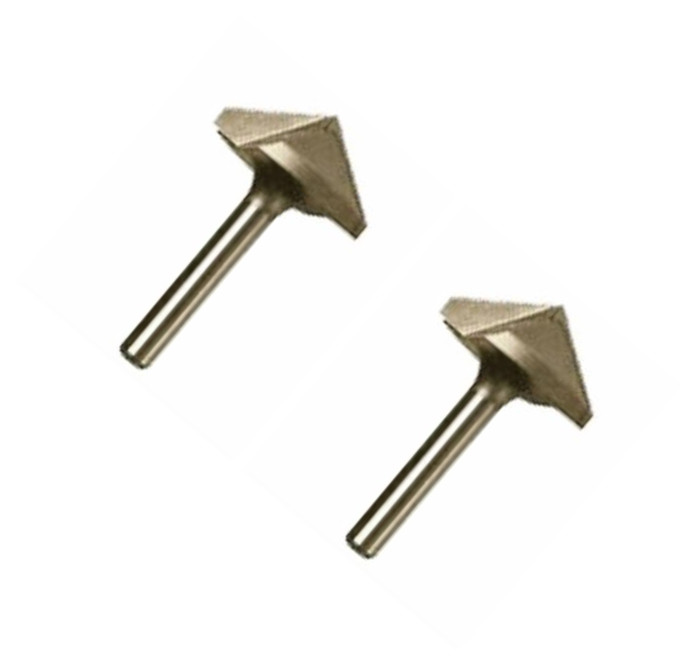

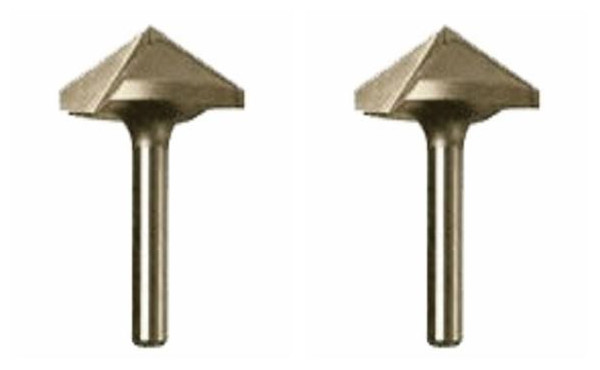

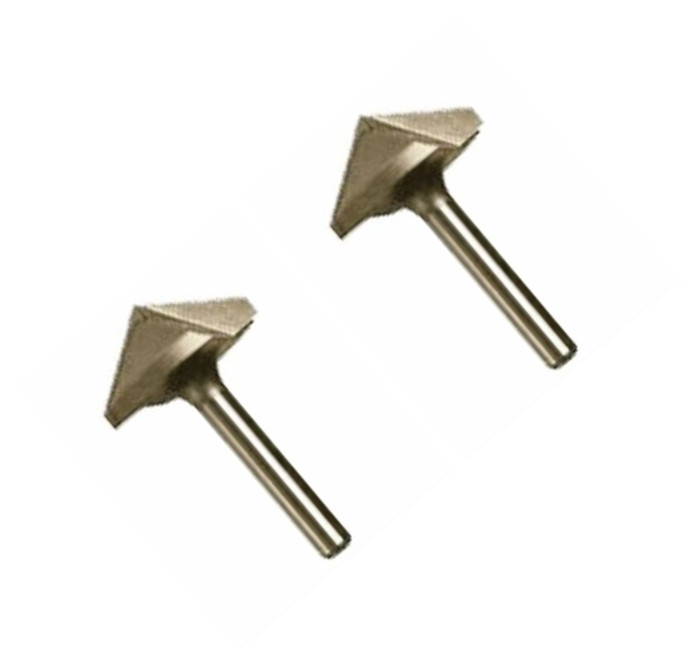

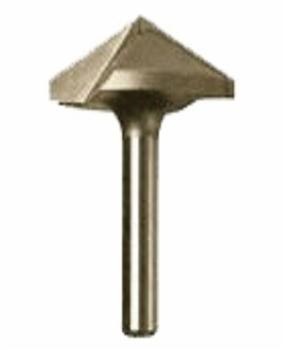

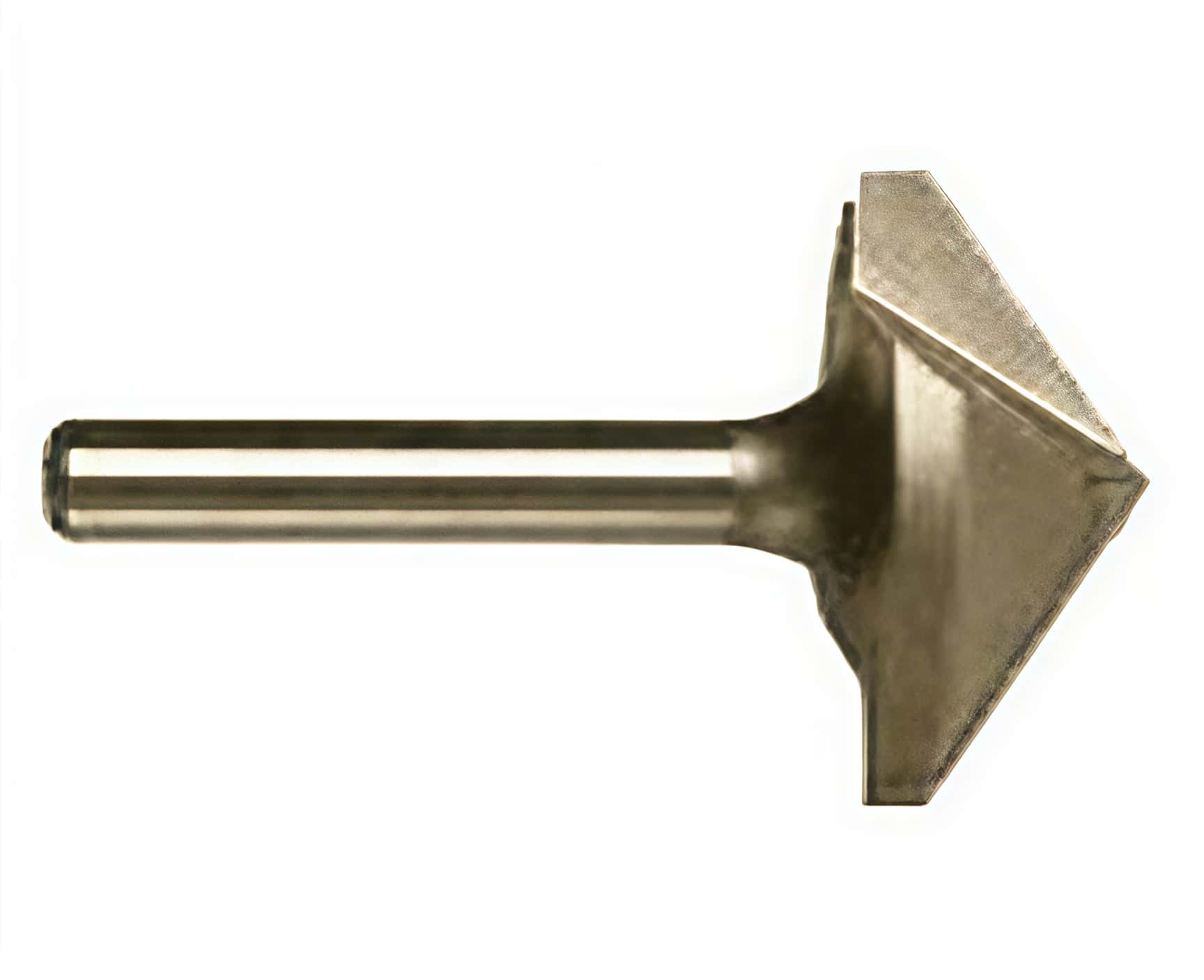

Gerber Auto-Carve 3D Carving Bits (Part Numbers P56371A through P56377A) are solid carbide V-grooving router bits designed for automated 3D carving, sign-making, and precision routing applications.

Specifications Breakdown

All bits in this series share the same shank diameter and cutting length specs:

All tools in this series have the same shank diameter and cutting length specifications:

Shank Diameter: 1/4 inch (6.35 mm)

Length/Tool Travel: 1-1/4 inch

Material: Fine-grained cemented carbide

Part Number	V-Angle	Ideal Application Guidelines
P56371A	90°	Small/Intricate: Very fine detail, tight corners, thin stroke widths.
P56372A	100°	Small to medium lettering and fine dimensional relief work.
P56373A	110°	General dimensional carving with moderate stroke widths.
P56374A	120°	Medium-to-large graphics; balanced depth-to-width ratio.
P56375A	130°	Broader stroke widths; reduces total depth needed for wide cuts.
P56376A	140°	Large graphics and wider elements.
P56377A	150°	Large/Wide: Very wide strokes and shallow 3D relief effects.

Key Characteristics & Tool Selection

Steep Angles (90°–110°): Produce deeper cuts relative to the line width. Best for detailed text, sharp internal corners, and small logo details.
Shallow Angles (130°–150°): Produce shallower cuts for wide strokes. Ideal for large surface-area letters or thin sign substrates where deep plunging would cut through the material.
Compatibility: Fully compatible with Gerber Scientific / Gerber Technology CNC routers (SABRE, Profile, M-Series) as well as standard 1/4-inch shank CNC spindle systems.
Materials: Optimized for high-density urethane (HDU) board, wood, plastics, acrylic, foam board, and composite sign materials.
