Zund R602 Coated V-Groove Router Bits Cutters Ø11/2.9/2 (Ø8/55mm)--Compatible/Equivalent

Zund R602 is a coated V-groove router bit engineered on Zund G3, S3, D3, L3, and PN series digital cutter systems, used with RM (Router Module) or RML (Router Module Light) tool heads Enquire now

Description

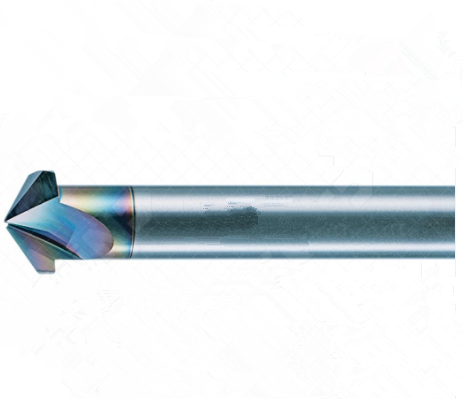

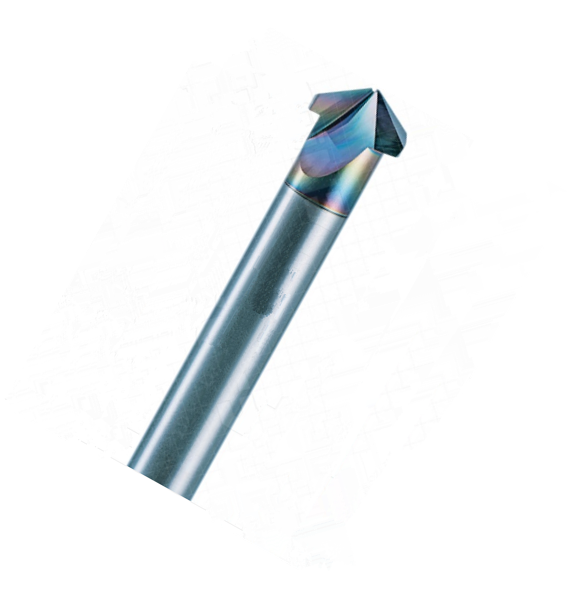

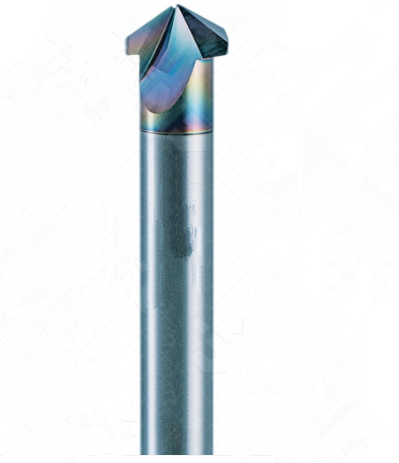

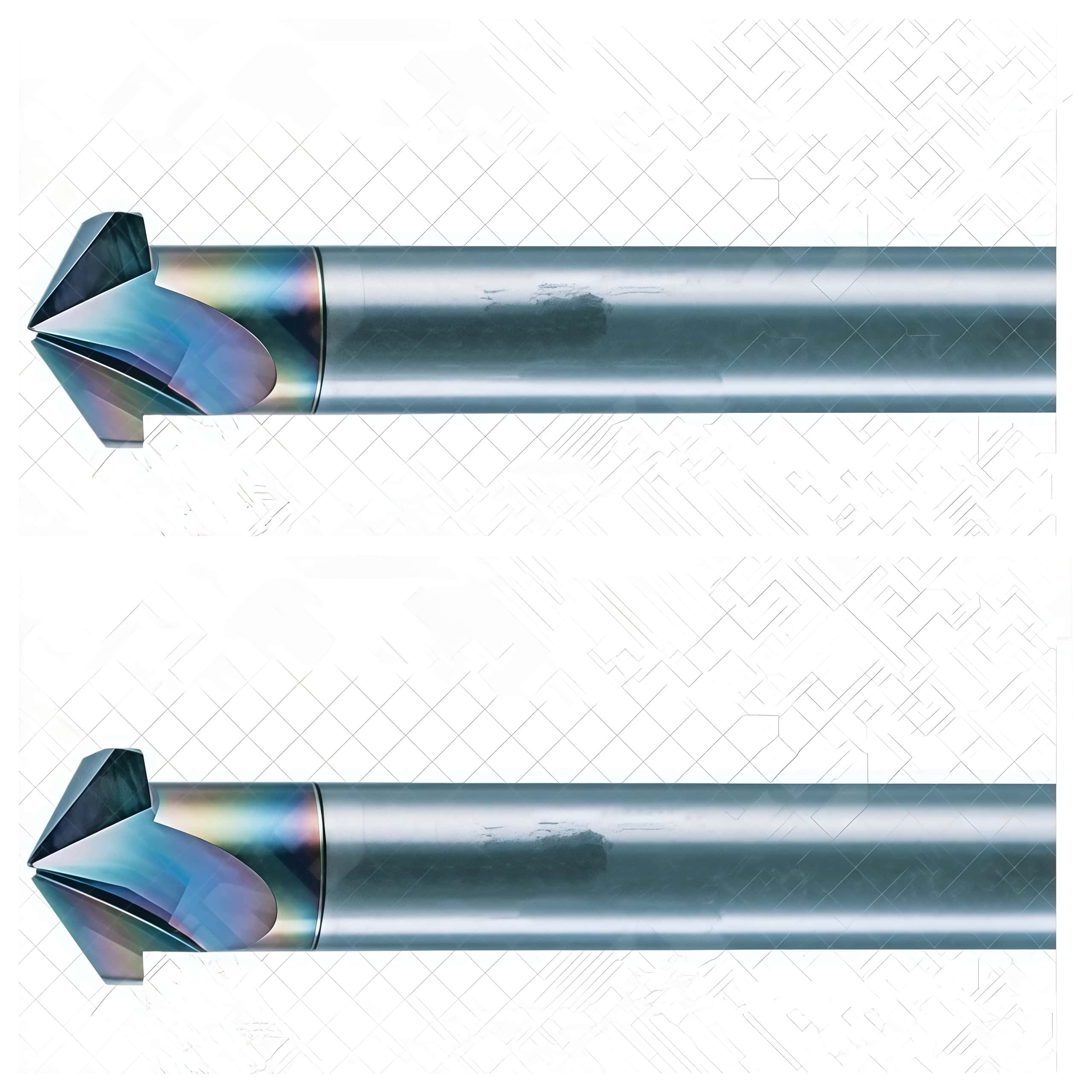

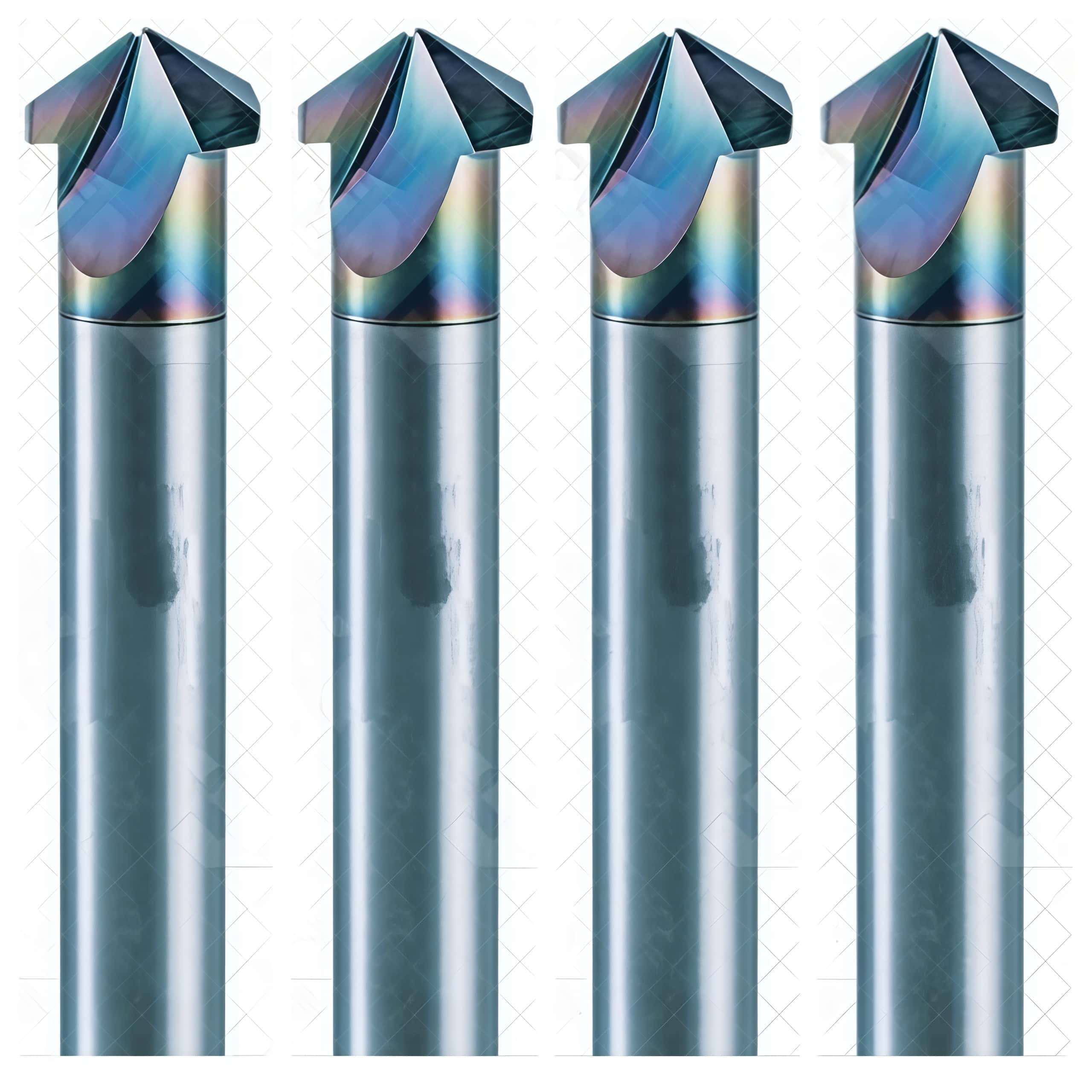

ZUND R602 Router Bits Ø11/2.9/2 (Ø8/55mm)

Zund R602 is a coated V-groove router bit engineered for routing precise 120° V-grooves in aluminum composite materials (ACM), plastics, and technical substrates on Zund G3, S3, D3, L3, and PN series digital cutter systems, used with RM (Router Module) or RML (Router Module Light) tool heads

Specification	Value
Zund Part Number	5226444 (R602)
Router Type	V-groove router bit (120°, coated)
Routing Diameter (Ø)	11 mm
Routing Depth	2.9 mm (maximum cutting depth)
Cutting Angle	120° V-groove
Shank Diameter	8 mm
Overall Length	55 mm
Shank Length	Typically 20–25 mm (varies by supplier specification)
Cutting Edges	2 (double-flute)
Material	Tungsten carbide (solid carbide or carbide-tipped)
Coating	Neoguard / Diamond-like coating (DLC) for extended life and reduced heat buildup
Max Rotation Speed	50,000 RPM
Twist Direction	Right-hand helix
Mounting	8 mm cylindrical shank (standard Zund RM collet)

Compatible Zund Cutter Systems

G3 series – Fully compatible with RM/RML modules
S3 series – Fully compatible with RM/RML modules
D3 series – Fully compatible with RM/RML modules
L3 series – Fully compatible with RM/RML modules
PN series – Fully compatible with RM/RML modules

Compatible Tool Heads

RM (Router Module) – Standard 8 mm collet, 50,000 RPM max
RML (Router Module Light) – 8 mm collet, 50,000 RPM max, optimized for lighter routing tasks

Material Applications

The R602 is optimized for routing 120° V-grooves in:

Aluminum Composite Materials (ACM): Alucobond, Dibond, Reynobond, Alusign, 3–6 mm thickness (routing depth 2.9 mm)
Plastics: Polycarbonate (PC), acrylic (PMMA), expanded PVC, corrugated plastic (PP/PE), signage plastics
Technical substrates: Composite laminates, technical foils, packaging materials
Foam board: PE, PUR, PS foam cores (limited thickness)
Other: Cardboard, paperboard, folding carton (for decorative V-grooves)
