Zund Z609c Flatbed Cutter Coated Carbide Oscillating Knife Blades 5231373

CHINA Zund Z609c (Part #5231373) is a high-performance Coated finish (e.g., Diamond-Like / Glit coating) tungsten carbide oscillating knife blade designed for industrial Zund flatbed digital cutting systems. Enquire now

Description

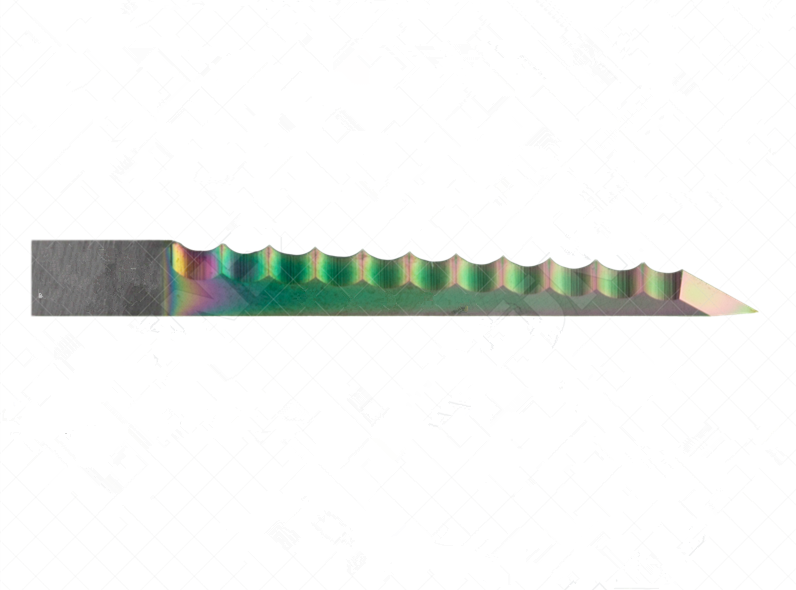

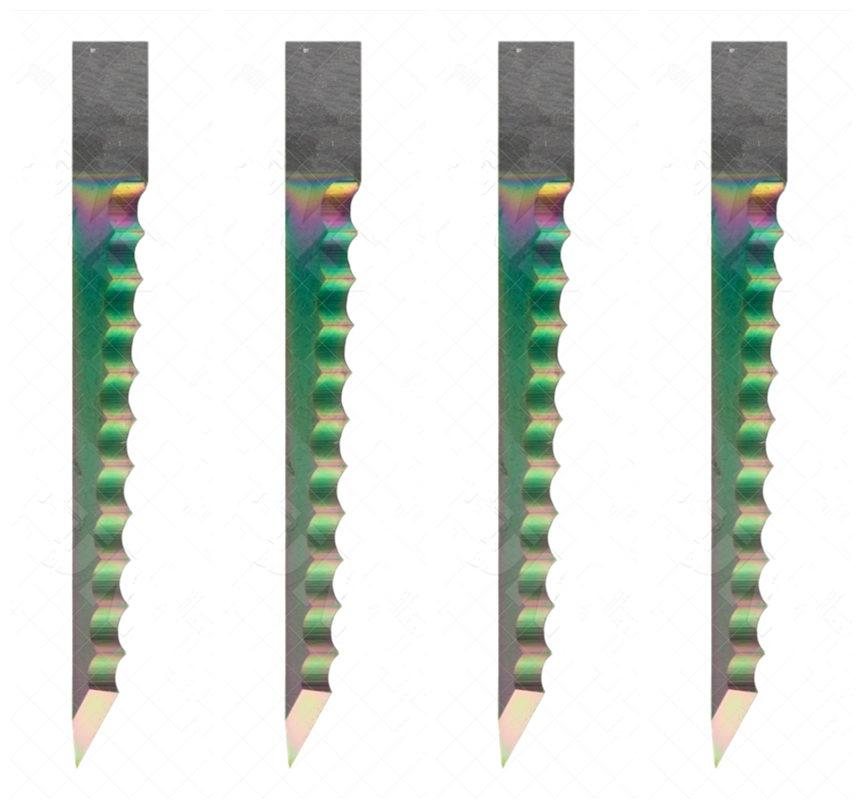

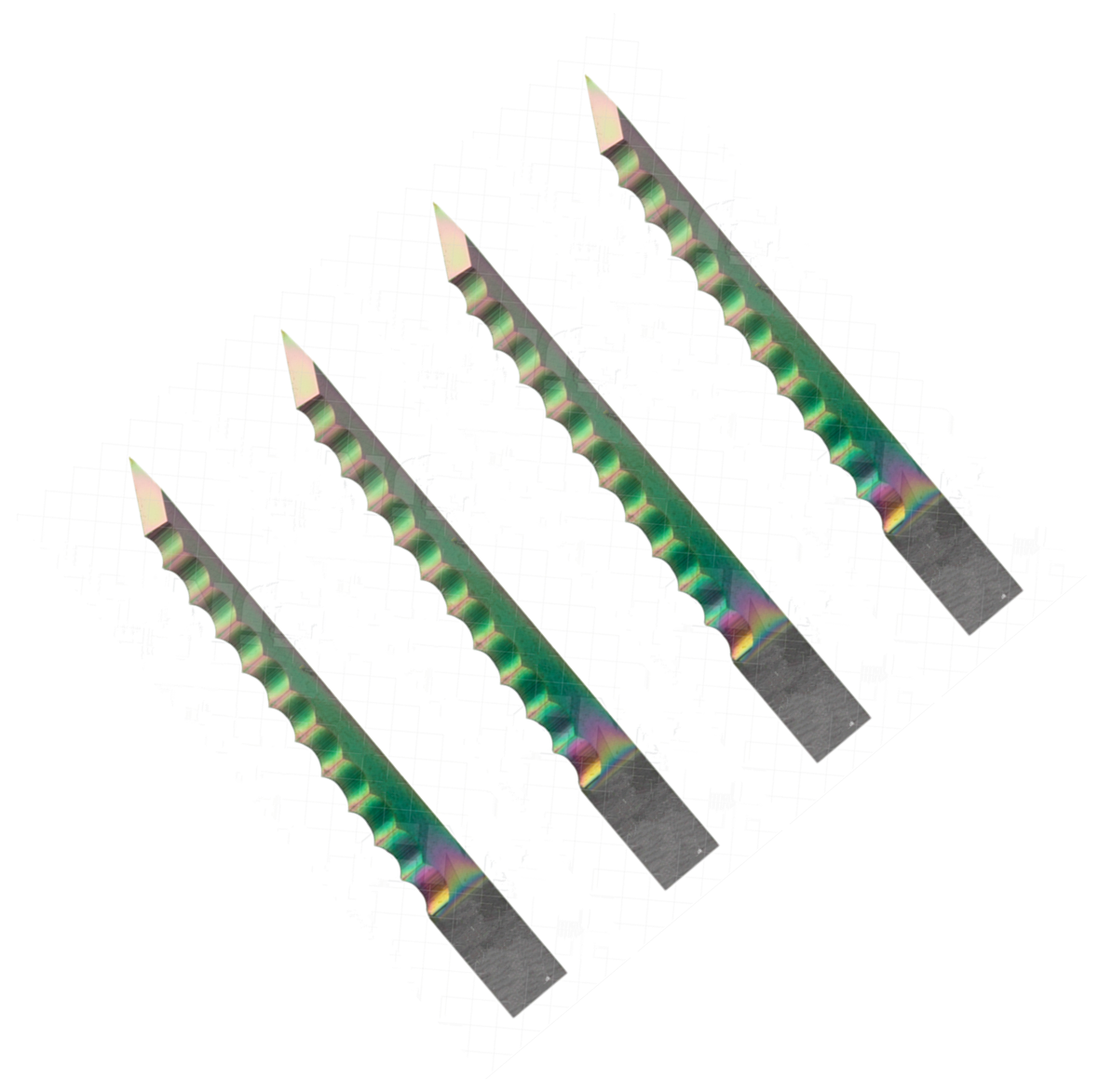

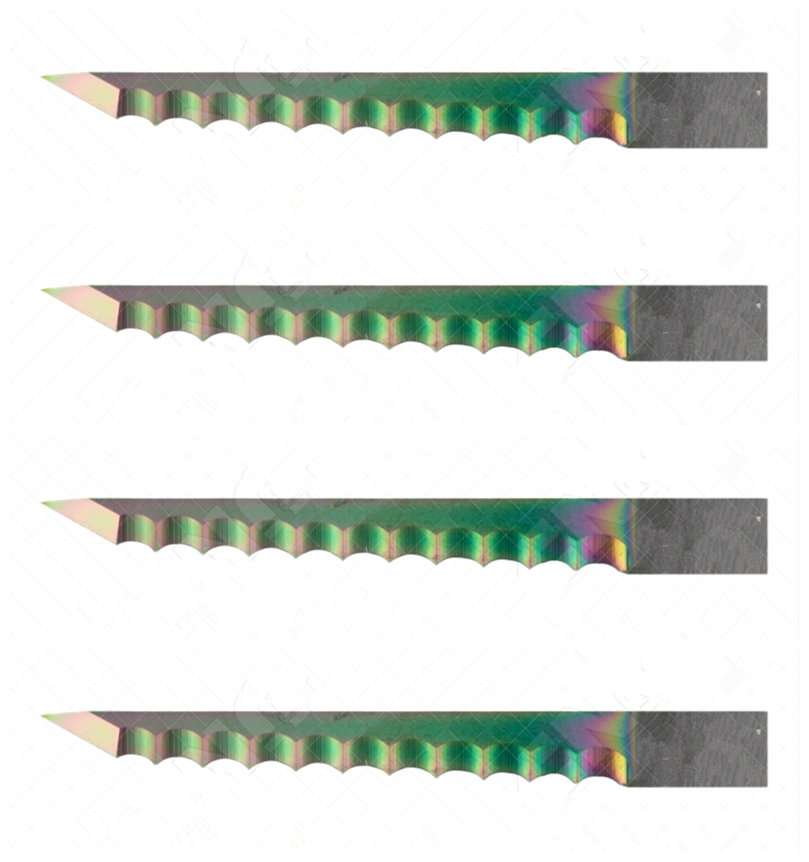

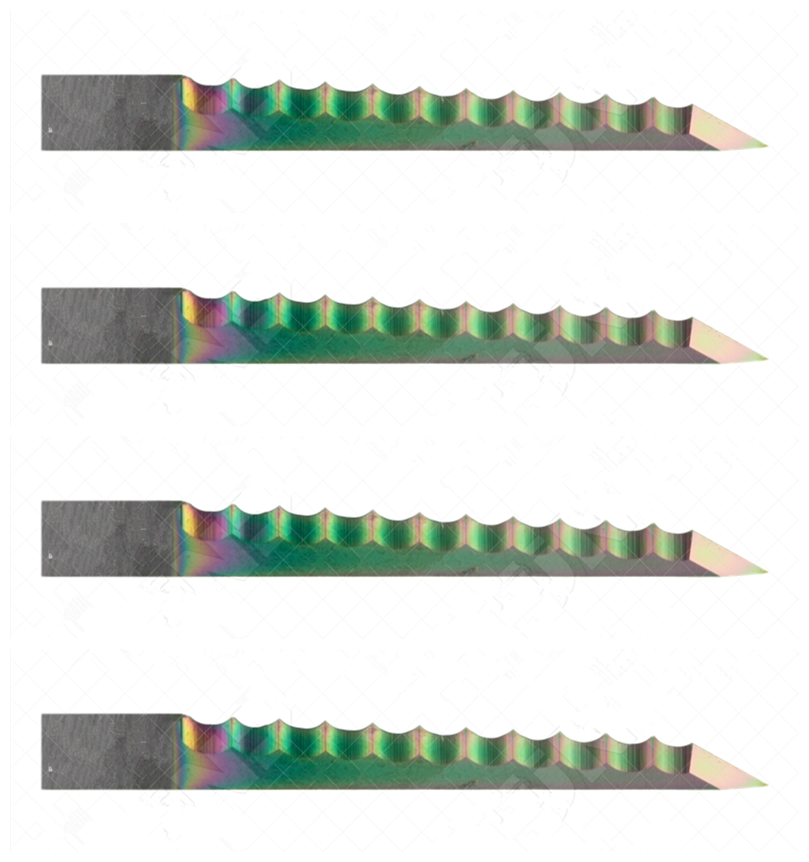

Zund Z609c Flatbed Cutter Coated Carbide Oscillating Knife Blades 5231373

Zund Z609c(part number: 5231373 ) is A unique long, thick-coated, carbide (solid tungsten steel) pneumatic vibrating tip blade in the Zund flatbed digital cutting system.

Its most distinctive feature is its serrated edge with a thickness of 1.5 mm , which is specifically designed to solve the problem of chipping and wasting tools when cutting ultra-thick, highly abrasive composite sandwich panels (such as aluminum honeycomb panels).

Specifications
Properties
Long coated knife with serrated edge, suitable for aluminium honeycomb panels.
Recommended materials
Foam - PE
Foam - PUR
Honeycomb

Tools
POT 1.5
Knife type
Drag knife - pointed
Material of article
HM/Carbide
Max. cutting depth
45
Post-cut
Pre-cut
3.64 + 0.04 x Tm
Thickness of shaft
1.5 mm
