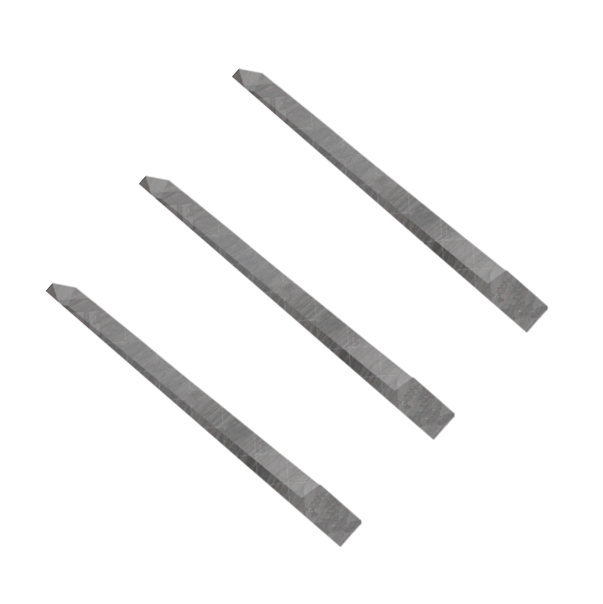

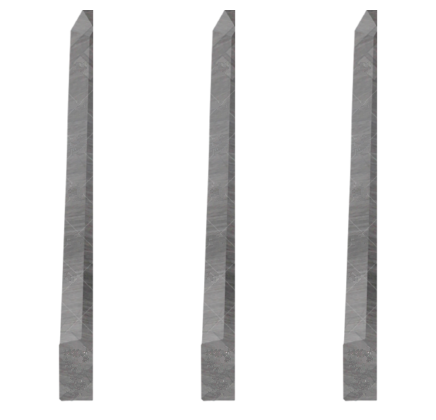

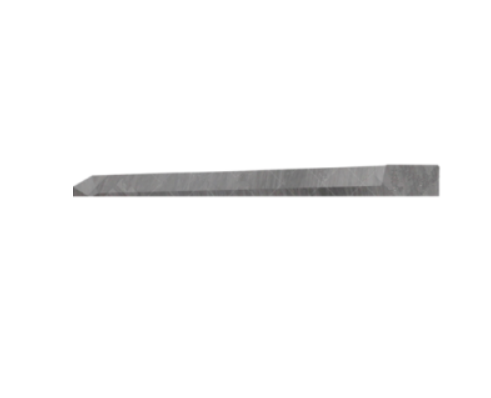

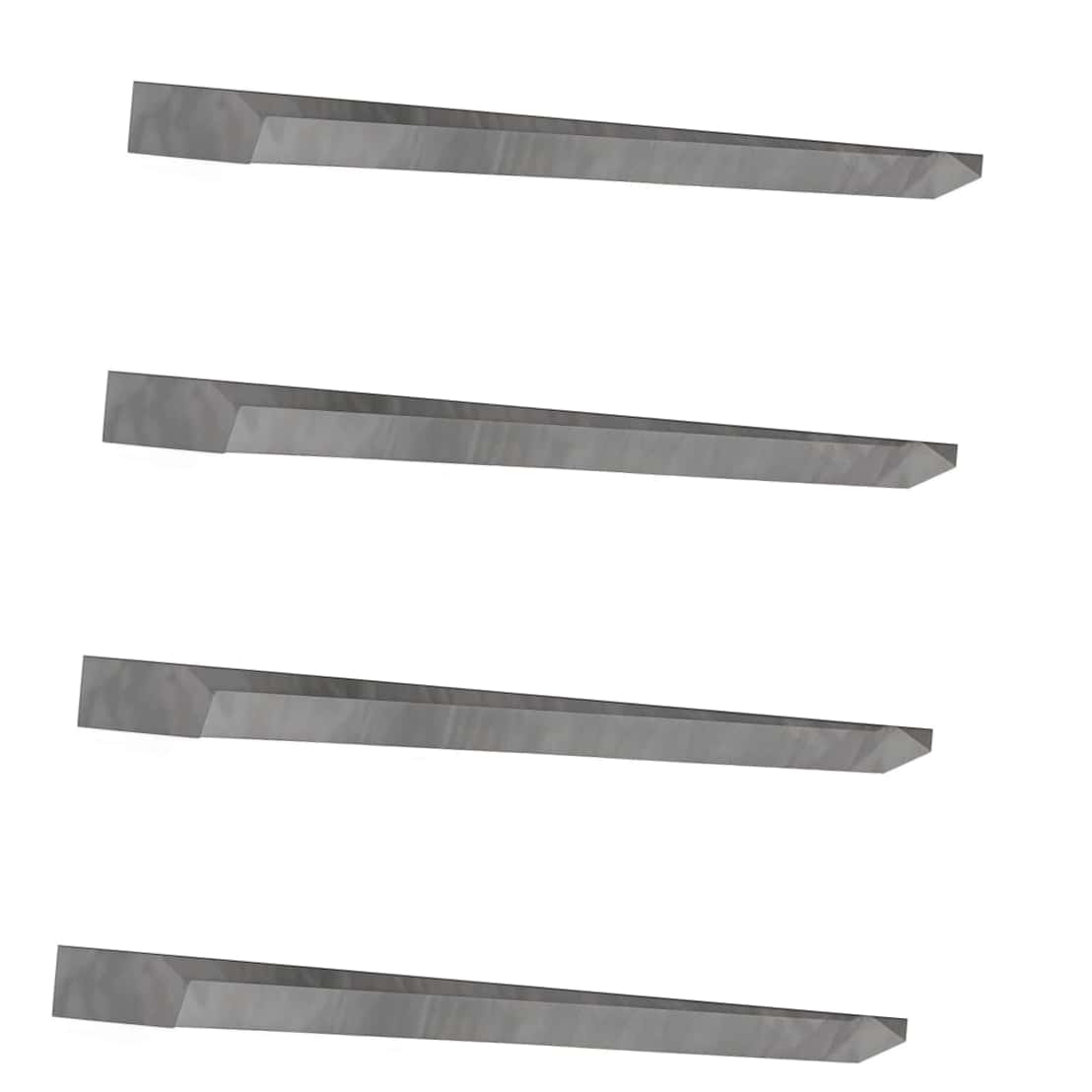

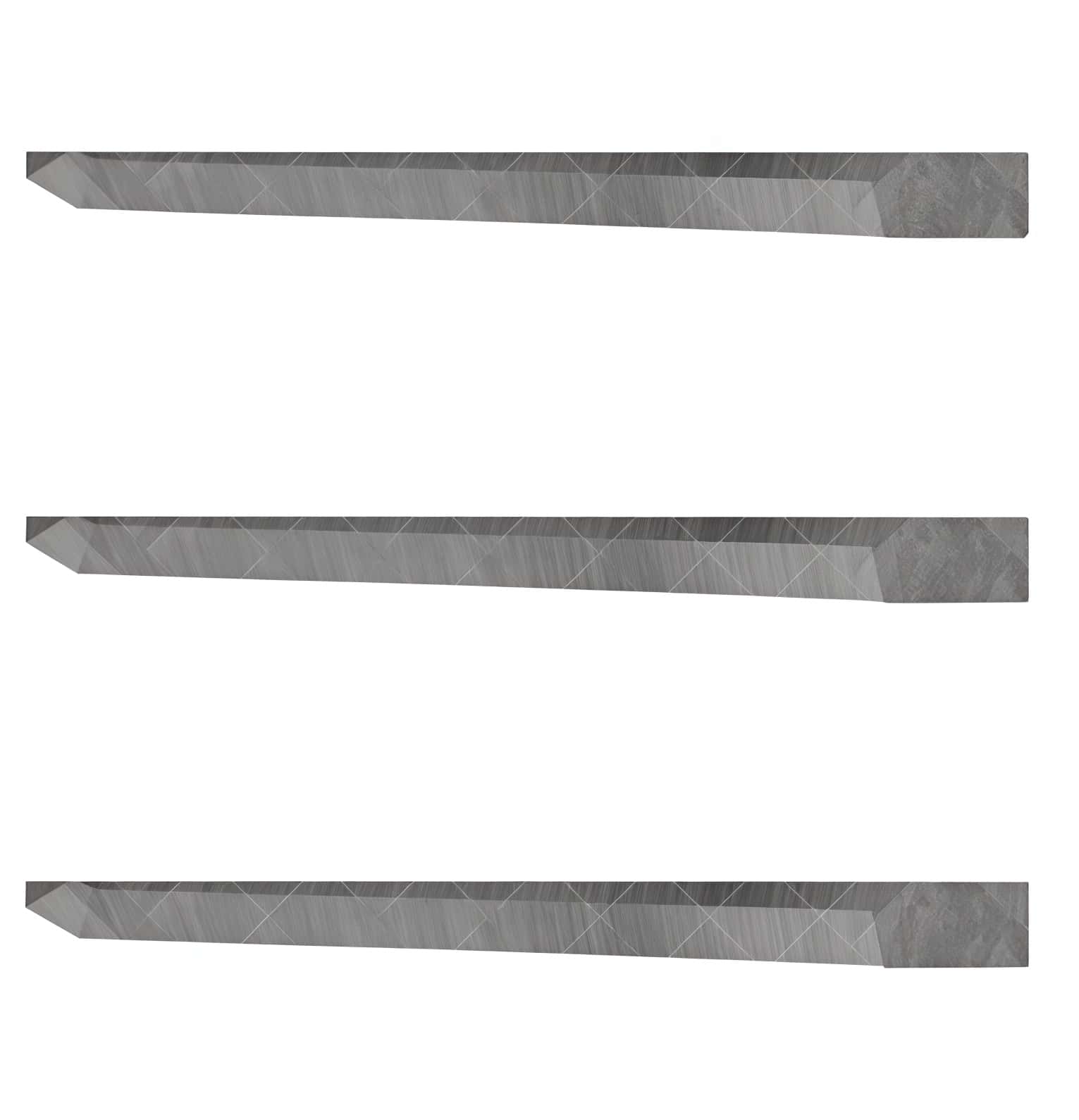

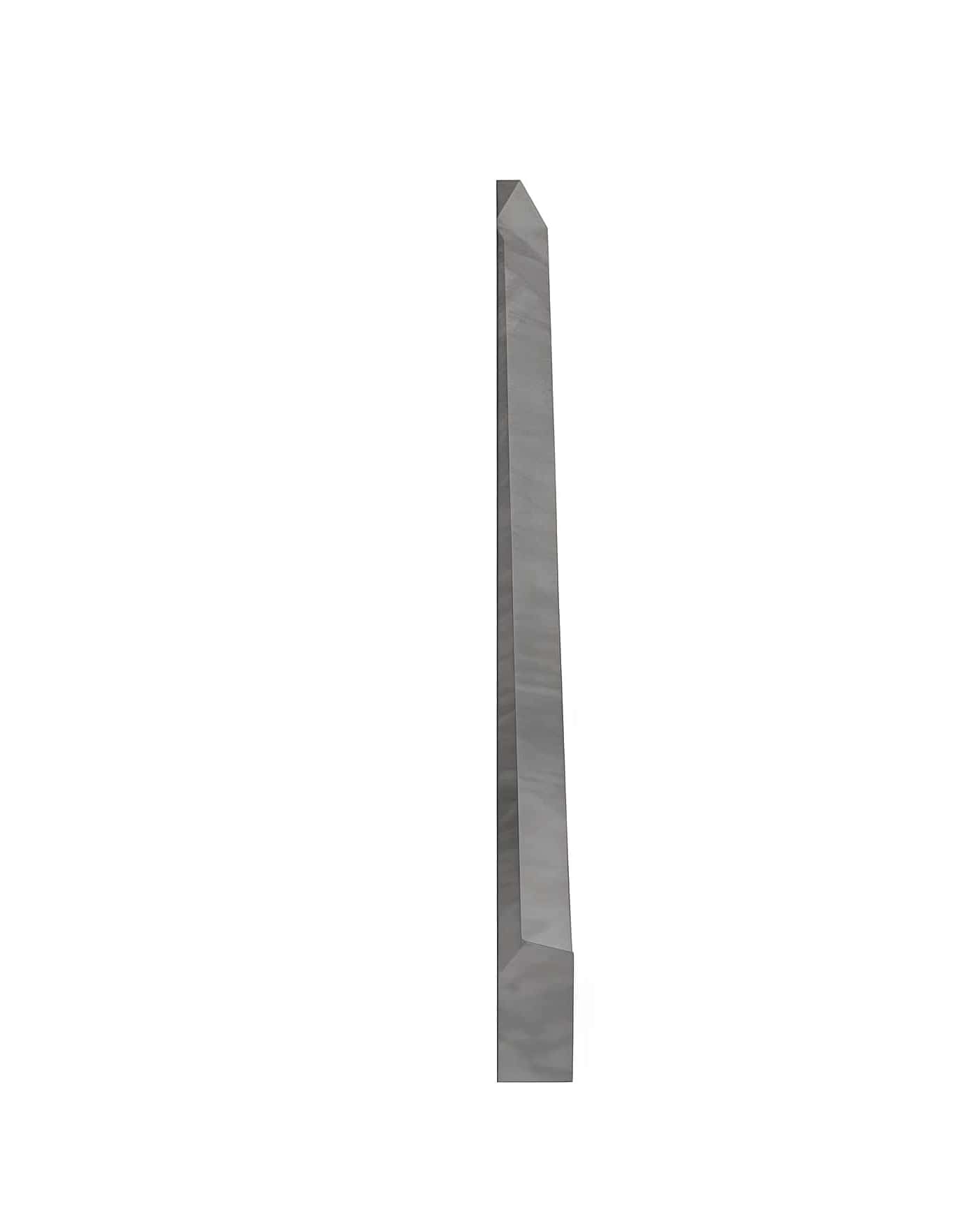

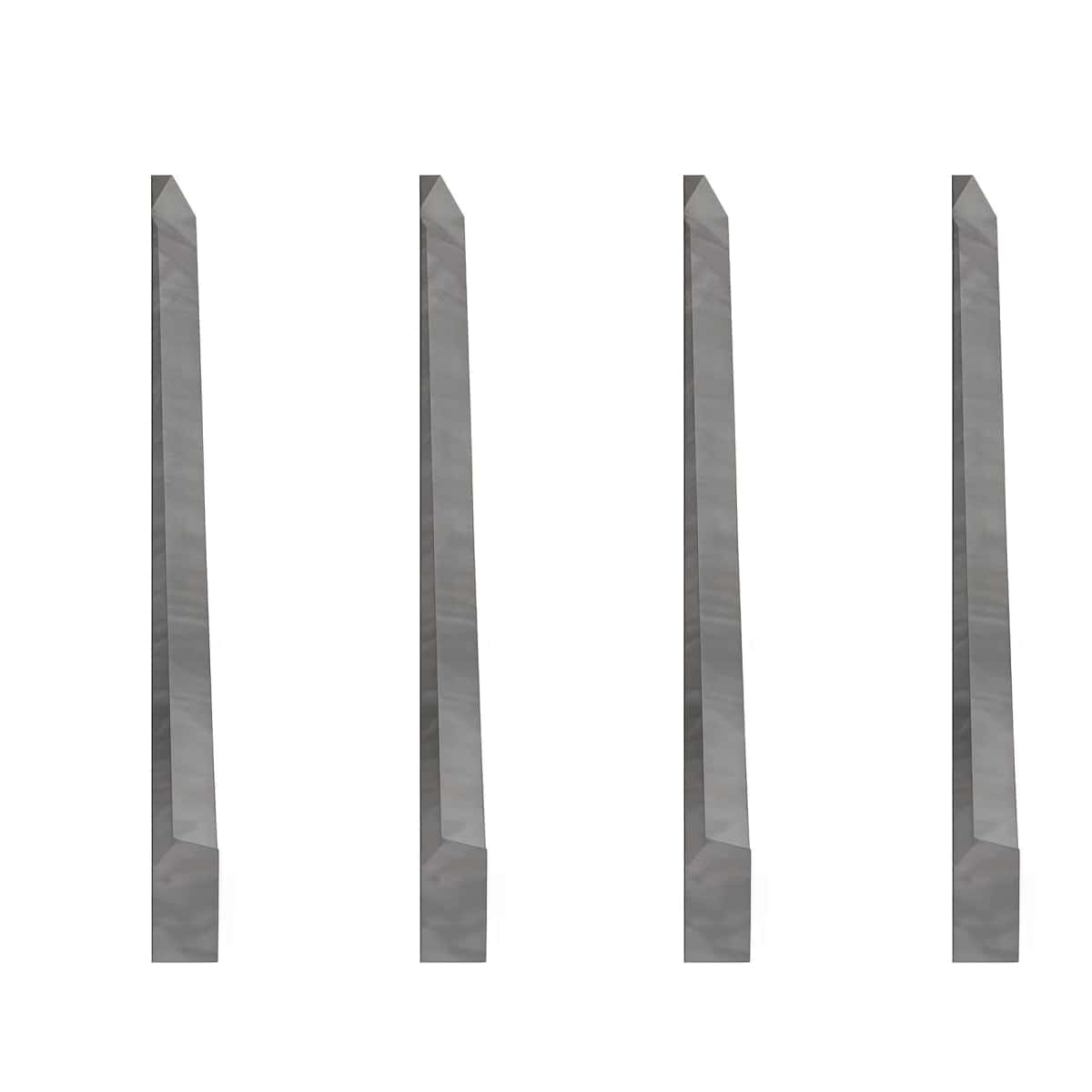

Zund Z610 Carbide Oscillating Knife Blades For Zund Flatbed Cutter 5232249
Zund Z610 Carbide Vibrating Blade(Zund Z610 Carbide Oscillating Knife Blade)yesA high-performance digital cutting consumable designed specifically for thick, high-density, hard materials.It is typically compatible with the high-powered vibrating cutter heads of Zund (Switzerland) CNC cutting machine… Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
ZUND Carbide oscillating knife Blades Z610 5232249 For Zund Flatbed Cutter Price

Item no.

5232249

Knife Type

Oscillating blade – flat

Properties

Oscillating knife for materials up to 54 mm thickness



Tools

EOT-250, POT 1.5

Max Cutting Depth mm

56.5

Pre-cut

3.57 + 0.03 x Tm

Knife thickness

1.5 mm

Knife Material

HM/Carbide


Suitable for cutting materials
Due to its deep and highly rigid blade, the Z610 is perfectly suited for semi-hard and laminated materials that ordinary thin knives cannot handle:
  • Thick honeycomb cardboard and corrugated boxes (multi-layer corrugated, heavy-duty industrial packaging board)
  • High-density foamed materials/foamed plastics (such as EVA foam, thick polyurethane foam, packaging linings)
  • Sandwich panels and rigid composite panels (such as sandwich boards, honeycomb aluminum composite panels, and rigid insulation materials).
  • Thick sealing gaskets, rigid felt and carpet substrate

Usage Recommendations:
When using Z610 vibrating inserts with a thickness of 1.5mm, ensure that the tool holder or blade holder has a 1.5mm groove. Due to the large cutting thickness, the vibrating cutter head experiences high resistance; therefore, please ensure proper control of the cutting speed and vibration frequency in the software to extend the life of the machine tool bearings and inserts.


OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:info@china-oyea.com
          1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.  Contact with us ,you will get more than what you can !

Zund Z610 Carbide Oscillating Knife Blades, designed for Zund flatbed cutters, offer exceptional performance with competitive unit pricing tailored for both wholesale and retail customers. These blades, which serve as replacement-compatible consumables, are manufactured and supplied with a focus on quality, ensuring reliable production and sales services.
