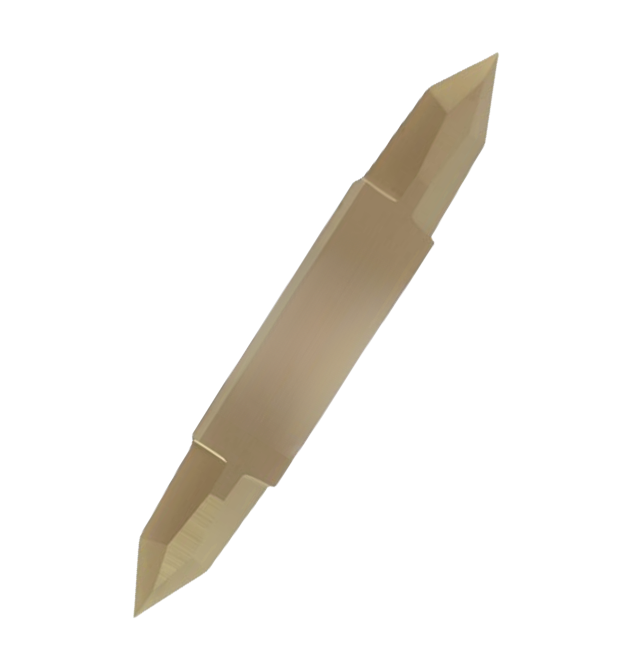

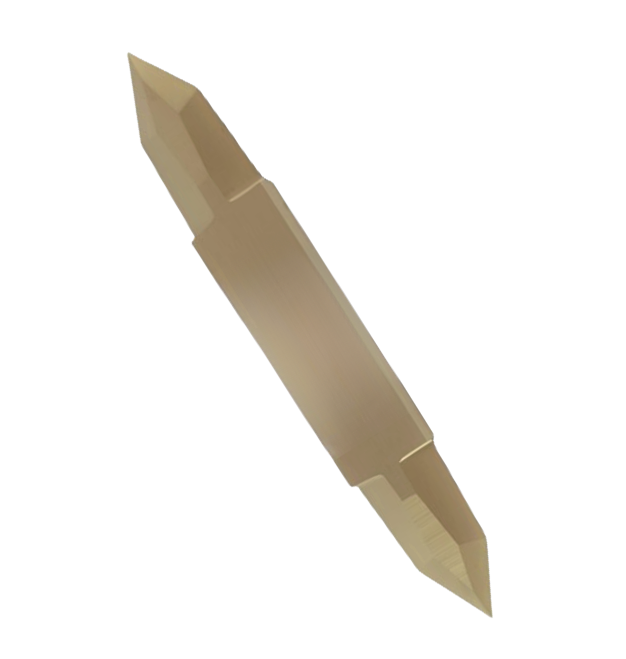

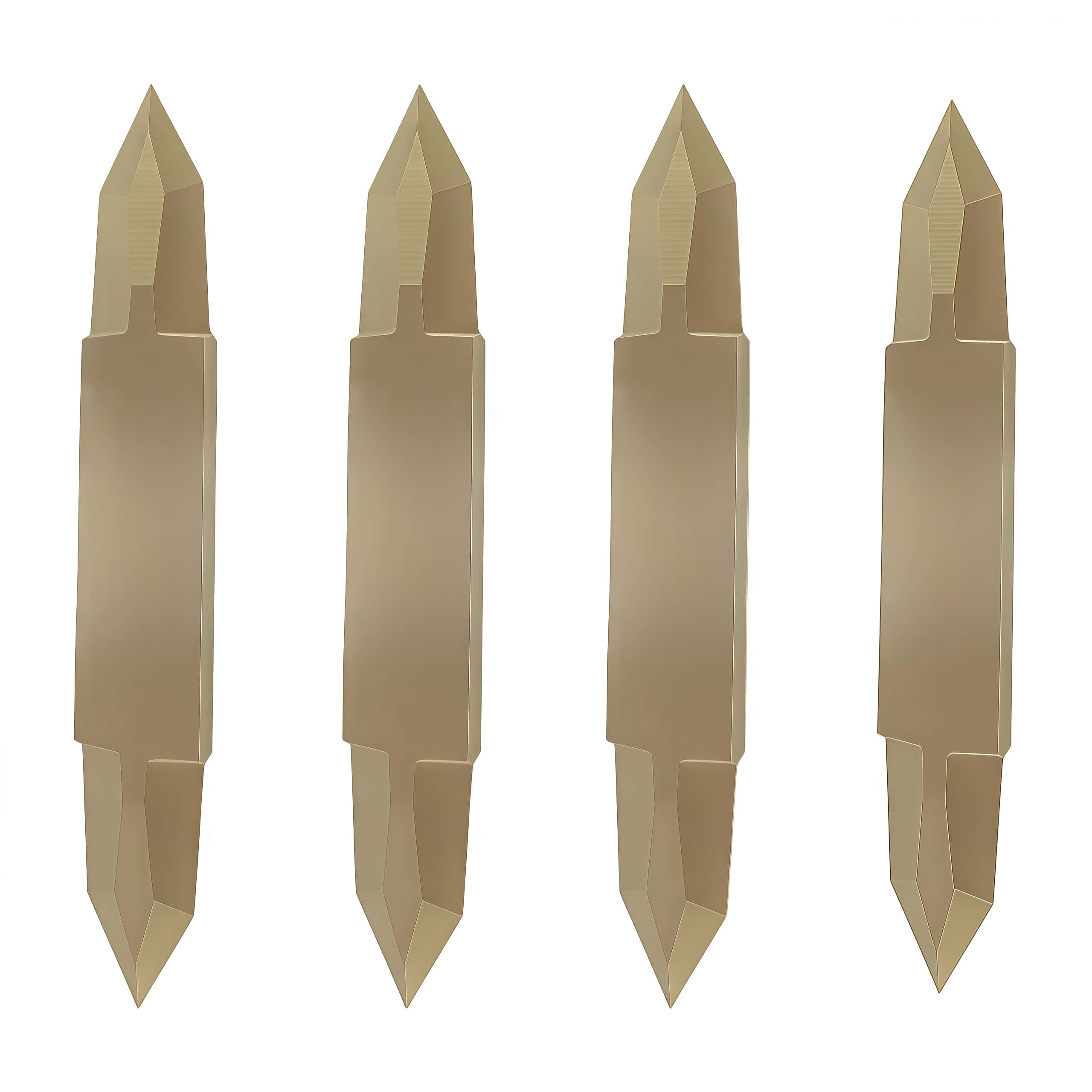

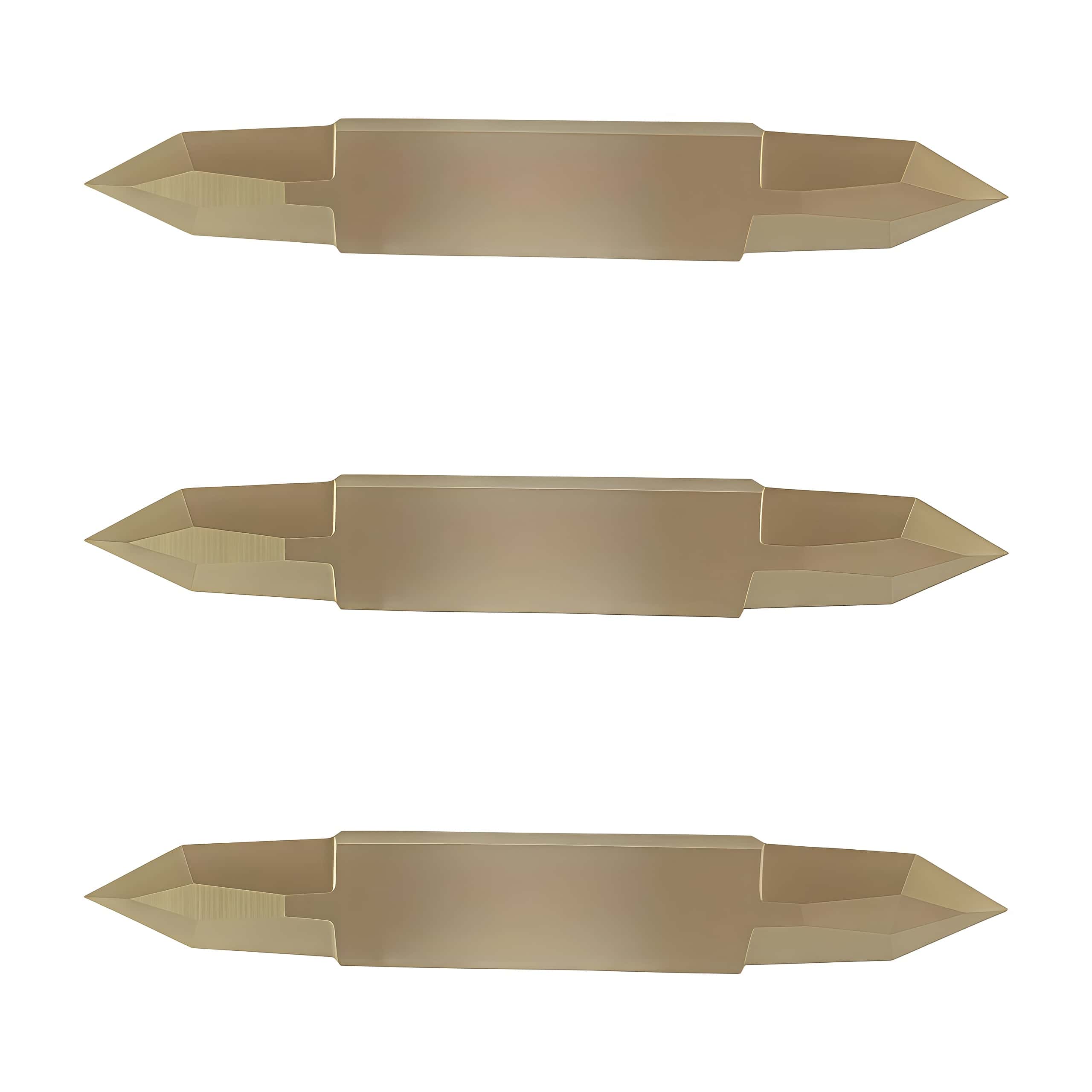

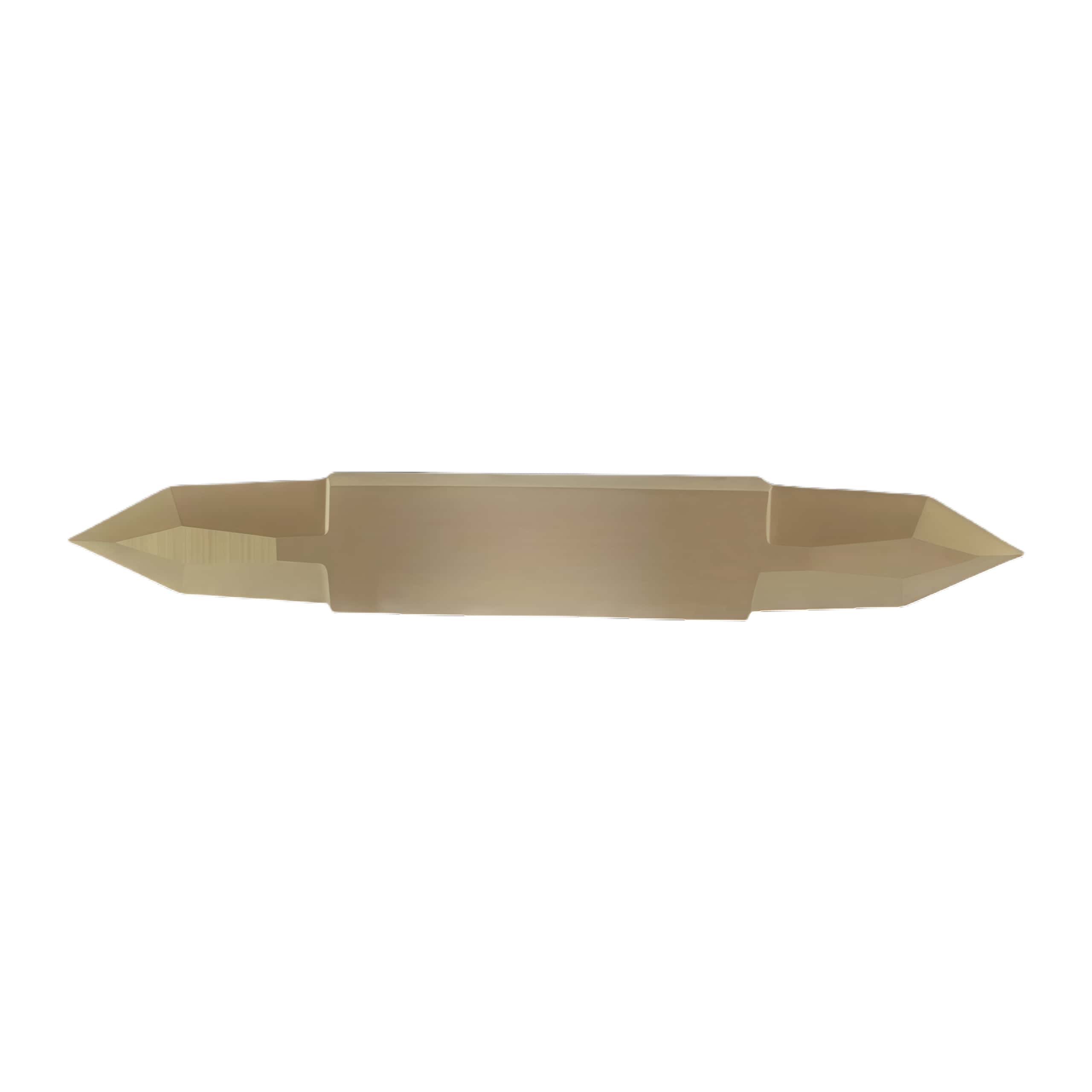

Zund Z45c Tin (Titanium Nitride) Gold Coating Drag Knife Blades-Double-Sided Zund Z44

Zund Z45C is A high-performance solid carbide double-ended cutting blade with a TiN (titanium nitride) gold coating.It is a direct upgrade and replacement (LongLife version) of the classic Z44 blade (official part number 3910340) Enquire now

Description

Zund Z45c Tin (Titanium Nitride) Gold Coating Drag Knife Blades-Double-Sided Zund Z44

Zund Z45C LongLife TiN drag knife blade(Often referred to in the industry as the "dual-head Z44" ) is A high-performance double-edged flat drag blade for Zund digital cutting machines.

The "C" indicates a TiN (titanium nitride) gold coating , which gives it extremely high wear resistance and extends its service life by 30% to 60% compared to standard uncoated Z44 or Z45 inserts

This is a coated TiN double-sided Z44 knife
CUTTER BRAND
Humantec, Lectra MFC, Zund
ANGLE
45°/90°
KNIFE HEIGHT
50,00 mm
KNIFE WIDTH
8,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
14,00 mm

KNIFE TYPE
Drag blade, Flat

MATERIALS
Covering, Tarpaulin

KNIFE/BLADE MOUNTING
flat 1,5 mm
