Iecho E78 V-cut Knife Blades Supplies Wholesale Factory Manufacturer

iEcho E78 V-cut knife blades are listed as V-cut blades for iEcho and JWIE digital cutting machines, with suppliers describing them as tungsten-carbide blades for cutting film, rubber, paper, plastic, fabric, textile, and fiber materials. Enquire now

Description

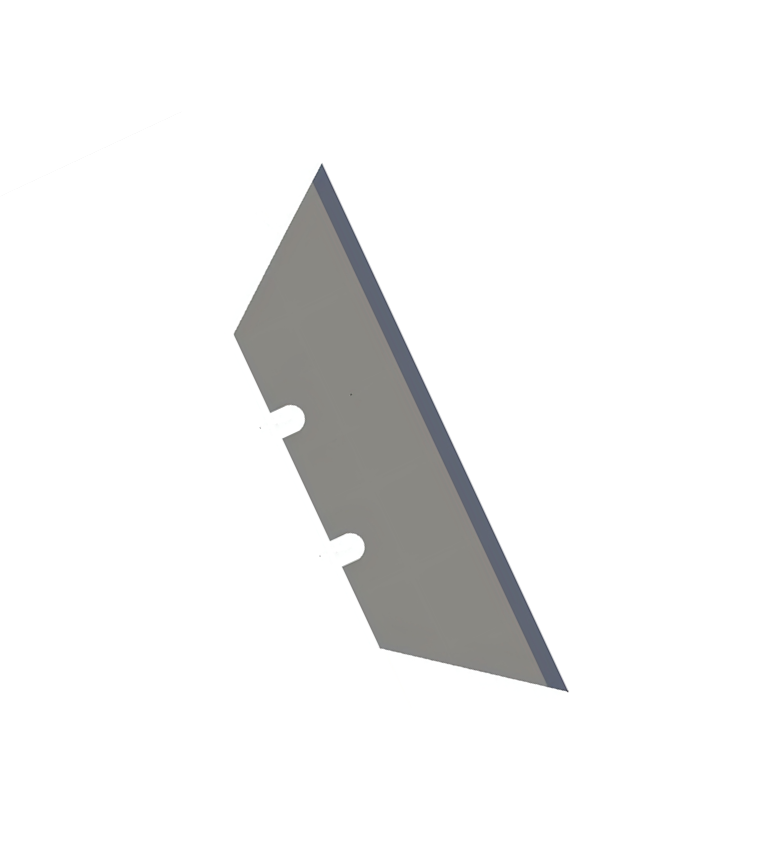

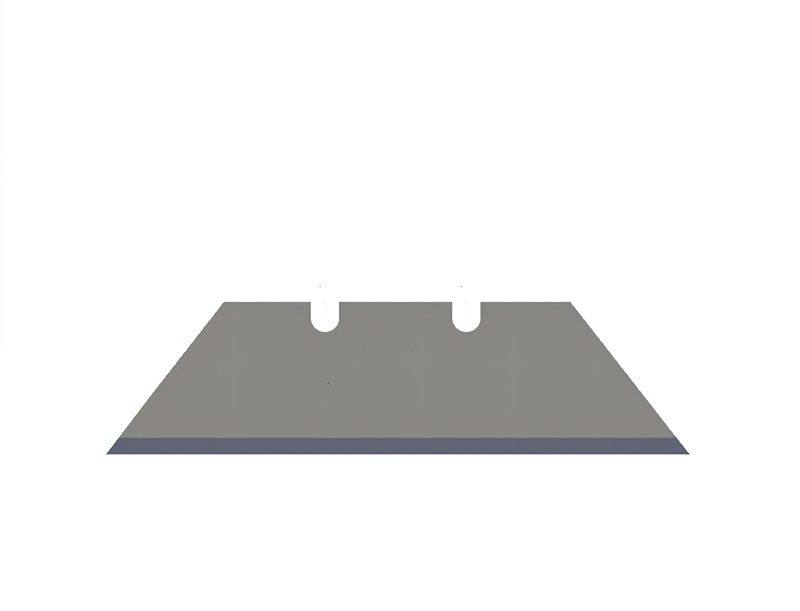

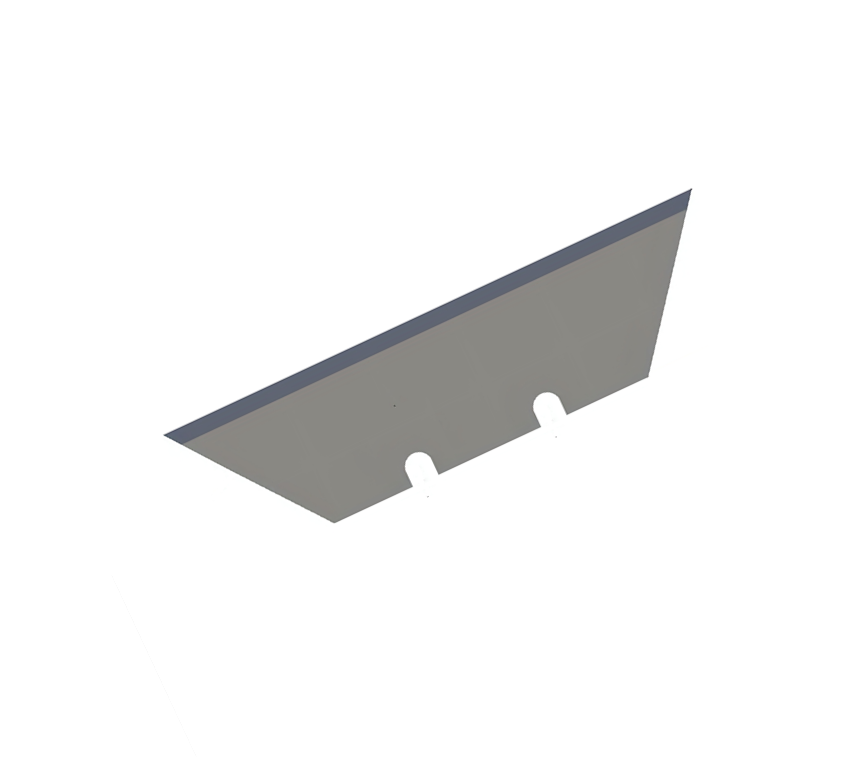

Iecho E78 V-cut Knife Blades

IECHO E78 is a carbide V-cut insert specifically developed for IECHO ( AGCO) large and medium-sized digital cutting systems (such as the BK, BK3, and TK4S series).Unlike the vibrating blades mentioned above, this is a drag/stationary cutting blade , specifically mounted on the V-CUT tool module. It cuts V-grooves in heavy materials through precise angle cutting to facilitate folding and shaping.

Model Number
E78
Blade Length
71.5mm
Blade Width
18.8mm
Blade Thickness
0.63mm
Cutting Depth
9mm (Max.)
Material
Imported Tungsten Carbide
Substrates
Corrugated cardboard;Corrugated plastic;Honey-comb Board.
Compatible Brand
Iecho/JWEI

Adaptation tools and device models

Adapter module : IECHO V-CUT (V-cutting tool) cutter head assembly. This tool supports adjusting 5 different cutting angles (0°, 15°, 22.5°, 30°, 45°) to create packaging folding grooves at different angles.
Compatible machine head : Mainly used in industrial-grade large-format flatbed cutting machine systems such as BK3 head, BK3-120 head, and BKL-60 head .

Applicable processing materials

The E78 blade is specifically designed for heavy-duty, high-rigidity, hard non-metallic sheets that need to be used to make packaging boxes or display stands.

Honeycomb board : used to make heavy-duty shipping boxes; after V-cutting, it can be folded directly into a 90° angle.
Corrugated cardboard/double corrugated cardboard .
Hollow core board/corrugated plastic board (PP hollow core board) .
Grey cardboard, thick foamed PVC board .
