Colex T00544 Specialty Router Bit Online Store For Sale

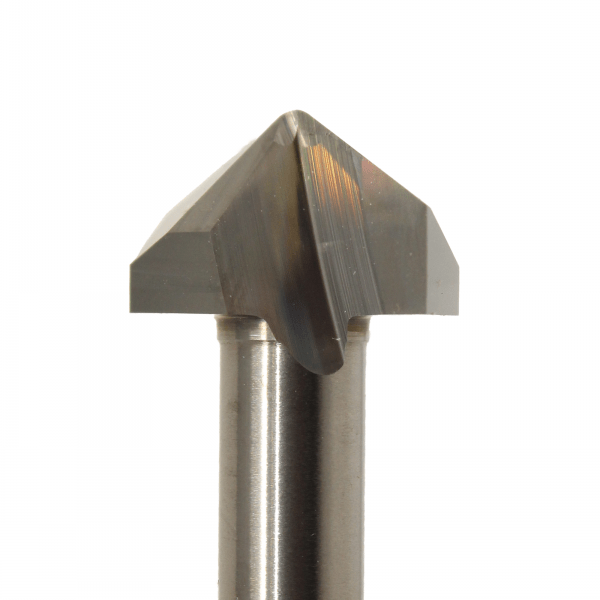

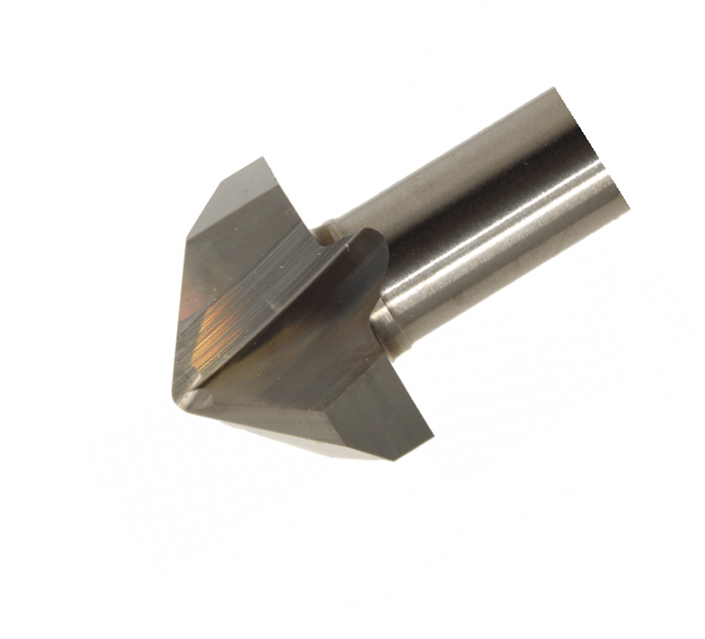

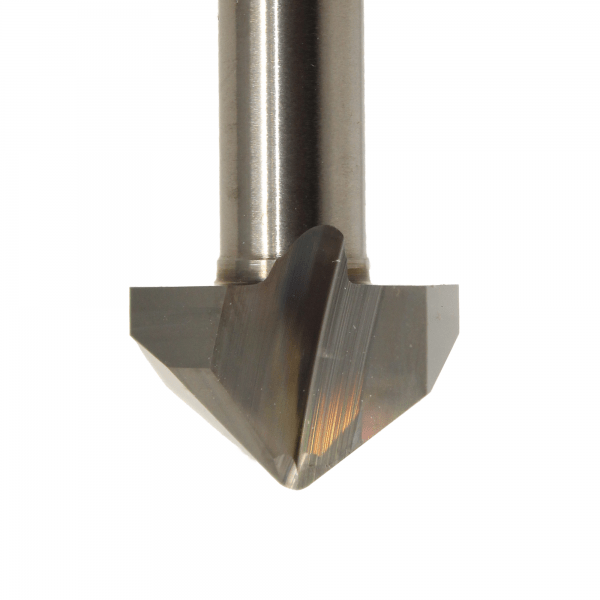

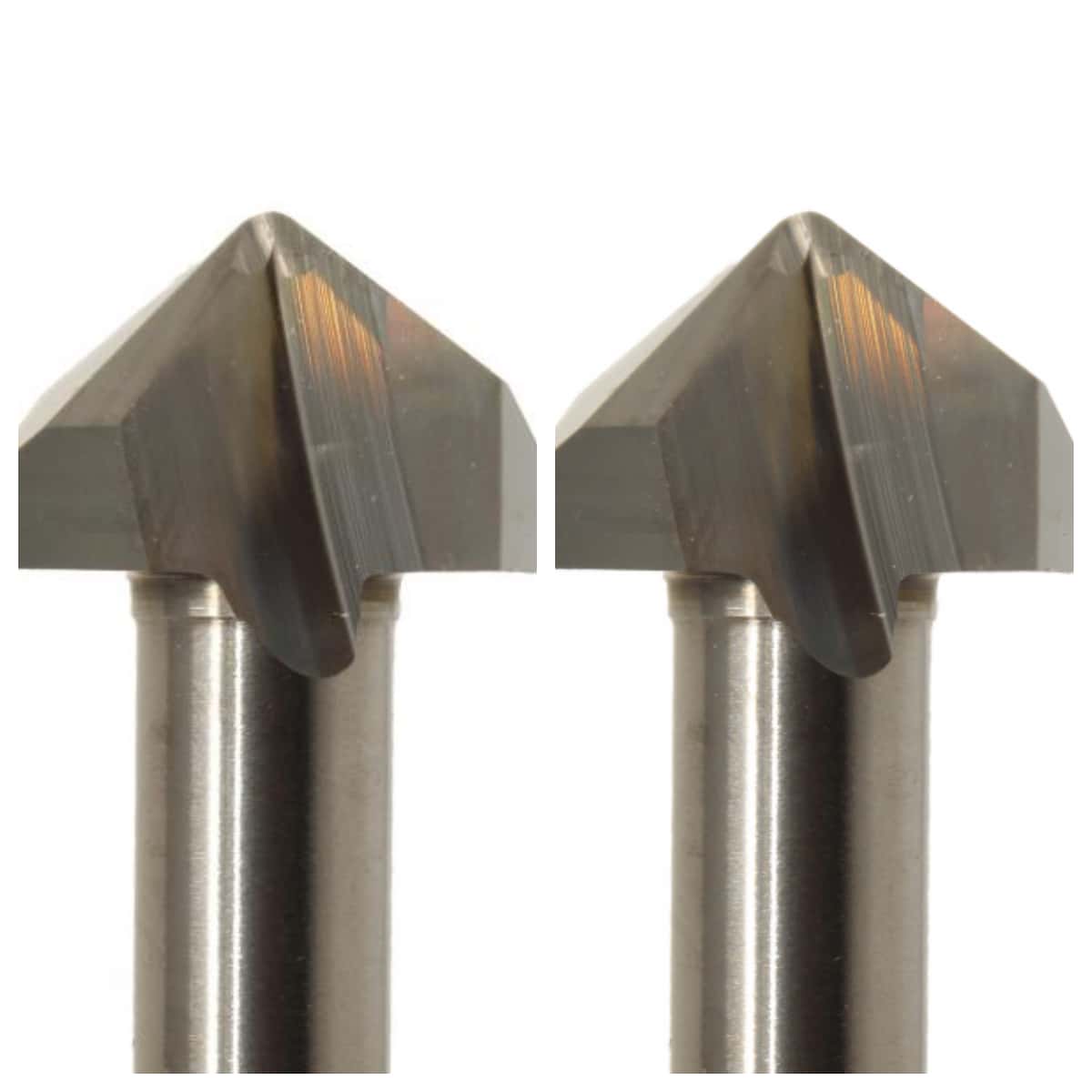

Colex T00544 Specialty Bit is a two-flute V-Cut router bit designed specifically for creating crisp 120-degree bends in Aluminum Composite Material (ACM). It is a 6mm shank specialty tool designed for high-speed nesting in CNC applications and is used primarily on the Colex Sharpcut Flatbed Cutter. Enquire now

Description

Colex T00544 Specialty Bit

Colex T00544,Colex Specialty Bit,Colex Router Bit,Colex Specialty Router Bit

Poids
.05 livres
Dimensions
2.25 × .5 × .5 pouce

Two flute V-Cut

Key Features & Applications

120-Degree Bending: Optimized with a rounded tip to produce precise, clean, and crisp bends in ACM, reducing the risk of material fracture at the bend point.
Versatility: Beyond ACM, it is suitable for chamfering both soft and hard plastics at a 60-degree angle.
Performance: Engineered for high-speed routing, capable of cutting at double the feed rate of the standard T00545 V-Cut bit.
Specifications:
- Shank Diameter: 6mm
- Bit Type: Two-Flute V-Cut
- Angle: V-Cut with 120-degree bend capability

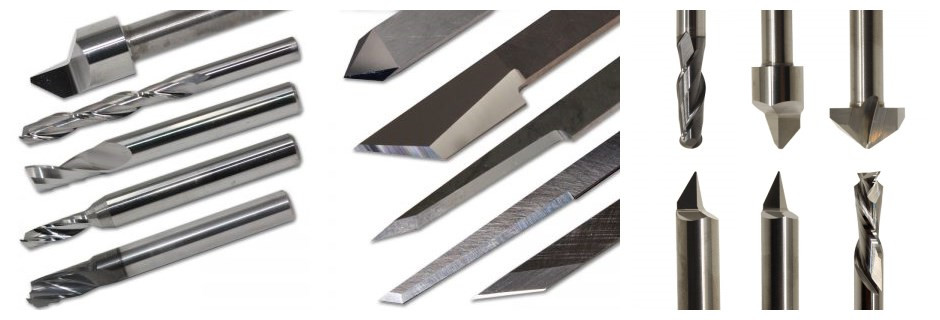

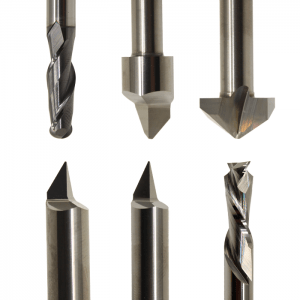

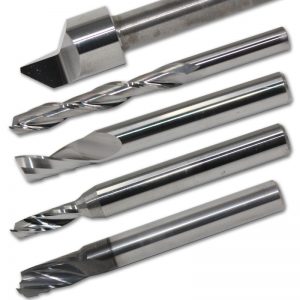

Product Line: This bit is part of the specialty router bits for the Colex Sharpcut, which also includes 40° engraving bits (T00546), 90° V-Cut bits (T00542), and rounded-edge cutters (T00549).
Alternatives: For 90-degree bends, the T00542 (2-flute) or T00545 (1-flute) is recommended
