Summa 500-9820 Coated Corrugated knife Blades for F Series Flatbed Cutter

Summa 500-9820 Coated Corrugated Knife Blades are premium, heavy-duty replacement blades designed specifically for the Electronic Oscillating Tool (EOT) on Summa F Series flatbed cutters Enquire now

Description

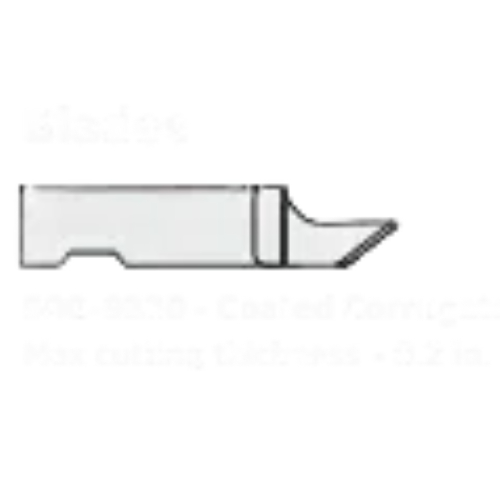

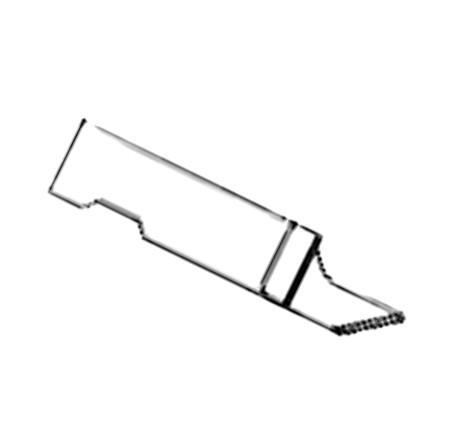

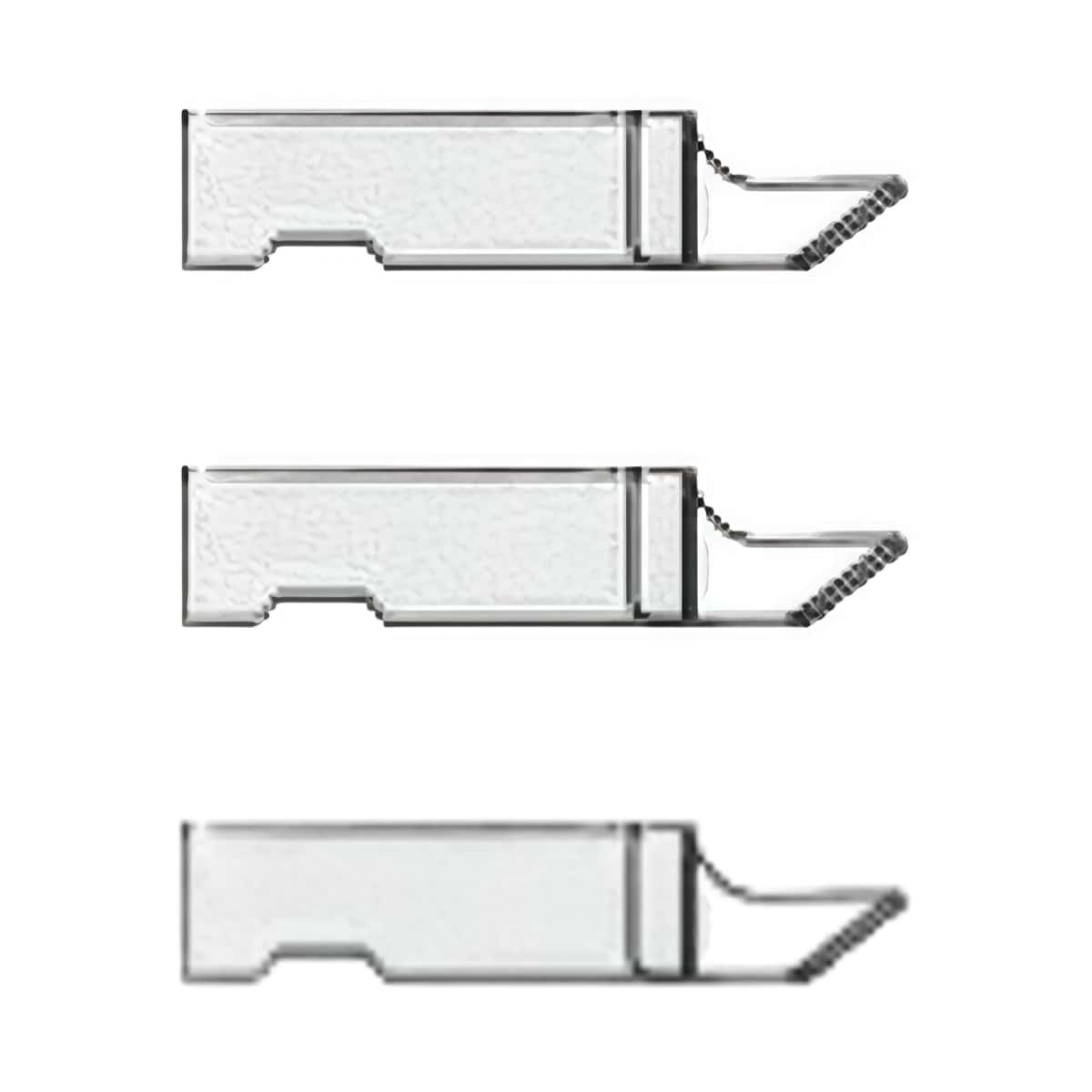

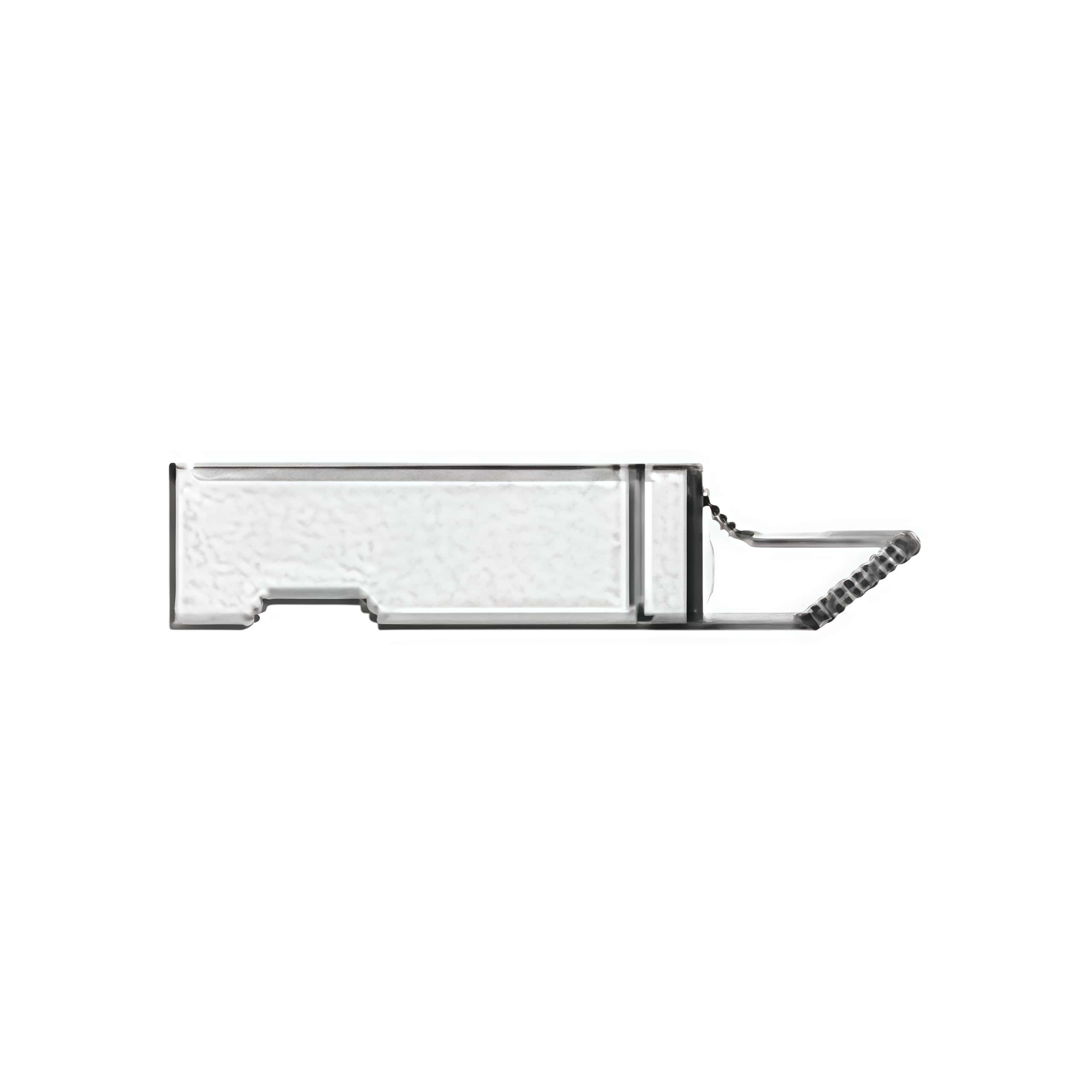

Summa 500-9820 Coated Corrugated knife Blade for F Series Flatbed Cutter

Summa 500-9820,Summa Coated Blade,Summa Corrugated Blade

Summa 500-9820 Coated Corrugated Knife Blades are premium, heavy-duty replacement blades designed specifically for the Electronic Oscillating Tool (EOT) on Summa F Series flatbed cutters. They feature a specialized TiN (Titanium Nitride) coating that significantly reduces friction and extends the blade's operational lifespan compared to uncoated equivalents.

Key Technical Specifications & Features

Titanium Nitride Coating: The gold-colored TiN coating lowers heat buildup during high-frequency vibration, resulting in up to double the longevity of standard steel blades.
Double-Edge Flat Profile: The blade has a flat, double-edged design engineered to handle the rapid up-and-down motion of the oscillating tool.
Maximum Cutting Depth: Specifically sized to optimize deep penetration while maintaining stability, minimizing blade deflection in thick substrates.
Clean Performance: Minimizes tearing of internal corrugation layers, delivering highly precise, debris-free, and professional cut edges.

Ideal Material Applications

Corrugated Board: Optimized for cutting single-wall, double-wall, and heavy-duty cardboard without crushing the fluting.
Honeycomb Boards: Easily slices through rigid structural cores (like Re-board or Falconboard).
Foam Board: Delivers pristine, vertical cuts through dense foam and paper-faced foam cores.
Thick Gasket Materials: Handles tough, compressed industrial rubbers and fibers smoothly.

Compatibility

Machine: All Summa F Series Flatbed Cutters (such as the F1612, F1432, F1832, and F3232).
Tool Module: Standard Electronic Oscillating Tool (EOT) or high-powered Pneumatic Oscillating Tool (POT) setups utilizing the appropriate blade holder.
