Esko Kongsberg Cutting Tables Single Edge Round 6mm Foam Knife Blades For Sale Store

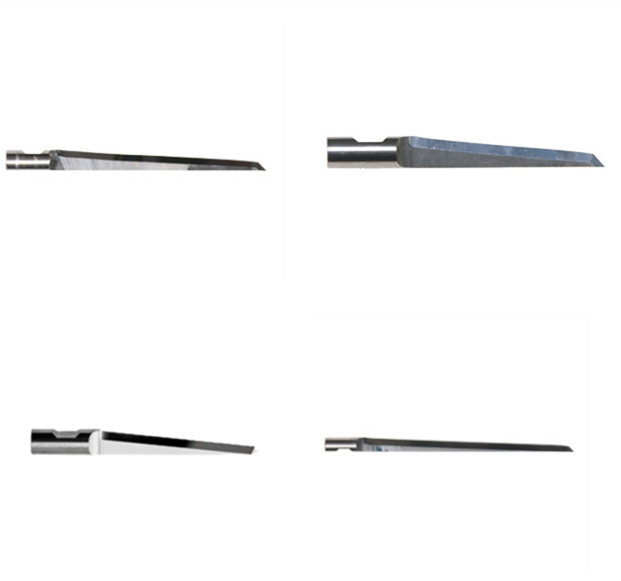

Esko Kongsberg Cutting Tables Single Edge Round 6mm Foam Knife Blades

Esko Kongsberg SR6xxx series blades are specialized Single Edge Round (6mm) shaft tools designed primarily for oscillating knife units to cut through foam, corrugated board, and sandwich materials. For foam applications, these blades are typically made from tungsten carbide for durability and sharp detail accuracy.

Blade overview table

Part number Esko code Knife height Max cutting depth Cutting angle (approx.) Tip / geometry notes Typical materials

BLD‑SR6311 G42443101 52 mm 30–36 mm 2.5° (very acute) Pointed tip for felt underlays; very fine detail, low overcut Expanded polystyrene, foam board, honeycomb, polyethylene foam

BLD‑SR6312 G42443093 52 mm 30 mm ~3.7° (acute) Pointed tip, similar to SR6311 but slightly more robust Foam board, honeycomb, soft/medium foam materials

BLD‑SR6313 G42443085 52 mm 30–35 mm ~8° Flattened tip to increase speed and protect PVC/felt underlays Foam board + paper surface <30 mm, PE foam <30 mm, soft foam, honeycomb/Re‑board 20–30 mm

BLD‑SR6521 G42444877 76 mm 55 mm 2.5° (very acute) Pointed tip; very fine detail in thick foam EPS <50 mm, low‑density protective foam, thick foam board, honeycomb

BLD‑SR6522 G42444885 76 mm 55–60 mm 3.7° Pointed tip for felt underlays; fine detail, balanced robustness Aramid/carbon/canvas, cardboard, foam board, honeycomb, rubber, textiles, PVC, reflective foil

BLD‑SR6523 G42444893 76 mm 55–60 mm ~8° Flattened tip; higher speed, more robust edge Thicker foam, honeycomb, re‑board, soft/medium‑hard materials

BLD‑SR6831 G42444919 80 mm 80 mm 1.5° (ultra‑acute) Pointed tip; minimal overcut, very fine detail in very thick foam Very thick EPS/foam up to ~80 mm, deep foam board, honeycomb

BLD‑SR6832 G42444927 80 mm 80 mm 2.5° Pointed tip; fine detail with slightly more robust edge than SR6831 Thick foam, foam board, honeycomb, soft/medium materials up to ~80 mm

Part number	Esko code	Knife height	Max cutting depth	Cutting angle (approx.)	Tip / geometry notes	Typical materials
BLD‑SR6311	G42443101	52 mm	30–36 mm	2.5° (very acute)	Pointed tip for felt underlays; very fine detail, low overcut	Expanded polystyrene, foam board, honeycomb, polyethylene foam
BLD‑SR6312	G42443093	52 mm	30 mm	~3.7° (acute)	Pointed tip, similar to SR6311 but slightly more robust	Foam board, honeycomb, soft/medium foam materials
BLD‑SR6313	G42443085	52 mm	30–35 mm	~8°	Flattened tip to increase speed and protect PVC/felt underlays	Foam board + paper surface <30 mm, PE foam <30 mm, soft foam, honeycomb/Re‑board 20–30 mm
BLD‑SR6521	G42444877	76 mm	55 mm	2.5° (very acute)	Pointed tip; very fine detail in thick foam	EPS <50 mm, low‑density protective foam, thick foam board, honeycomb
BLD‑SR6522	G42444885	76 mm	55–60 mm	3.7°	Pointed tip for felt underlays; fine detail, balanced robustness	Aramid/carbon/canvas, cardboard, foam board, honeycomb, rubber, textiles, PVC, reflective foil
BLD‑SR6523	G42444893	76 mm	55–60 mm	~8°	Flattened tip; higher speed, more robust edge	Thicker foam, honeycomb, re‑board, soft/medium‑hard materials
BLD‑SR6831	G42444919	80 mm	80 mm	1.5° (ultra‑acute)	Pointed tip; minimal overcut, very fine detail in very thick foam	Very thick EPS/foam up to ~80 mm, deep foam board, honeycomb
BLD‑SR6832	G42444927	80 mm	80 mm	2.5°	Pointed tip; fine detail with slightly more robust edge than SR6831	Thick foam, foam board, honeycomb, soft/medium materials up to ~80 mm
