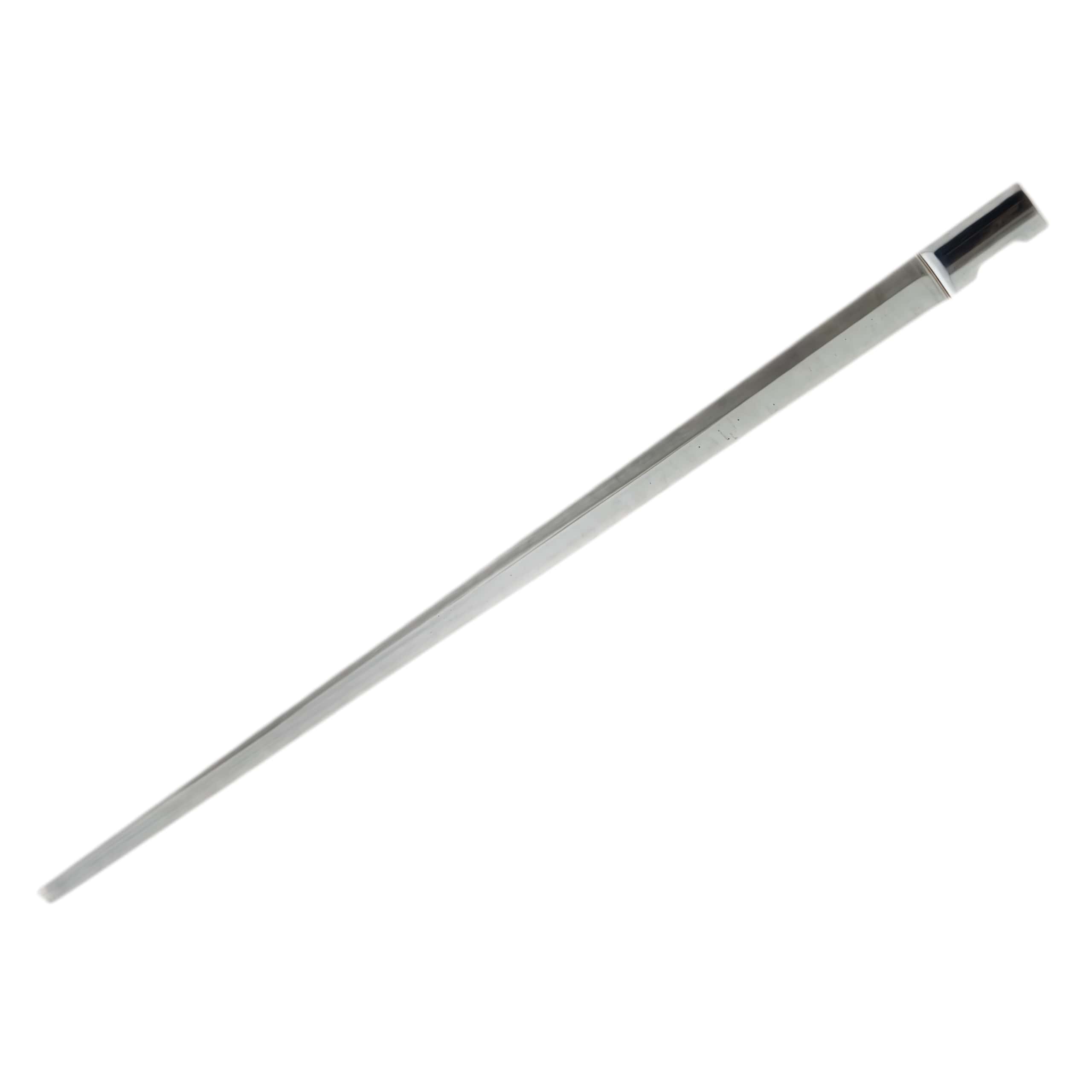

MultiCam 84‑00193‑BT‑572120 and AXYZ B1031L‑120 refer to the same class of long‑reach, single‑edge, flat‑point oscillating blade with a 6 mm round (Weldon) shank, designed for very deep cuts in foam, corrugated, rubber, and similar materials on MultiCam, AXYZ, and compatible flatbed/oscillating‑knife systems.

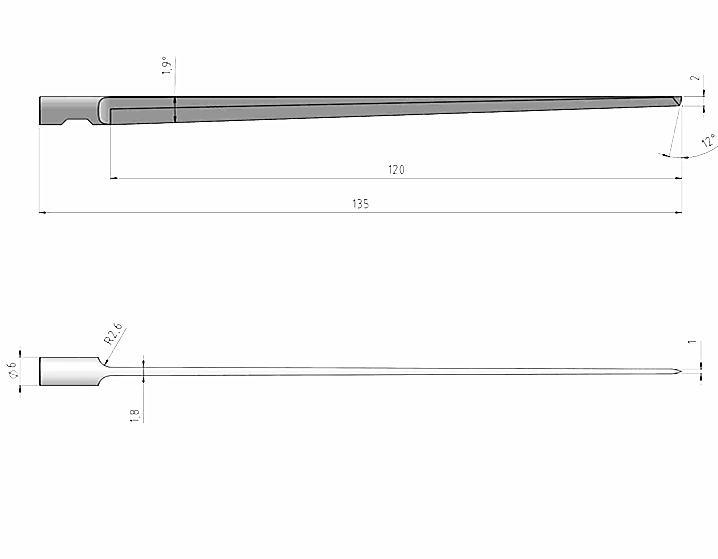

Key specifications

• Blade type: Cylindrical oscillating blade, single‑edge, flat point

• Material: Tungsten carbide (solid)

• Shank / mounting: Round Ø6 mm (Weldon flat)

• Total length (height): 135 mm

• Max cutting depth: 120 mm

• Cutting angle: ~86°–88° (geometry 2, flat tip)

• Compatible systems:

  • MultiCam: 84‑00193‑BT‑572120 / BT‑572120

  • AXYZ: B1031L‑120

  • Also listed as compatible with Aristo‑style round‑shank oscillating tools and other 6 mm round‑shank oscillating heads.

Typical materials and applications

This blade is intended for very thick, soft to medium‑hard materials where you need maximum cut depth with a robust, flat‑tipped edge:ruida-blades+3

• Corrugated cardboard (including thick multi‑wall)

• Foam board and thick foam (EPS, PE, PU up to ~120 mm)

• Folding carton stacks

• Rubber and some soft composites

• Signage and display substrates where deep, straight or contoured cuts are required

The flat point and large angle (~86°–88°) make it more robust and less prone to chipping in thick, compressible materials, at the cost of some fine‑detail capability compared to very acute pointed foam blades.

Cross‑reference and equivalents

Common cross‑references you’ll see in catalogs and compatibility lists:

• MultiCam: 84‑00193‑BT‑572120, BT‑572120

• AXYZ: B1031L‑120

• Geometry/size equivalents:

  • Round‑shank, single‑edge, flat point, 135 mm overall, 120 mm cut length, 6 mm shank, ~86°–88° angle.

  • Other B1031L‑xx / BT‑572xx blades in the same family (e.g., B1031L‑15/20/30, BT‑57215/20/30) follow the same geometry but with shorter cut lengths

If you’re already using AXYZ B1031L‑xx or MultiCam BT‑572xx blades in 6 mm round‑shank oscillating heads, this is simply the 120 mm cut‑length version for your thickest materials.

Tool compatibility notes

• Designed for oscillating knife tools that accept 6 mm round (Weldon) shank blades.

• Common on:

  • MultiCam oscillating knife modules

  • AXYZ EOT/POT‑style oscillating heads

  • Aristo and other 6 mm round‑shank oscillating tools that specify B1031L/BT‑572xx compatibility
