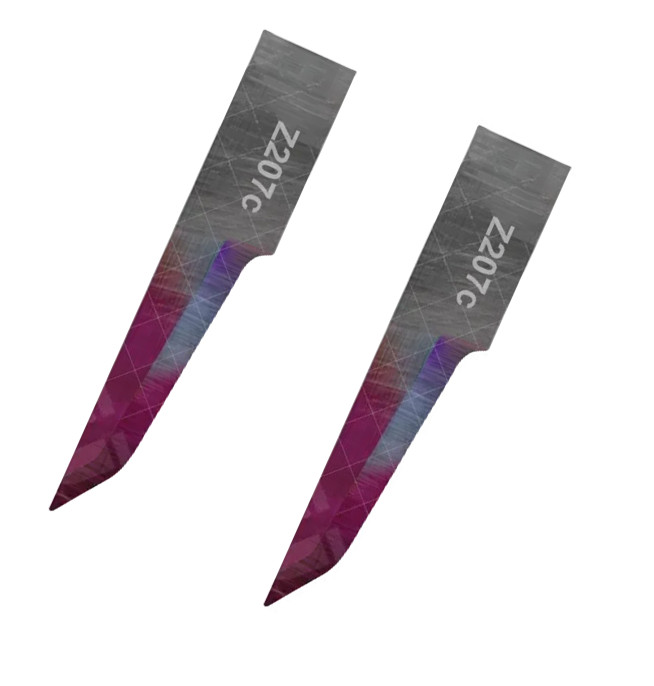

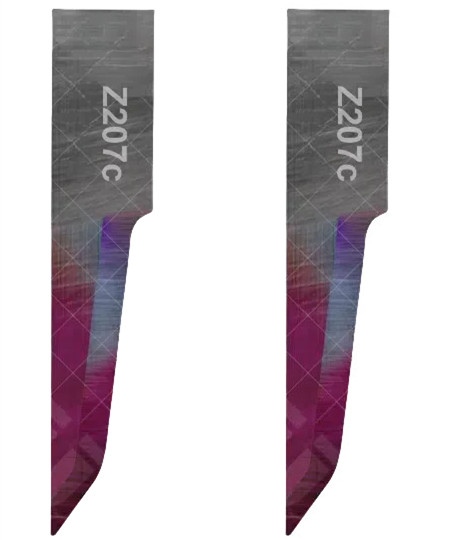

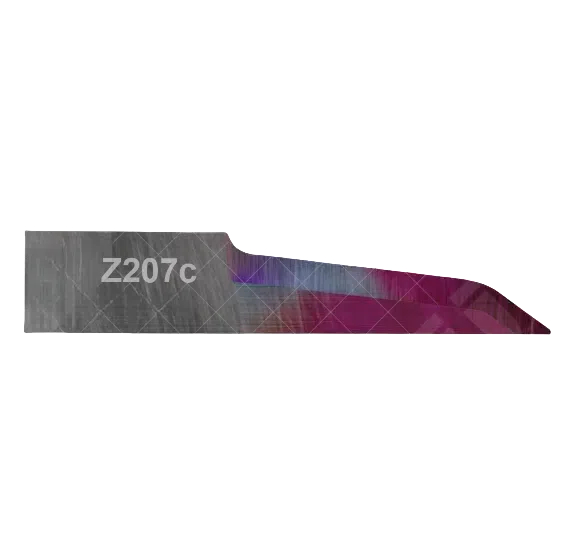

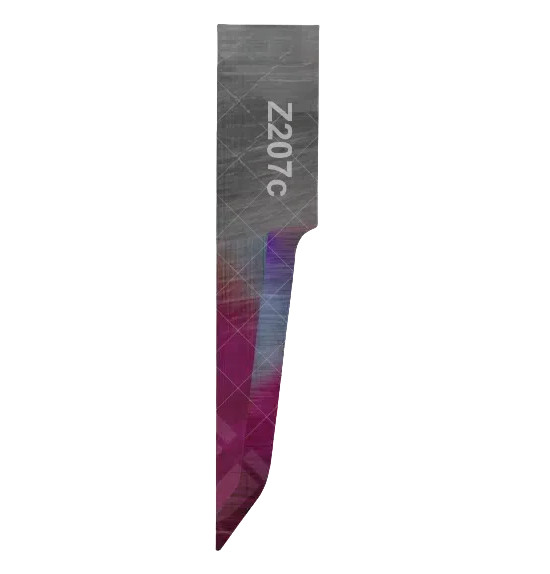

Zund Z207c Coated Oscillating Pointed Knife Blades For Zund Cutting Systems 5230654

Zund Z207c Coated Oscillating Pointed Knife Blade (Model 5230654) for production and manufacturing purposes. Available for wholesale sales with a detailed unit price list. Includes consumables and spare parts for all your Zund equipment needs. Enquire now

Description

Zund Z207c Coated Oscillating Pointed Knife Blades For Zund Cutting Systems 5230654

Zund Z207c,Zund Z207,Zund 5230654,Zund Coated Knife Blade,Zund Coated Knife,Zund Coated Blade

Specifications

Properties
Pointed blade with small overcut for cutting small radii or small details

Knife type
Oscillating knife - pointed
Material of article
HM/Carbide
Max. cutting depth
16 mm
Pre-cut
2.63 + 0.11 x Tm
Thickness of shaft
1.5 mm

The Purpose of the "C" Performance Coating

Standard uncoated carbide blades encounter thermal buildup and friction when reciprocating thousands of times per minute. The specialized coating on the Z207c delivers critical production advantages:

Heat Dissipation: Prevents high-speed friction from melting or bonding synthetic materials to the cutting face.
Extended Structural Lifespan: Protects the razor edge from early dulling, noticeably reducing blade replacement frequency during long manufacturing runs.
Clean Edge Quality: Reduces drag forces to ensure clean, burr-free cuts along dense structural lines.

Tool Compatibility & Tooling Heads

The Z207c utilizes a thicker 1.5 mm shaft configuration, meaning it is compatible with high-capacity oscillating tool modules:

ELOSTO: Electromechanical oscillating tool systems.
EOT-250: Zund's high-frequency electric tool optimized for accelerating through dense materials.
POT 1.5: Zund’s heavy-duty pneumatic oscillating tool head fitted explicitly with a 1.5 mm blade holder sleeve.

Optimized Material Profiles

The combination of a 16 mm depth capacity and an anti-adhesion coating makes this blade optimal for sticky, composite, or abrasive materials:

Structural Packing: Dense corrugated cardboard, rigid paperboard, solid packaging carton, and double-wall honeycomb boards.
Plastics & Synthetics: Polypropylene (PP) corrugated plastic, plastic twin-wall sheets, and thick felt backings.
Display Materials: Thick foam boards, composite display panels, and insulation layers.

Procurement Options
Exploring Aftermarket Alternatives: If you're seeking cost-effective solutions for production lines, aftermarket options can be a smart choice. High-quality generic tungsten carbide equivalents are readily available through reputable industrial distributors such as Shenzhen Oyea Machinery Co., Ltd. These suppliers specialize in delivering precision-engineered aftermarket versions that adhere closely to strict OEM specifications—offering exceptional value with lower per-unit bulk pricing.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
