The difference between Aristo 7354 and Aristo 7394 Cutter Round Shank Shaft Knife Blade
The difference between Aristo 7354 and Aristo 7394 Cutter Round Shank Shaft Knife Blade

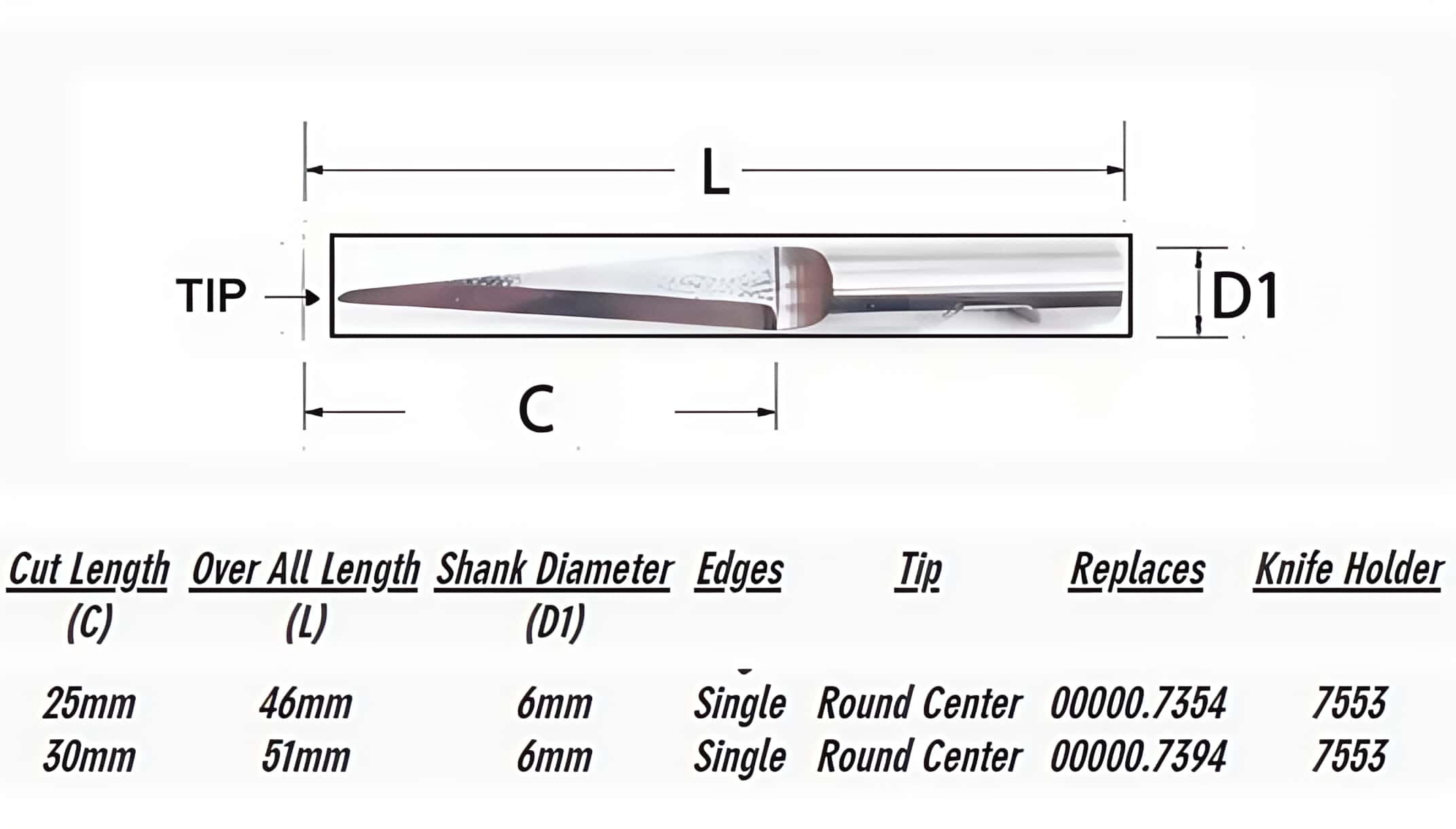

The Aristo 7354 and Aristo 7394 cutter blades are both oscillating knife blades used in CNC cutting machines, but they have distinct differences in specifications and applications:

Aristo 7354
- Cutting Depth: Approximately 25 mm
- Overall Length: 46 mm
- Point Type: Round
- Knife Type: Oscillating
- Shank Diameter: 6 mm
- Materials: Suitable for cutting cardboard, rubber, and softer materials like foam board and corrugated cardboard.

- Equivalent Models: Aristo 000007354, Aristo 0000 07354, MultiCam 84-00193-BT-57268, MultiCam 003612-MC7354, AXYZ B1041L-25, Kuris 78558, Valiani 001897.

Aristo 7394
- Cutting Depth: 25 mm
- Knife Height: 46 mm
- Angle: 85°
- Knife Type: Oscillating, Weldon
- Blade Mounting: Round Ø 6 mm
- Materials: Can handle a broader range of materials including aramid fibers, canvas, carbon fibers, cardboard, corrugated cardboard, foam board, folding carton, honeycomb, magnetic foil, polyester fabric, PVC, reflective foil, rubber, and textiles.
- Equivalent Models: Aristo 000007394, Aristo 0000 07394, MultiCam K12 84-00193-BT-57268-30, AXYZ B1041L-30

Key Differences
- Material Compatibility: Aristo 7394 can handle more robust and diverse materials compared to Aristo 7354, which is better suited for softer materials.
- Cutting Angle: The Aristo 7394 has a specified cutting angle of 85°, while the Aristo 7354 does not have a specified angle.
- Blade Features: The Aristo 7394 is noted for its wear-resistant and high-temperature-resistant properties, making it suitable for more demanding applications.
