Atom Cutting System 01043068 Oscillating Knife Blade Specifications Dimensions Use Sales

Atom Cutting System 01043068 Flashcut HV1600 Oscillating Knife Blade Specifications Dimensions Use Sales

The Atom Cutting System 01043068 Flashcut HV1600 Oscillating Knife Blade has the following specifications and details:

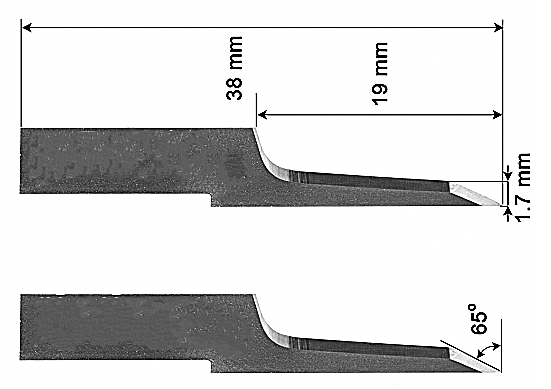

Specifications and Dimensions:
- Maximum cutting depth: 19.00 mm
- Blade angle: 5°-25°-10°
- Knife height: 38.00 mm
- Thickness: 0.63 mm
- Blade mounting: flat 0.63 mm
- Knife type: Flat, Oscillating blade
- Composition: Tungsten Carbide (HM - Hard Metal)
- Suitable materials: Gasket materials, soft rubber, foam, and similar soft materials up to 17-19 mm thickness.

Use:
- Designed for use with Atom automated cutting machines, specifically for cutting soft rubber, foam, gasket materials, and similar materials.
- Compatible with Electric Oscillating Tool (EOT) and Pneumatic Oscillating Tool (POT).
- Suitable for applications requiring precise cutting with minimum radius 2 mm.

Sales and Availability:Sales and Availability:
- The blade is available for purchase as a replacement part for Atom cutting machines.
- You can purchase from: Shenzhen Oyea Machinery Co., Ltd. Commonly used blades are basically in stock.

Additional Context on Atom FlashCut HV1600 System:Additional Context on Atom FlashCut HV1600 System:
- The FlashCut HV1600 system is part of Atom's automated cutting solutions offering high precision and repeatability.
- The system includes advanced nesting software to optimize material yield and reduce waste.
- It supports multiple tooling options including oscillating knives like the 01043068 blade.
- The system is robust, designed for industrial use in automotive, aerospace, packaging, and technical textiles industries.

In summary, the Atom 01043068 Flashcut HV1600 oscillating knife blade is a tungsten carbide flat oscillating blade with a 0.63 mm thickness, 38 mm height, and a cutting depth of up to 19 mm, used primarily for cutting soft rubber and gasket materials on Atom automated cutting machines. It is commercially available as a replacement blade and is part of the broader FlashCut HV1600 cutting system known for precision and industrial versatilit.
