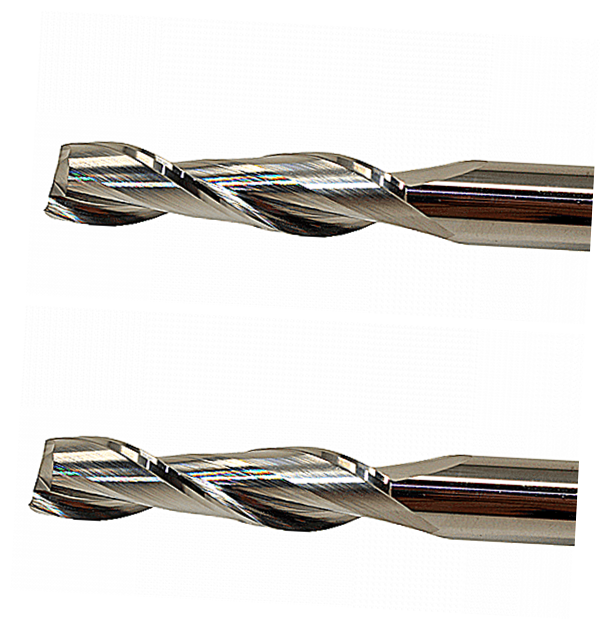

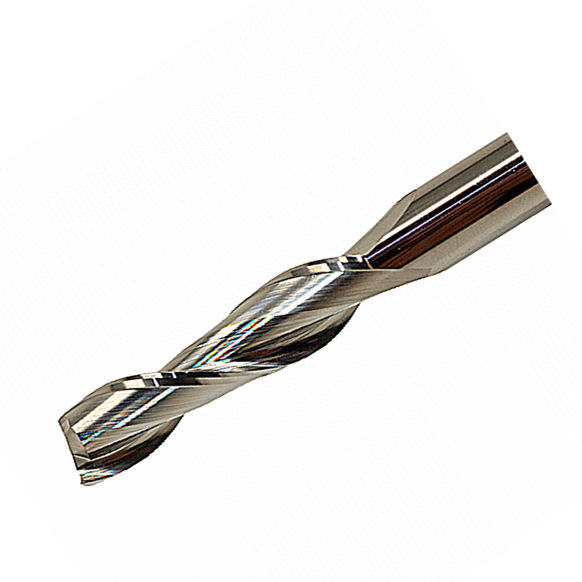

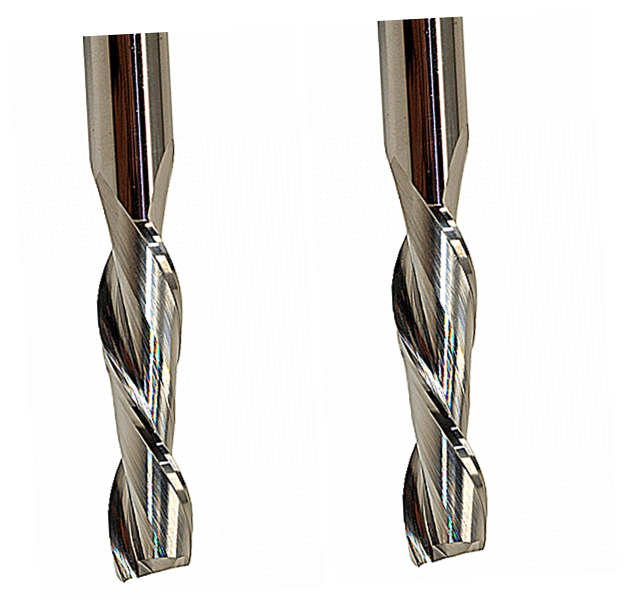

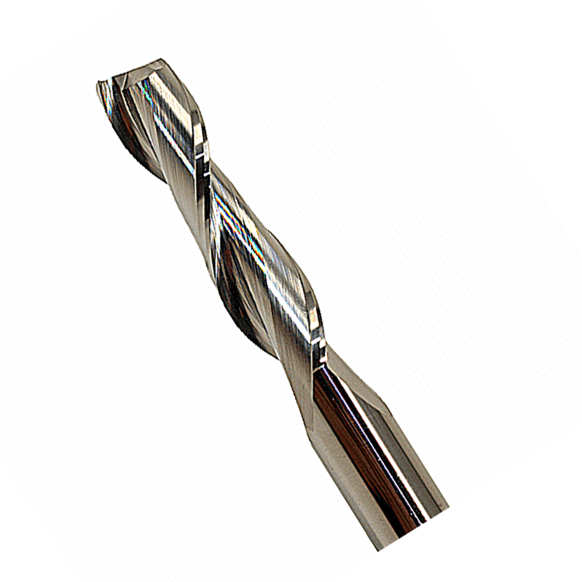

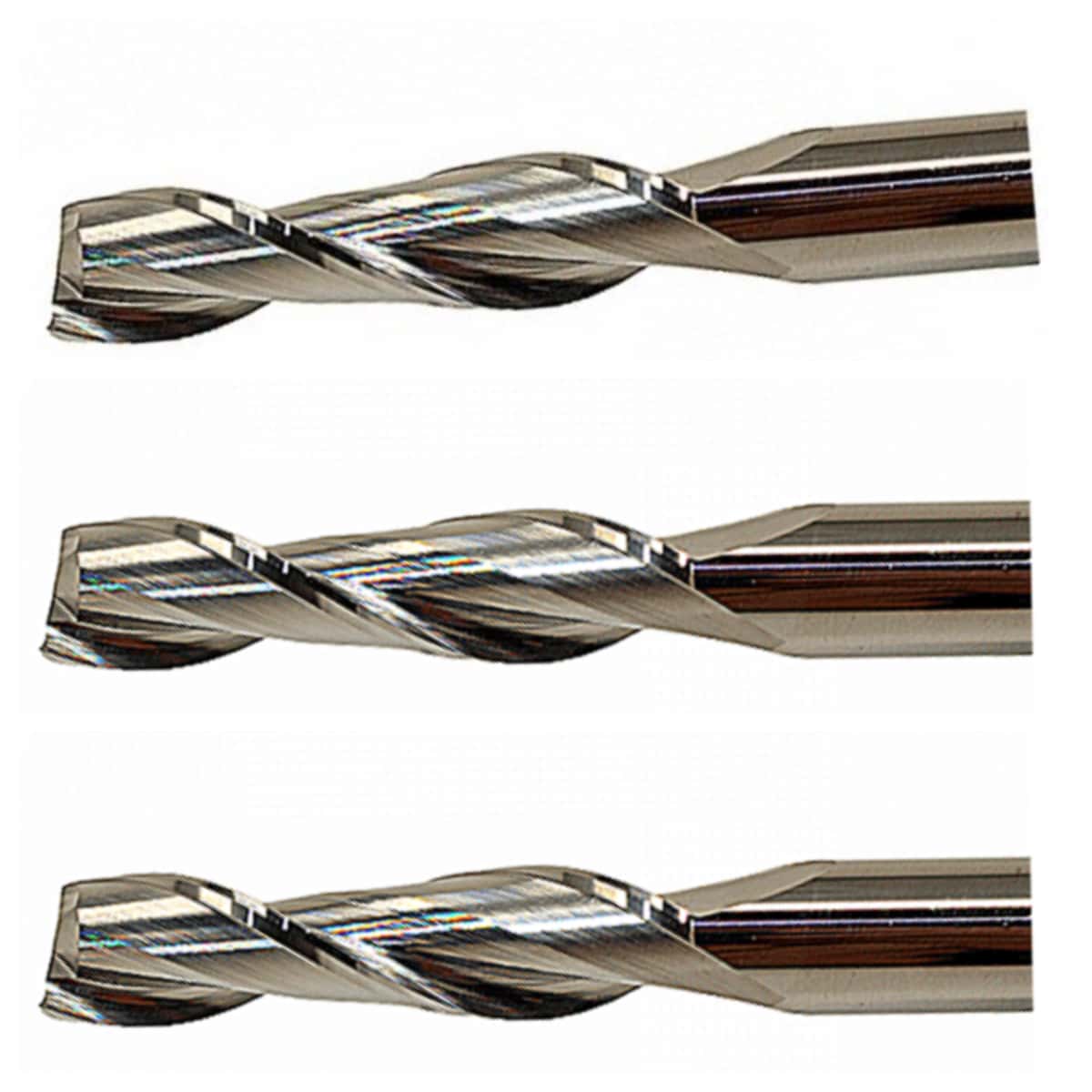

Colex T00486 Universal Upcut Router Bit For Colex Sharpcut Flatbed Cutter

Colex T00486 Upcut Router Bit is a universal solid carbide cutting tool designed for use with Colex Sharpcut flatbed cutters. This spiral upcut bit is engineered to pull chips upward during the routing process, which helps prevent heat buildup and ensures a cleaner cut in deep grooves or pockets. Enquire now

Description

Colex T00486 Universal Upcut Router Bit

Colex T00486,Colex Router Bit,Colex Bit,Colex Upcut Router Bit

Bit Type Upcut, 2 Flute
Cut Diameter 10 mm
Cut Length 1 – 3/4” – 45 mm
Shank Diameter 10 mm

Recommended Use

Primary Applications

Plastics: Ideal for cutting soft and hard plastics.
Wood Products: Suitable for solid wood, soft wood, and composite boards like Gatorfoam.
Signage Materials: Commonly used for ACM (Aluminum Composite Material), acrylic, and sign foam.

Performance Characteristics

Upcut bits like the T00486 are preferred for plunge cuts and deep slotting because their geometry mimics a drill bit, clearing debris out of the kerf. While they provide excellent chip clearance, they may leave a slightly rougher top edge on some materials compared to downcut bits.
