Colex T00540 Balanced Upcut Router Bit For Colex Sharpcut Flatbed Cutter

Colex T00540 is a universal upcut router bit designed for use with Colex Sharpcut flatbed cutters. It is characterized by its significant length, allowing for deep cuts across a variety of rigid and semi-rigid materials Enquire now

Description

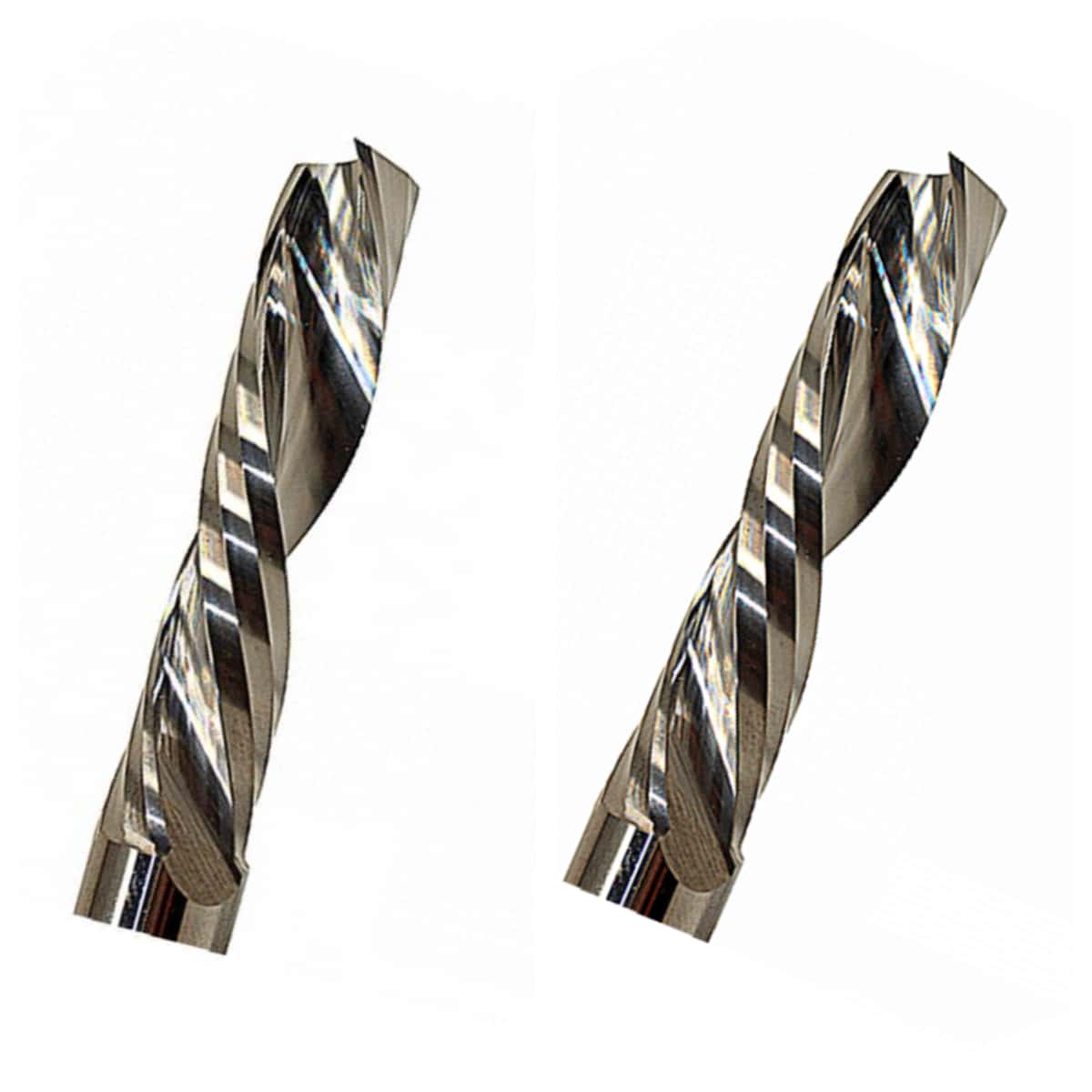

Colex T00540 Balanced Upcut Router Bit

Colex T00540,Colex Router Bit,Colex Bit,Colex Upcut Router Bit

Key Specifications

Bit Type: Upcut
Cut Length: 42mm (approx. 1.65 inches)
Primary Application: Universal cutting of plastics and woods

Recommended Materials

This bit is intended for cutting a wide range of materials, including:

Plastics: Soft plastic, hard plastic, and acrylic.
Wood: Both soft wood and hard wood.

Functionality: Why Use an Upcut Bit?

Upcut bits like the T00540 feature a spiral flute that pulls chips and debris upward, toward the router motor.

Chip Removal: This design is highly efficient for clearing waste from the cut path, which prevents heat buildup and bit breakage in deep cuts.
Plunge Cutting: Similar to a drill bit, the spiral design allows for easier plunging into material compared to straight bits.
Hold-Down: Because the bit pulls upward, it is ideal for machines with vacuum tables or strong clamping systems that keep the material firmly pressed down during the cutting process.

For thinner materials or where a superior finish on the top surface is required, users might substitute this for a downcut bit like the Colex T00506 or a shorter upcut variant like the Colex T00502.
