RUKDP014, RUKDP015, RUKDP016, RUKDP017, RUKDP018, RUKDP087, RUKDP088, and RUKDP089 blades are Driving Rotary Tool (DRT) knife blades

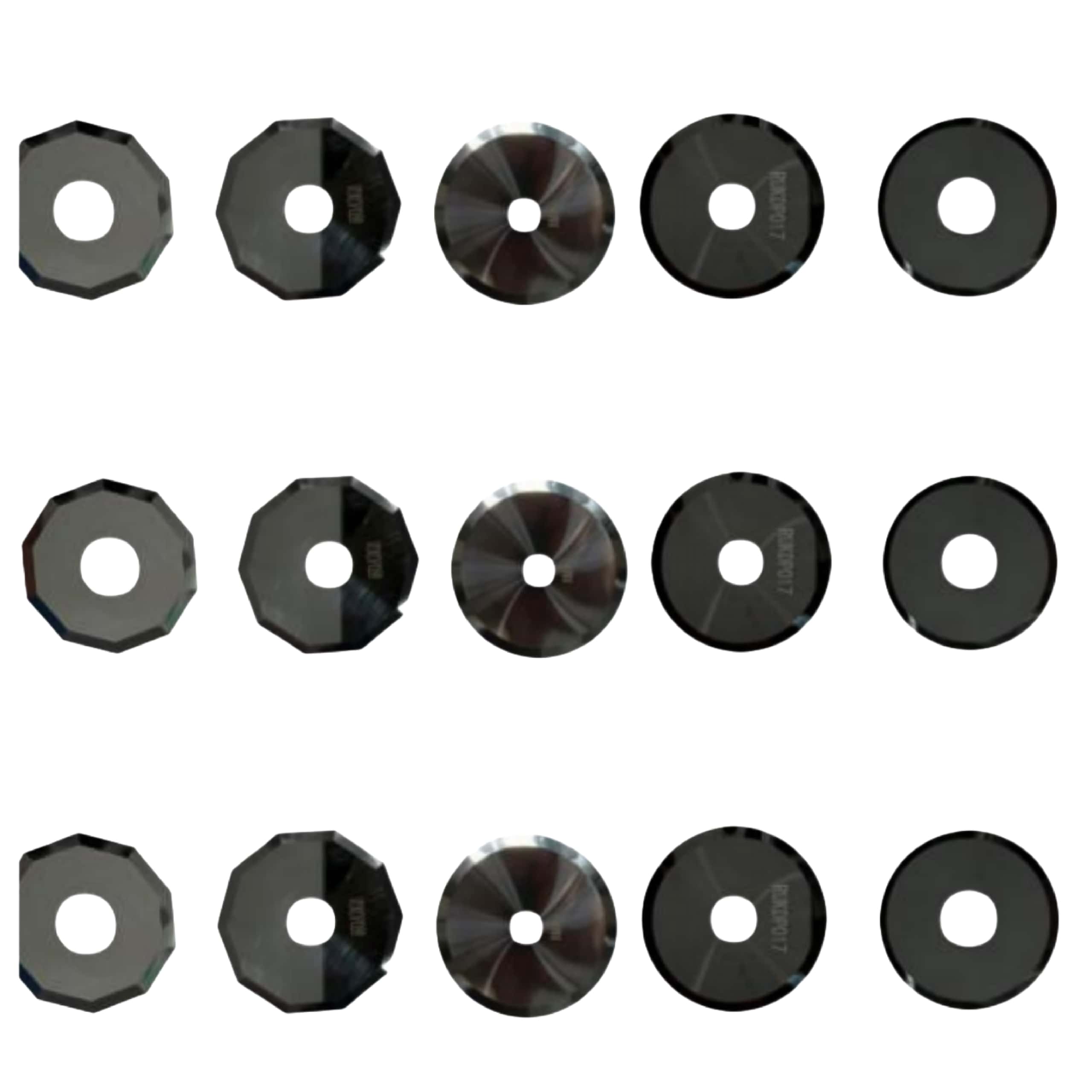

Blade Models and Specifications
-
RUKDP014: Wheel knife, diameter φ22 mm × 0.6 mm thickness, used for knitted/woven fabrics, velvet, coated fabrics, double-sided nylon, fur, carpet, glass fiber, carbon fiber, and aramid fiber.
-
RUKDP015: Wheel knife, diameter φ25 mm × 0.8 mm thickness (inner hole 8 mm), suitable for the same materials as above.
-
RUKDP016: Wheel knife, diameter φ28 mm × 0.8 mm thickness (inner hole 8 mm), for similar flexible, technical, and composite materials.
-
RUKDP017: Wheel knife, diameter φ32 mm × 0.6 mm thickness, same application materials.
-
RUKDP018: Wheel knife, diameter φ45 mm × 1.0 mm thickness, same application materials.
-
RUKDP087: Rotary blade 25, decagonal (ten-sided), diameter φ25 mm × 0.8 mm (inner hole 8 mm), for flexible, technical, composite materials.
-
RUKDP088: Rotary blade 28, decagonal, diameter φ28 mm × 0.8 mm (inner hole 8 mm), for similar materials.
-
RUKDP089: Rotary blade 32, decagonal, diameter (inner hole 8 mm), for similar materials.
Typical Applications
-
Textiles: Knitted, woven fabrics, velvet, double-sided nylon, coated textiles, fur, carpet.
-
Technical Composites: Glass fiber, carbon fiber, aramid fiber.
-
Others: Used where a rotary, rolling, or decagon-based edge improves cut speed/quality in challenging flexible materials, minimizing fabric movement and fraying.
Format and Construction
-
These blades are often round (wheel) or ten-sided (decagonal), providing a continuous or fresh cutting edge by blade rotation.
-
Designed for use in automated drag or driven rotary cutting modules (most compatible with RUK DRT tool heads), widely used in garment, upholstery, composites, technical fabrics, and industrial textile applications.
Summary Table
|
Blade Code |
Type / Shape |
Diameter |
Thickness |
Inner Hole |
Typical Materials |
|
|
Wheel |
φ22mm |
0.6mm |
– |
Textiles, composites, flexible laminates |
||
|
RUKDP015 |
Wheel |
φ25mm |
0.8mm |
8mm |
Textiles, composites, flexible laminates |
|
|
RUKDP016 |
Wheel |
φ28mm |
0.8mm |
8mm |
Textiles, composites, flexible laminates |
|
|
RUKDP017 |
Wheel |
φ32mm |
0.6mm |
– |
Textiles, composites, flexible laminates |
|
|
RUKDP018 |
Wheel |
φ45mm |
1.0mm |
– |
Textiles, composites, flexible laminates |
|
|
RUKDP087 |
Decagonal |
φ25mm |
0.8mm |
8mm |
Textiles, composites, flexible laminates |
|
|
Decagonal |
φ28mm |
0.8mm |
8mm |
Textiles, composites, flexible laminates |
||
|
RUKDP089 |
Decagonal |
φ32mm |
– |
8mm |
Textiles, composites, flexible laminates |
|
These DRT knife blades deliver optimized performance for industrial and digital cutting applications, providing clean, precise cuts on advanced technical and flexible materials, particularly in textile and composite industries.
