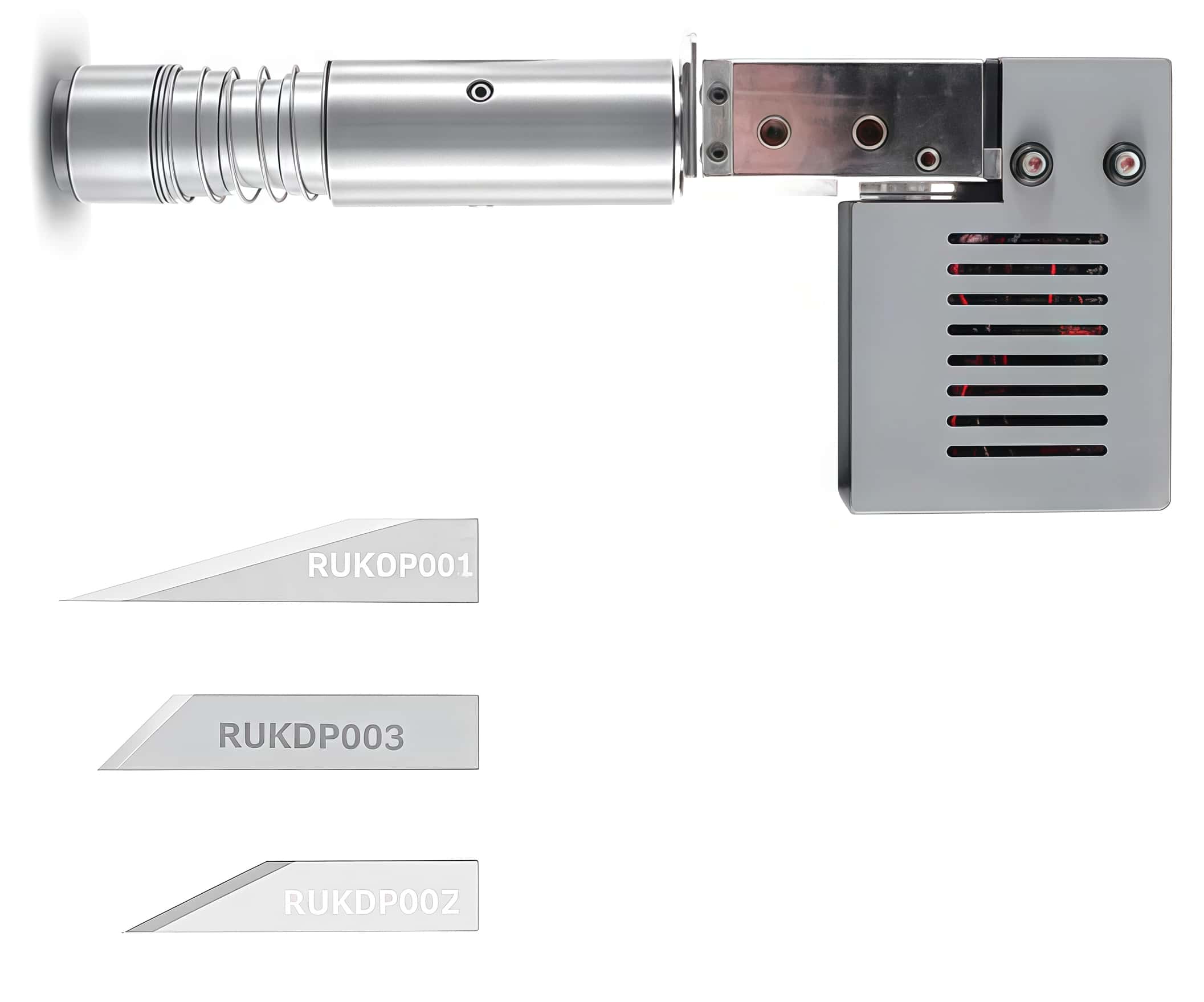

Ruk RUKDP001 RUKDP002 RUKDP003 RUKDP004 RUKDP046 RUKDP098 Carbide Knife Blades for Ruk High-Speed Osci llating Tool EOT
The following RUKDP series carbide knife blades are designed for the Ruk High-Speed Oscillating Tool (EOT) and are commonly used for precision cutting of a variety of flexible and semi-rigid materials in industrial applications. Here are key details for each blade type based on specifications from manufacturer and supplier data:
|
Blade Code |
Angle / Edge Type |
Blade Size (mm) |
Typical Applications / Materials |
|
16° single-edged |
0.64×6×30 |
KT board (5–10mm), PVC board ≤10mm, cardboard (small circle) |
|
|
26° single-edged |
0.64×6×30 |
Thick cardboard, PP paper, self-adhesive, etc. |
|
|
45° single-edged |
0.64×6×30 |
PP paper, self-adhesive, thin cardboard <300g |
|
|
30° double-edged |
0.64×7.5×30 |
Leather, PVC floor mats, canvas, flexible/difficult materials |
|
|
45° single-edged |
0.64×6×22 |
Thick cardboard, PP paper, self-adhesive, KT board, low-density PVC |
|
|
3.7° extended (single-edged) |
0.64×6×43 |
Honeycomb board, thick corrugated cardboard (not for small curves) |
Material and Construction
· Made from tungsten carbide (sometimes marketed as "hard metal"), these blades offer significantly enhanced durability, wear resistance, and cutting edge longevity compared to standard steel blades.
· Manufactured using powder metallurgy and precision grinding for tight tolerances and sharpness suitable for high-speed oscillating cutting in automated and manual systems.
Compatibility
· These blades are specifically tailored for Ruk digital cutting systems equipped with EOT (Electric Oscillating Tool) modules, but are also similar in overall form factor and use-case to popular blades for Jingwei, Summa, iEcho, and comparable CNC oscillating knife systems.
Key Application Guidance
· Choose RUKDP001 for general-purpose cutting of foam boards and PVC.
· RUKDP002 is preferred for denser/fibrous sheet materials (thick card, PP).
· RUKDP003/046 excel for more intricate cuts on thin or adhesive materials.
· RUKDP004 is suitable for tough or flexible substrates where double edges aid penetration.
· RUKDP098 is designed for deep cuts in thick corrugated or honeycomb board but not for tight curves due to blade length/angle.
Product Sourcing and Customization
· Blades are widely available in China and internationally as OEM and compatible types, often offered in lots of 10 or more, and can be custom-ordered for tip geometry and carbide grade.
· Genuine RUK blades will be marked with the above blade codes and precise dimensional standards (confirm compatibility with your cutting table's tool holder before ordering).
Industrial Use Note
Carbide blades, while more costly than steel, dramatically reduce the need for sharpening and increase operating intervals—valuable in high-volume and high-precision digital cutting environments.
RUKDP001, RUKDP002, RUKDP003, RUKDP004, RUKDP046, and RUKDP098 are premium-grade carbide knife blades designed for the RUK high-speed oscillating tool used in EOT production. These blades are renowned for their versatility and reliability, making them a staple across multiple industries. Shenzhen Oyea Machinery Co., Ltd excels in manufacturing, wholesaling, and supplying these advanced tools, providing a complete supply chain solution that includes spare parts, consumables, and customized components through OEM and ODM services.
The company prioritizes superior product quality while maintaining competitive pricing to meet diverse customer needs. With a well-equipped factory and advanced production capabilities, Shenzhen Oyea ensures precision-engineered tools, detailed price lists, and an exceptional level of customer service, solidifying their reputation as a trusted name in the industry.
