Itc 8001 Series Clearcut Single Flute Router Bit-Production Manufacturing Wholesale

ITC 8001 Series Clearcut Single Flute Router Bit designed for production, manufacturing, and wholesale distribution. Offering high-quality products directly from the factory, Shenzhen Oyea Machinery Co., Ltd. specializes in OEM services, ensuring reliable supply and craftsmanship originating from C… Enquire now

Description

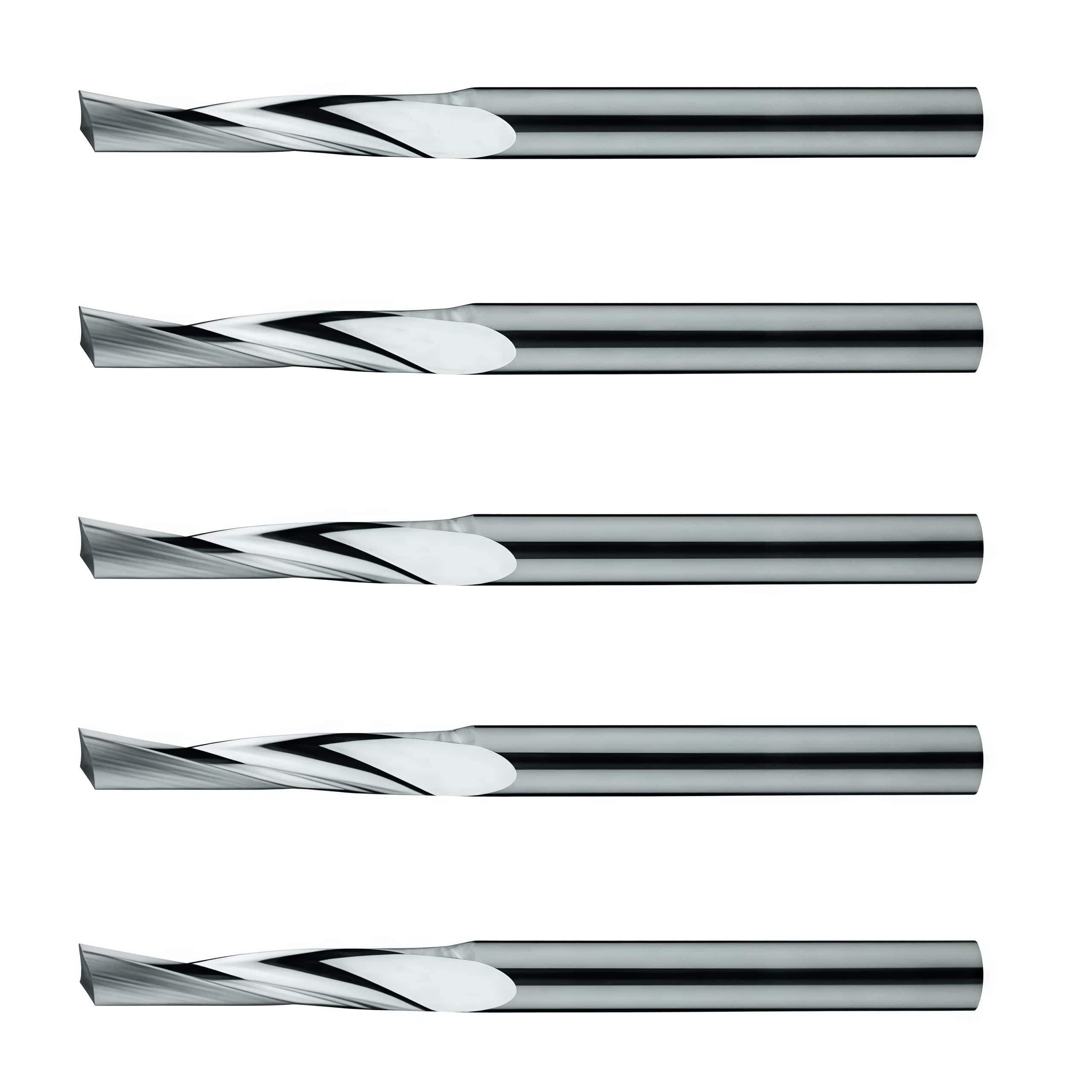

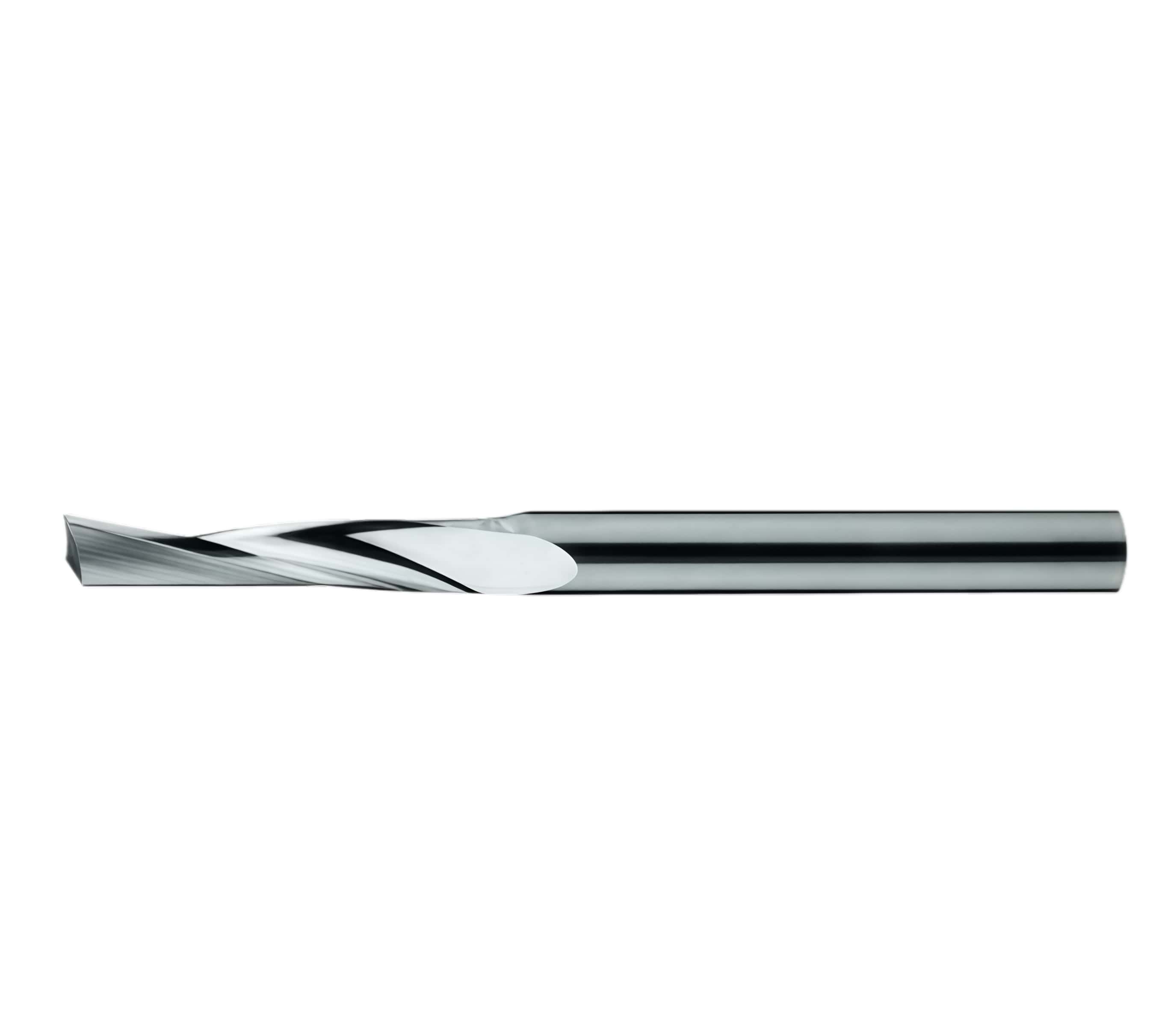

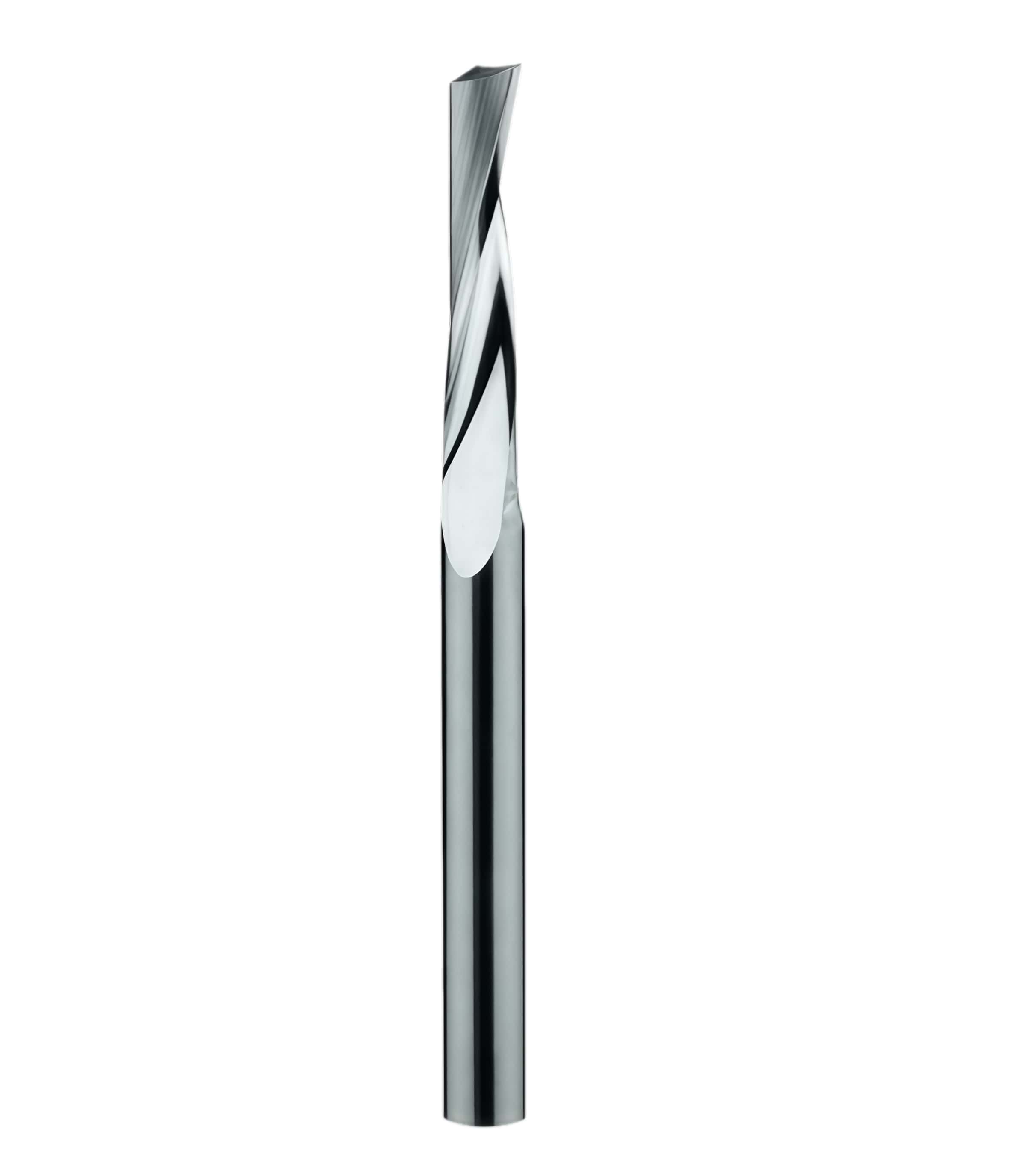

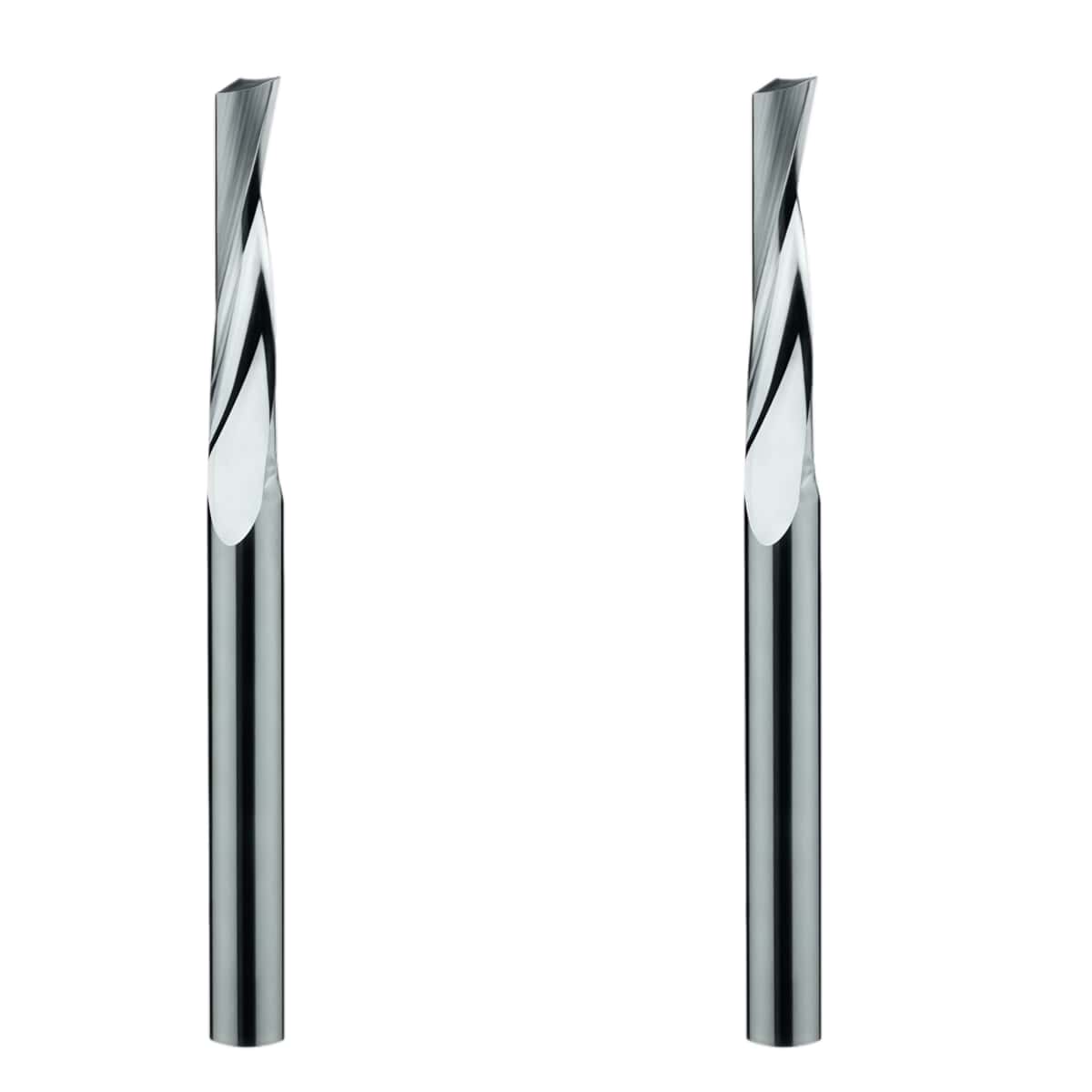

Itc 8001 Series Clearcut Single Flute Router Bit

8001 Series Clearcut
Single Flute Router

Description
Solid carbide single flute, upward spiral, 15° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide, to extremely tight tolerances with a highly polished flute.

Application
Designed to give an exceptional finish on perspex and acrylic materials. In some cases eliminating the need for flame polishing components after cutting. This range of tool also offers exceptional surface finish on foamex and similar materials.

Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8001-2-F	180-0787-10-F	2	6	50	7
8001-3-C	180-1181-10-C	3	3	40	8
8001-3-D	180-1181-10-D	3	3	40	12
8001-3-E	180-1181-10-E	3	3	40	7
8001-3-F	180-1181-10-F	3	6	50	11
8001-3-G	NEW	3	3	55	21
8001-4-C	180-1575-10-C	4	4	40	11
8001-4-D	180-1575-10-D	4	4	50	15
8001-4-E	180-1575-10-E	4	4	50	7
8001-4-F	180-1575-10-F	4	6	50	11
8001-4-G	NEW	4	4	80	31
8001-5-C	180-1969-10-C	5	5	50	12
8001-5-D	180-1969-10-D	5	5	58	21
8001-5-F	180-1969-10-F	5	6	50	12
8001-6-C	180-2362-10-C	6	6	58	21
8001-6-D	180-2362-10-D	6	6	75	26
8001-6-E	180-2362-10-E	6	6	58	14
8001-6-F	NEW	6	6	80	31
8001-8-C	180-3150-10-C	8	8	75	26
8001-8-E	180-3150-10-E	8	8	64	14
8001-10-C	180-3937-10-C	10	10	75	26
8001-12-C	180-4724-10-C	12	12	84	26
