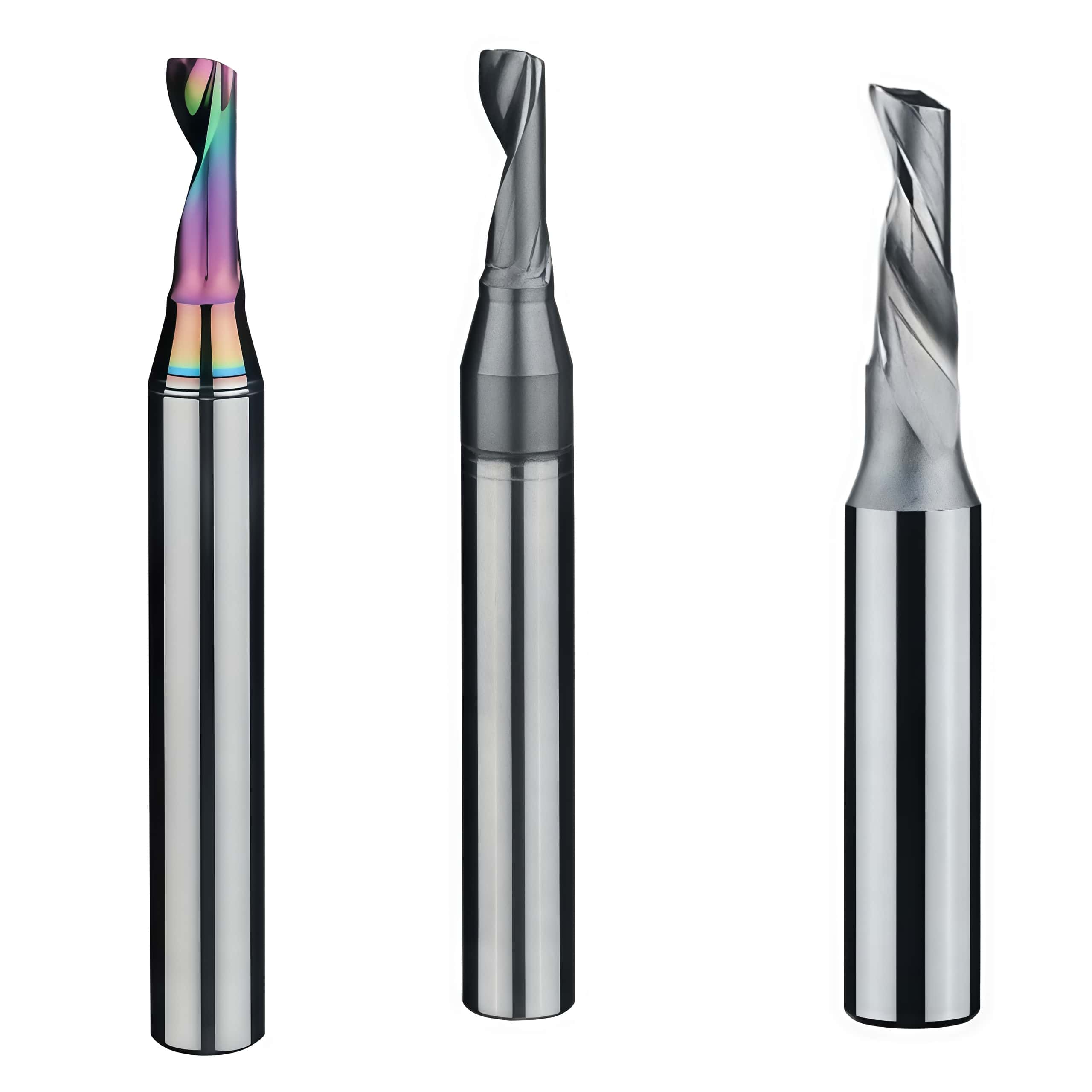

Itc 8002 Series Vitreo Coated Iridis Coated Single Flute Router Bits

Itc 8002 Series 8002 Series Vitreo Coated Iridis Coated Single Flute Router Bits Production Manufacturing Wholesale Sales Quality Origin Factory Supply OEM OEM CHINA Shenzhen Oyea Machinery Co., Ltd. Enquire now

Description

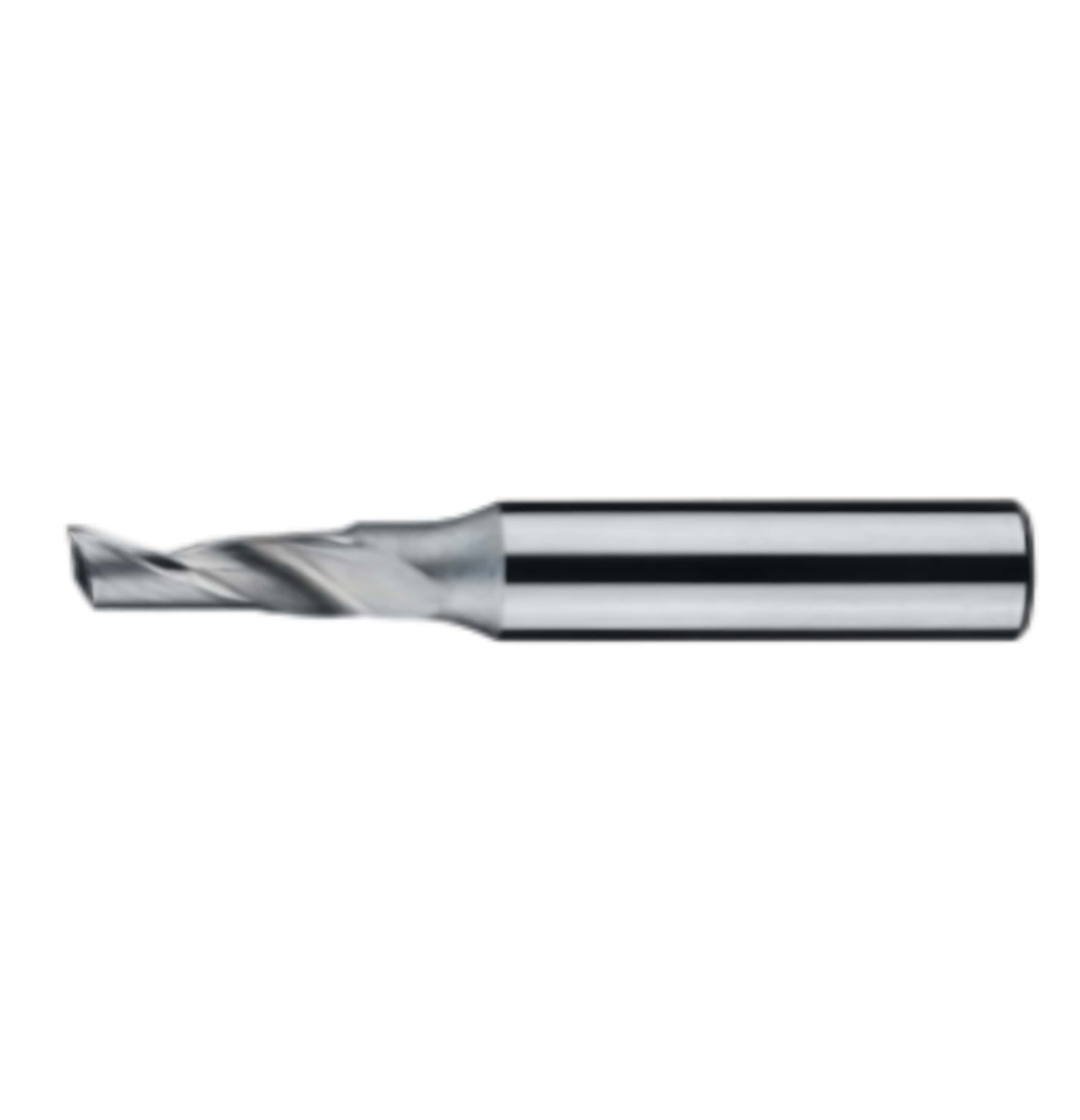

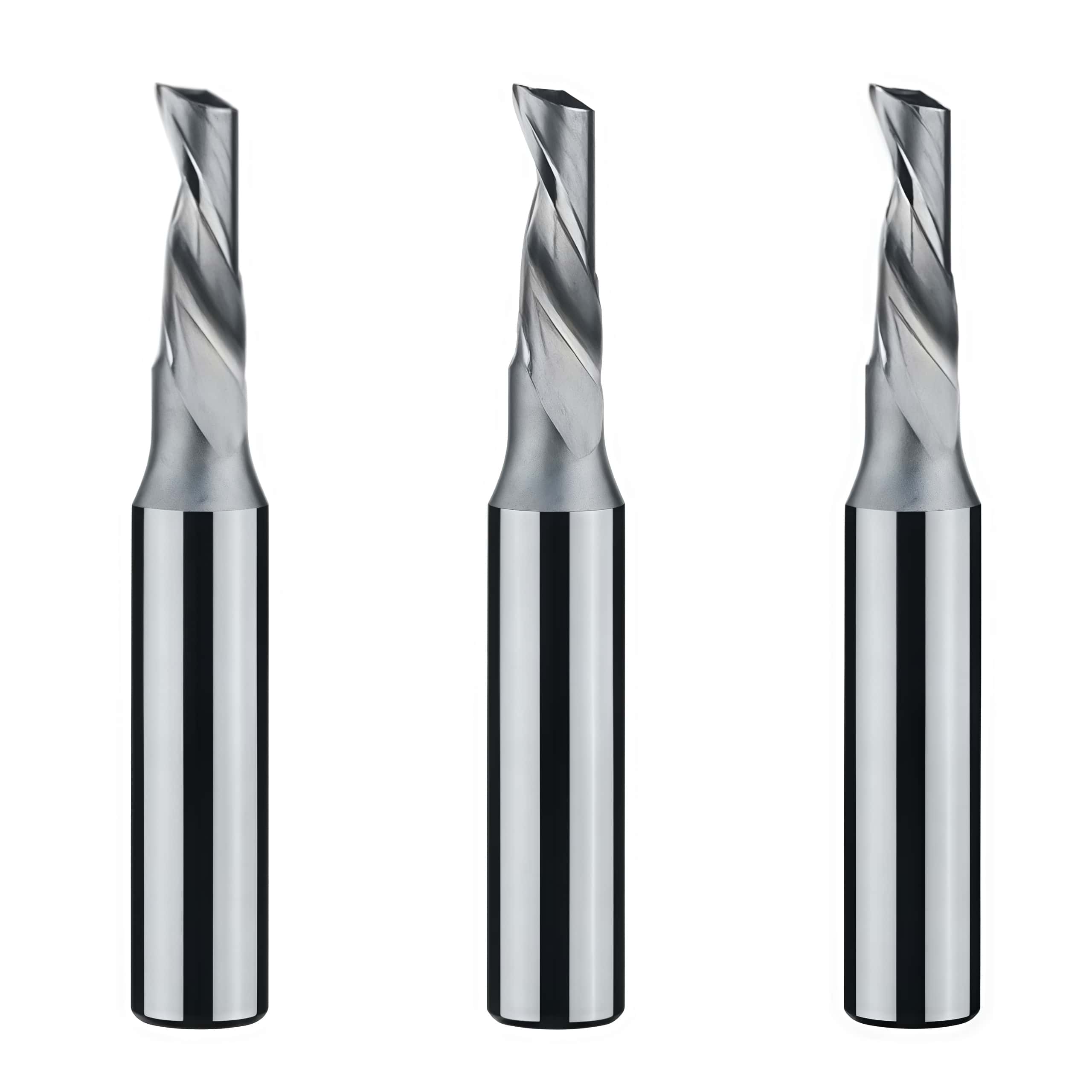

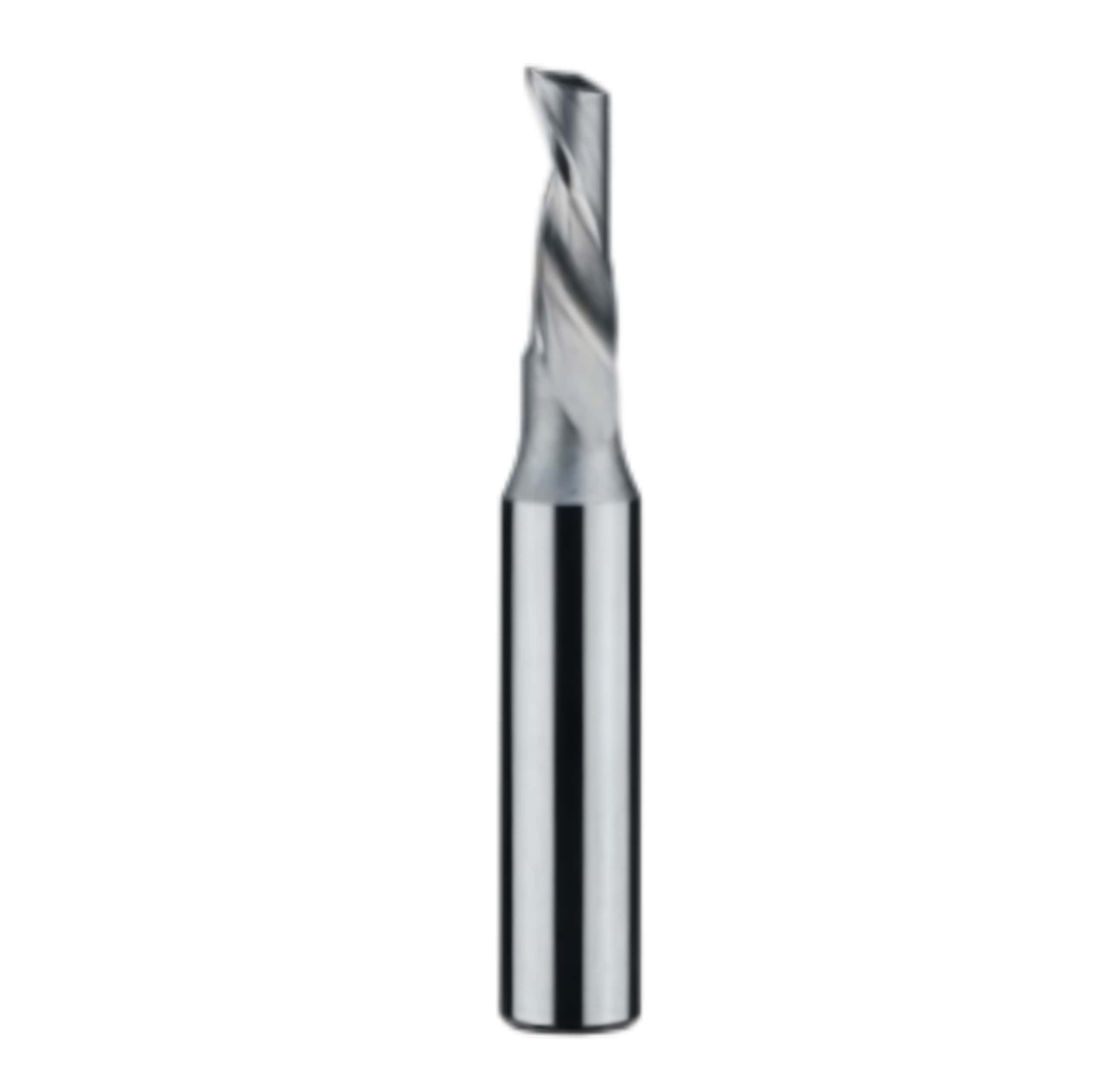

Itc 8002 Series Vitreo Coated Iridis Coated Single Flute Router Bits

8002 Series
Single Flute Router For Aluminium & ACM - Reinforced Shank
Description
Solid carbide single flute, upward spiral, 30° helix on reinforced 6mm shank, ideal for reducing number of collet changes, manufactured from Ultra Wear Resistant Micrograin Carbide.
Application
Offers exceptional surface finish on aluminium and ACM.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8002-2	180-0787-10-A	2	6	50	7
8002-2.5	180-0984-10-A	2.5	6	50	8
8002-3	180-1181-10-A-XL	3	6	50	10
8002-3.5	180-1378-10-A	3.5	6	40	10
8002-3-1/4	180-1181-10-B	3	1/4”	50	12
8002-4	180-1575-10-A	4	6	50	10
8002-4X	180-1575-10-A-XL	4	6	64	22
8002-5	180-1969-10-A	5	6	50	12
8002-5.5	180-2165-10-A	5.5	6	50	14

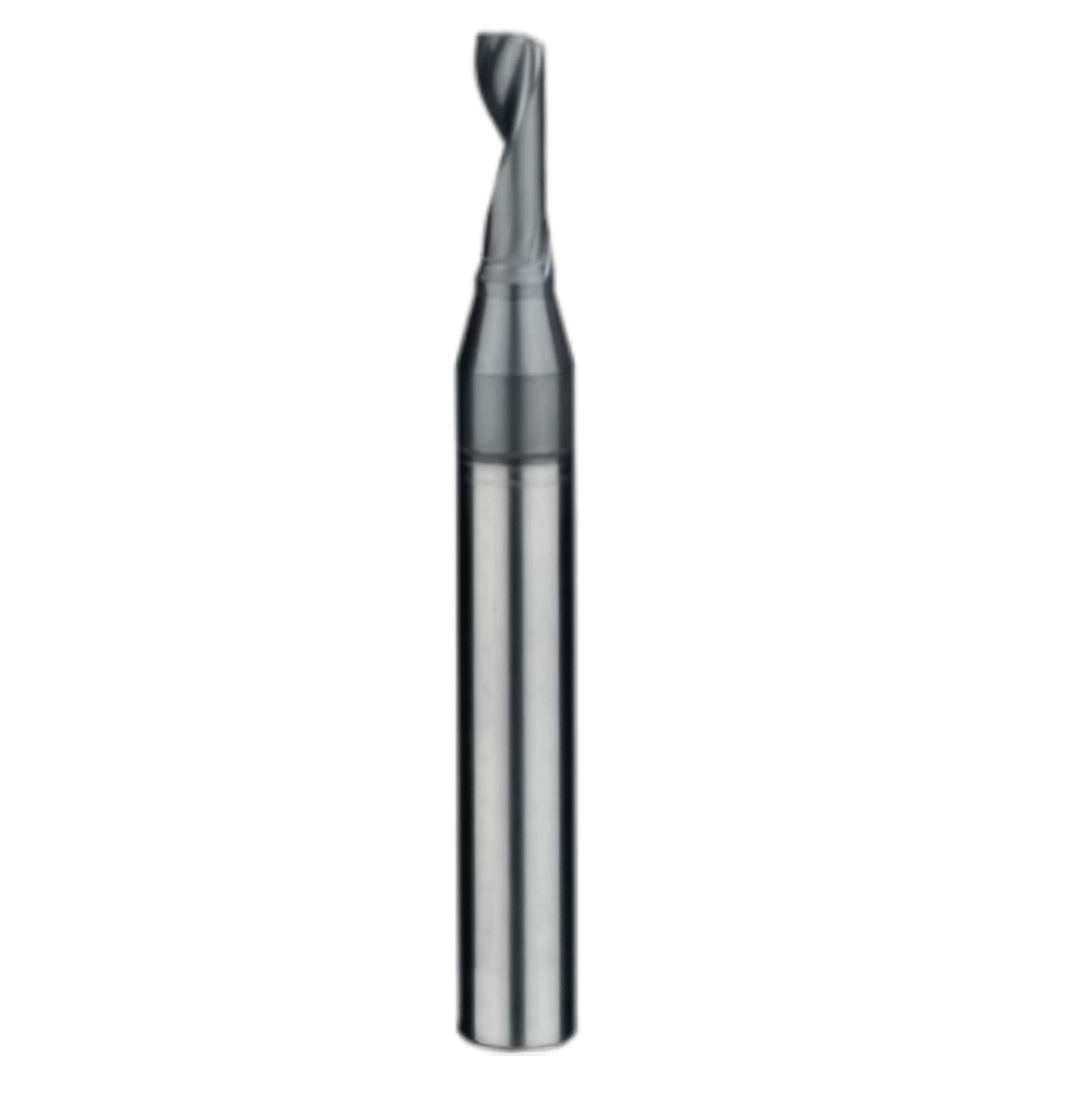

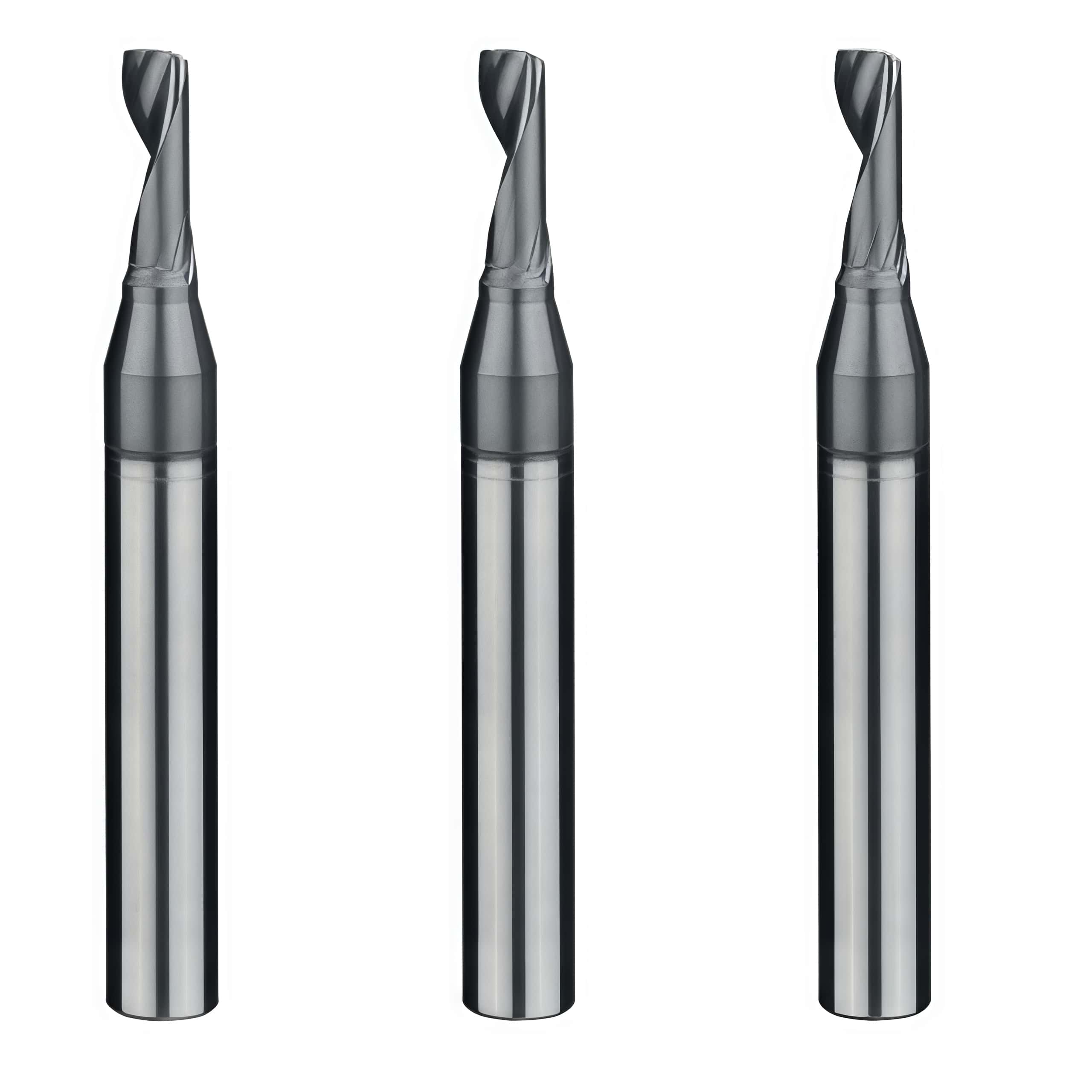

8002 Series - Vitreo Coated
Single Flute Router For ACM - Reinforced Shank
Description
Solid carbide single flute, upward spiral, 30° helix on reinforced 6mm shank, ideal for reducing number of collet changes, manufactured from Ultra Wear Resistant Micrograin Carbide. Coated for extra life.
Application
Vitreo coated offers exceptional surface finish and tool life on ACM.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8002-2J	180-0787-10J-A	2	6	50	7
8002-3J	180-1181-10J-A-XL	3	6	50	10
8002-4J	180-1575-10J-A	4	6	50	10

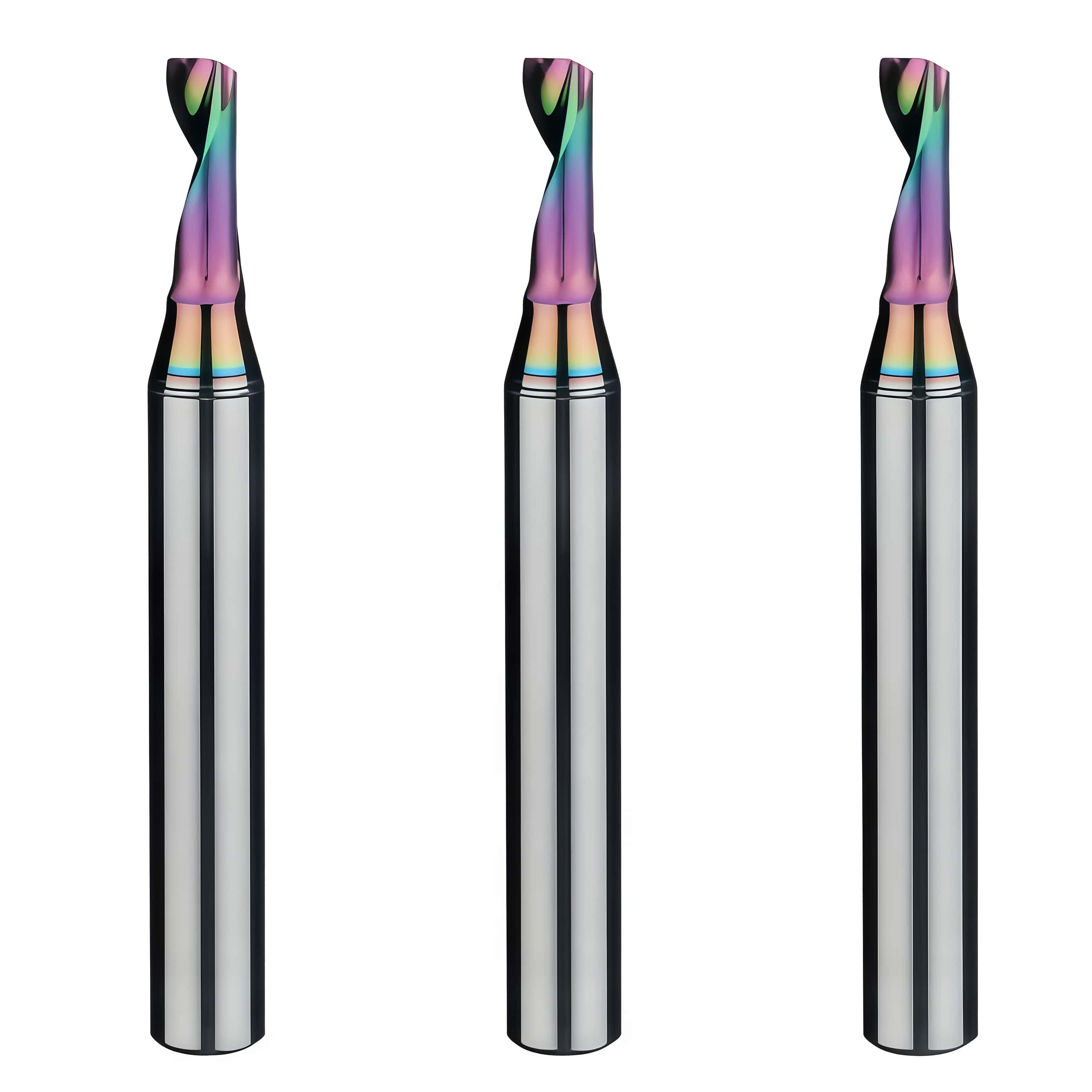

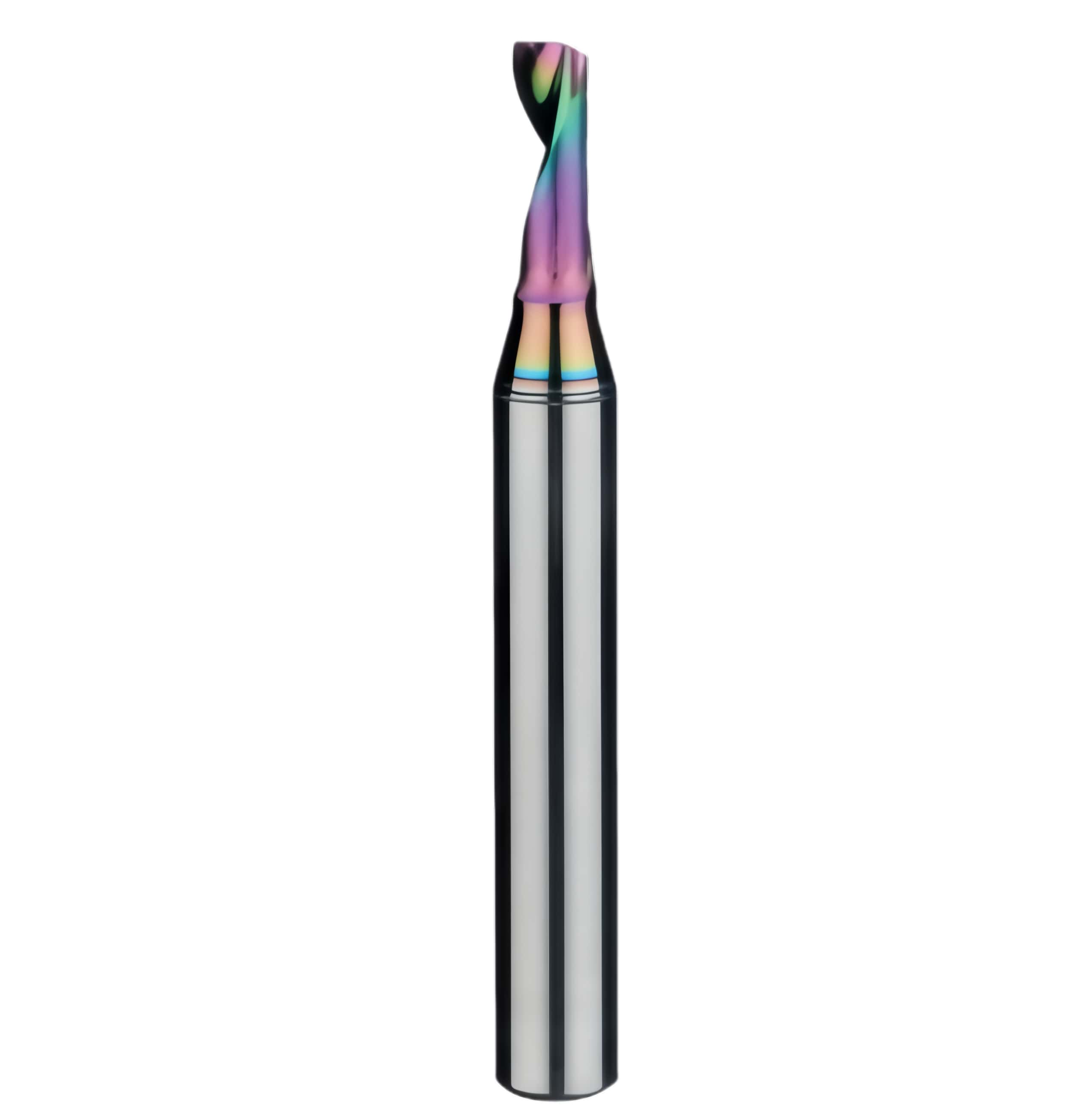

8002 Series - Iridis Coated
Single Flute Router For Aluminium - Reinforced Shank
Application
Iridis coated offers exceptional surface finish and tool life on aluminium.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8002-2K	180-0787-10K-A	2	6	50	7
8002-3K	180-1181-10K-A-XL	3	6	50	10
8002-4K	180-1575-10K-A	4	6	50	10
