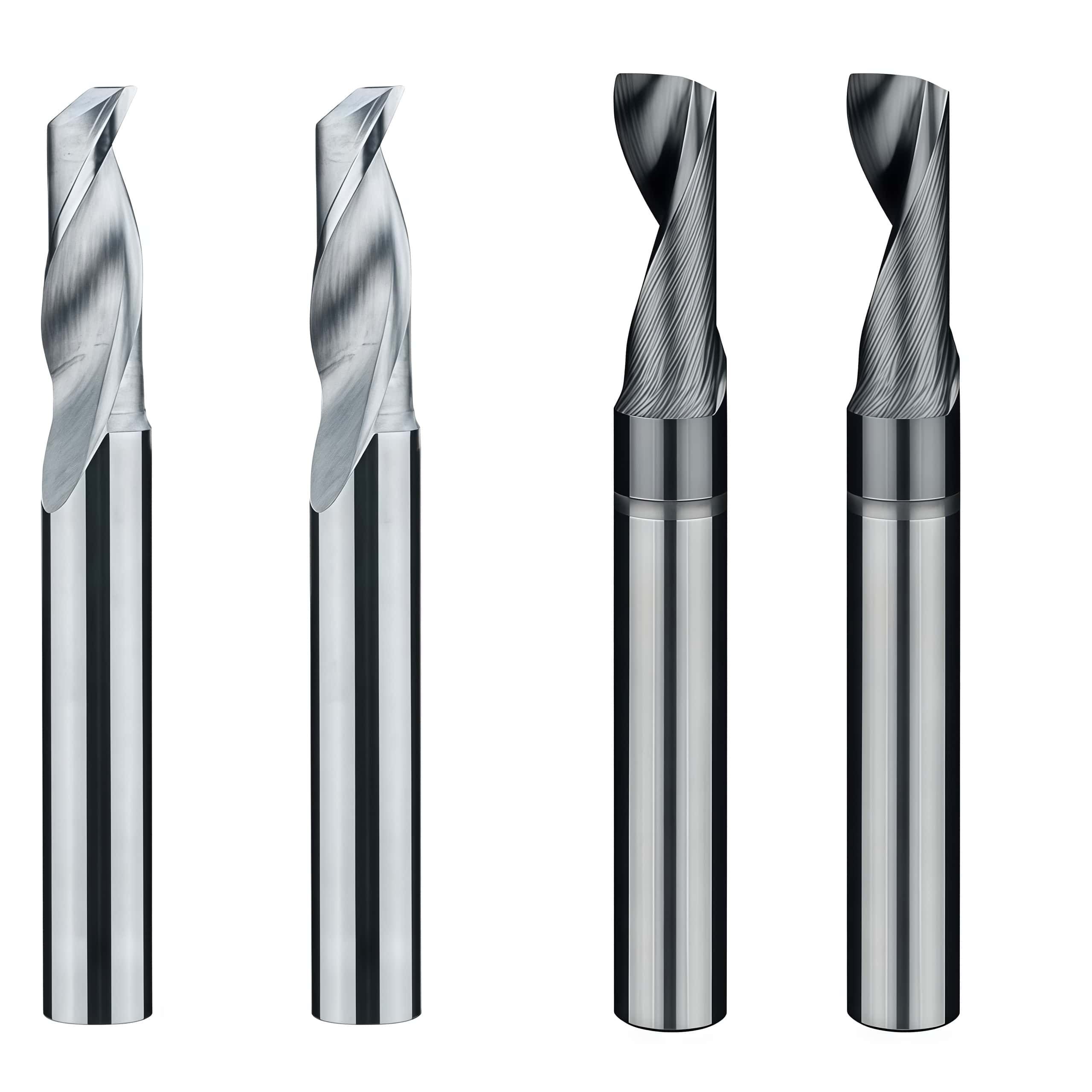

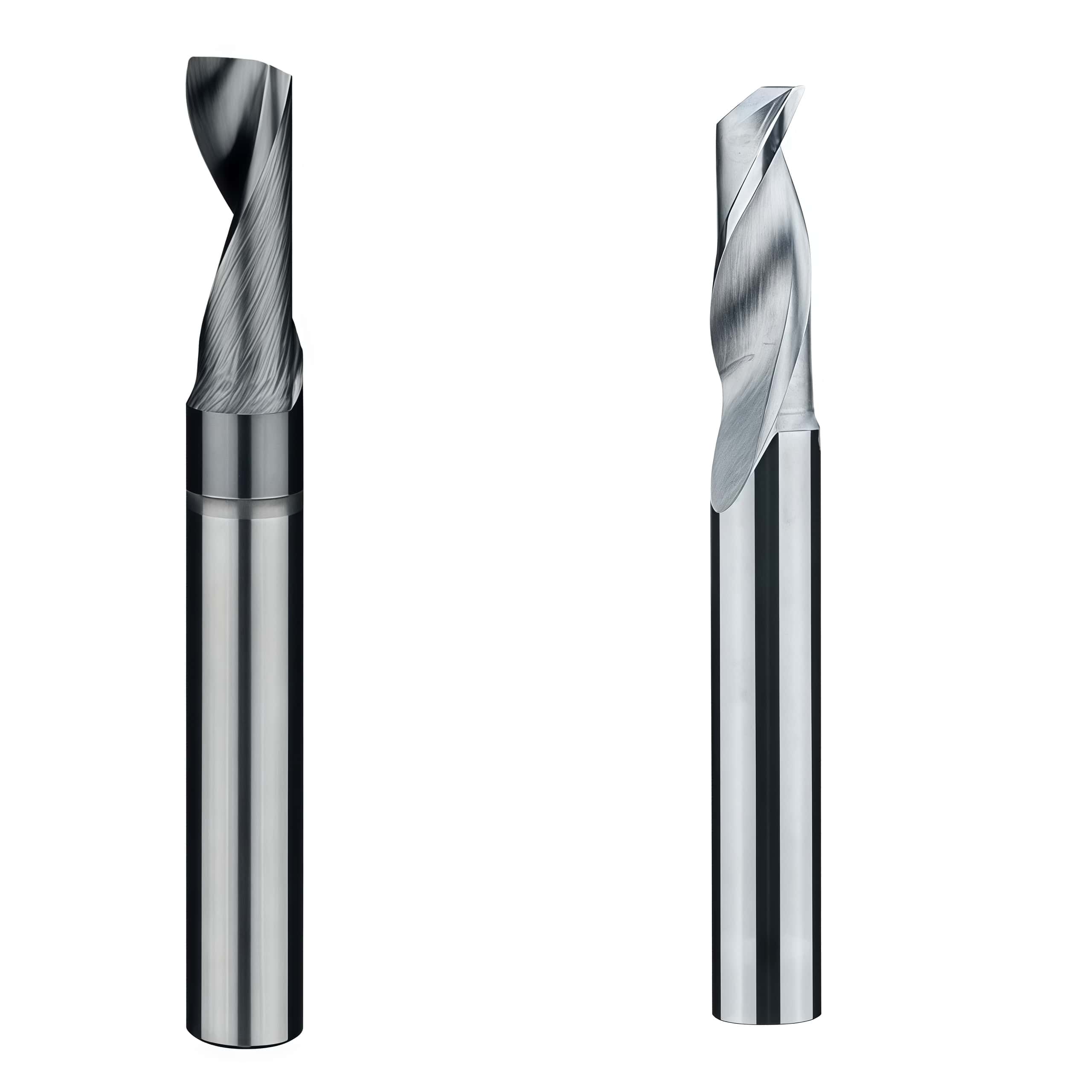

Itc 8003 Series - Vitreo Coated- Iridis Coated Single Flute Router Bits

Itc 8003 Series - Vitreo Coated- Iridis Coated Single Flute Router Bits Production Manufacturing Wholesale Sales Quality Origin Factory Supply OEM OEM CHINA Shenzhen Oyea Machinery Co., Ltd. Enquire now

Description

Itc 8003 Series - Vitreo Coated- Iridis Coated Single Flute Router Bits

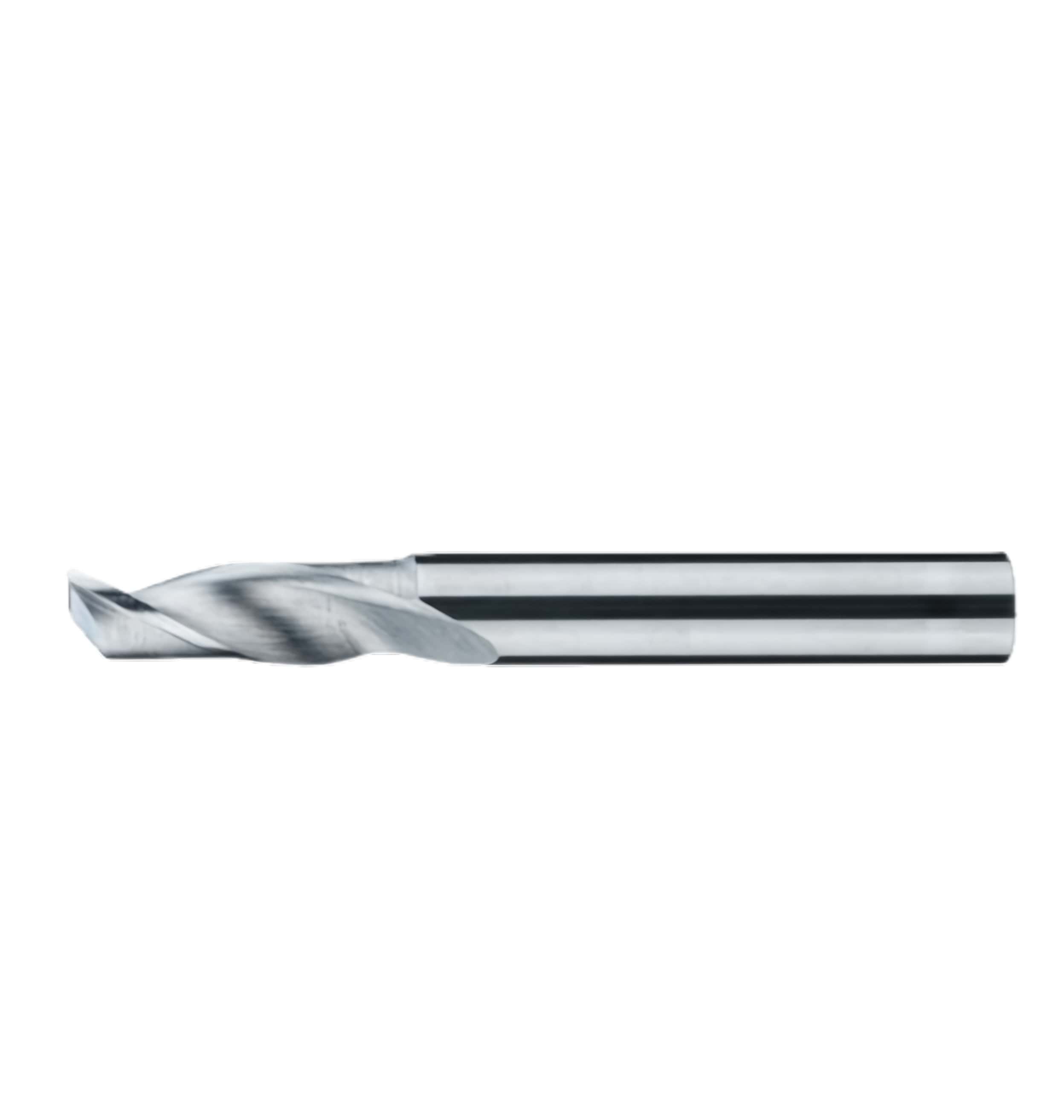

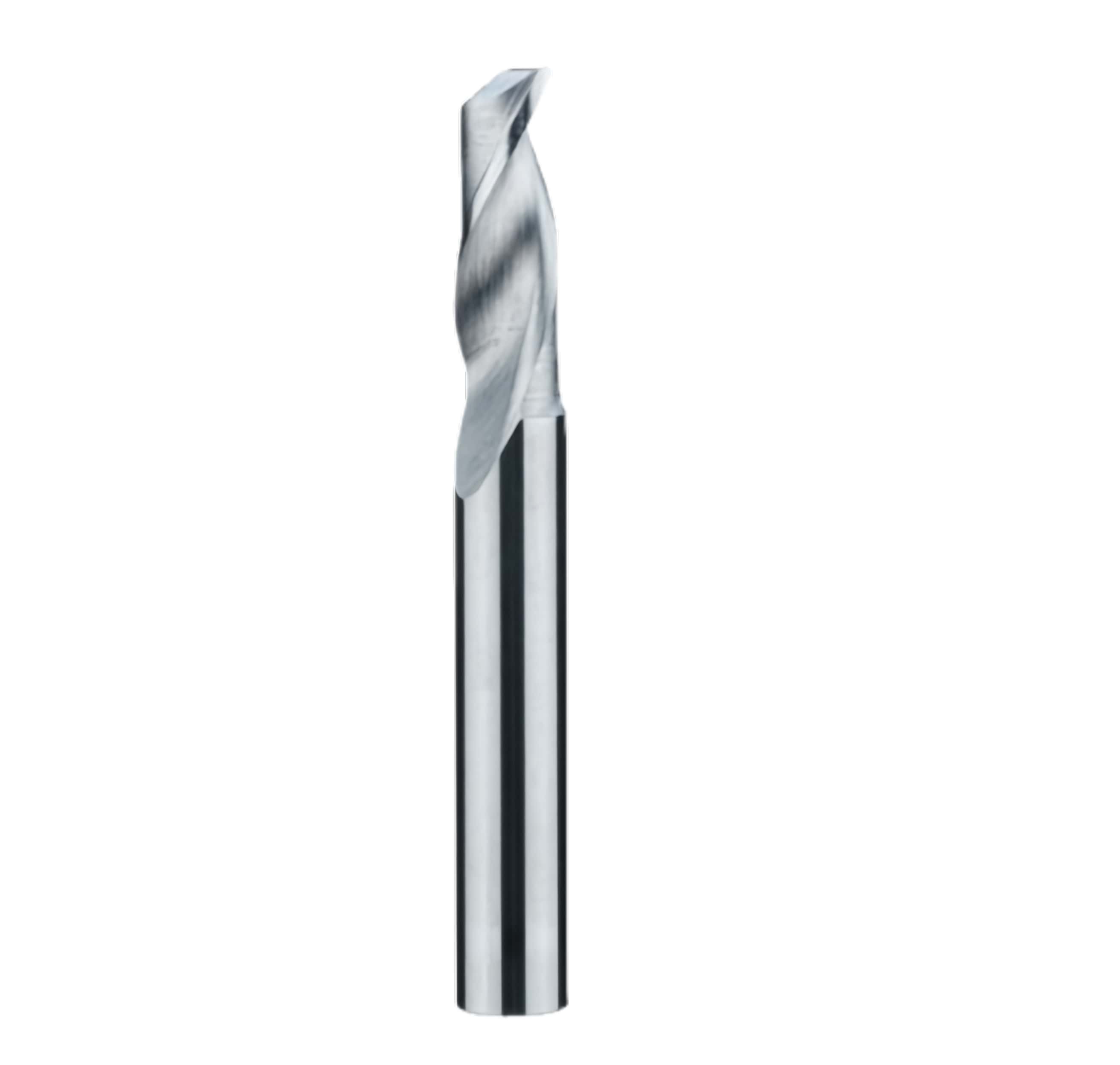

8003 Series
Single Flute Stub Router For Aluminium & Plastics
Description
Solid carbide single flute, upward spiral, 30° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide to extremely tight
tolerances, with exceptional surface finish. Short overall length combined with useful longer cut length, offer a very robust cutter for most applications.
Application
Designed for use on both aluminium, acrylics and other soft non-ferrous materials. The single flute design gives excellent swarf clearance.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8003-2	180-0787-10-STA	2	3	30	7
8003-3	180-1181-10-STA	3	3	30	8
8003-4	180-1575-10-STA	4	4	40	10
8003-6	180-2362-10-STA	6	6	50	14

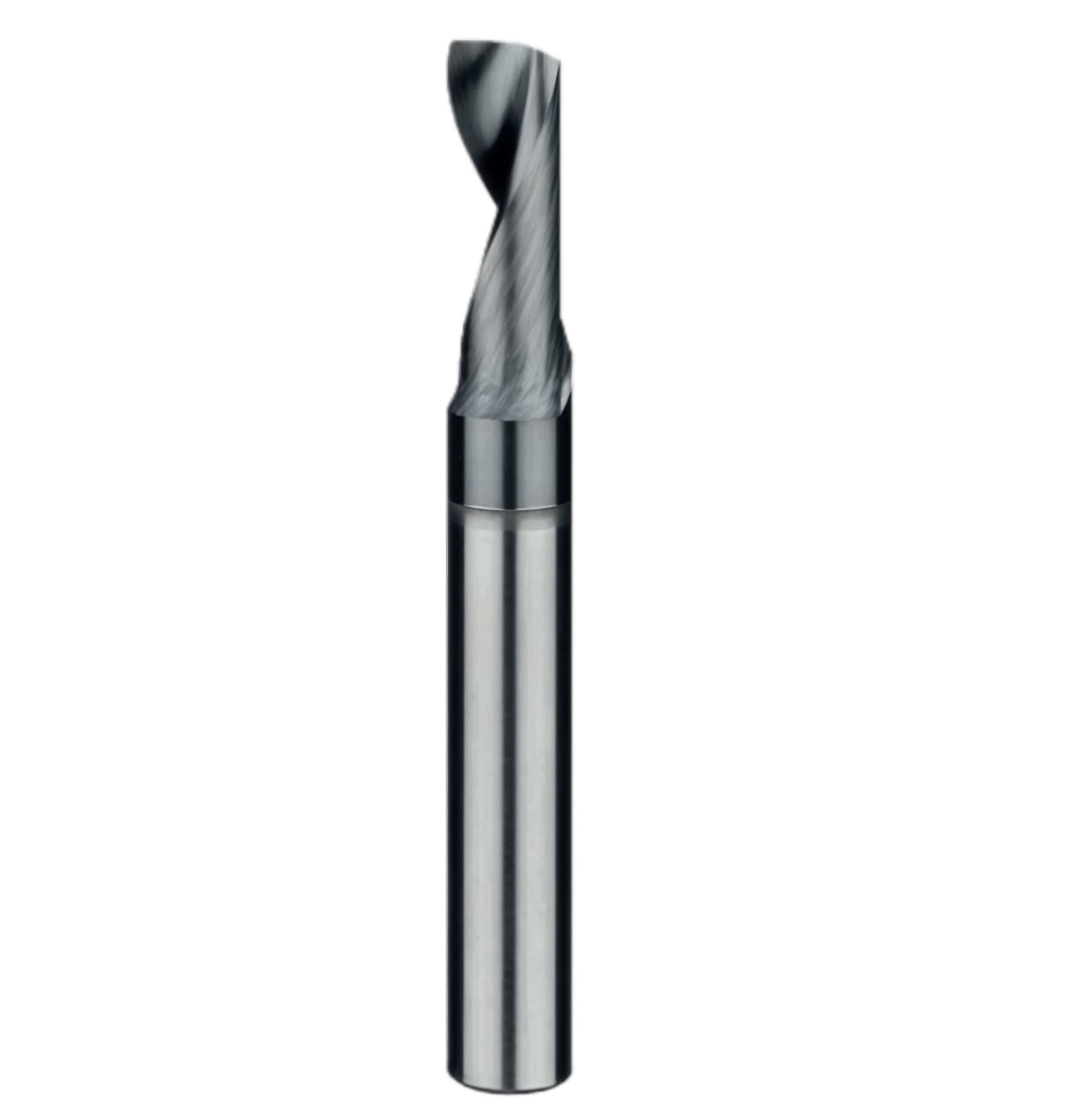

8003 Series - Vitreo Coated
Single Flute Stub Router For ACM
Description
Solid carbide single flute, upward spiral, 30° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide to extremely tight
tolerances, with exceptional surface finish. Short overall length combined with useful longer cut length, offer a very robust cutter for most applications.
Application
Vitreo coated offers exceptional surface finish and tool life on ACM.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8003-2J	180-0787-10J-STA	2	3	30	7
8003-3J	180-1181-10J-STA	3	3	30	8
8003-4J	180-1575-10J-STA	4	4	40	10
8003-6J	180-2362-10J-STA	6	6	50	14

8003 Series - Iridis Coated
Single Flute Router For Aluminium
Application
Iridis coated offers exceptional surface finish and tool life on aluminium.
Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8003-2K	180-0787-10K-STA	2	3	30	7
8003-3K	180-1181-10K-STA	3	3	30	8
8003-4K	180-1575-10K-STA	4	4	40	10
8003-6K	180-2362-10K-STA	6	6	50	14
