Itc Di-Bond Folding Tool - Helical Flute-Production Manufacturing Wholesale Sales

Itc Di-Bond Folding Tool - Helical Flute-Production Production Manufacturing Wholesale Sales Quality Origin Factory Supply OEM OEM CHINA Shenzhen Oyea Machinery Co., Ltd. Enquire now

Description

Itc Di-Bond Folding Tool - Helical Flute-Production Manufacturing Wholesale Sales

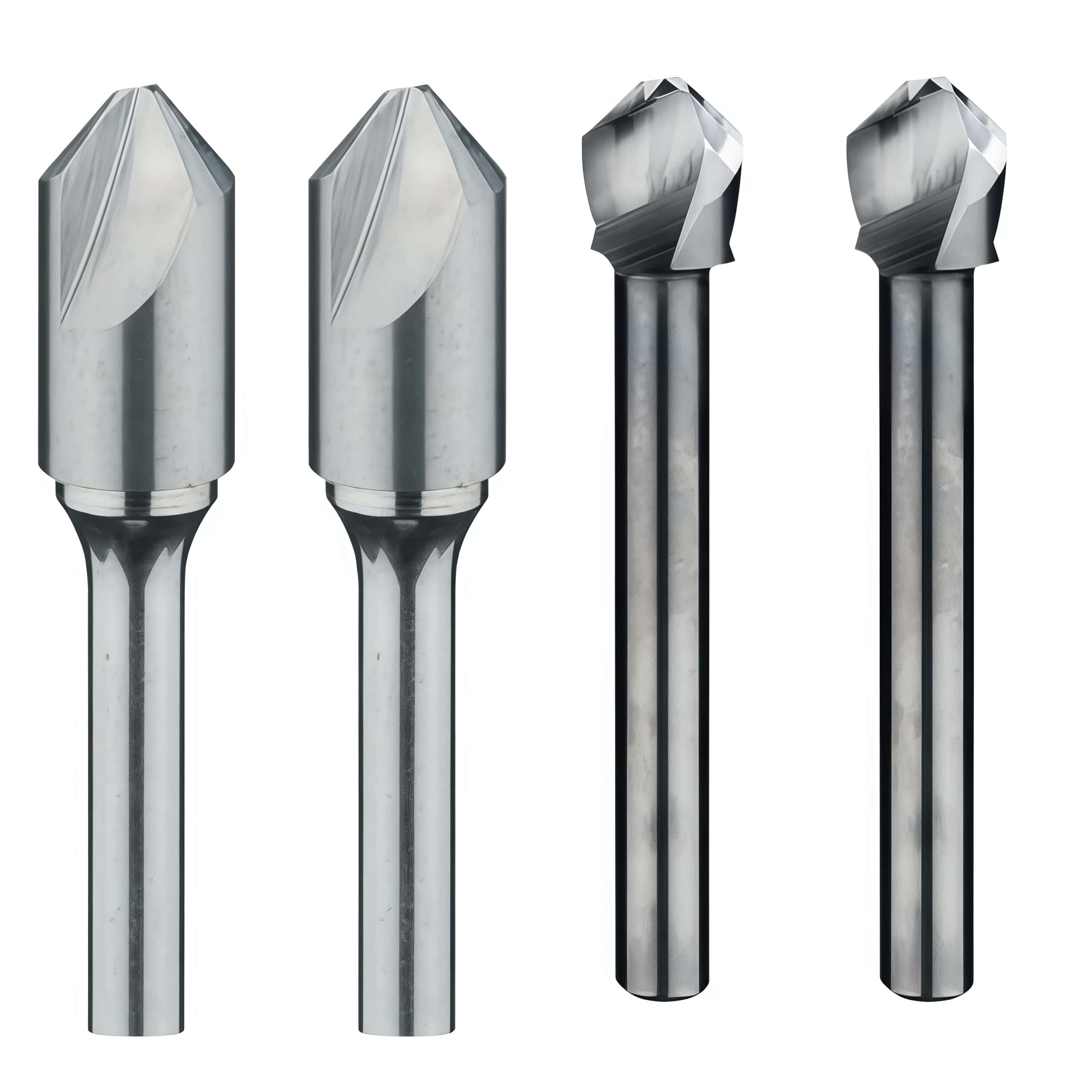

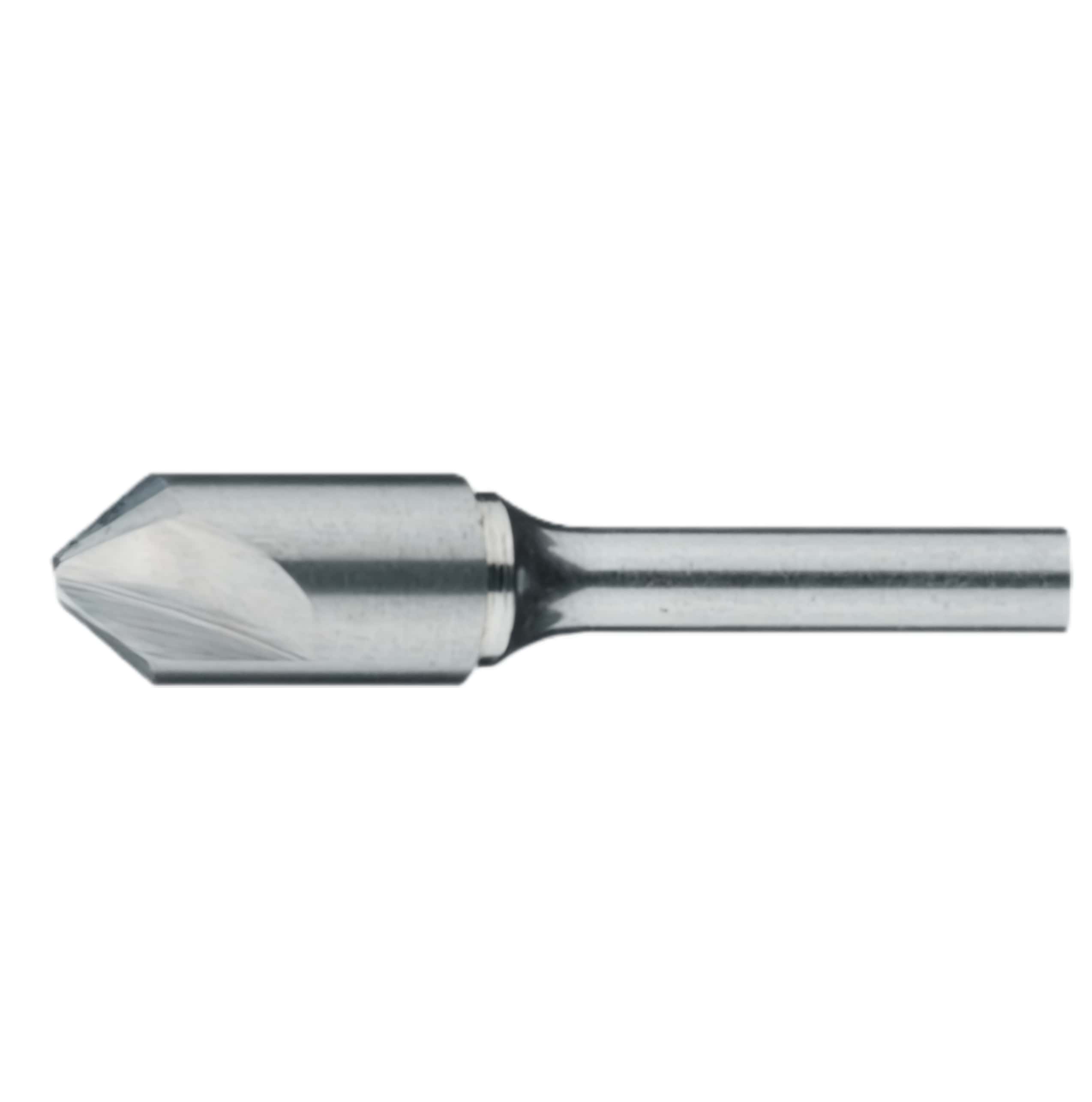

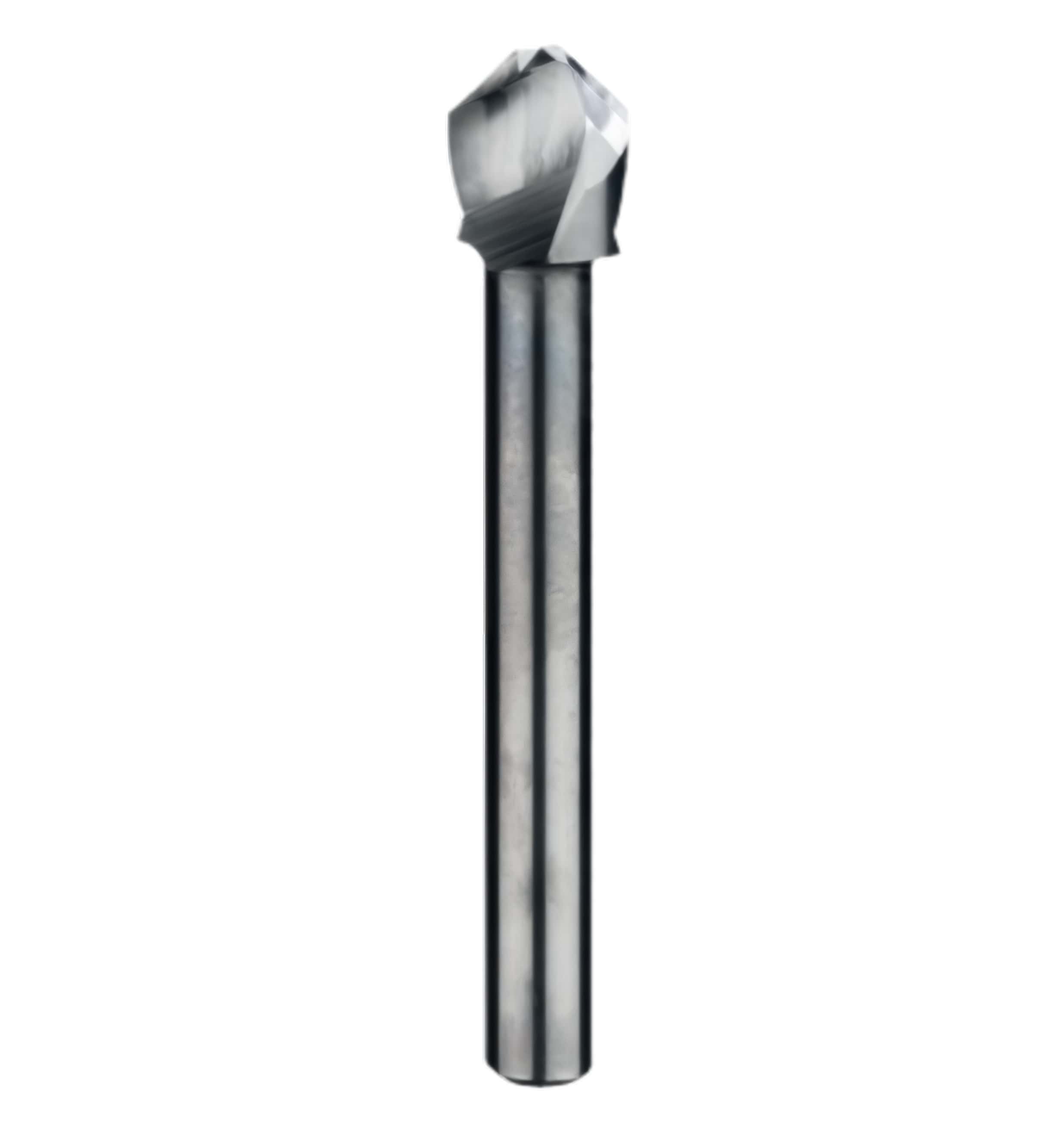

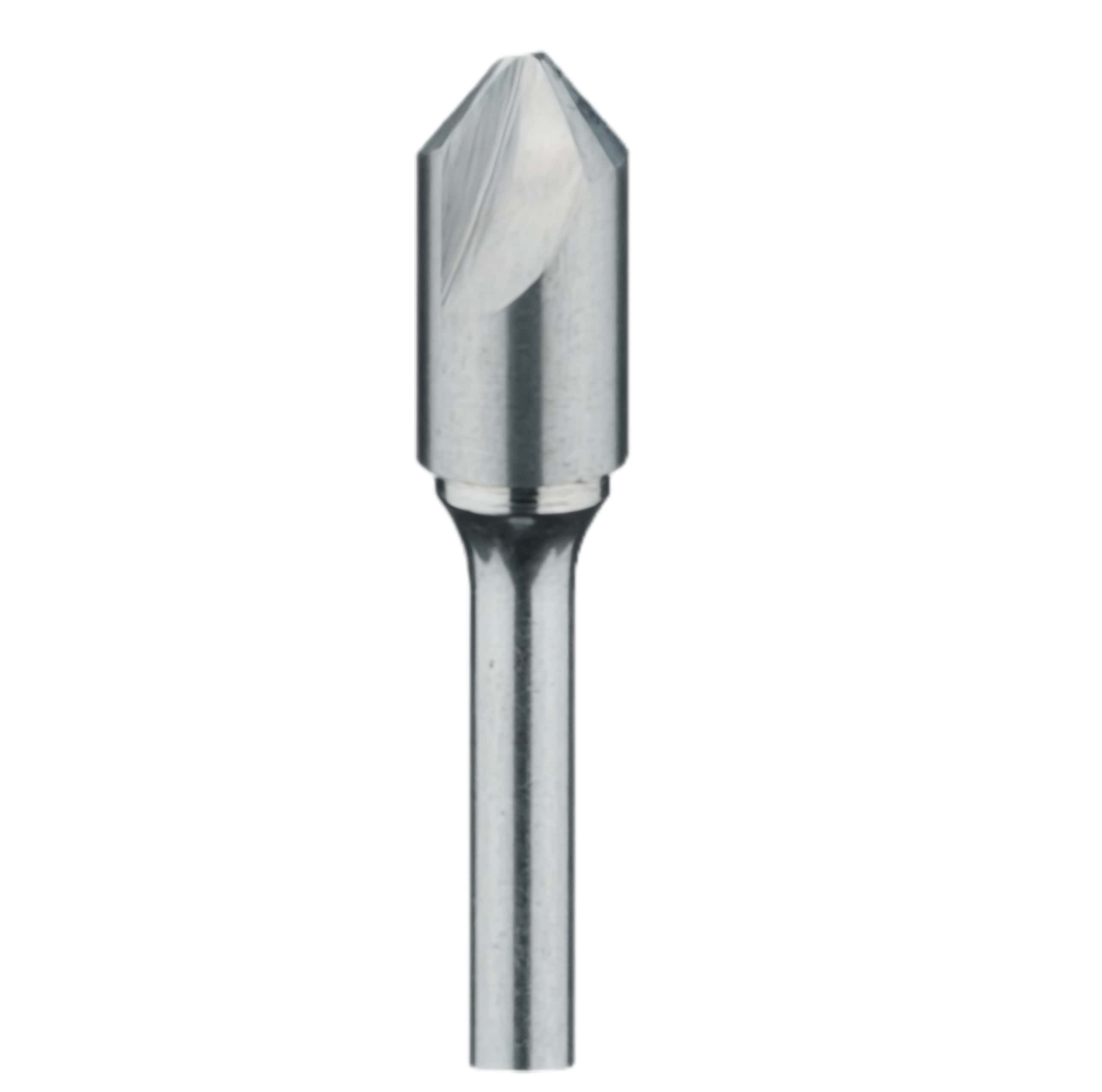

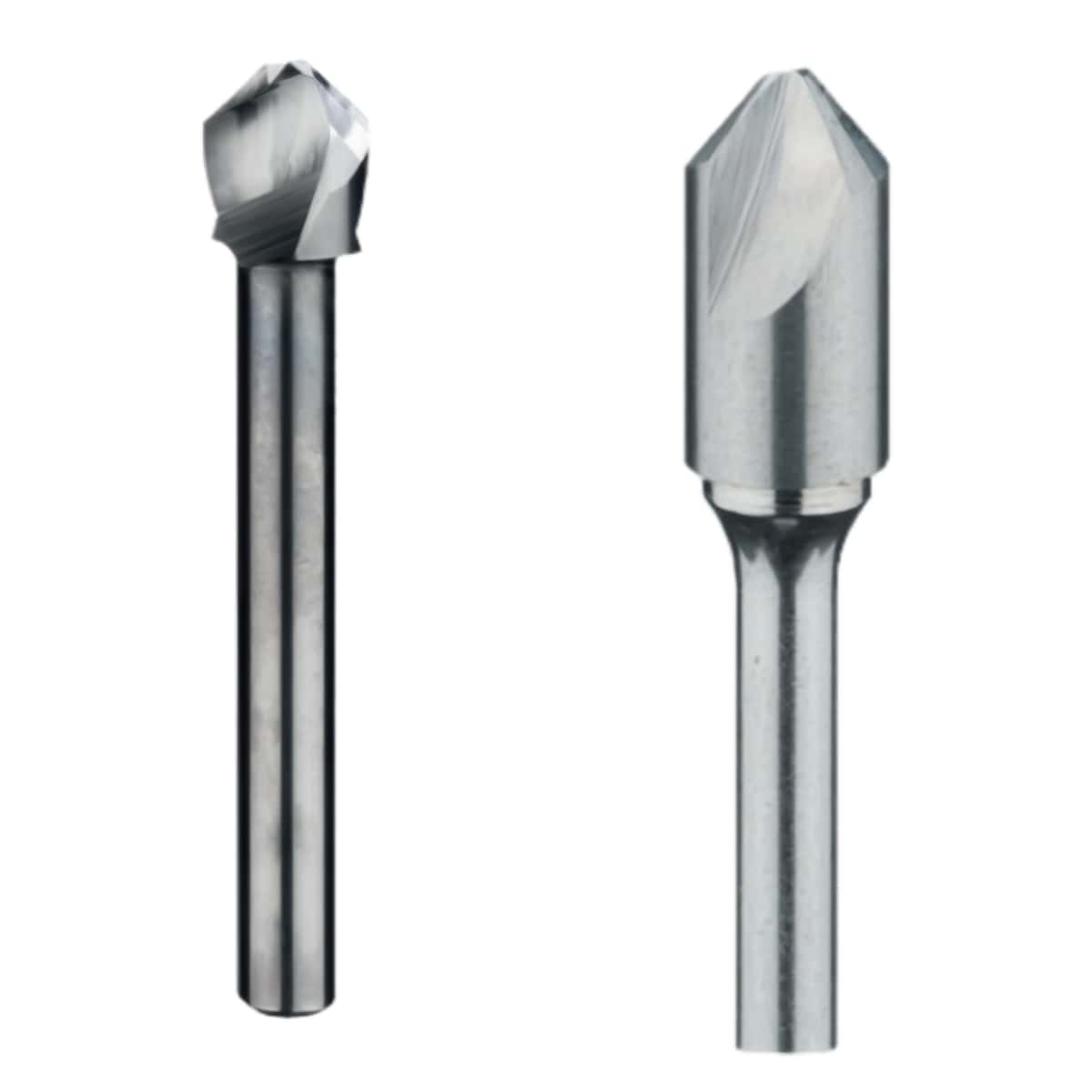

Itc Di-Bond Folding Tool
Description
Solid carbide 2 flute, 1/2” head diameter, with a 90˚ or 135˚ inclusive angle and a 3mm flat.
Application
The Di-Bond folding tools enable precise folding of Di-Bond and similar aluminium composite materials typically up to 5mm thick. The
following are the most commonly requested types. We can also manufacture to your own specification - for example - alternative angles, varying flats, shanks etc to suit your router. Not suitable for high frequency spindles (see p. 50)
Sizes

Catalogue No.	Size	Shank Diameter	Inclusive Angle	Width of Flat	Overall Length
2021-90-6	1/2”	6mm	90°	3mm	2-1/2”
2021-135-6	1/2”	6mm	135°	3mm	2-1/2”
2021-90	1/2”	1/4”	90°	3mm	2-1/2”
