Itc 8010 Series Single Flute Router Bits-Origin Factory Supply OEM OEM

The ITC 8010 Series Single Flute Router Bits are expertly produced and manufactured, catering to both wholesale sales and quality-focused distribution. Originating from China, Shenzhen Oyea Machinery Co., Ltd. offers factory-direct supply with OEM services available to meet diverse requirements. Enquire now

Description

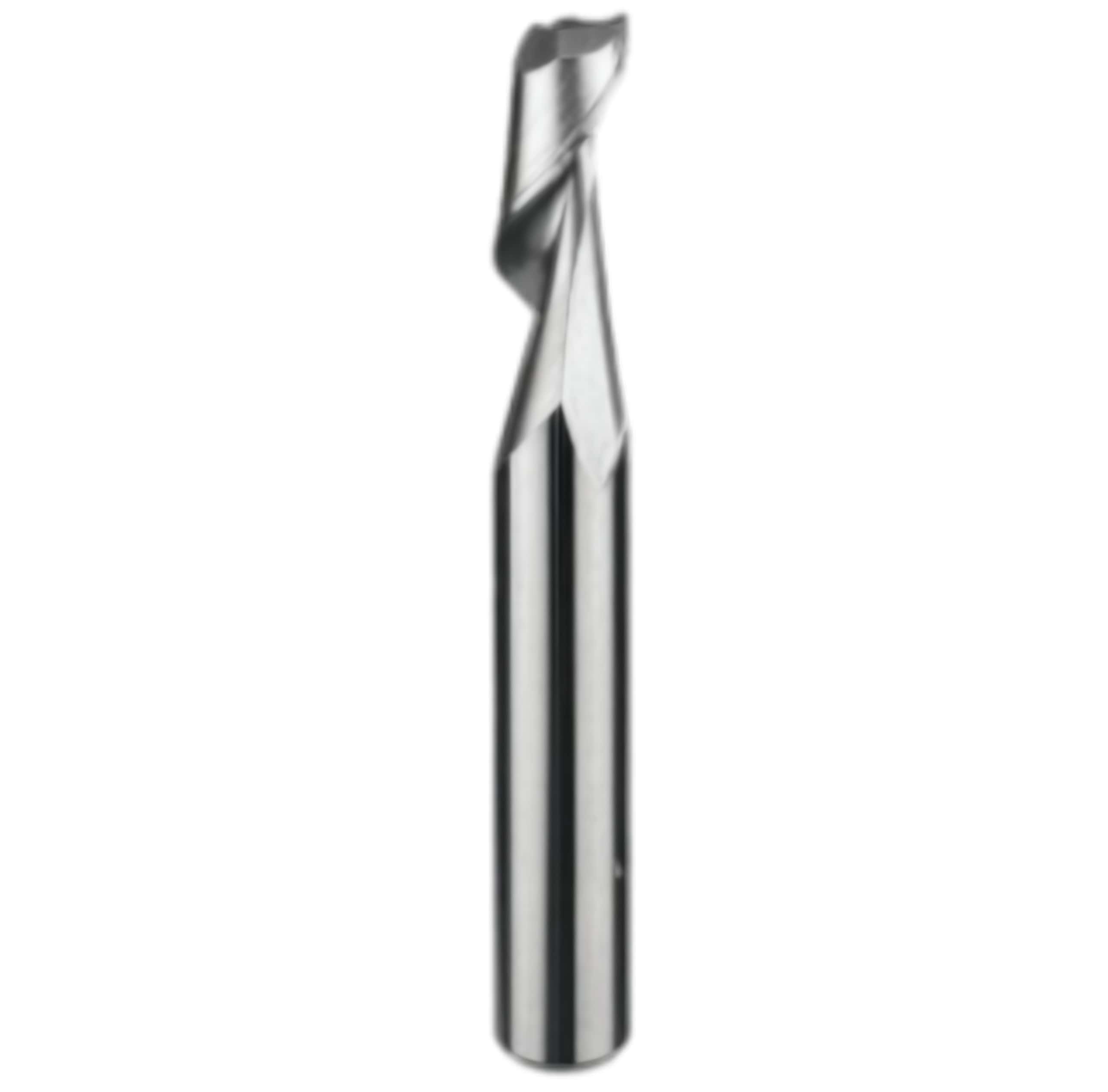

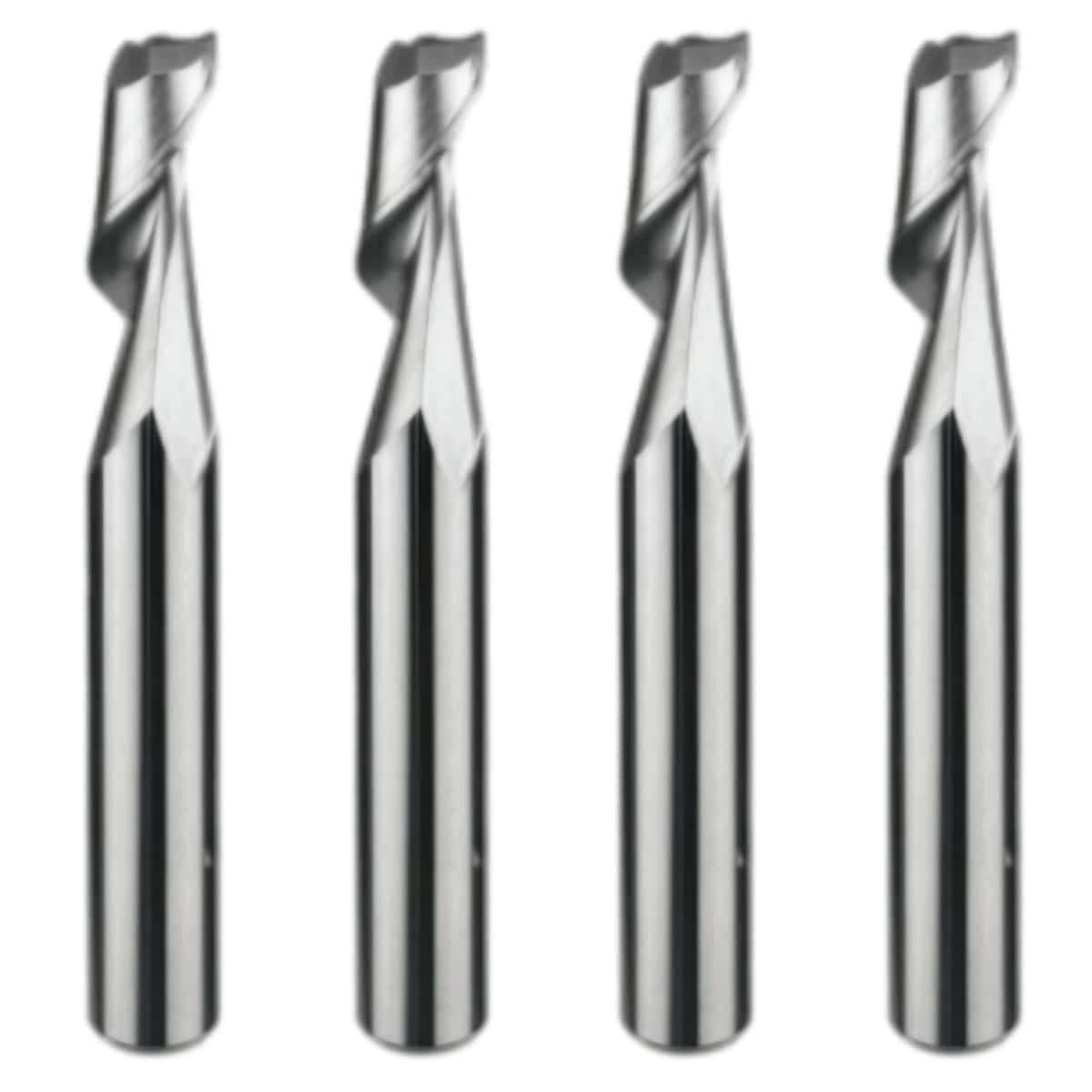

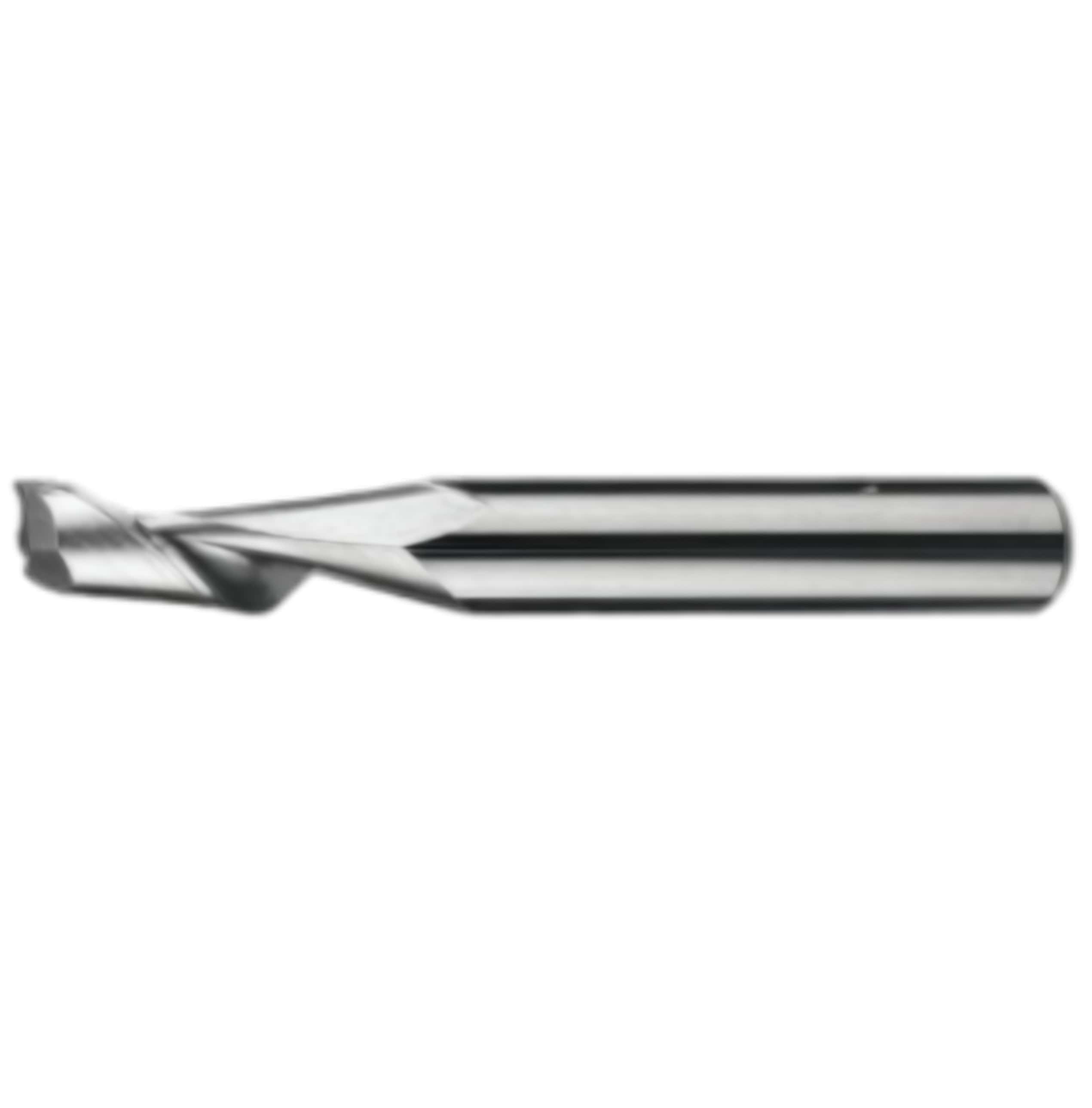

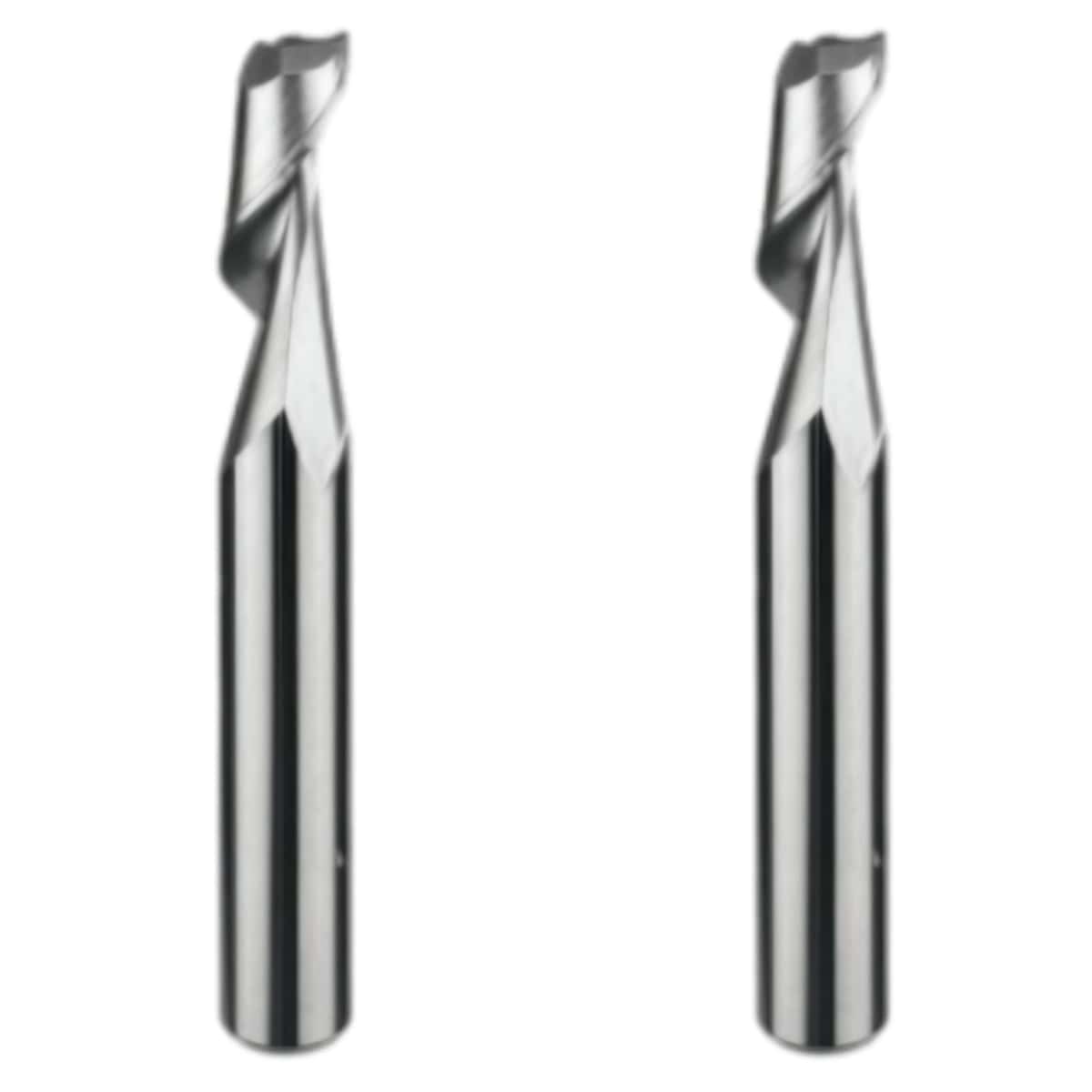

Itc 8010 Series Single Flute Router Bits

8010 Series
Single Flute Router

Description

Solid carbide single flute, upward spiral, 45° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide to extremely tight tolerances, with exceptional surface finish.

Application

Designed for use on aluminium, acrylics and other soft non-ferrous materials. The single flute design gives excellent swarf clearance, combined with a short cutting length for strength.

Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8010-1	180-0394-10	1	3	40	3
8010-1.5	180-0591-10	1.5	3	40	4
8003-2	180-0787-10-STA	2	3	30	7
8010-2.5	180-0984-10	2.5	3	40	7
8010-3	180-1181-10	3	3	40	8
8010-4	180-1575-10	4	4	50	11
8010-5	180-1969-10	5	5	50	13
8010-6	180-2362-10	6	6	57	13
8010-8	180-3150-10	8	8	63	19
8010-10	180-3937-10	10	10	72	22
8010-12	180-4724-10	12	12	83	26
