Itc 8012 Series Long Series Single Flute Router Bits-Production Manufacturing Supply

The ITC 8012 Long Series Single Flute Router Bits are meticulously designed and crafted to support wholesale operations and ensure high-quality distribution. Manufactured in China by Shenzhen Oyea Machinery Co., Ltd., these products come with factory-direct availability and customizable OEM services… Enquire now

Description

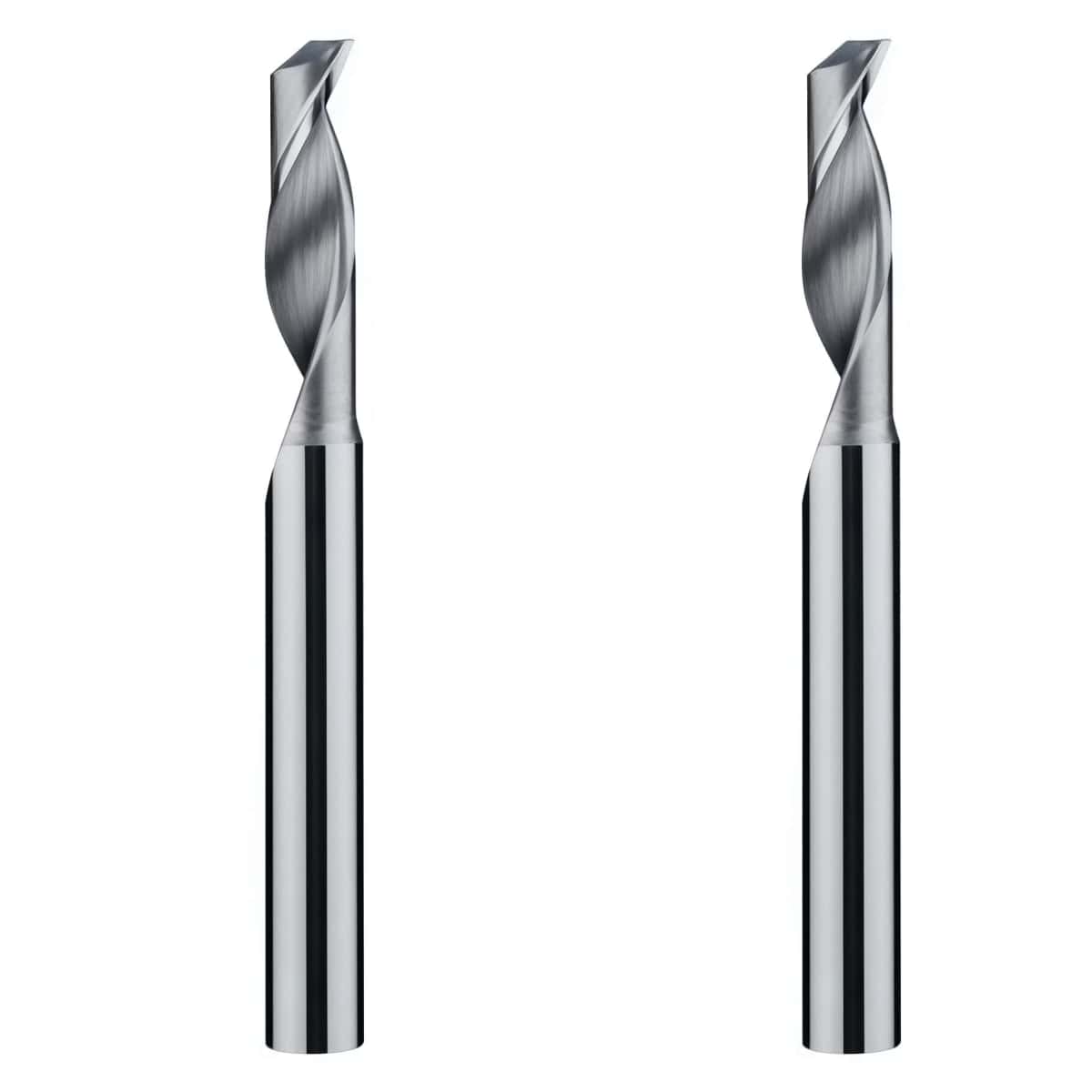

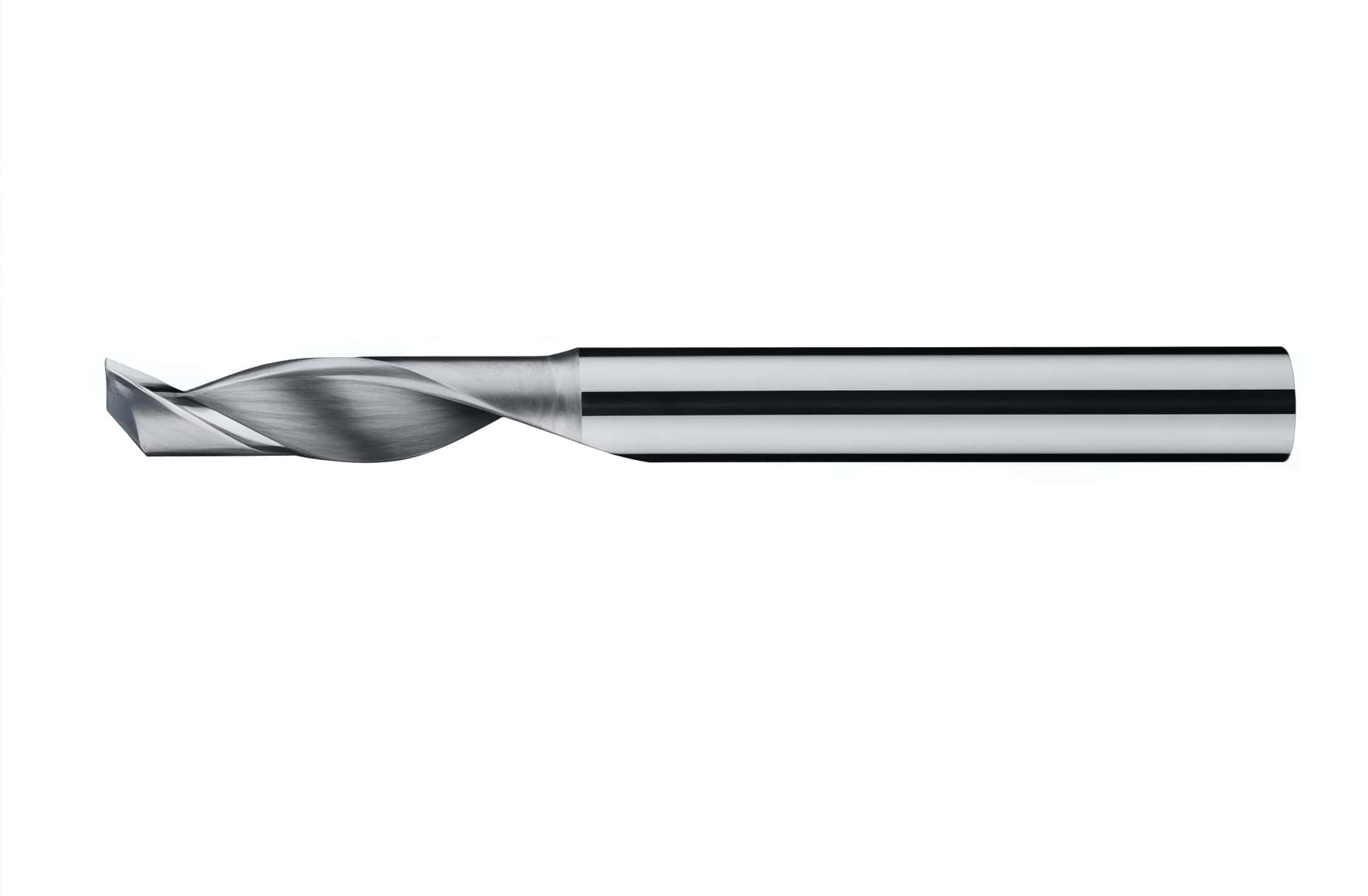

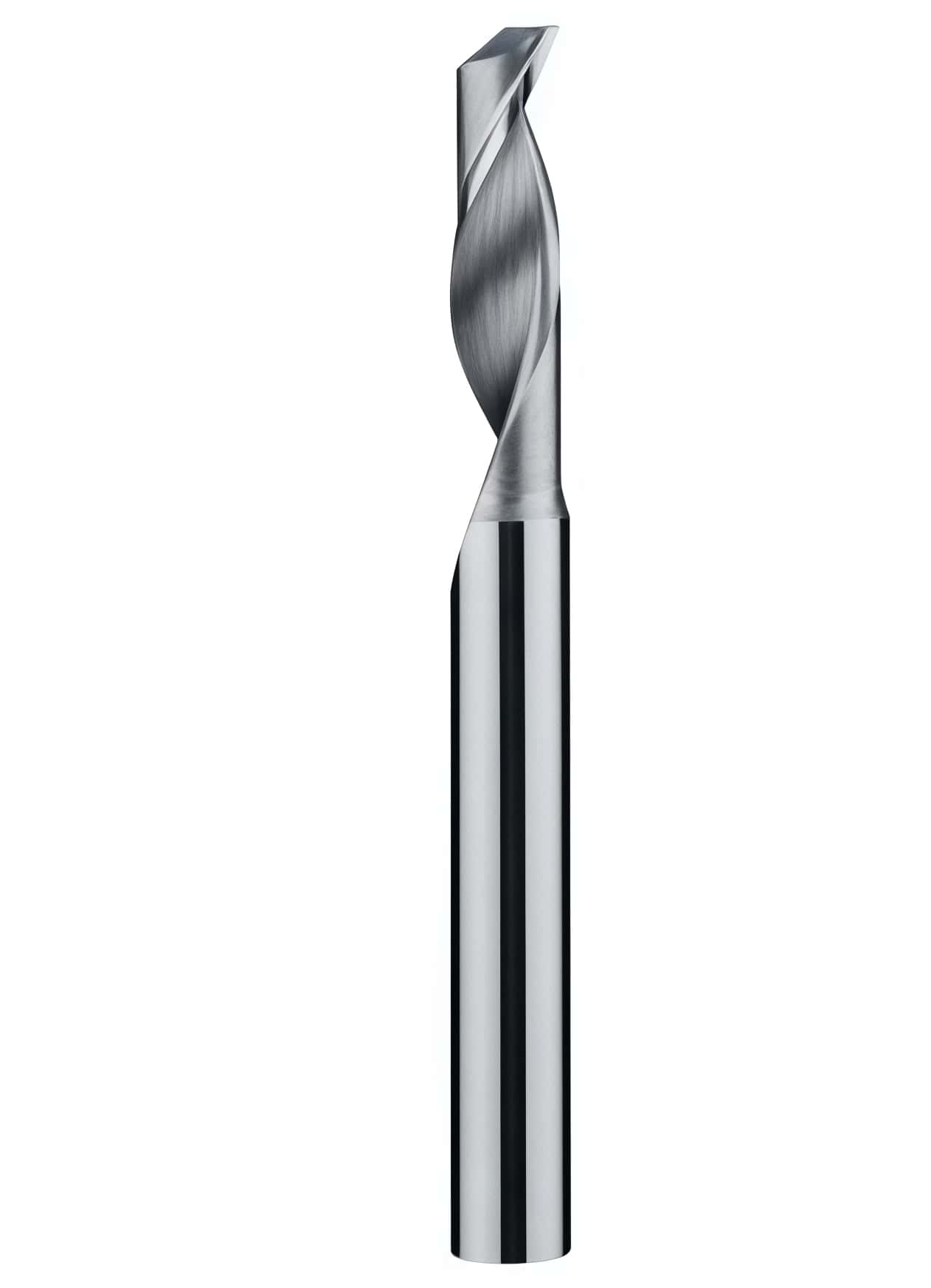

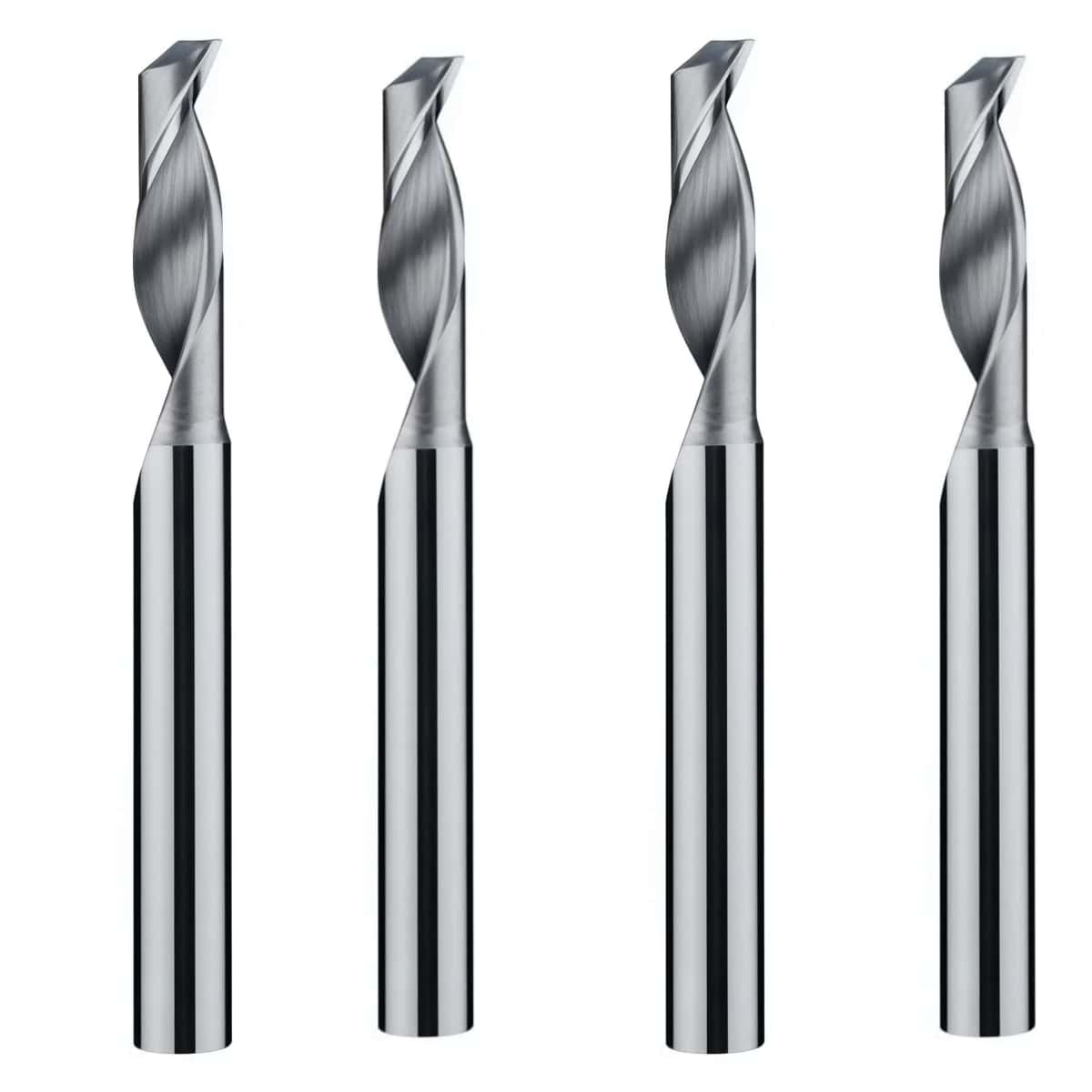

Itc 8012 Series Long Series Single Flute Router Bits

8012 Series
Long Series Single Flute Router

Description
Solid carbide single flute, upward spiral, 30° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide, to extremely tight tolerances with exceptional surface finish.

Application
Offers exceptional surface finish on aluminium, acrylic and PVC.

Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8012-2	180-0787-10-LG	2	3	38	10
8012-3	180-1181-10-LG	3	3	38	10
8012-4	180-1575-10-LG	4	4	50	14
8012-5	180-1969-10-LG	5	5	60	16
8012-6	180-2362-10-LG	6	6	60	20
8012-8	180-3150-10-LG	8	8	75	25
8012-10	180-3937-10-LG	10	10	100	40
8012-12	180-4724-10-LG	12	12	100	50

Imperial Size (inches)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8012-1/4	180-2500-10-LG	1/4	1/4	2-1/2	3/4

Extra Long Series Single Flute Router For Aluminium & Plastics - Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8012-3X	180-1181-10-XL	3	3	55	12
8012-4X	180-1575-10-XL	4	4	64	20
8002-4X	180-1575-10-A-XL	4	6	64	22
8012-6X	180-2362-10-XL	6	6	75	26
8012-6XX	180-2362-10-XXL	6	6	75	31
8012-8X	180-3150-10-XL	8	8	100	31

The ITC 8012 Series Long Series Single Flute Router Bits are precision-engineered and crafted to deliver exceptional quality, making them ideal for wholesale markets and demanding distribution networks. Manufactured in China by Shenzhen Oyea Machinery Co., Ltd., these router bits come straight from the factory, ensuring reliability and cost-efficiency. With OEM services readily available, they can be customized to meet a wide range of needs and specifications.
