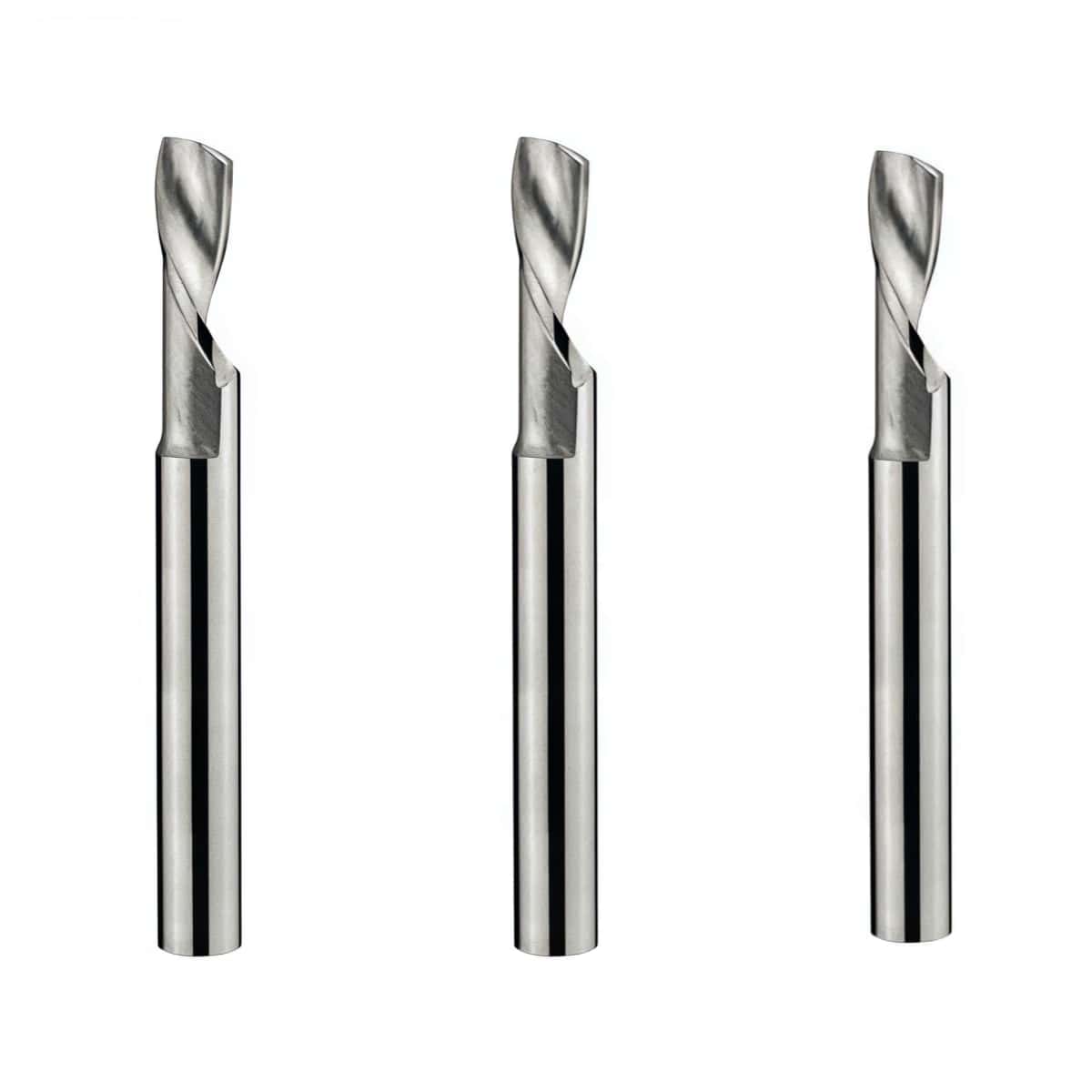

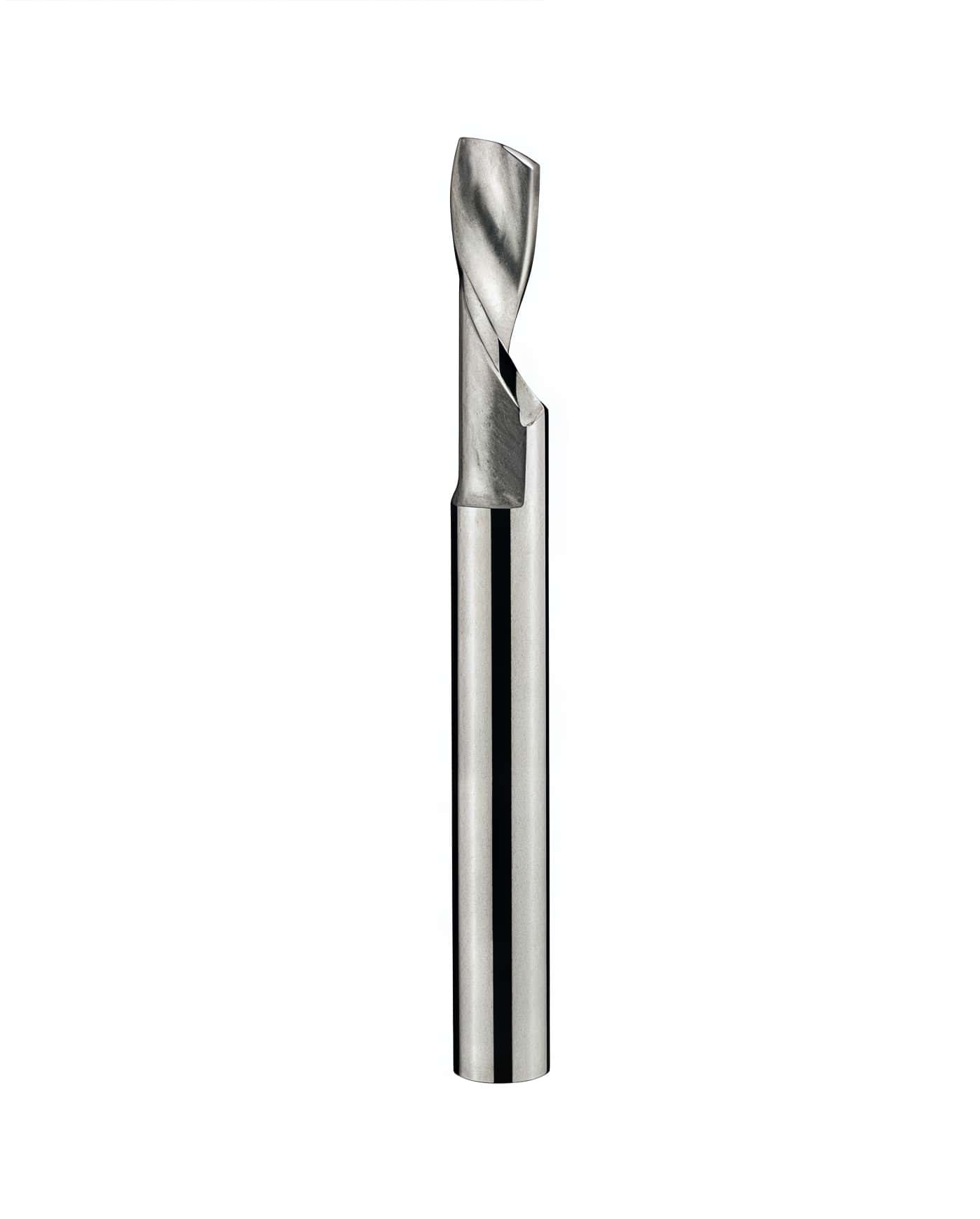

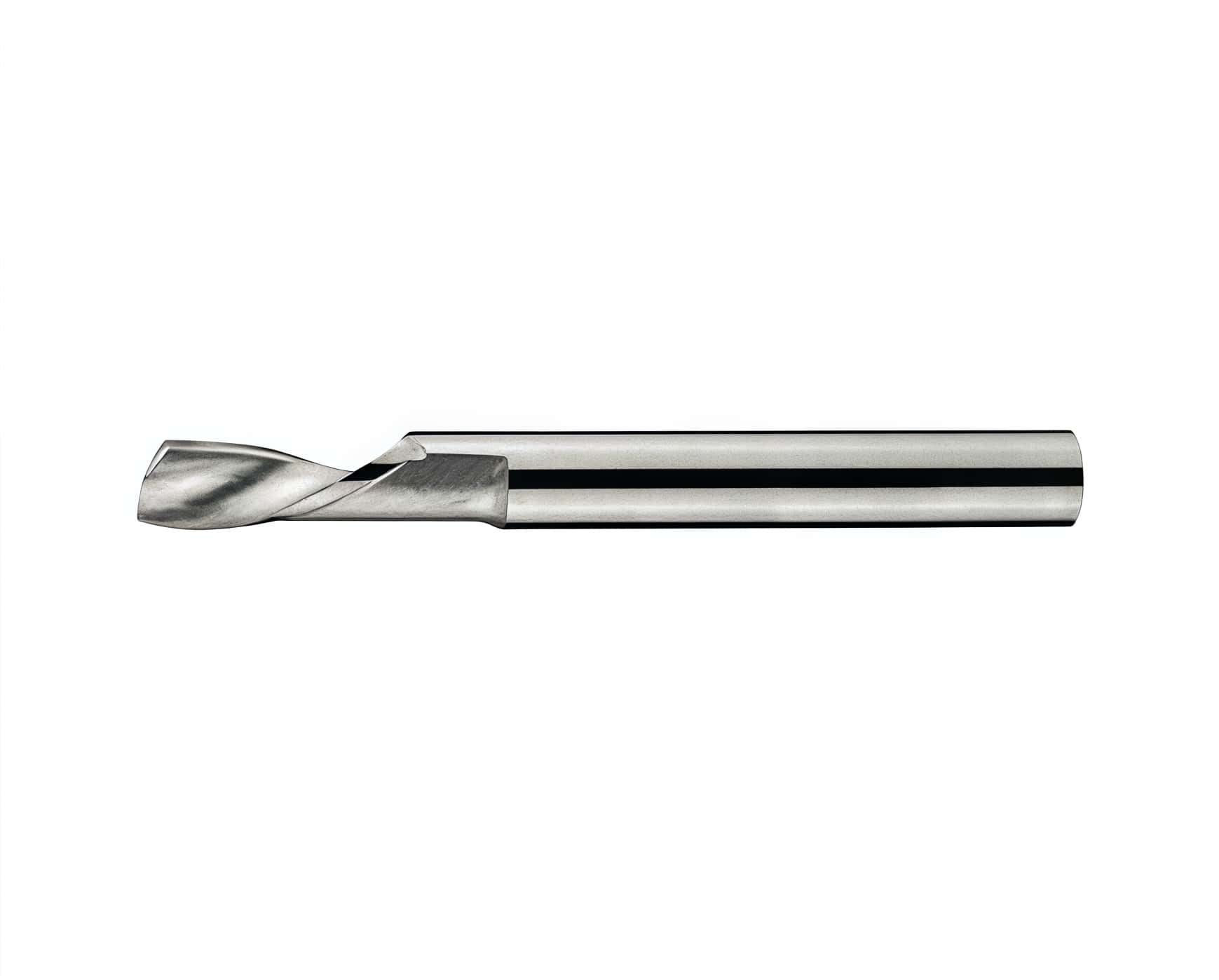

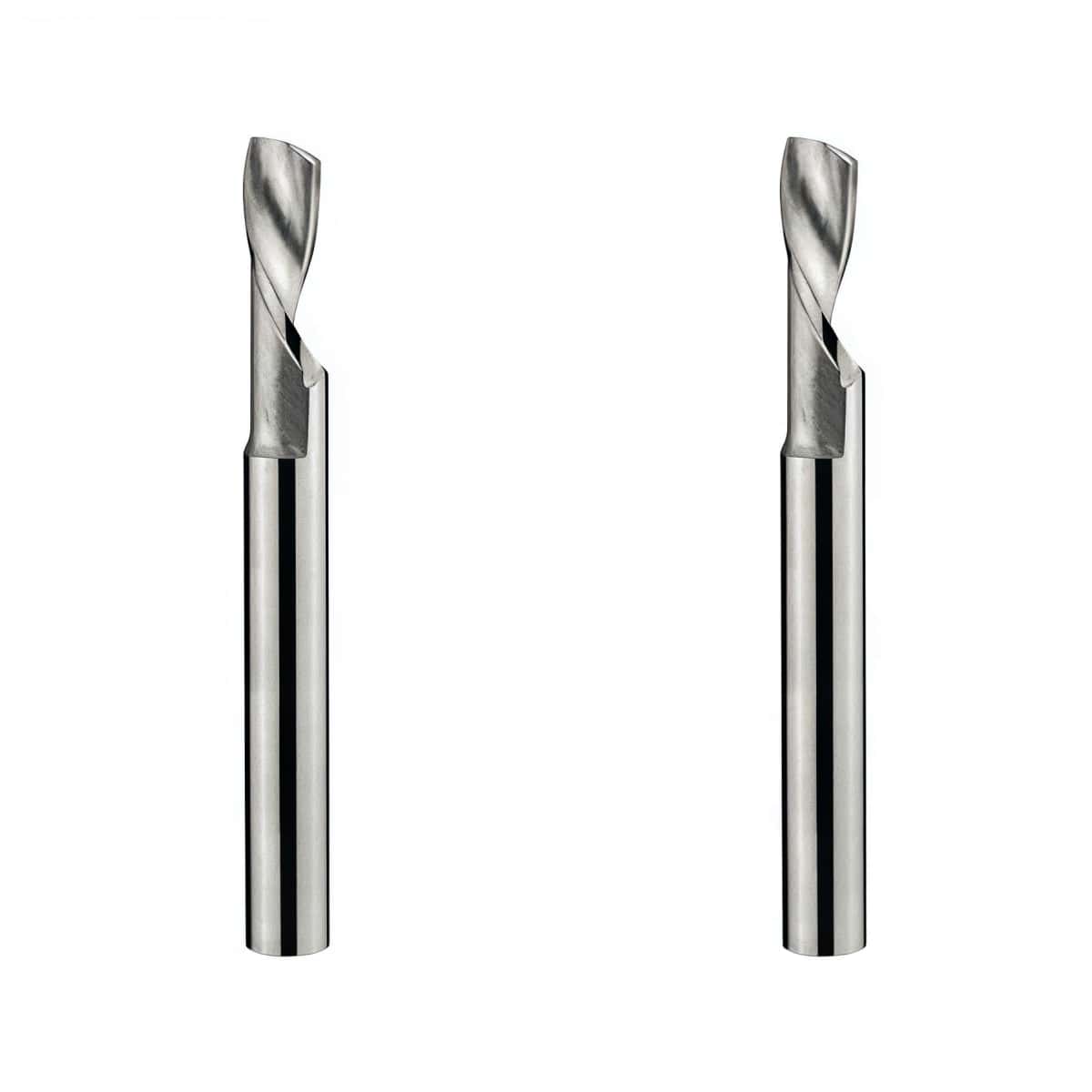

Itc 8013 Series Downward Spiral Single Flute Router Bits-Compatible Replacement Suitable For

ITC 8013 Series consists of high-performance solid carbide downward spiral single-flute router bits, specialized for CNC machining of aluminum, acrylic, and other non-ferrous materials. The down-cut design is particularly useful for thinner sheet materials as it holds the material down while cutting… Enquire now

Description

Itc 8013 Series Downward Spiral Single Flute Router Bits-Compatible Replacement Suitable For

8013 Series
Downward Spiral Single Flute Router

Description

Solid carbide single flute, downward spiral, 30° helix. Manufactured from Ultra Wear Resistant Micrograin Carbide, to extremely tight tolerances with exceptional surface finish.

Application

Designed for use on aluminium, acrylic and other non-ferrous materials. The downward spiral helps to hold the material down whilst cutting. Particularly suitable for thinner sheet.

Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8013-1	180-0394-10-LH	1	3	40	4
8013-2	180-0787-10-LH	2	3	40	11
8013-3	180-1181-10-LH	3	3	40	11
8013-4	180-1575-10-LH	4	4	50	14
8013-6	180-2362-10-LH	6	6	58	14
8013-8	180-3150-10-LH	8	8	80	26
8013-10	180-3937-10-LH	10	10	80	31

The ITC 8013 series, often used in CNC environments, is recognized for improving the edge finish on the top surface of the material, making it an excellent choice for sign-making and intricate, small-part routing. For example, the 1mm version has a 4mm cut length and a 3mm shank.

The ITC 8013 Series Downward Spiral Single Flute Router Bits are designed for production, manufacturing, wholesale, and sales purposes. Known for their quality and competitive pricing, they are available with OEM and ODM services. These bits are supplied directly from the factory and are compatible as consumables, spare parts, and replacements. They are suitable for various applications provided by CHINA Shenzhen Oyea Machinery Co., Ltd.
