Itc 8020 / 8030 Series - Straight 2 Flute 3 Flute Flute Straight Router Bits

Itc 8020 / 8030 Series - Straight 2 Flute 3 Flute Flute Straight Router Bits Production, manufacturing, wholesale, sales, quality, price, OEM, ODM, supply, factory, consumables, spare parts, compatible, replacement, suitable for CHINA Shenzhen Oyea Machinery Co., Ltd Enquire now

Description

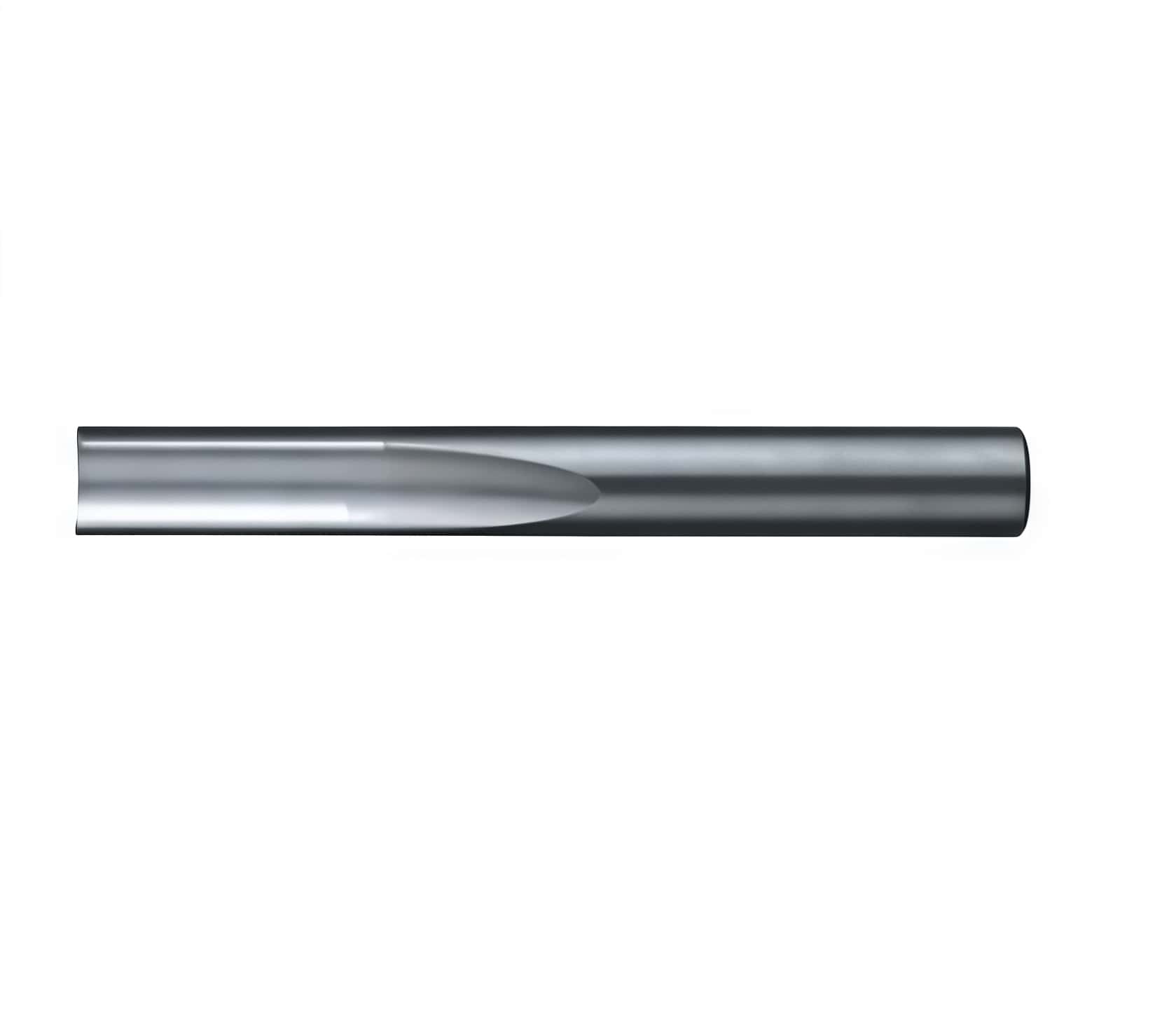

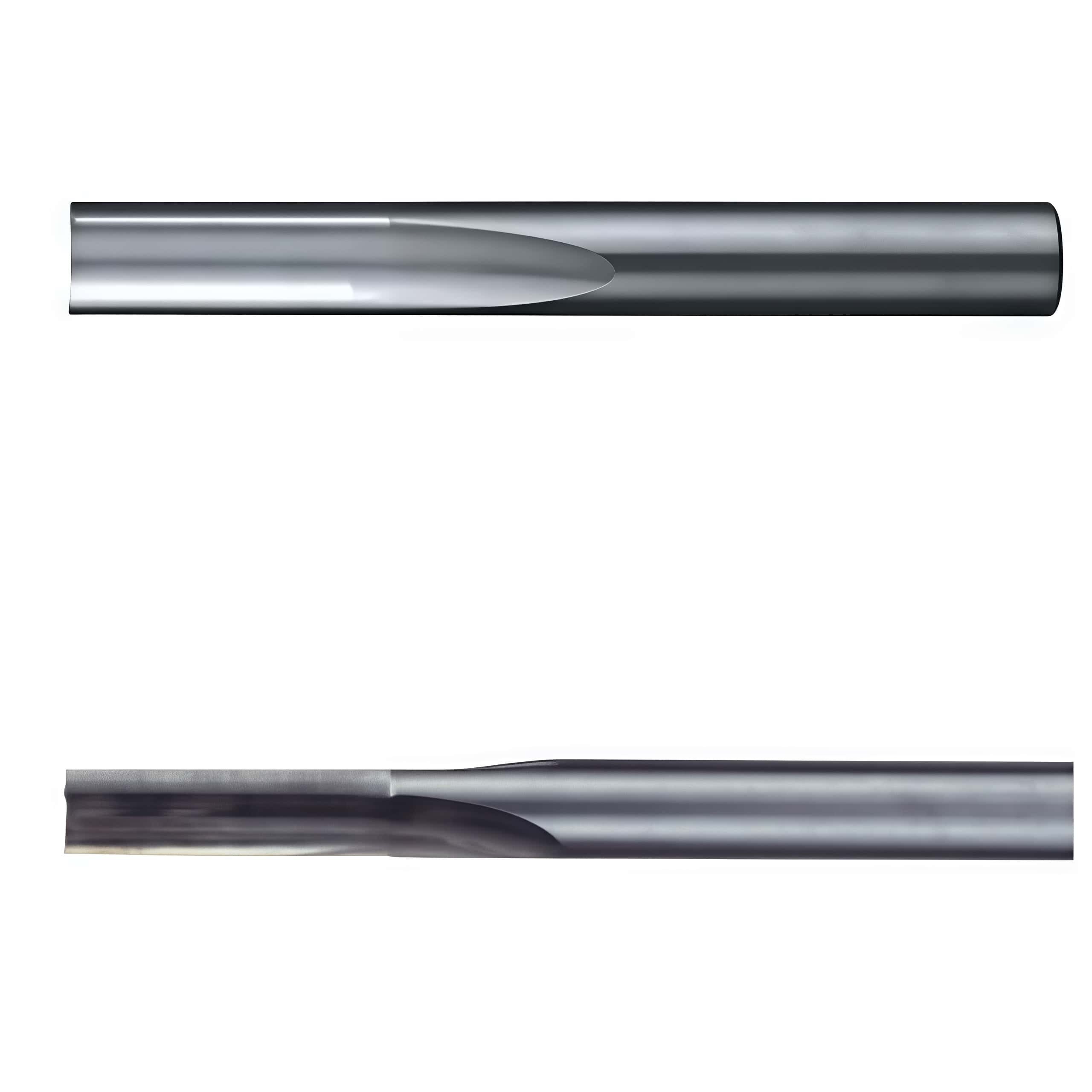

Itc 8020 / 8030 Series - Straight 2 Flute 3 Flute Flute Straight Router Bits

8020 / 8030 Series - Straight Flute

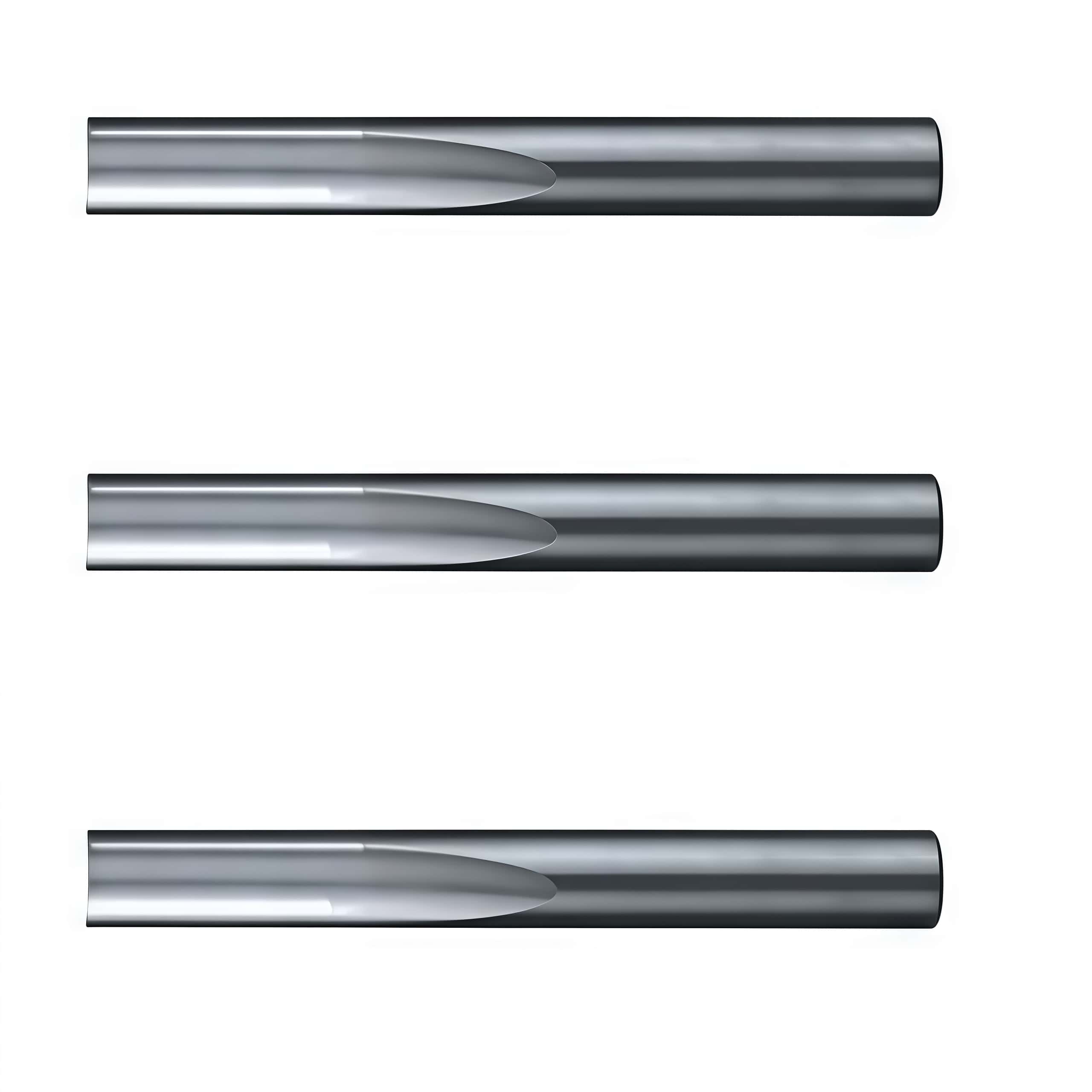

2 Flute Straight Router

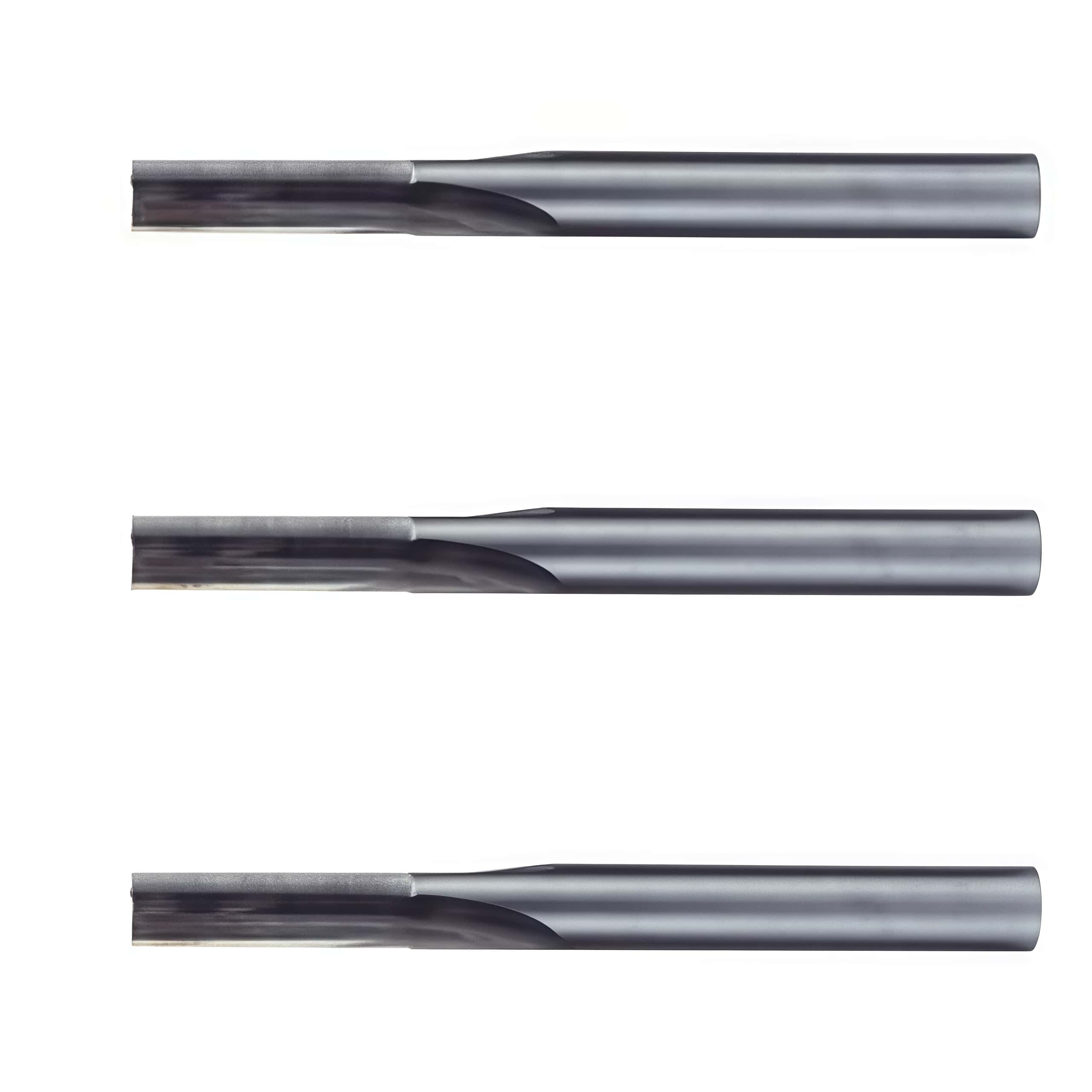

3 Flute Straight Router

Description

Solid carbide, single end, standard length, straight shank, straight flute, right hand cut, plunge style end cut.

Application

The straight flute router is an excellent tool for routing harder materials and also where a fine finish is required. The 3 flute design offers more strength than the 2 flute router. The 2 flute provides maximum swarf clearance.

Metric Sizes (mm)

New Catalogue No. (2 Flute)	Old Catalogue No.	New Catalogue No. (3 Flute)	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8020-3	180-1181-20	8030-3	180-1181-30	3	3	40	12
8020-4	180-1575-20	8030-4	180-1575-30	4	4	50	16
8020-5	180-1969-20	8030-5	180-1969-30	5	5	50	18
8020-6	180-2362-20	8030-6	180-2362-30	6	6	58	20
8020-8	180-3150-20	8030-8	180-3150-30	8	8	64	22
8020-10	180-3937-20	8030-10	180-3937-30	10	10	70	25

2 Flute Straight Router

Application

Suitable for materials up to 55mm thick, especially foam.

Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
8020-6X	NEW	6	6	100	55
8020-8X	180-3150-20-XL	8	8	100	55
8020-10X	NEW	10	10	100	55
