Itc 2631 Series 2 Flute Solid Carbide Extra Long Router Bits For Sales

ITC 2631 Series 2-Flute Solid Carbide Extra-Long End Mills These high-performance, extended cutting tools are designed for CNC engraving and machining. Enquire now

Description

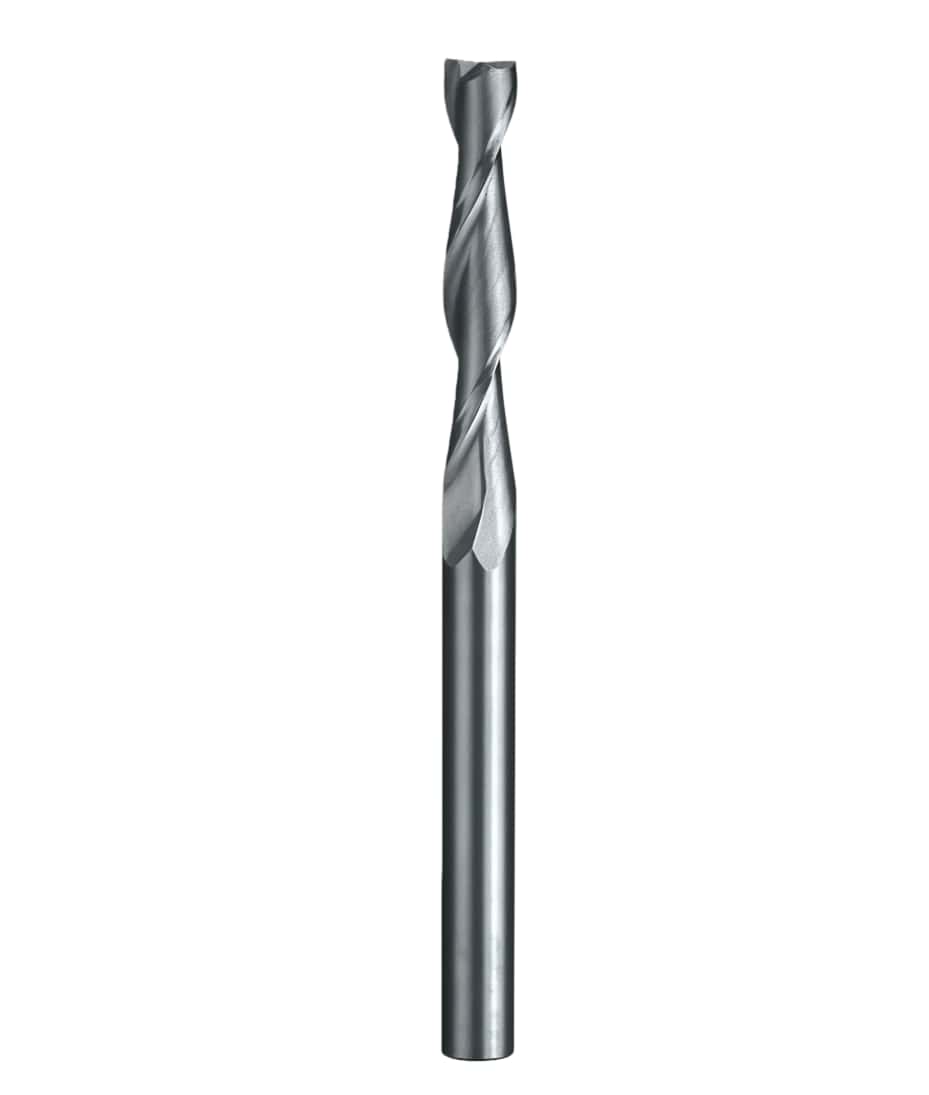

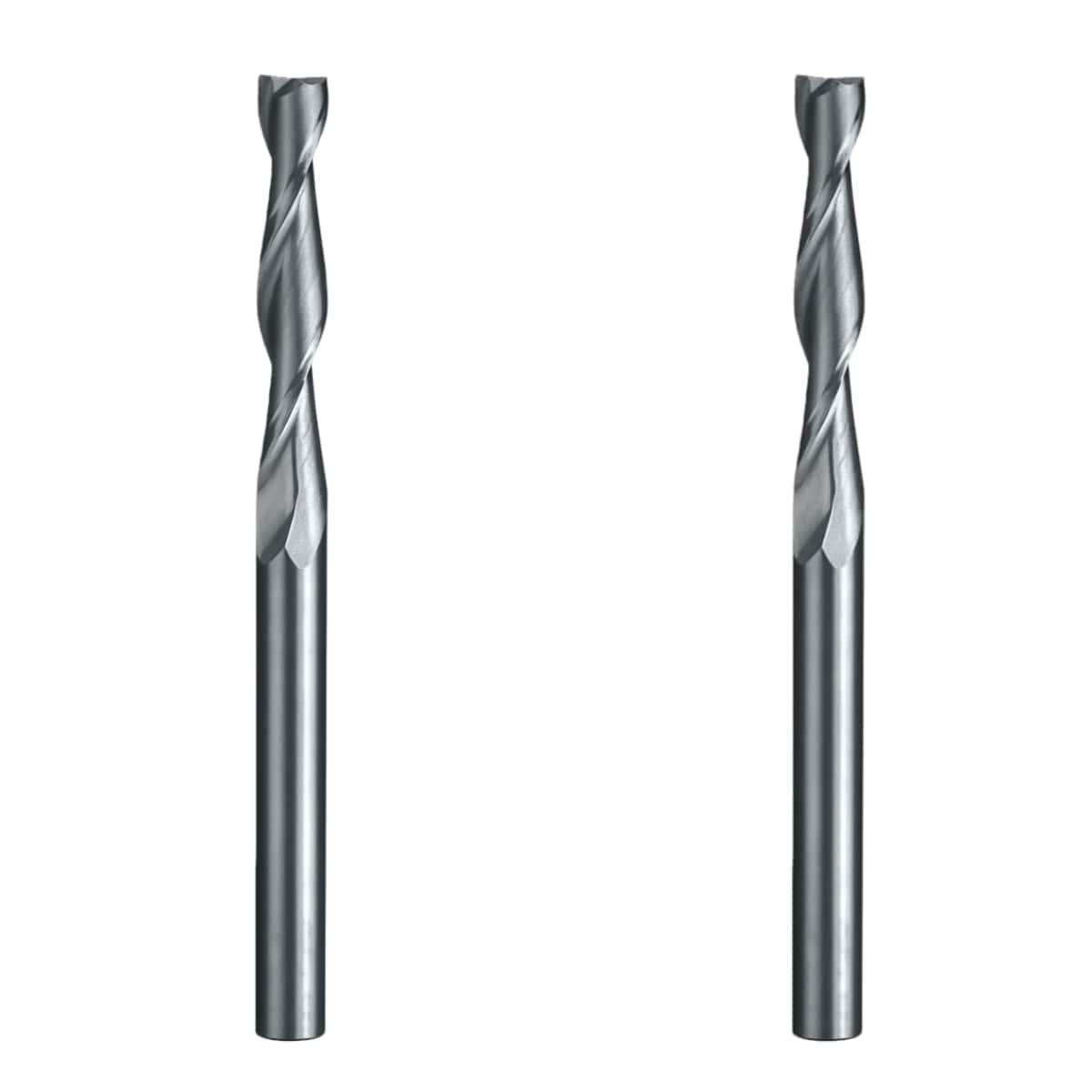

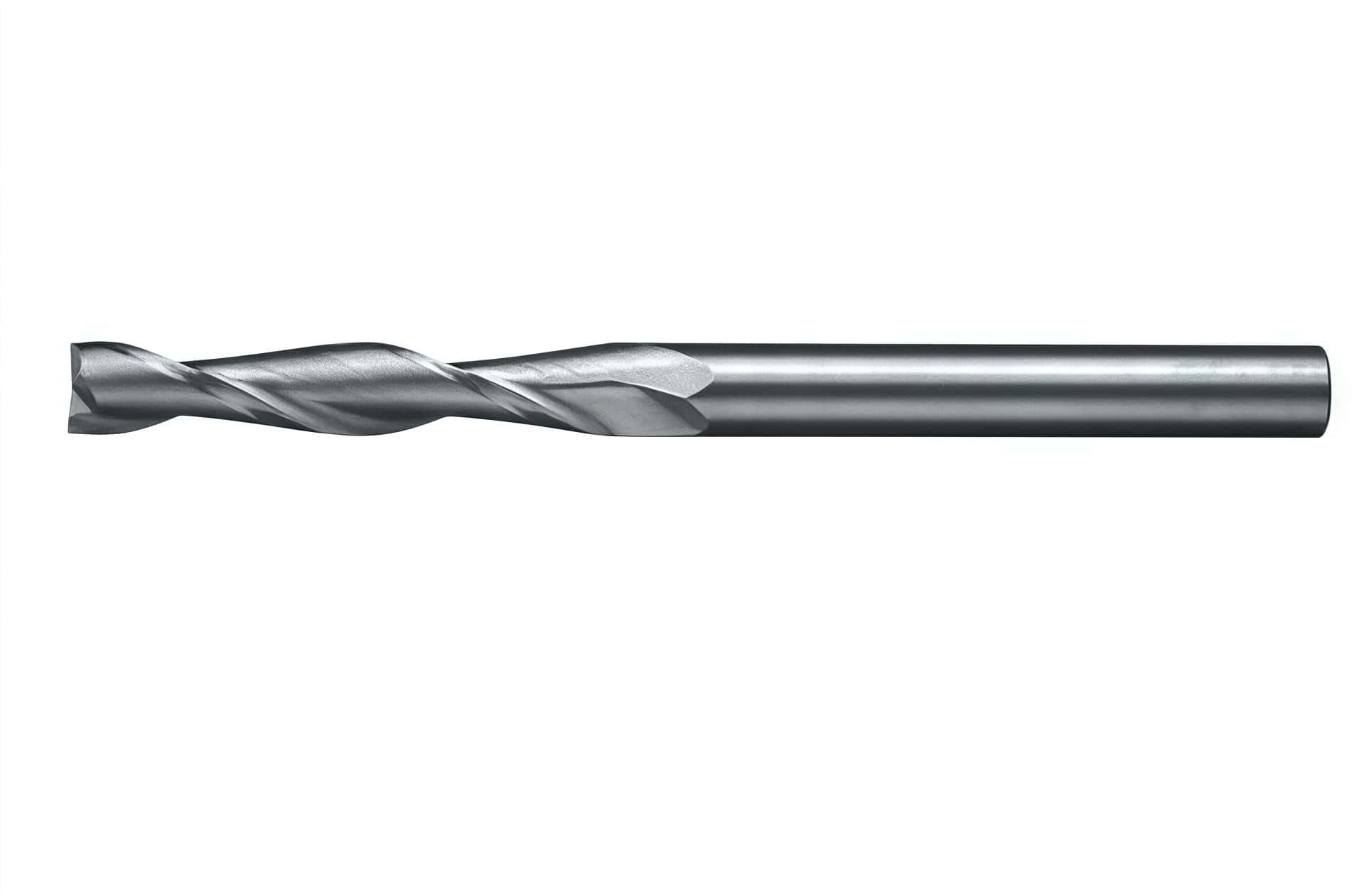

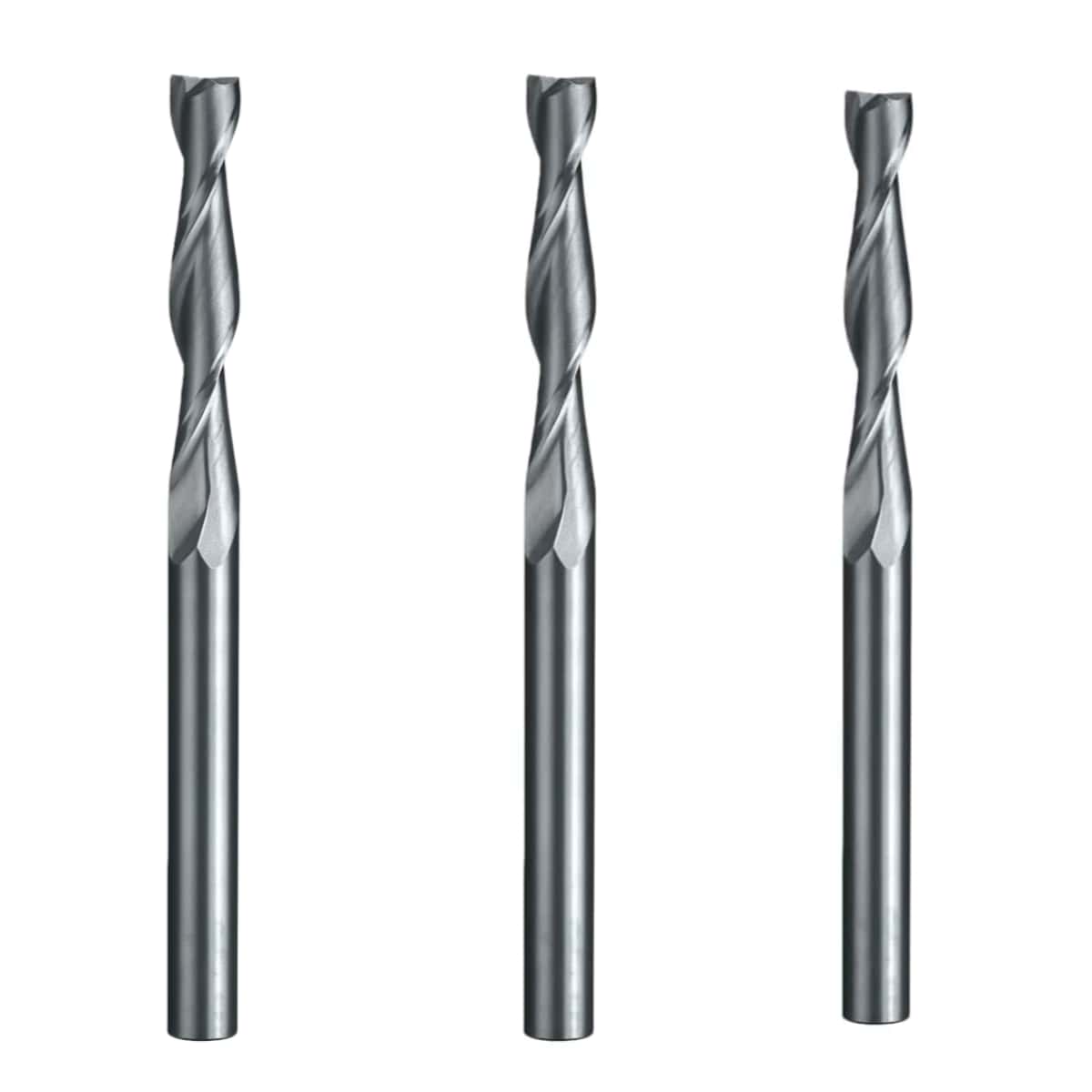

Itc 2631 Series 2 Flute Extra Long Router Bits

2631 Series
2 Flute Router - Extra Long Series

Core technical specifications and geometric characteristics

The 2631 series has the following standard characteristics:
Basic structure: double-flute, square end, straight shank.Chip removal geometry: 30° helix upward chip removal design.
This structure can smoothly extract chips upwards during high-speed operation, hole effectively preventing tool breakage or material melting due to chip accumulation during deep accumulation machining.
Cutting direction: Right Hand Cut, supports Center Cutting, which means that the insert allows for "plunge" milling operations that are performed directly vertically downwards.Post-surface treatment: Equipped with facet relief, which greatly improves the tensile strength and cutting edge stability of the tool under continuous high-load cutting.

Core compatible processing materials

The 2631 series is made of ultra-fine microparticle monolithic cemented carbide (tungsten steel) and is specifically designed for high-wear flexible or non-ferrous metal substrates requiring deep, thick plates to be cut through in a single pass .

Non-ferrous metals (soft metals) : aluminum plates, aluminum composite plates (ACM/Dibang plates), brass, and deep groove machining of copper parts.
Engineering plastics and insulation components : Acrylic (plexiglass) thick sheets, polycarbonate (PC), nylon, POM (polyoxymethylene), high-density polyethylene (HDPE).
Composite wood and thick boards : Drilling holes in cabinets made of thickened MDF, engineered hardwood, plywood, and fire-resistant boards

Metric Sizes (mm)

Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut
2631-3	3	3	75	25
2631-4	4	4	75	28
2631-5	5	5	100	31
2631-6	6	6	100	38
2631-6-XLS	6	6	80	45
2631-8	8	8	100	41
2631-8-XLS	8	8	100	55
2631-10	10	10	100	45
2631-10-XLS	10	10	110	55
2631-12	12	12	150	75
2631-16	16	16	150	75

The ITC 2631 Series 2-Flute Solid Carbide Extra-Long Router Bits are designed for high-performance applications. Available for production, manufacturing, wholesale, and retail purposes, they ensure excellent quality at competitive pricing. Options for OEM and ODM services are provided to meet diverse client needs. Suitable for use as consumables, spare parts, and compatible replacements, these bits are manufactured by CHINA Shenzhen Oyea Machinery Co., Ltd., ensuring reliability and adaptability for various machinery requirements.
