Itc 2091 Serie Upcut / Downcut Solid Carbide Compression Router Bits

Itc Milling Cutter Cnc End Mill Router Bits Tool Production, Manufacturing, Wholesale, Sales, Quality, Price, Oem, Odm, Supply, Factory, Consumables, Spare Parts, Compatible, Replacement, Suitable For China Shenzhen Oyea Machinery Co., Ltd Enquire now

Description

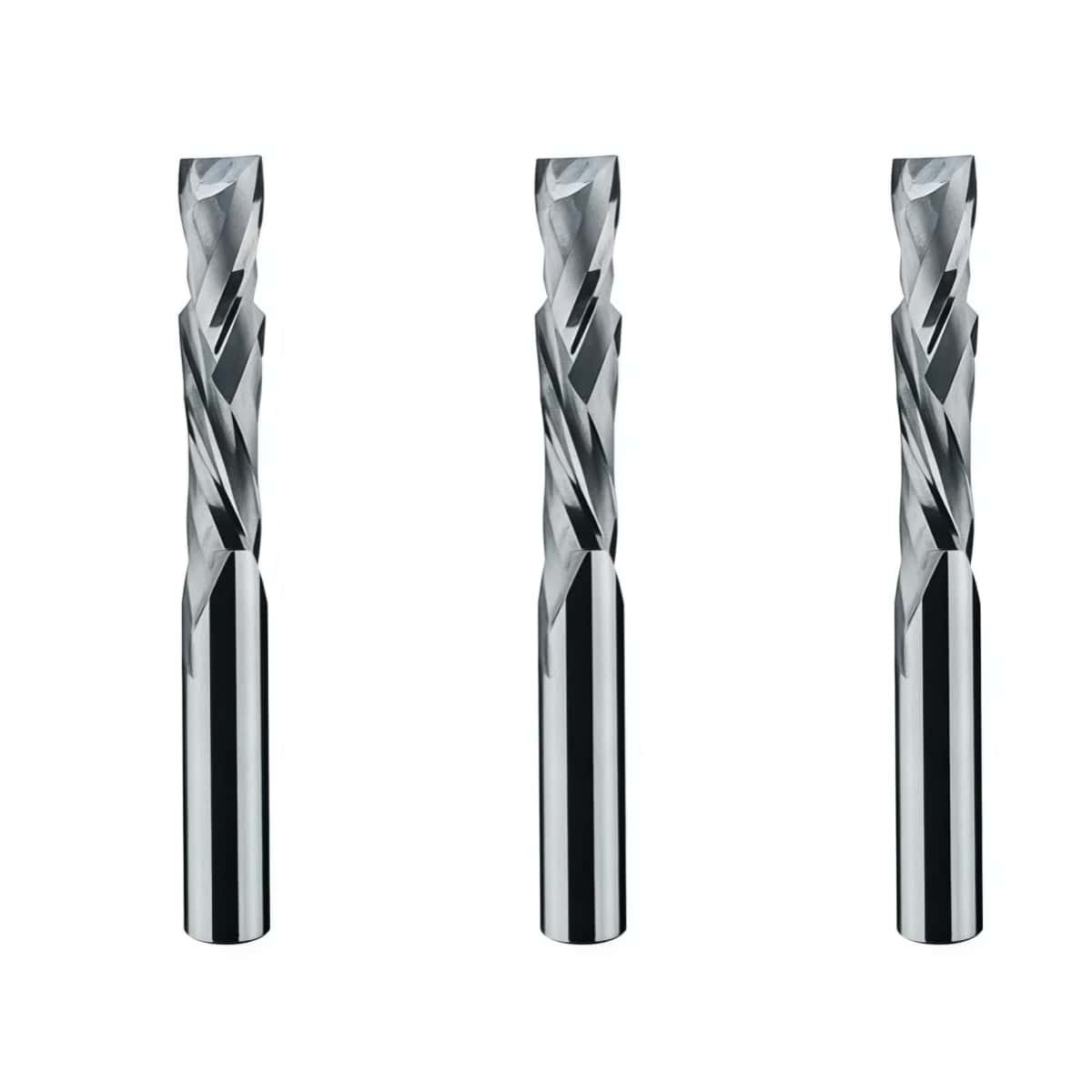

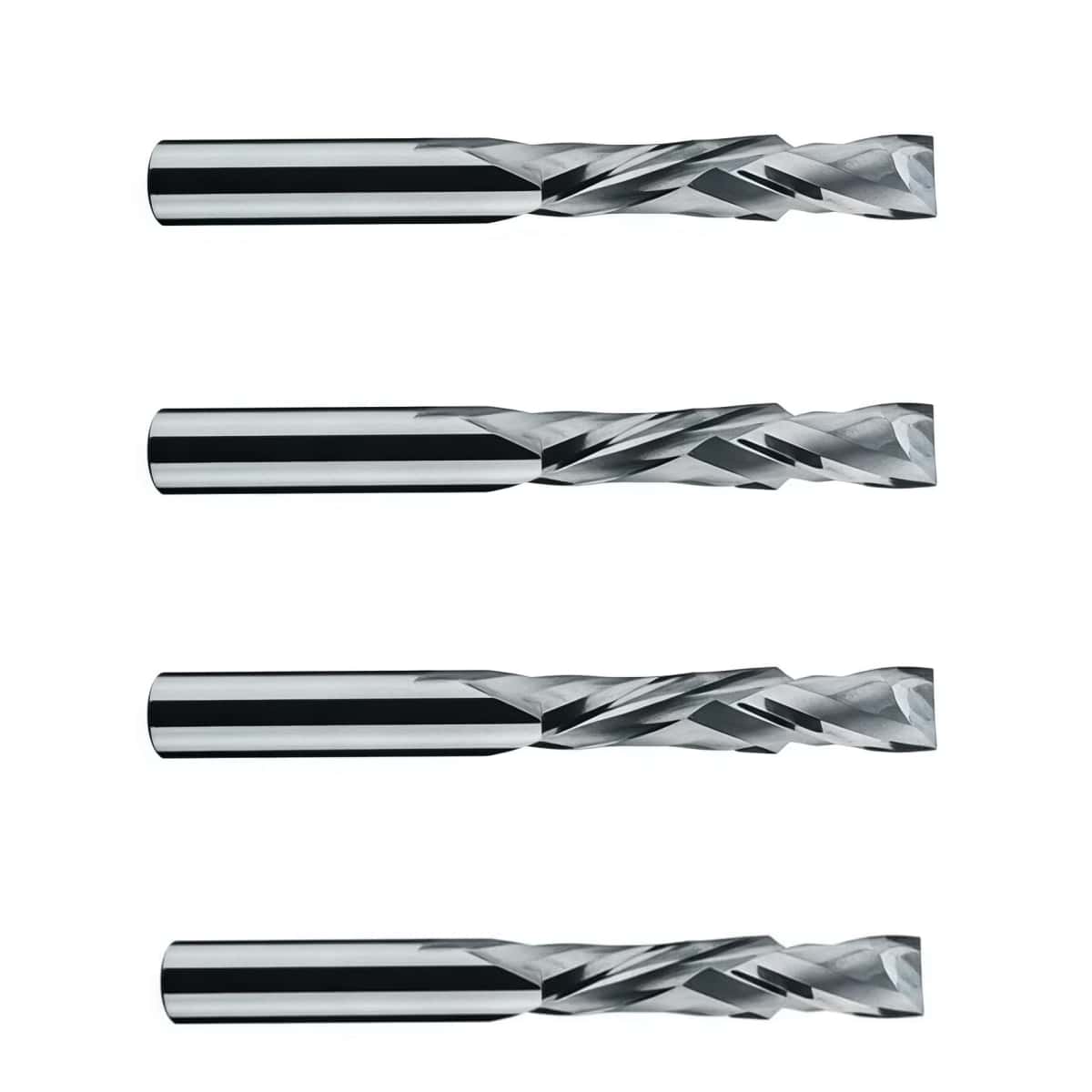

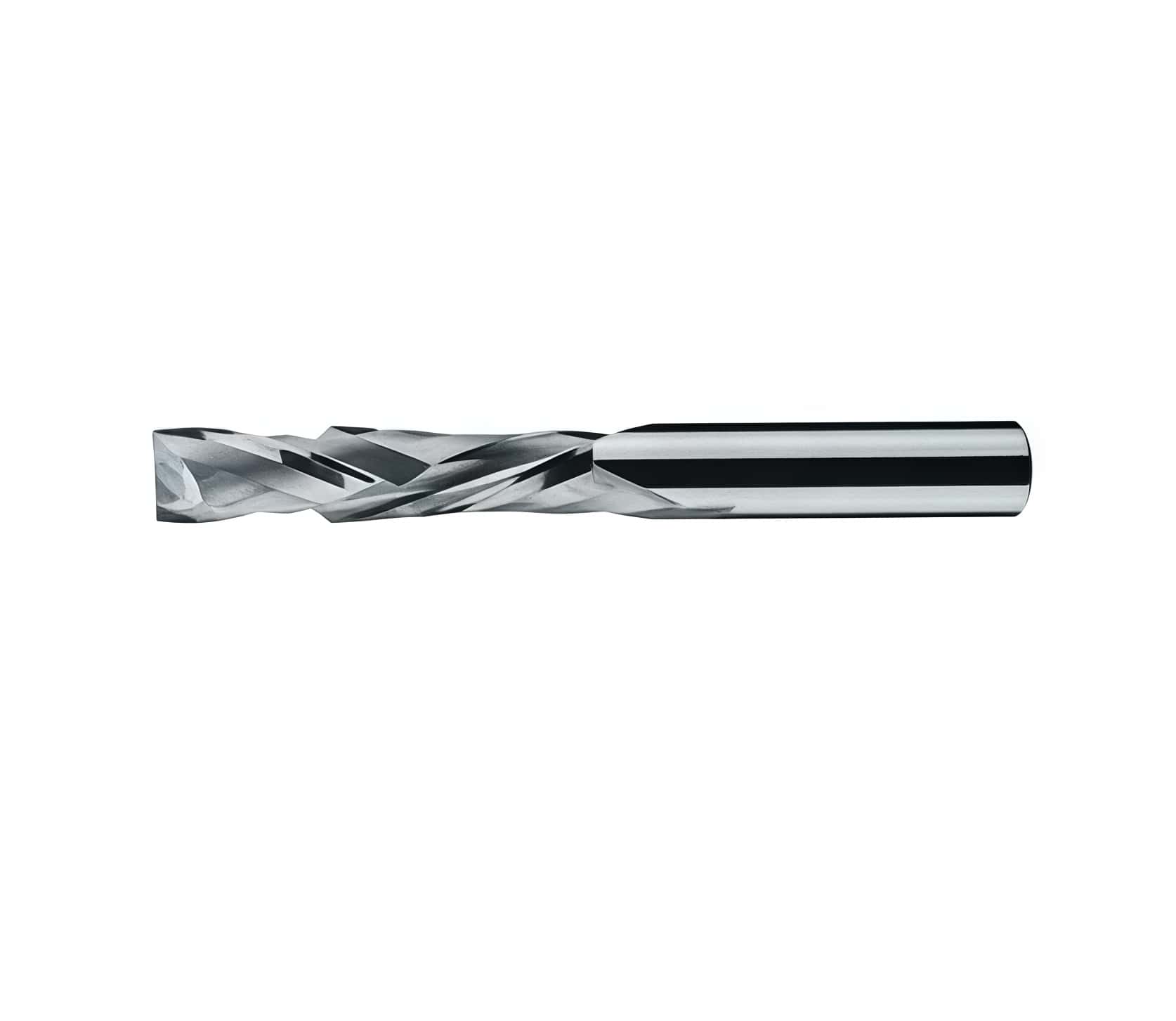

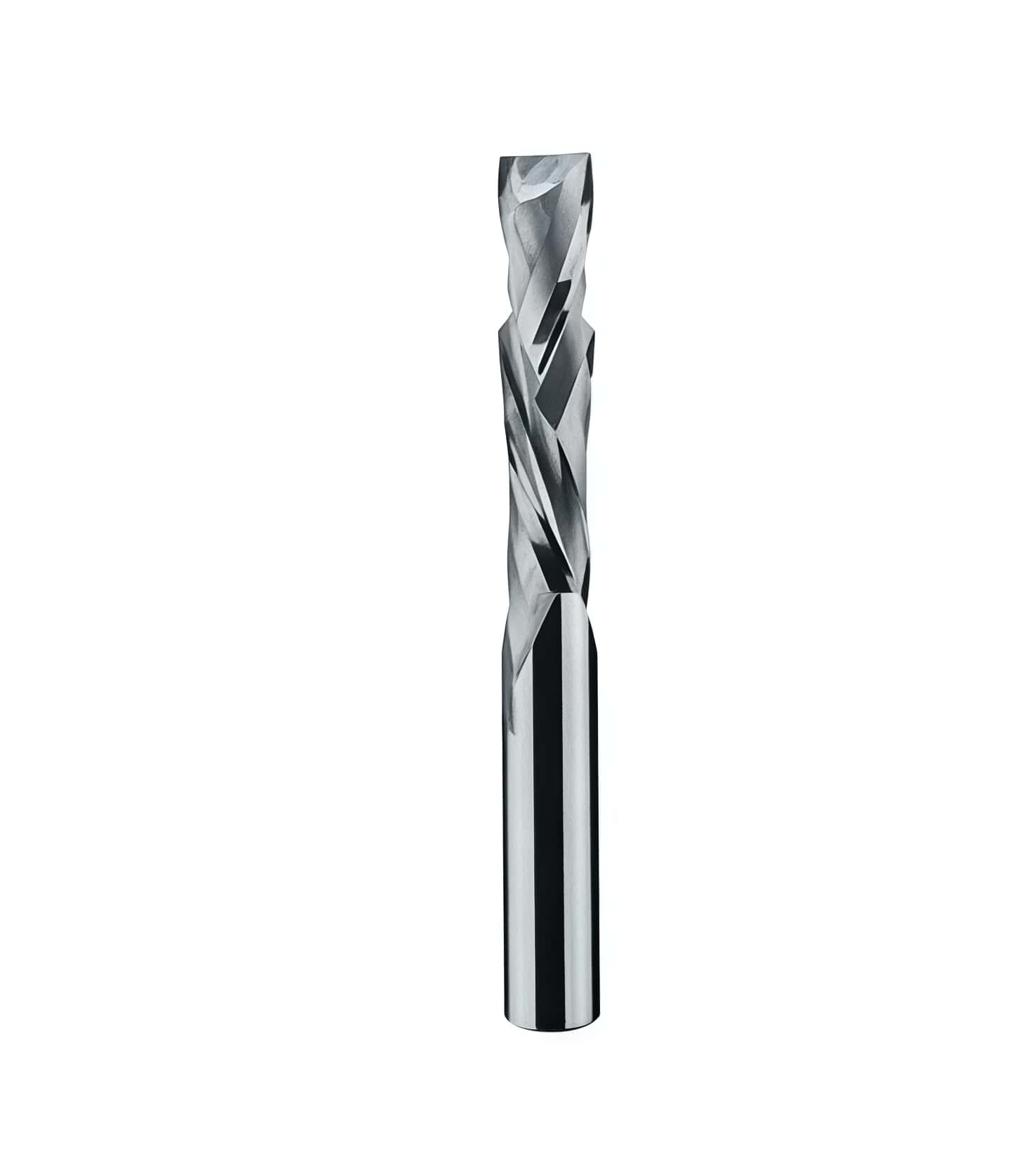

Itc 2091 Serie Upcut / Downcut Solid Carbide Compression Router Bits

2091 Series
Upcut / Downcut Router

Description

Solid carbide compression router, manufactured from Ultra Wear Resistant Micrograin Carbide. Lower part of the flute is Right Hand Spiral / Right Hand Cut, upper part of flute Left Hand Spiral / Right Hand Cut. Cupro coated for superior tool life.

The Compression Advantage

A compression bit combines both upcut and downcut geometries into a single tool:

Bottom Section (Upcut): Pulls the chips upward, ensuring a clean finish on the bottom edge of the material.
Top Section (Downcut): Pushes the chips downward, ensuring the top surface does not chip or "blow out."
The Result: The material is "compressed" toward the center, resulting in a perfect, splinter-free edge on both sides.

ITC 2091 Series Technical Specifications

Material: Micrograin Solid Carbide (Enhanced with coatings like Cupro for increased heat resistance and longevity).
Flute Design: Typically available in 2-flute or 3-flute configurations.
Recommended Materials: MFC (Melamine Faced Chipboard), laminated plywood, solid surface materials, and veneered MDF.

2 Flute / Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut	Crossover Length
2091-3F	2091-1181-20	3	6	58	10	3
2091-6F	2091-2362-20	6	6	75	22	6
2091-6FC	2091-2362-20-C	6	6	55	22	3
2091-8F	2091-3150-20	8	8	80	26	6
2091-10F	NEW	10	10	80	22	6
2091-10FX	NEW	10	10	80	27	6
2091-12F	NEW	12	12	80	28	8
2091-12JX	2091-4724-20	12	12	100	55	8

3 Flute / Metric Sizes (mm)

New Catalogue No.	Old Catalogue No.	Size	Shank Diameter	Overall Length	Length of Cut	Crossover Length
2093-10A	2091-3937-30A	10	10	80	22	6

The ITC 2091 Series Upcut/Downcut Solid Carbide Compression Router Bits are designed for superior performance and durability in various industrial applications. These router bits are expertly crafted for production, manufacturing, and wholesale purposes, with a strong emphasis placed on high-quality materials and precision engineering. They are available for both OEM and ODM services, ensuring they meet specific client requirements. Shenzhen Oyea Machinery Co., Ltd., based in China, offers these bits at competitive prices, maintaining a balance between cost-efficiency and exceptional performance. The product line includes full factory support for supply, along with essential consumables and spare parts to ensure sustained operation. These router bits are compatible, versatile, and suitable as replacements in a wide range of machinery, reflecting the company's commitment to providing reliable and innovative solutions to its global clientele.
