ZUND Z16C Titanium FibreCut-coated Tungsten Carbide Cutting Knife Blades-Production Supply

Zund Z16C (Titanium-Coated variant of the standard Z16) is a high-precision, drag-knife blade designed for straight cuts and detailed contours across thin to medium-thickness flexible materials. Enquire now

Description

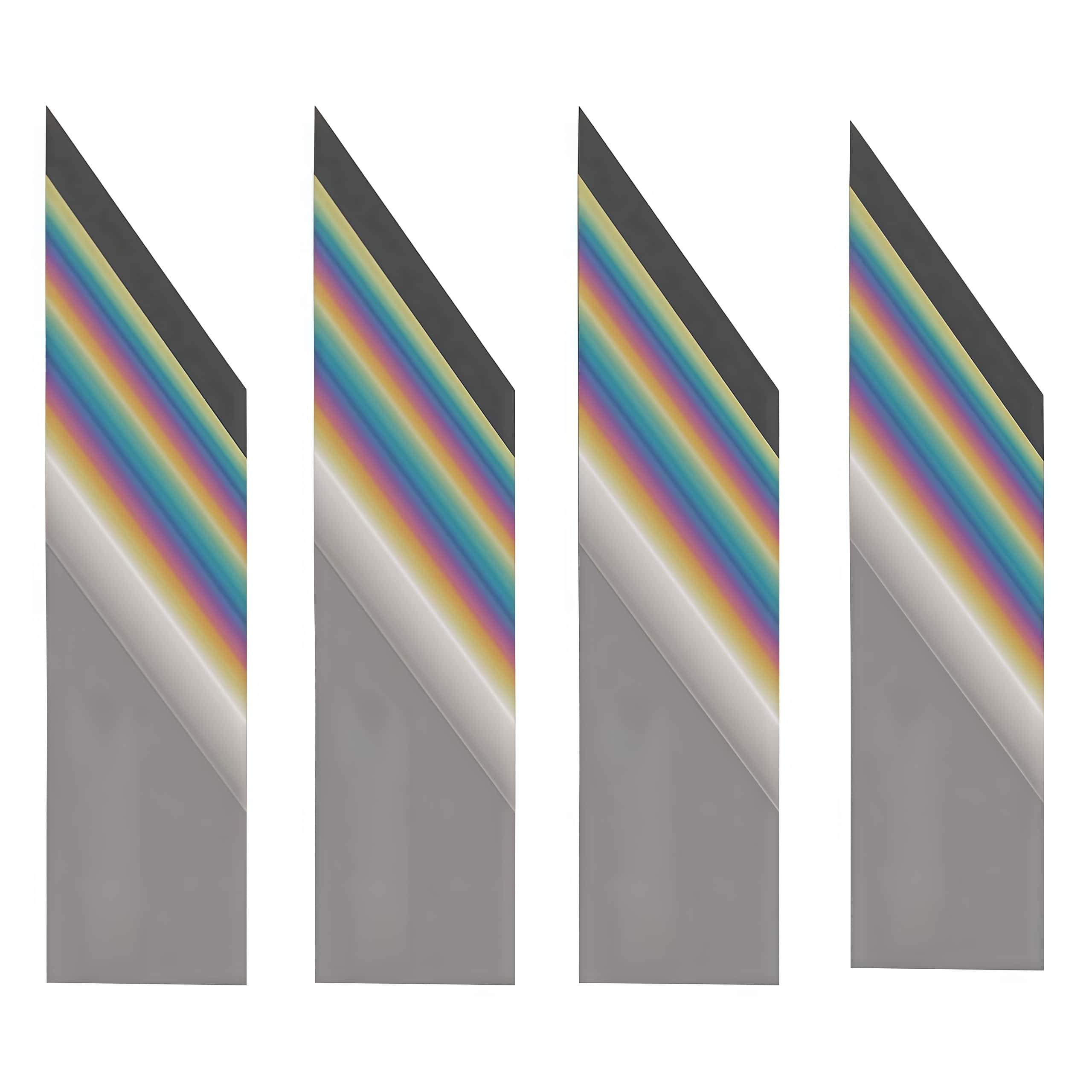

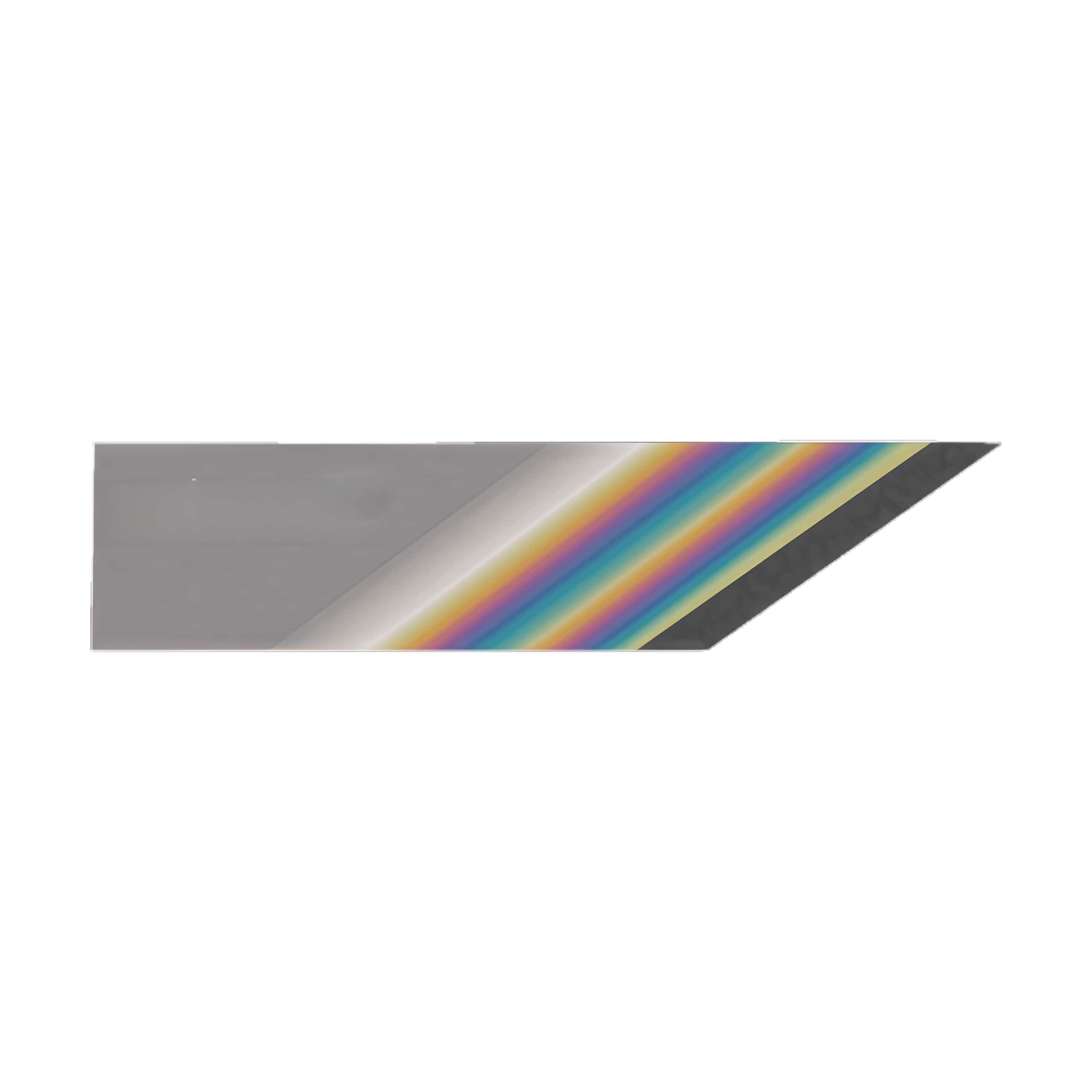

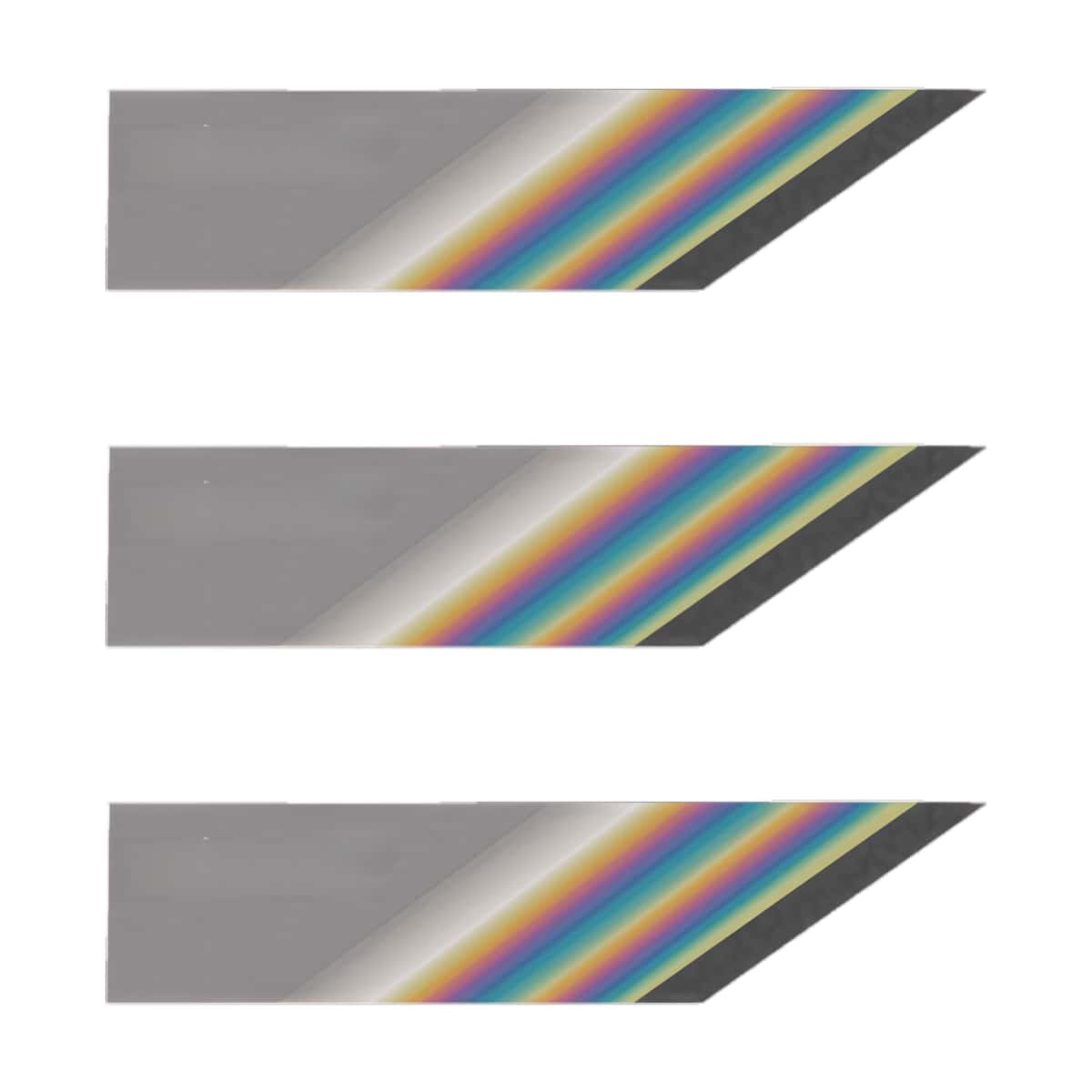

ZUND Z16C FibreCut-coated Tungsten Carbide Cutting Knife Blades

ZUND Z16C FibreCut-coated Tungsten Carbide Cutting Knife Blades is a high-end industrial-grade blade designed specifically for high-speed digital flatbed cutting machines (such as the Zund G3/S3/D3 series ).

It is a high-performance carbide version of the classic Z16 tungsten carbide blade (part number usually 3910306) with a special FibreCut coating (Part #5210315).

Application recommendations:	Paper, Corrugated cardboard, Folding cardboard, Displayboard, Foil - PP, Banner, PVC, vinyl, Lenticular displays, Magnetic foil, Reflector foil, Self-adhesive foil, Polycarbonate (PC), Rigid foam board (PVC, PS), Sealing material, Twin-wall sheet (PP), Soft-foam-board (PUR, PS), Protective foam, Fibreboard wood, Glass fiber fabric, Carbon fiber fabric, Fabric synthetic fiber, Canvas
Blade thickness (mm):	0.63
Coating:	fiberCut
Length (mm):	25
Max cutting depth (mm):	7.4
Pre-cut:	0,73 x Tm
Product material:	carbide, fine grain
Shaft width (mm):	5.65
Suitable for cutter:	Bullmer, Colex, Esko / Kongsberg, Mécanuméric, Zund / Wild, iEcho
Tip / shape:	single edge, pointed
Type:	drag blade, oscillating

Replaces:
Zund Z16 coated
Kongsberg BLD-SF216 C2 / 42475749
Bullmer B16 coated
Comagrav FN8 coated
iEcho E16 coated
Mécanuméric 100610440 coated

Z16 Series Comparison

Blade	Coating	Best For...
Z16	Uncoated	Folding carton, polyester film, thin foam core.
Z16C	FibreCut	Carbon fiber, Kevlar, and technical fabrics.
Z16 TiN	Titanium Nitride	Heavy-duty vinyl and abrasive plastics.

The ZUND Z16C FibreCut-coated Tungsten Carbide Cutting Knife Blades are designed to deliver exceptional cutting performance and durability. Specially engineered with FibreCut-coated tungsten carbide, these blades are ideal for industries that demand precision and efficiency. Crafted for advanced production and manufacturing processes, they are available for wholesale and sales, meeting diverse industrial needs. Offering superior quality at competitive pricing, these blades can be tailored through OEM and ODM services to suit specific project requirements. Manufactured in China by Shenzhen Oyea Machinery Co., Ltd., these cutting-edge tools reflect a commitment to innovation and excellence in cutting technology.
