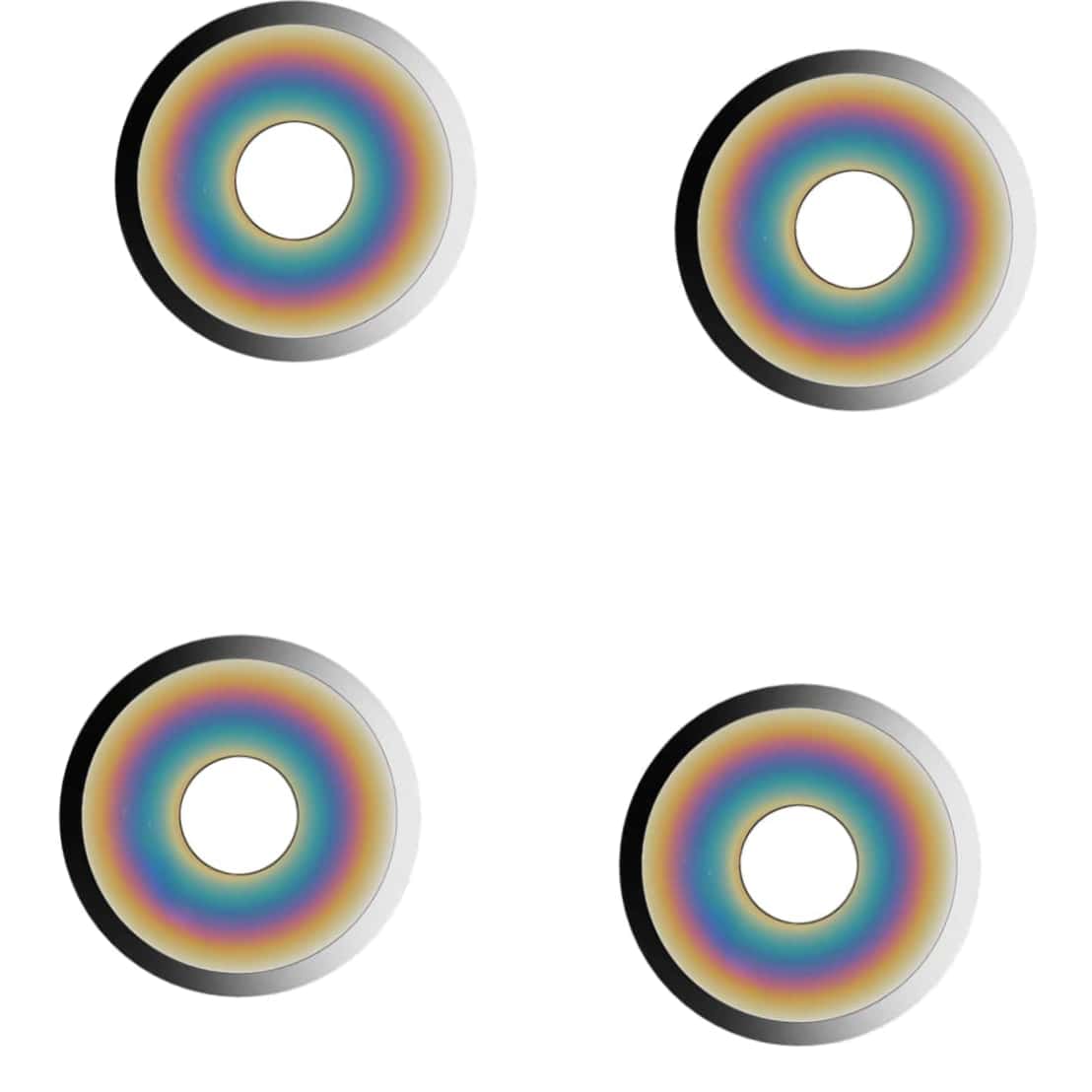

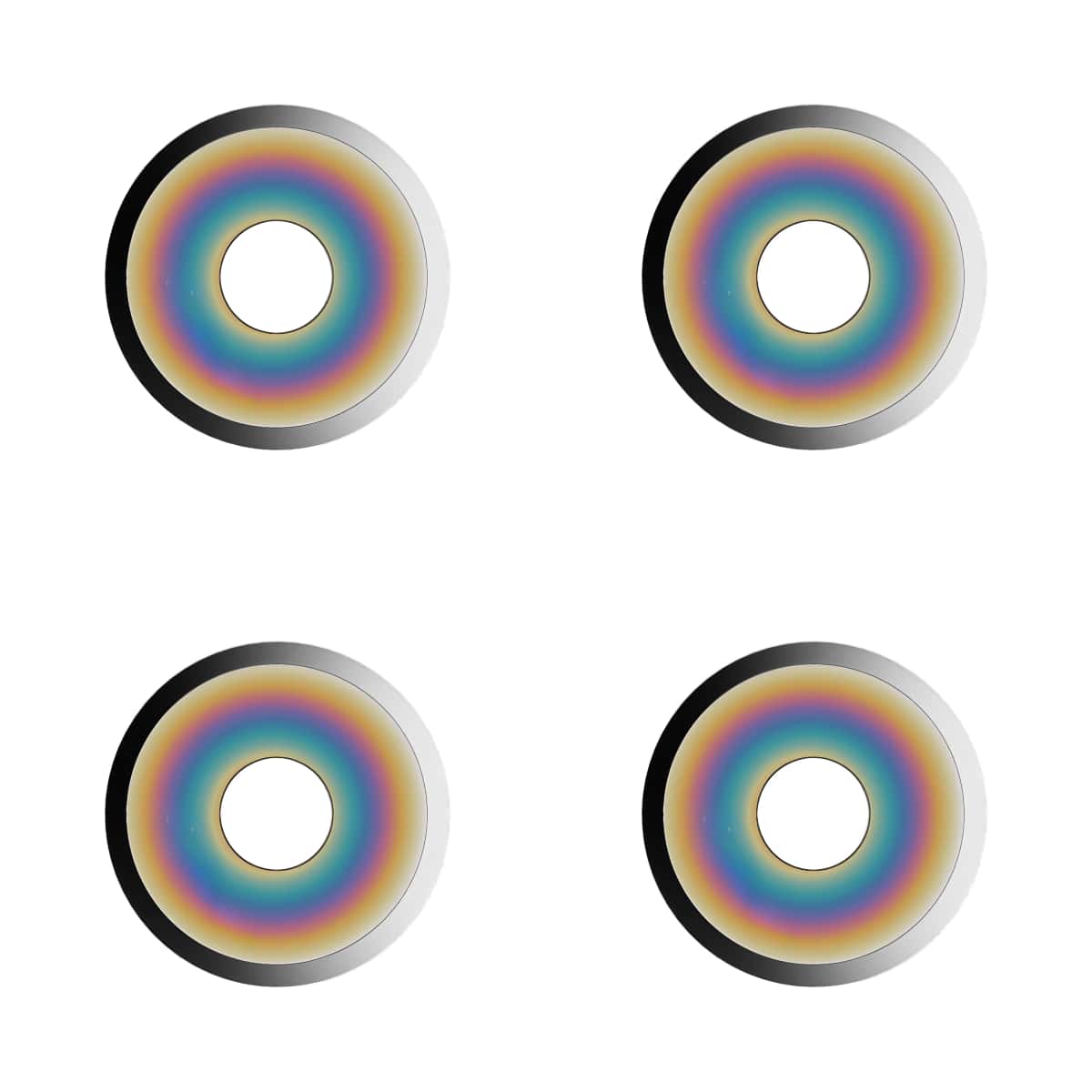

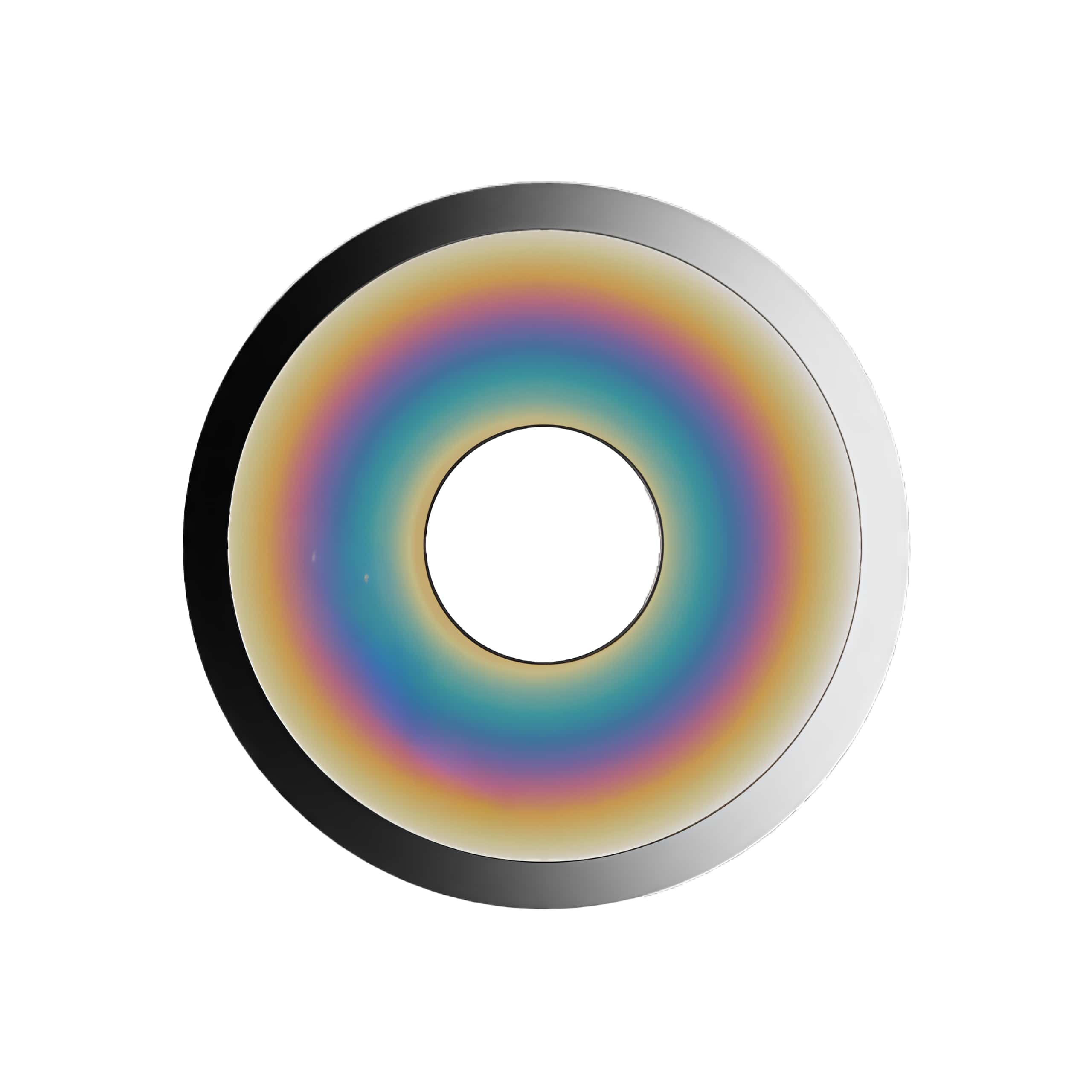

Zund Cutter Z53c With Coating Tungsten Carbide Circular Rotary Knife Blades

Zund Z53C is a tungsten carbide circular (round) rotary blade with a protective coating (typically Titanium Nitride/TiN or Titanium Carbonitride/TiCN), designed for continuous rolling cuts in high-speed rotary tools. Enquire now

Description

Zund Cutter Z53c With Coating Tungsten Carbide Circular Rotary Knife Blades

Zund Z53C(part number: 4800059 ) is Coated carbide integral circular rotary blades developed specifically for Zund digital flatbed cutting systems

Its high-speed rolling shearing design is specifically designed to solve the problems of fraying, pilling, and high-heat sticking to the blade in high-speed cutting of single-layer industrial technical textiles

Application recommendations:	Aramid fabric, Glass fiber fabric, Carbon fiber fabric, Carbon fiber prepreg, Glass fiber prepreg
Blade thickness (mm):	0.6
Coating:	fiberCut
Max cutting depth (mm):	2
Product material:	carbide, fine grain
Rotary blades:	bore Ø 8 mm, Ø 25 mm
Suitable for cutter:	Bullmer, Colex, Esko / Kongsberg, Kuris, Summa, Zund / Wild, iEcho
Tip / shape:	round blade
Type:	rotary

Replaces:	Zund Z53 coated Bullmer 806060 Aristo (Original HSS) coated Gerber MCT R53, Blackman & White BW53

Compatible with cutting heads and tool modules

This blade cannot be used with a non-powered tool holder; it must be used in conjunction with the Zund system's power-driven rotary tool module .

DRT (Driven Rotary Tool) : An active power-driven rotary tool that uses a motor to rotate the blade at high speed, providing strong cutting power through fabric.
PRT (Power Rotary Tool) : A powerful rotary tool designed for handling high-density, heavy-duty industrial textiles.

Suitable cutting materials

Due to the extremely high hardness of tungsten carbide (TCC) material (typically above HRA 90), combined with a physical vapor deposition (PVD) coating, the Z53c is ideal for cutting the following highly abrasive or easily fraying single-layer materials:

Advanced composite fibers : aramid fiber (DuPont Kevlar ), Twaron , carbon fiber cloth, glass fiber cloth, etc.
Technical textiles : nylon canvas, sunshade tarpaulin, high-density polyester fabric, automotive airbag fabric.
Soft industrial materials : leather, felt, nonwoven fabrics, and special wear-resistant paper.

The Zund Z53 coated cutting blade, Bullmer 806060, Aristo (original HSS) coated blade, and Gerber MCT R53 are expertly designed tools tailored to meet high-performance demands in rotary cutting applications. Additionally, the Blackman & White BW53 coated tungsten carbide rotary cutting knife blade stands out for its durability and precision in various production needs. With extensive capabilities in production, manufacturing, wholesale, and sales, Shenzhen Oyea Machinery Co., Ltd. delivers top-tier quality at competitive prices. Offering OEM and ODM services, the company has established itself as a leading entity in the manufacturing sector, proudly based in China and renowned for innovation and excellence in the machinery industry.
