Flatbed Digital Cutting System V-cut tool（VCT）

The China Flatbed Digital Cutting System featuring the V-Cut Tool (VCT) is expertly designed to meet diverse cutting requirements with precision and efficiency. This advanced system is specifically tailored for industries requiring high-quality cutting solutions and is meticulously developed for sea… Enquire now

Description

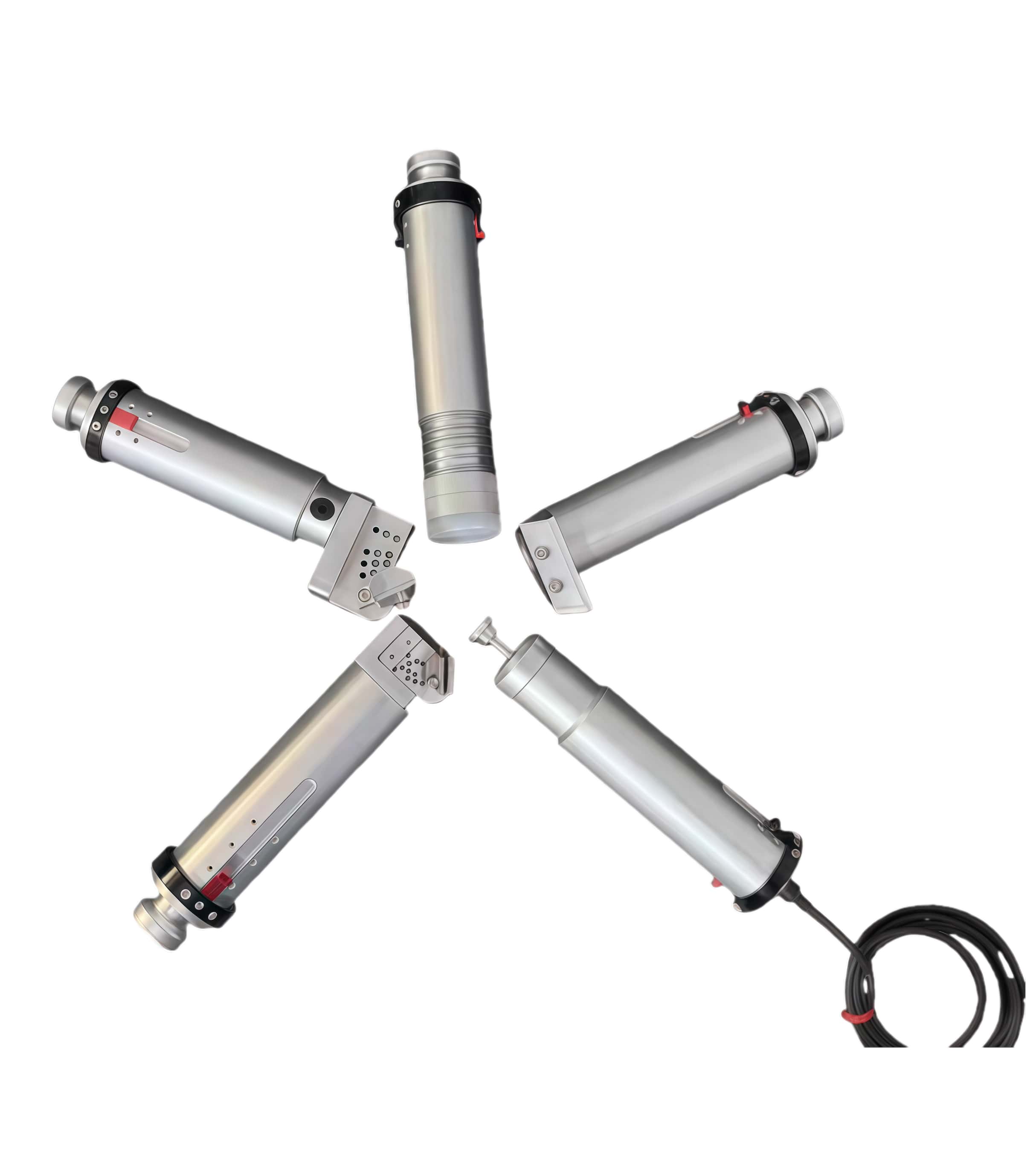

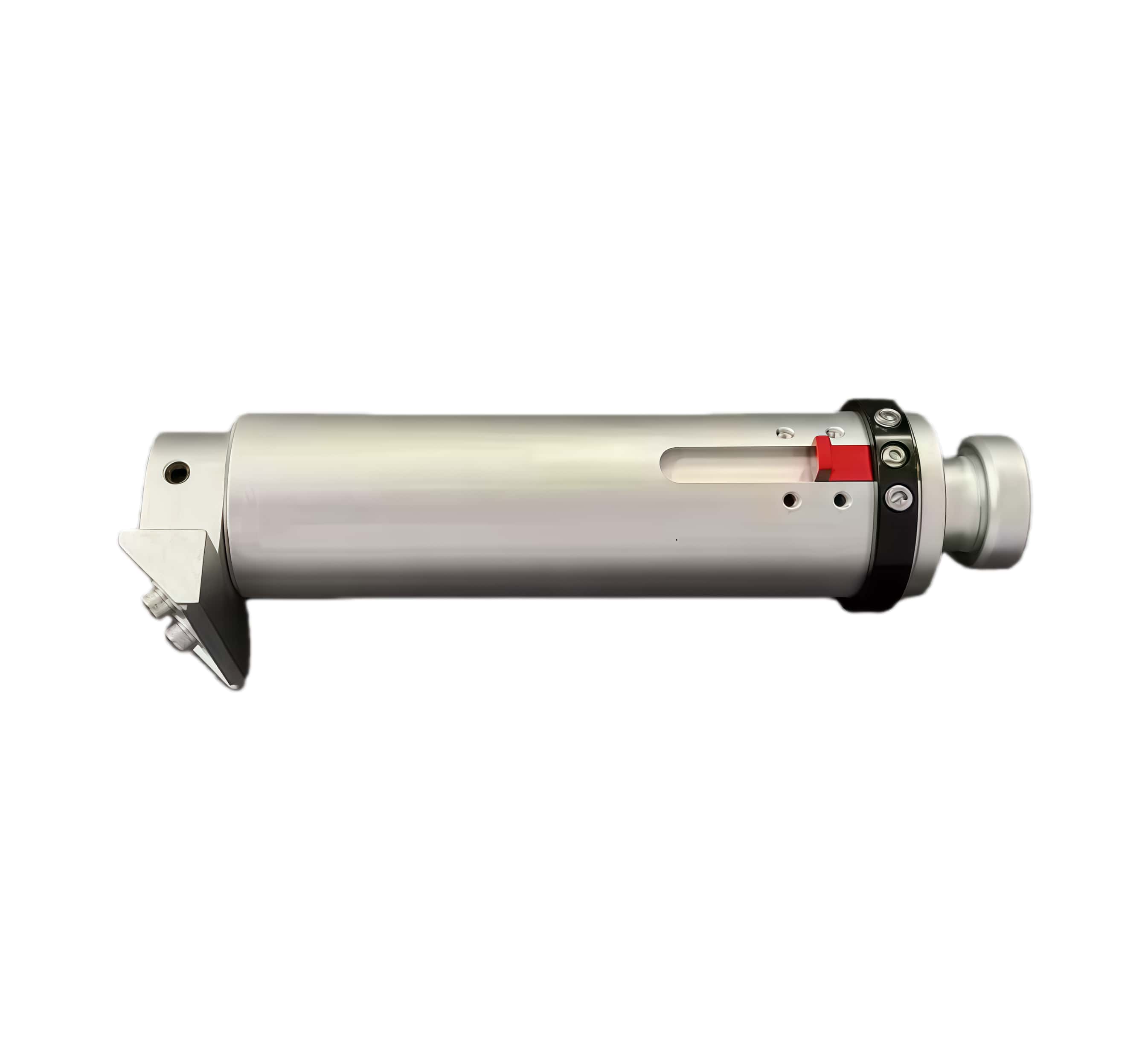

Flatbed Digital Cutting System V-cut tool（VCT）

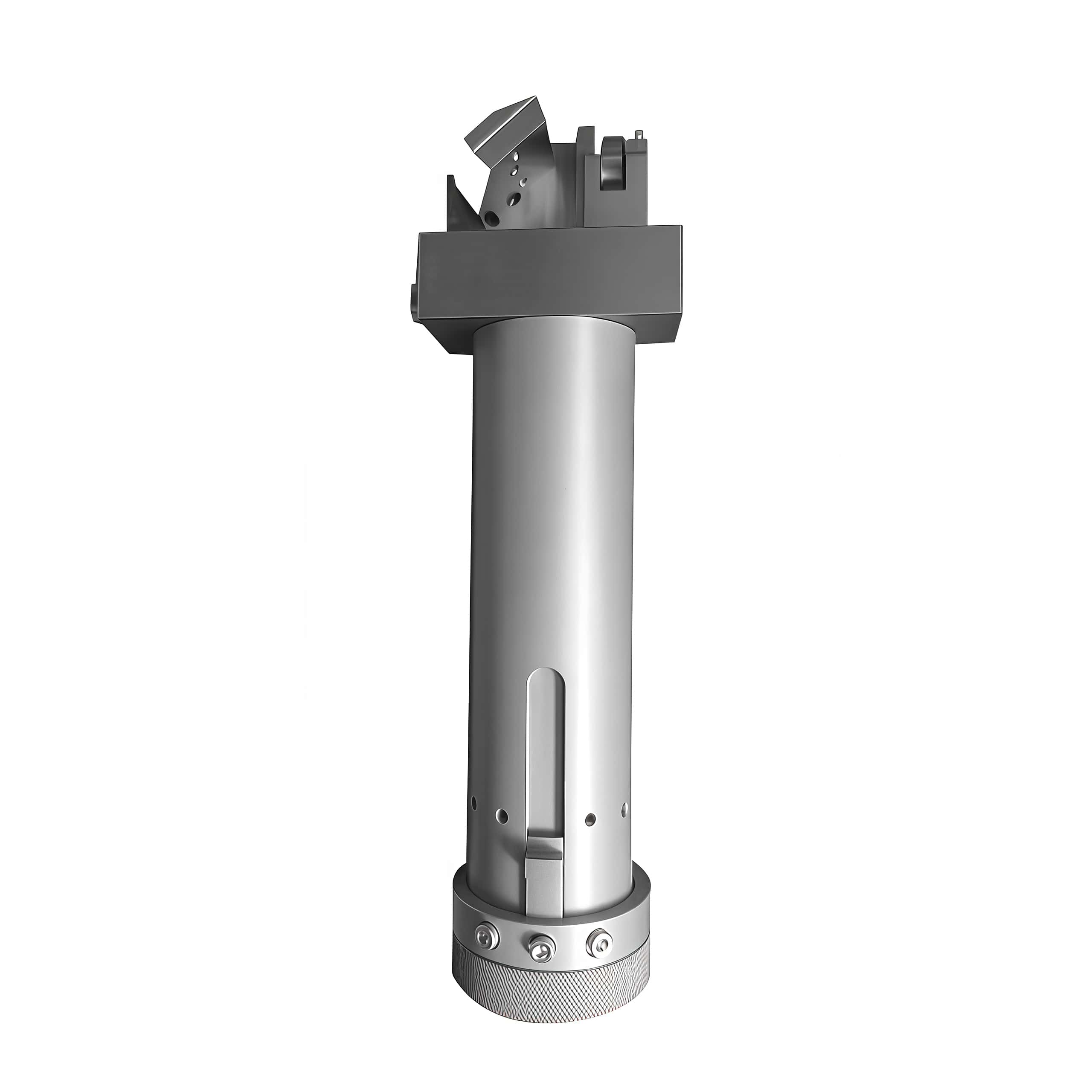

The V-Cutting Tool is meticulously designed to deliver highly precise bevel cuts and flawless V-grooves, making it an indispensable asset for professionals who prioritize accuracy and efficiency. This innovative tool significantly enhances the production process, enabling the creation of sophisticated and aesthetically appealing 3D structural designs with ease and proficiency. Designed for versatility, the VCT can seamlessly cut through materials up to 25 mm thick while offering a range of ten adjustable angle options, ensuring flexibility in crafting diverse design requirements. Its suitability caters perfectly to a wide spectrum of materials, including cardboard, foam-core sheets, corrugated material, and honeycomb display boards, which makes it a highly adaptable solution for various applications.

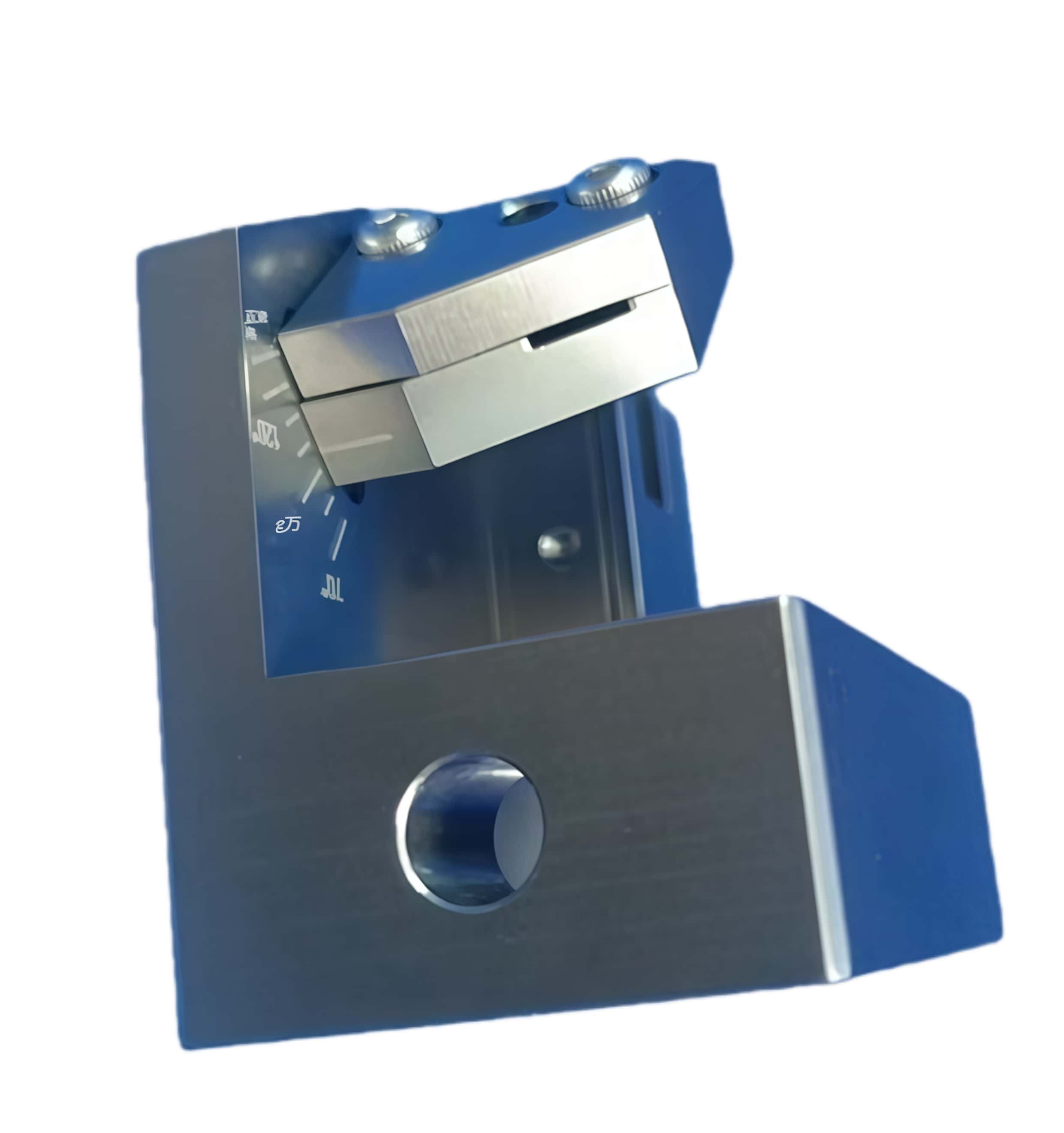

With its advanced capability to handle intricate and complex structural designs composed of foam-core or honeycomb display boards, this tool stands out by providing both simplicity and precision. The intuitively engineered angle settings offer eight pre-defined angles (0°, 5°, 7.5°, 10°, 15°, 22.5°, 30°, and 45°), empowering users to select the exact cut specifications they require without unnecessary trial and error.

Moreover, the tool is designed to facilitate exceptionally rapid blade changes, minimizing downtime and enhancing overall productivity. Whether you are designing intricate structures or focusing on streamlined cuts for larger projects, the V-Cutting Tool ensures optimal results with professional-grade precision every time.

Materials Suitable for Use:
- Honeycomb board
- Grey board
- PET acoustic materials
- Foam

Given its blend of precision, user-friendliness, and adaptability across diverse materials, the V-Cutting Tool proves to be an invaluable resource for any craftsman or design professional striving to achieve impeccable results with maximum efficiency.
