Esko Kongsberg BLD-SR6315 BLD-SR6316 BLD-SR6317 CNC cutting blades used on Kongsberg digital cutting tables Comparison Table

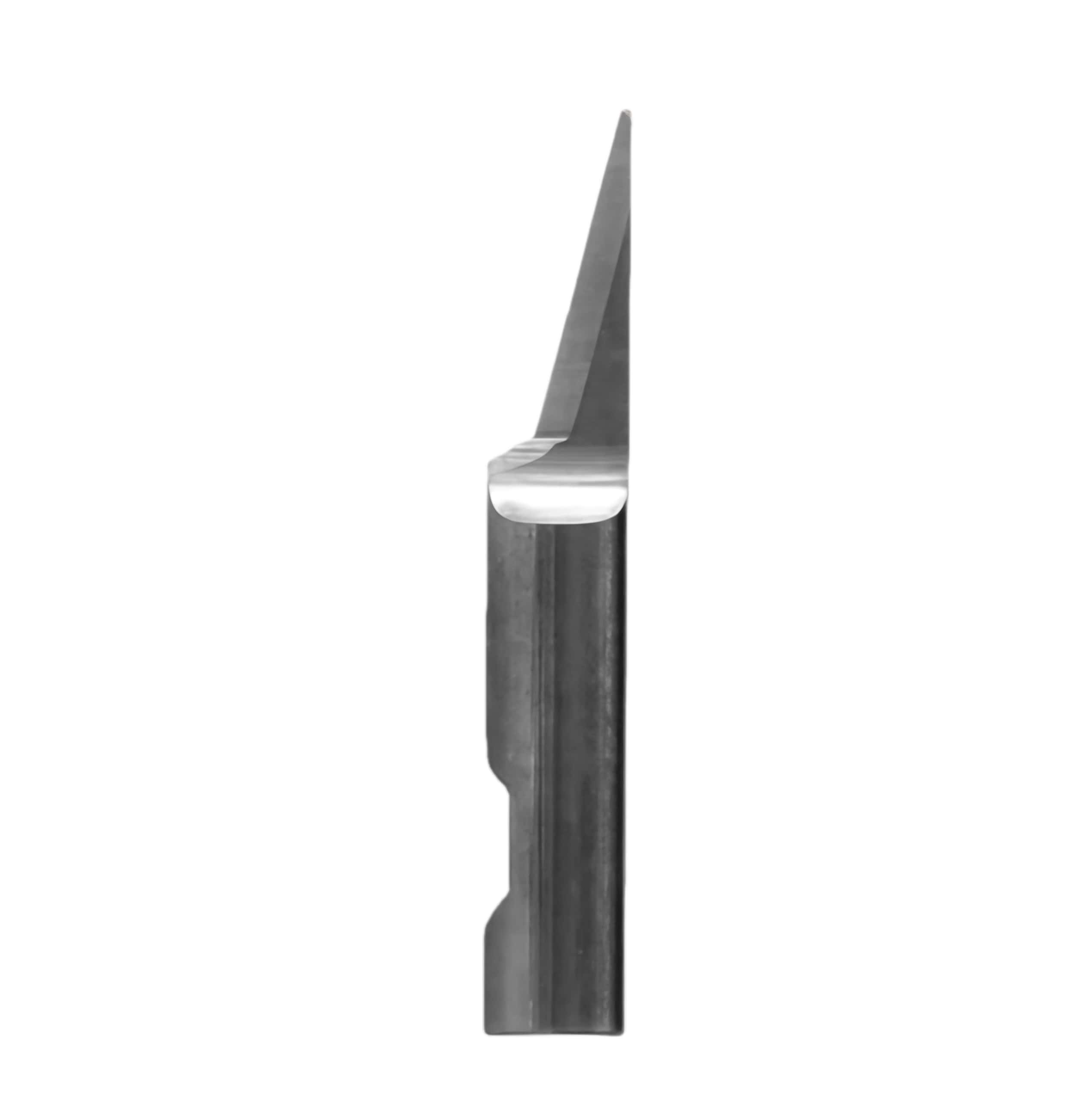

Esko Kongsberg BLD-SR6315, BLD-SR6316, and BLD-SR6317 are tungsten carbide oscillating knife blades designed for precision cutting on Kongsberg digital cutting tables. These blades share similar dimensions but differ in thickness and optimization for detail work. Below is a comparison based on available specifications.
Key Specifications
|
Feature |
|||
|
Knife Height/Length |
39 mm |
39 mm |
39 mm (inferred similar) |
|
Shank Diameter |
Ø6 mm |
Ø6 mm |
Ø6 mm (inferred similar) |
|
Blade Angle |
75° |
Not specified |
Not specified |
|
Max Cutting Depth |
14 mm |
Not specified (similar range) |
Not specified (similar range) |
|
Blade Thickness |
0.6 mm |
Not specified (between 6315/6317) |
0.25 mm |
|
Mounting Type |
Weldon, round Ø6 mm |
Weldon, round Ø6 mm |
Weldon (inferred similar) |
Primary Uses
All three blades suit oscillating knives on Kongsberg tables for materials like PVC, foam board, honeycomb, carbon fibers, and folding carton.
· BLD-SR6315 excels in general deep cuts (up to 14 mm) on foam, PVC, and reflective films.
· BLD-SR6316 serves intermediate needs, similar to 6315 but potentially varied thickness.
BLD-SR6317 optimizes for finest details with its thinner 0.25 mm blade, reducing overcut.
